Product Introduction

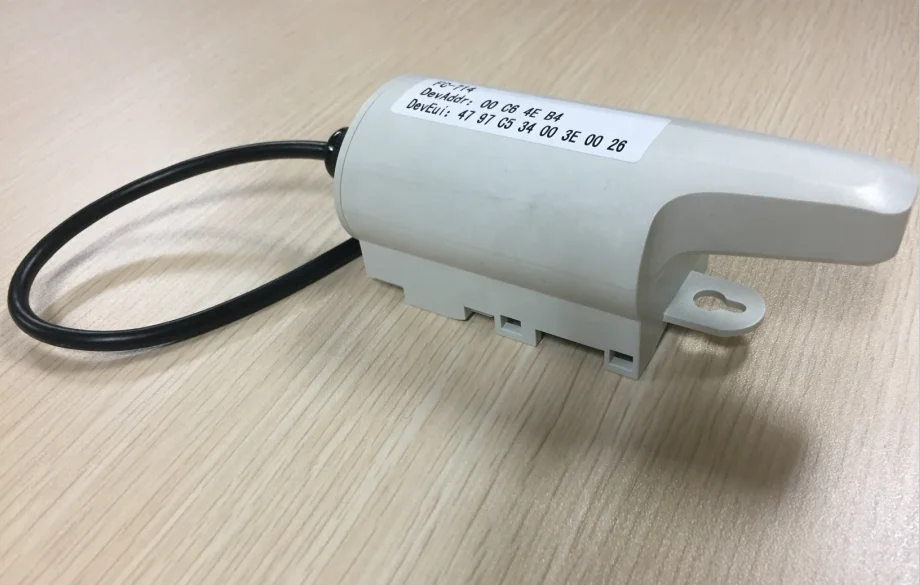

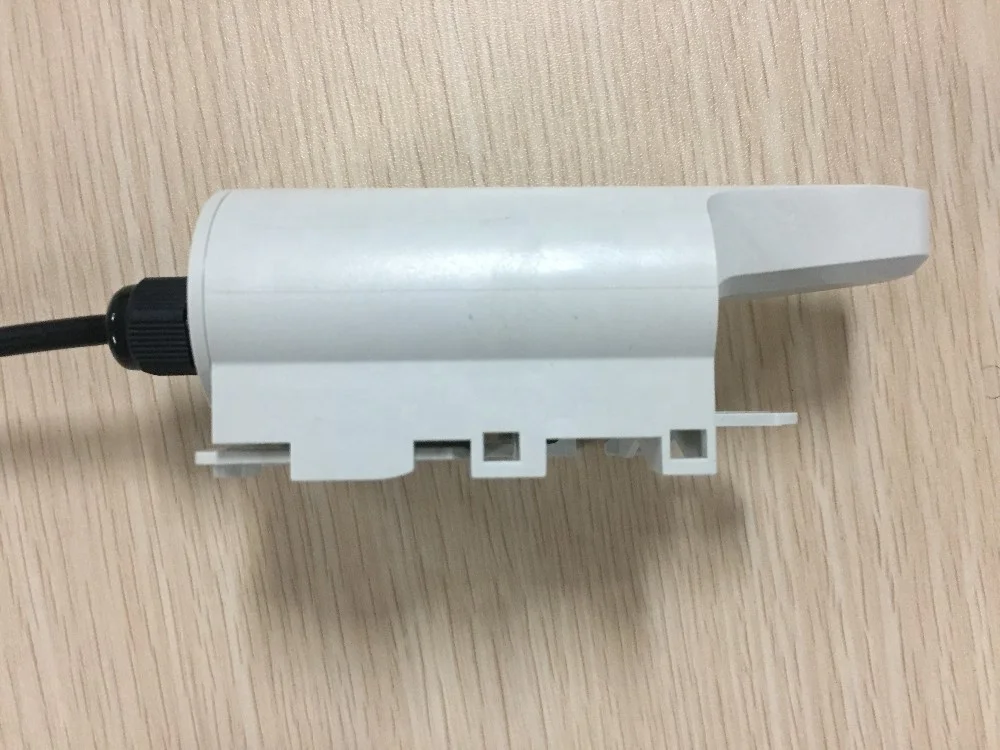

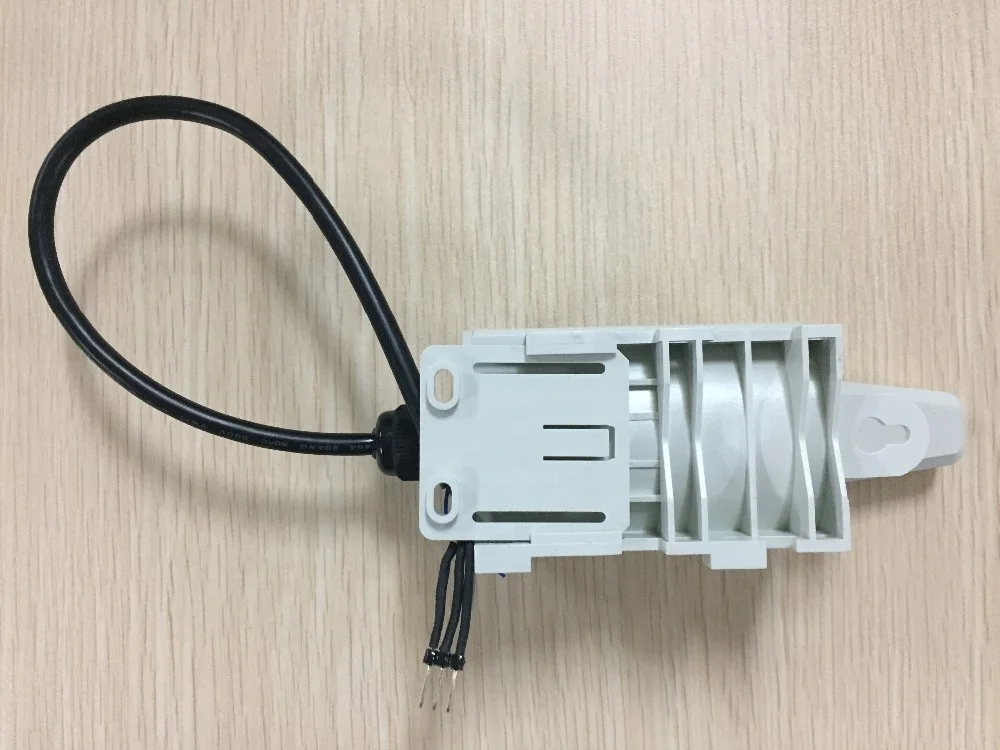

LoRaWAN Pulse counter and security sensor for data reading


The FC-714 LoRaWAN product is developed for the customer's needs for the time being. It is mainly used for data acquisition of single-pulse water meters, and use LoRaWAN technology to implement active data reporting.

The FC-714 LoRaWAN product has the characteristics of simple deployment, high reliability, low power consumption and long transmission distance.

Applications

M2M,IOT and LPWAN
Wireless sensor network
AMR
Industry 4.0,Industrial monitor
Wireless remote control and monitor
Smart Home, Smart building, Smart community and Smart city;
Wireless alarm and security
Environment monitor

Key Feature

Power supply: 2.6V to 3.7V
Frequency bands: AU915MHz
Stand-by mode current: <8uA
Transmit power: up to 20 dBm @ 915MHz
Sensitivity: -137dBm @ SF12, BW125kHz,915MHz
Receive current: 15.5 mA @BW125kHz,915MHz
Transmission current: 128 mA @ 20dBm, 915 MHz
Harmonics emission: <-40dBm above 1GHz



The FC-714 LoRaWAN product collect the single-pulse signal from the water meter and count it, and proactive reporting the current cumulative data to the network server every day.

Confuguration

The FC-714 LoRaWAN product will proactive report data every day according to the set time. The reported contents include the current total usage data, the amount reported yesterday, the amount reported the day before yesterday, and the alarm status;

Use serial debugging software for parameter configuration. Before parameters setting, the module interface needs connected to the computer USB port via a TTL to USB tool.
Serial port parameters: baud rate 19200bps, 8 data bits, no parity, 1 stop bit.


Installation
