Лазерная маркировочная машина для глубокой резки металла и пластика 20 Вт 30 50 100

Лазерная маркировочная машина для глубокой резки металла и пластика 20 Вт 30 50 100

Категория: >>>
Поставщик: Wuhan BST LASER Machinery Co. LtdWuhan Ltd

Цена:113 125,60 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

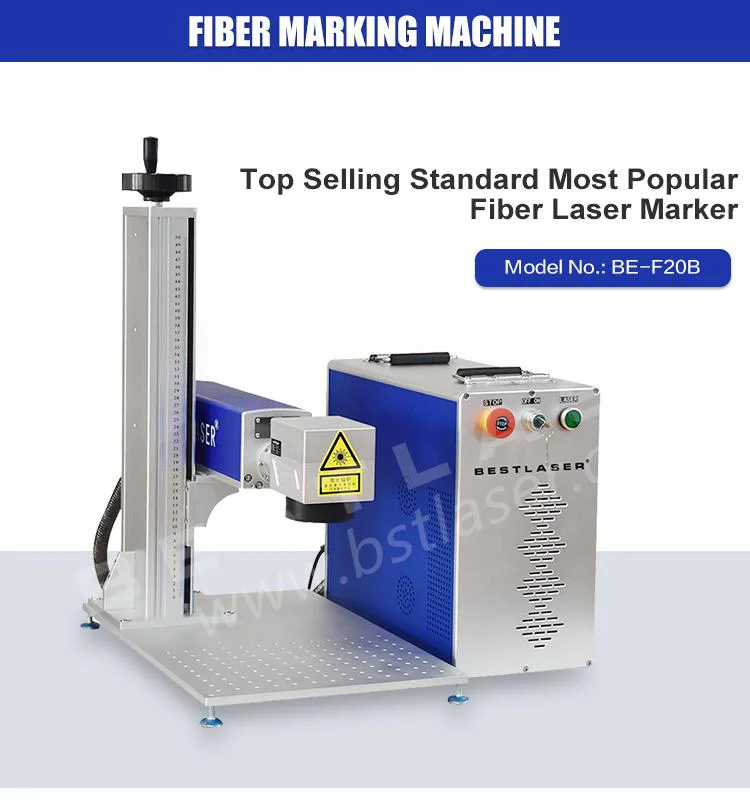

Deep Etching 50 watt 100w Fiber Laser Marking Machine

Machine Introduction

Powerful open fiber laser in a compact design. Easy to install in any workshop; maximum freedom of movement and very safe to use with supplied safety goggles.

Open fiber lasers are very suitable for fast production work and maximum freedom of movement. Even large objects can be processed effortlessly with this laser source. Of course, safety glasses must always be worn with an open fiber laser.

With the built-in red-dot and contour laser, the object is first projected onto the object in visible light so that very precise
positioning is possible. With the open-desk variant, even large objects can easily be placed under the laser.

Main Features:

1. Adopts pulsed fiber laser, with a pulse width of less than 30ns, it outputs a peak power of up to 25kW, and has a high beam quality M2<1.5 close to the diffraction limit.

2. The laser all-fiber structure design ensures the high reliability of the laser without any optical components for collimation adjustment.

3. The integrated design of the system makes it more convenient for customers to use and provides an ideal solution for various industrial applications.

4. Long service life, compact size, no need of huge water cooling system, just simple air cooling.
It can also work normally under harsh environments such as certain shocks, vibrations, higher temperatures or dust.

5. The processing speed is 2-3 times that of the traditional laser marking machine, fine laser beam quality, narrow marking line suitable for precision marking.

6. operation cost low and power saving. The whole machine power is only 500W.
Compared with lamp pumps or semiconductor laser marking machines, it can largely save electricity costs.

7. Integrated modular design, convenient maintenance, small size and saving your precious plant space.

Detailed Images

Technical Data

Item			laser engraving machine for yeti cups BE-F20B
Laser Type			1064nm
Wavelength			20-80Khz
Laser Pulse Frequency			<1.4M2
Beam Quality			10w/20W/30W/50w/100w
Peak Laser Power			<8000MM/S
Marking Speed			≤0.5MM
Marking Depth			±0.01MM
Repetition Precision			0.02MM
Min. Line Width			0.2MM
Min. Character			Air Cooling
Cooling Mode			PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Graphic Formats Supported			AC 110/220V±10%, 50/60Hz
Power Source			10-35 ℃
Working Temperature			<75%( No condensation)
Working Humidity			Clean, free of dust
Working Environment			< 1000W
Gross Power			IP54
Safety Protection Class			Ⅳ
Laser Generator Safety Class			550-1200MM
Adjustable Height Direction(Upper surface)			400-1500MM
Adjustable Height Direction(Side)			0-200MM
Front And Back Direction Adjustable Distance			Any Angles
Marking Angles			0~35℃

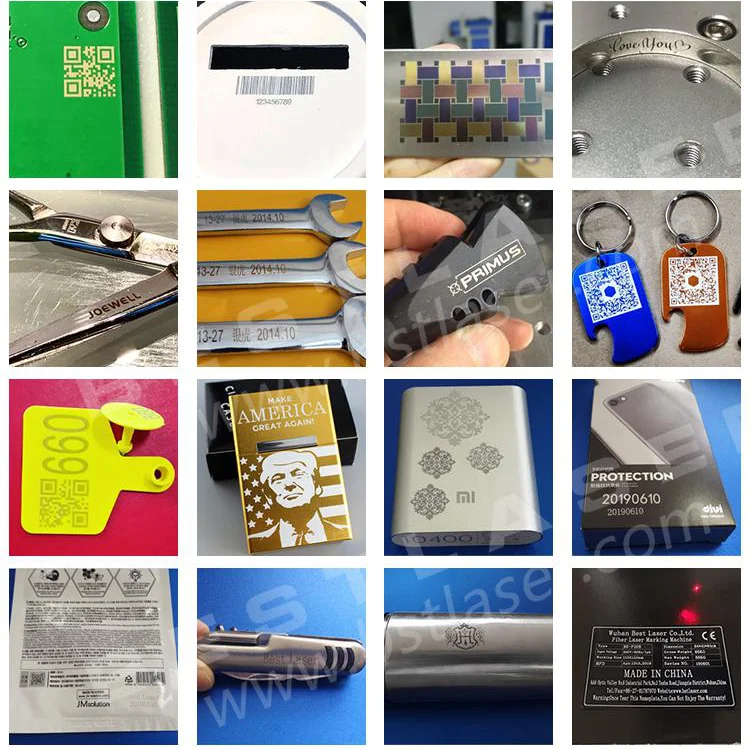

Demo Marking Samples

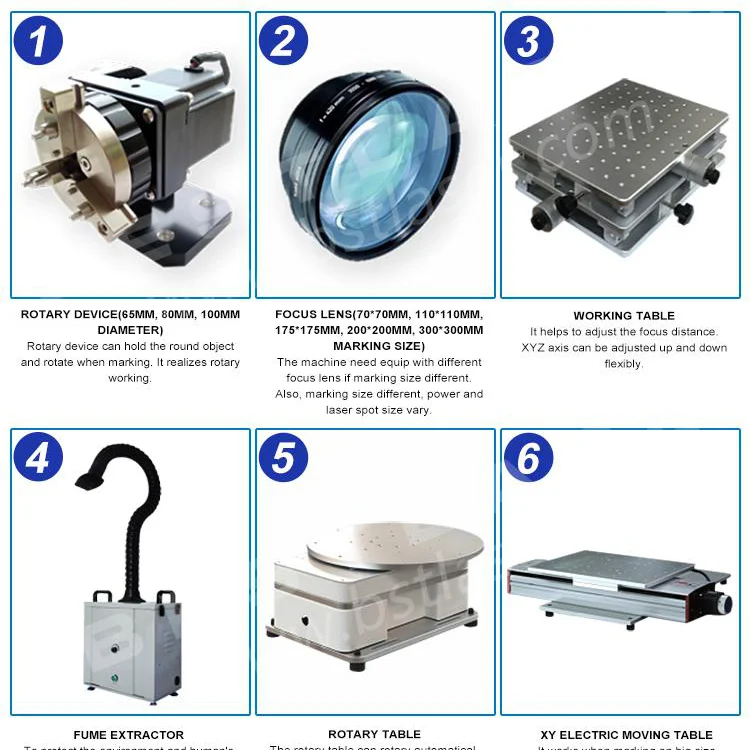

Optional Items:

Rotary device(65mm, 80mm, 100mm diameter)

Rotary device can hold the round object and rotate when marking. It realizes rotary working.

Focus Lens(7070mm, 110110mm, 175175mm, 200200mm, 300*300mm marking size)

The machine need equip with different focus lens if marking size different.

Also, marking size different, power and laser spot size vary.

Working table

It helps to adjust the focus distance.

XYZ axis can be adjusted up and down flexibly.

Fume Extractor

To protect the environment and human's health, the fume extractor can clean the fumes and dust occurred when working.

Rotary Table

The rotary table can rotary automatically when marking. It brings convenience when marking on small objects.

XY electric moving table

It works when marking on big size material. It can divide the marking job into several times.

Packing & Delivery

Packaging
Size	96 (L) * 41(W) * 83 (H)
Weight	60kg
Packaging Details	We have 3 layers package. 1.Outside:we adopt wood craft case. 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof.

Our Service

Founded in 2010, Wuhan Best Laser Co., Ltd. is located in Wuhan, Hubei, China. It is an emerging high-tech laser equipment company with more than 1,000 production R&D workshops. Wuhan Best Laser Co.,Ltd is committed to the development, production and sales of laser equipment, providing professional laser welding cutting and marking one-stop solutions for domestic and foreign customers.

The company's founders and major teams have more than 10 years of experience in the laser industry. With the rapid development of scale, the company's equipment has passed ISO, Europe CE certification. Products are exported to Europe and the United States,
Asia, the Middle East, South America and other more than 100 countries, serving more than 10,000 customers. Because of the stable quality, affordable price and complete service, our equipment has been well received by customers and has established long-term
cooperative relationships with many well-known agents. Wuhan Best Laser takes innovation and pragmatism as its core value and is responsible for all customers. We hope to be down-to-earth and continue to deepen the industry market, to provide more refined solutions for more customers and further improve our products and services.

Best Laser Service

Quality Assurance:
1>The products are guaranteed original genuine and meet the national industry quality standards.

The spare parts used are all from well-known brands, with lifetime over 10 years, stable quality and durability.

2>Guarantee to provide products complied with the contract requirements. Orders production are strictly in accordance with the contract and will not reduce the quality requirements.

3>Our company has strict production process and quality inspection standards. All products must pass the 48-hour running test and 72-hour life test before leaving the factory, ensuring maintenance-free.

4>All equipment is assembled by experienced professional engineers to ensure crafts and details.

5>The warranty period is 3 years. If there are any problems during the warranty period (non-human), our company is responsible for free maintenance. If you need to replace spare parts, our company will provide it to customers free of charge. If beyond the warranty period, we are responsible for free testing and repair. If parts are to be replaced, the cost of parts will be charged as appropriate.

6>Software free upgrades

7>Customer survey at least twice per year

After sales service:

1>We provide detailed training videos, instructions and technical maintenance and repair manuals. The customer follows the instructions to operate the machine step by step.

2>Our professional engineering team provides online after-sales. Phone, mail, WeChat, whatsapp, teamviewer remote can be contacted. Engineers will guide you step by step. Since the customer report problem, technician will contact and solve the problem within 24 hours to ensure the normal production of the customer.

3>If necessary, our company can also send engineers go abroad for service.

4>Meanwhile, we warmly welcome customers at home and abroad to come to our company for on-site training.

5>No matter online technical support or on-site support, we will do 100% effort to help customers.

How to Choose Most Suitable laser marking engraving machine ?

1.What's the exact materials you want to mark ? (stainless steel, aluminum, acrylic, wood..)

2.What's the estimate marking size ? (75*75mm,110*110mm,175*175mm,200*200mm...)

3.Do you have any special demand on marking color ?

4.Do you have to mark on round or curve surface ? we have optional items rotary system or 3d dynamic laser marking machine for you as optional .
