Предложение пьезоэлектрический датчик вибрации DK300

Описание и отзывы

Характеристики

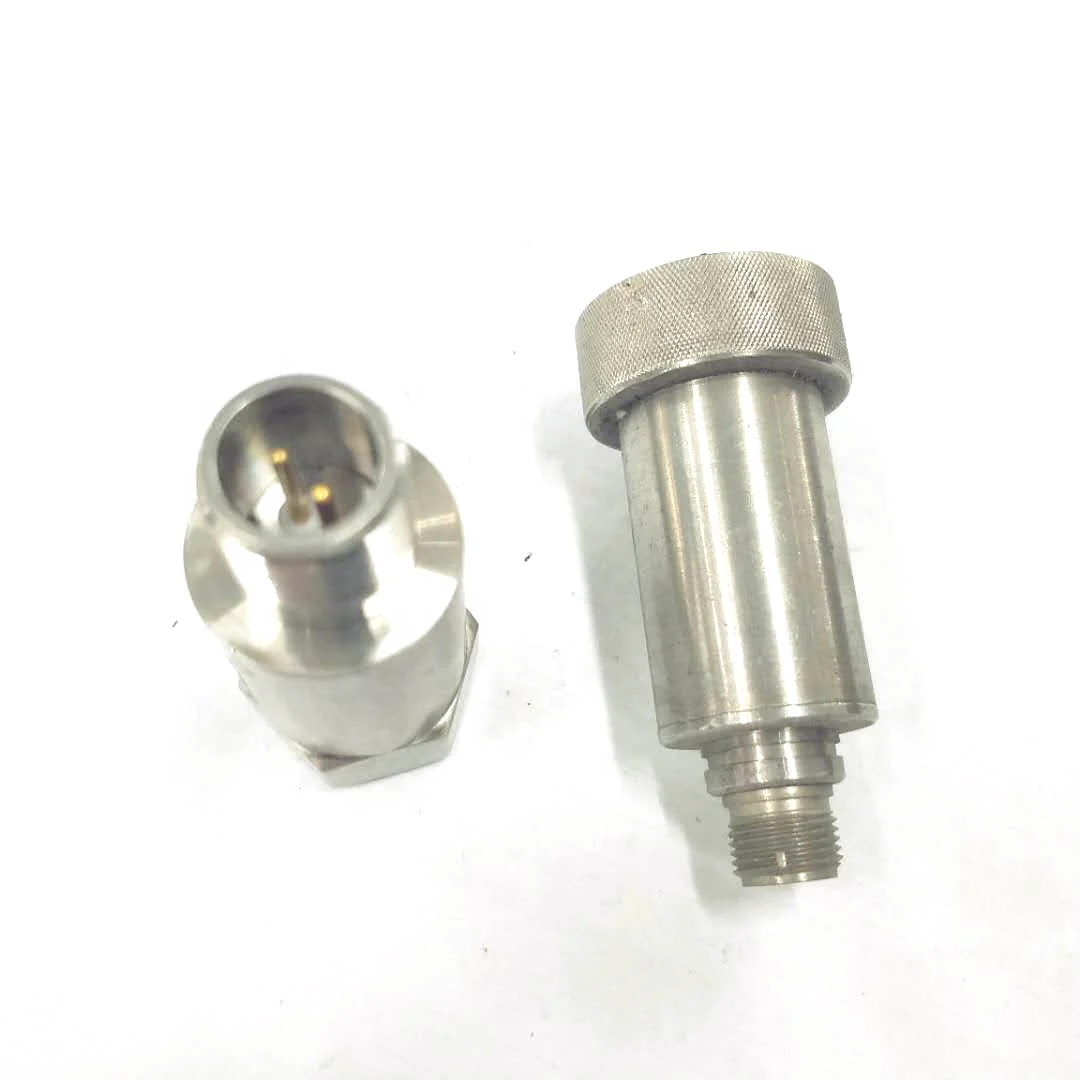

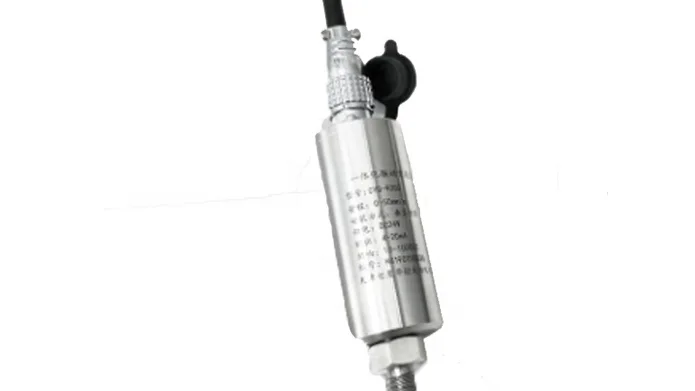

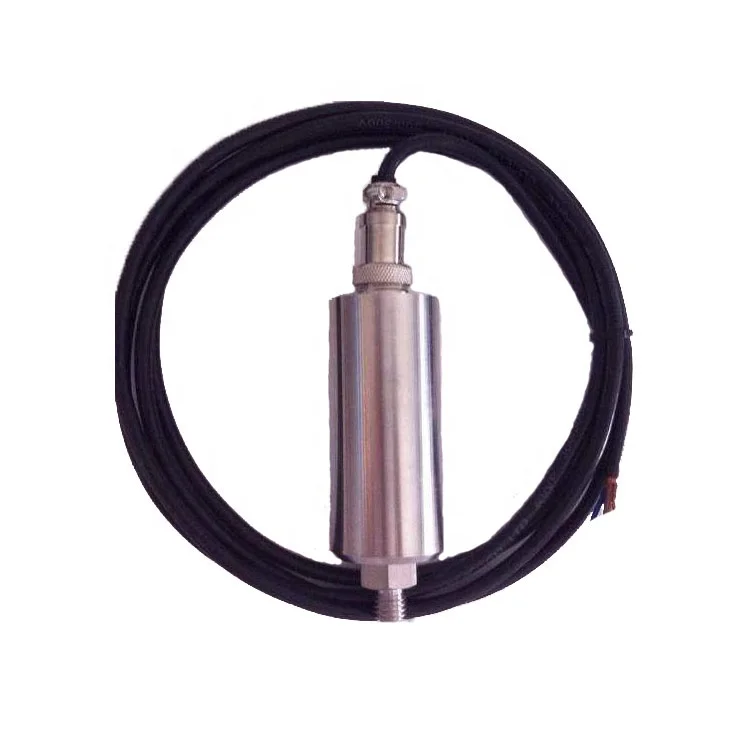

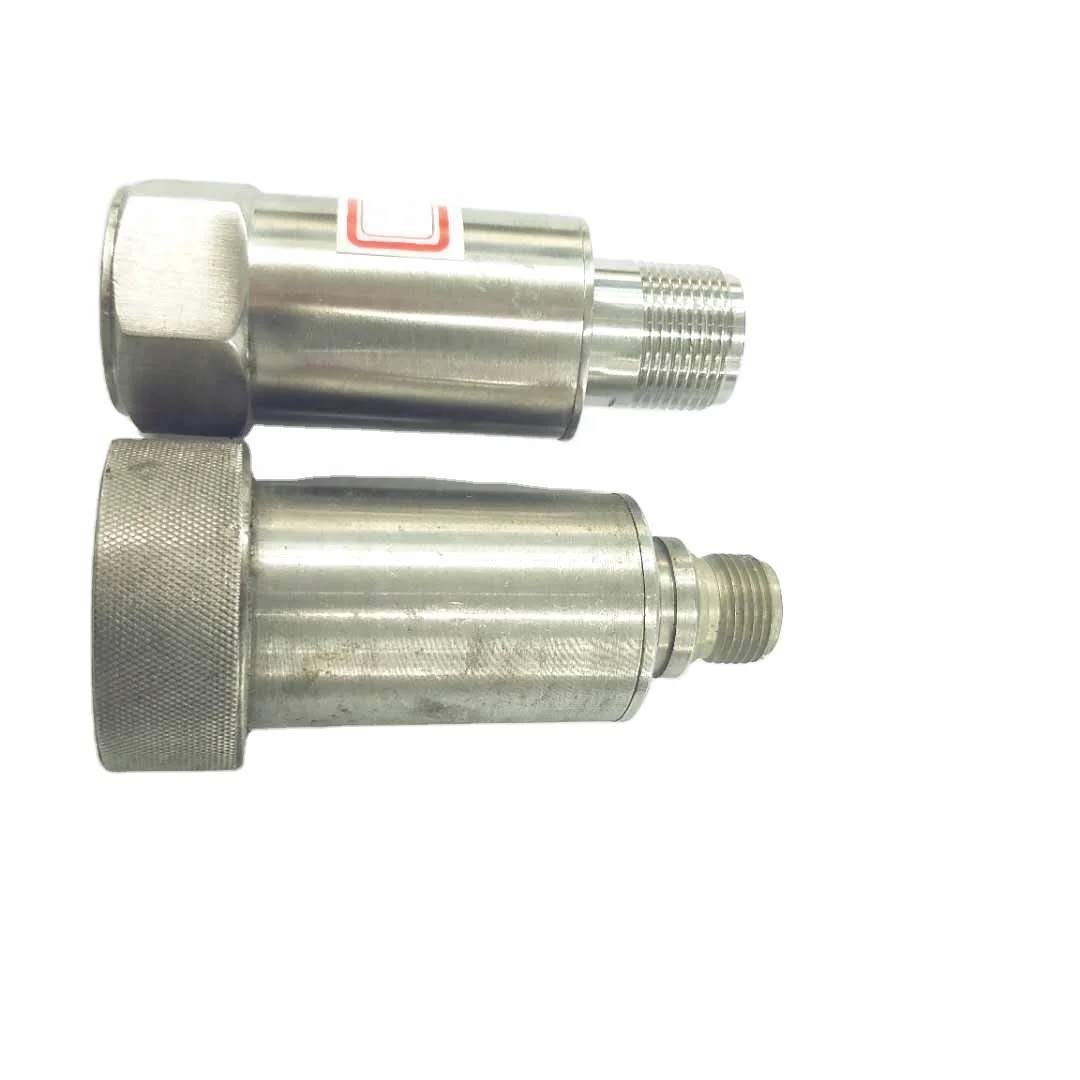

Vibration Transmitter DK300-01-02-01-01-01(Integrative-type)

Features:

• Piezoelectric sensing element inside
• Measurable physical quantity: vibration speed,vibration acceleration,vibration displacement
• Operating voltage: +12~+24V DC
• Measuring range : 0-200 mm/s;0~50g;0~8000μm
• Analog output : 4-20 mA
• Frequency range : 10-1,000 Hz
• 2-wire connection technology

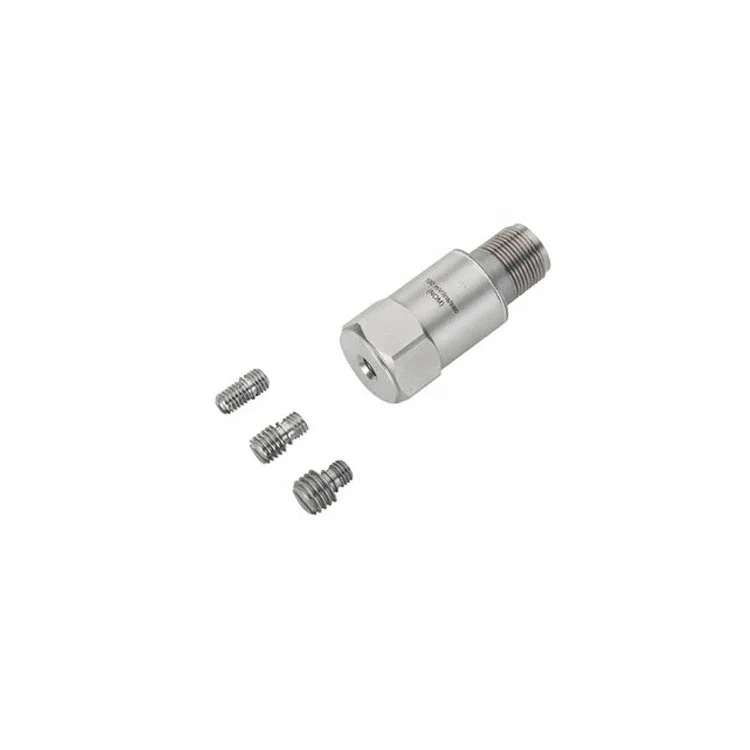

• incl. threaded adapters (M8 x 1.25 for the mechanical connection)
• Application:fans,motors,pumps,engines,compressors,generators etc.

 Product Application Drawing:

Anti-explosion integrated vibration transmitter DK300 from Shanghai Dikai guarantees a reliable permanent monitoring of the total vibration accord with standards of “ISO2954-1975" and "GB13824-1992" . It is installed built-in precision integral circuit to provide speed output, based on Piezoelectric Acceleration Transducer. Compared with magneto-electric velocity transducer,it can operates in a frequency range of 2-1,680 Hz, and is indicated via a precise linearized 4-20 mA analog output. The vibration transmitter DK300 has a  long working life up to 7 years, with wiring fault-tolerant protection, excellent stability reliability and strong anti-interference ability to meet the requirements for harsh industrial environments.

 Main Technical specifications:

  <Click for more information>

Parameter selection tabe :

  Select prduction parameters as required,for more information,pls send message to us.

1.Service
Instant reply professional business team is available 24 hours online to serve you

2.Product
warranty period up to 18 months;
3.Minimum order
quantity 1 sample quantity, convenient for you to test product;
4.Fast delivery
strategy sufficient inventory. It will take 3-5 working days after receiving your advance payment if items are in stock;
5.Customize
according to your requirements, different application, different parameters, product Customization is available;
Great after- sales service any condition affecting the use of the product during the warranty period will be replaced free of charge with NO EXCUSE. We guarantee unconditional technical support for life,

Payment and shipping are specified according to your requirements ,pls send message to me!

1.What kind of sensor do we do?

We offer a very wide variety of vibration,displacement ,speed ,accelerometer sensors or transmitter,etc.

2.How to get your offer?

Please send us your technical parameters,specification or product model ,quantity you want,we will send you our best quotation.

3.If i did not use sensor before,how shall i do?

It does not matter,please tell us some key  teachnical parameters and the order quantity,we'll choose you most suitable one  and give our best service.

4.How to place the order?

If you accept the price,we would send you the profoma invice to arrange the payment.

5.How long is the production time after placing the order?

It would take 7-10 days ,anyway,when you place the order,we would comfirm the delivery time to you.

6.How do you send the goods?

We normally send the goods by DHL,FEDEX,UPS,TNT through our agent.And it will take 3-5 days for shipping.
