Сушилка для кукурузного крахмала (сушилка для потока воздуха)
20 000,00 $ - 22 000,00 $
Профессиональная высокоскоростная вращающаяся флэш сушилка SXG с бентонитом одобренная CE
- Категория: Оборудование для термической сушки >>>
- Поставщик: Jiangsu Yutong Drying Engineering Co. Ltd.
Сохранить в закладки 62260274719:
Описание и отзывы
Характеристики
Jiangsu Yutong Drying Engineering Co.,ltd
Establish in 2000 with more than 19 year experience 150 workers 16000 square meter.
main machine:spray dryer,vacuum dryer, flash dryer, belt dryer. fluid bed dryer, granulator,mixing machine,crusher sieve non standard machine as customer requirement.
we have good establiship with USA, UK, Cyprus, panama, Ecuador, Brazil, Bolivia, Kenya, Vietnam, Saudi Arabia, Turkey, Iran, Ukraine, uzbekistan, Russia, Bangladesh, Philippines, Malaysia, Oman, yemen, Sudan...
Product Description

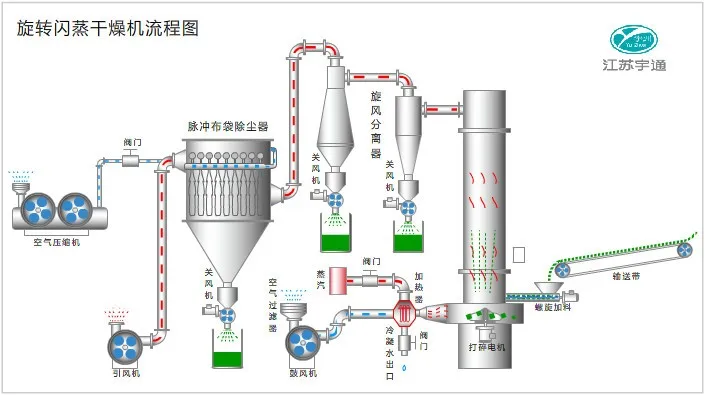

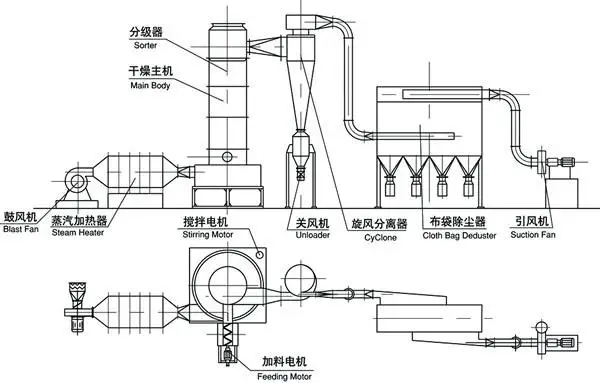

Working Principle of SXG Rotating Flash Drying Machine
Hot air in tangential direction enters into the bottom of the rotary flash dryer, and forms strong rotational wind field under the action of stirrer. The materials get into the drying equipment from screw feeder, under the strong effect of the high-speed rotating impeller, the materials are dispersed after being rubbed and sheared. Bulk materials are quickly crushed and fully contacted with the hot air in order to complete drying. Dehydrated dry materials rise with the hot air, the grading ring will retain the large particles and the small ones will be excluded from the rotating flash drying machine through the ring center. The cyclone separator and dust remover will recover these materials. The wet or bulk materials will be threw to the container wall by centrifugal force, and fall into the bottom of the flash dryer to be crushed and dried again.
Hot air in tangential direction enters into the bottom of the rotary flash dryer, and forms strong rotational wind field under the action of stirrer. The materials get into the drying equipment from screw feeder, under the strong effect of the high-speed rotating impeller, the materials are dispersed after being rubbed and sheared. Bulk materials are quickly crushed and fully contacted with the hot air in order to complete drying. Dehydrated dry materials rise with the hot air, the grading ring will retain the large particles and the small ones will be excluded from the rotating flash drying machine through the ring center. The cyclone separator and dust remover will recover these materials. The wet or bulk materials will be threw to the container wall by centrifugal force, and fall into the bottom of the flash dryer to be crushed and dried again.
Application
SXG rotating flash drying machine is applicable to dry viscous, thixotropic, thermosensitive powdery and granular materials in the dyes, pigment, chemical, ceramics, food and pharmaceutical industry. The appropriate materials can be dried by this drying equipment include:
1. Inorganic materials: boric acid, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, metal hydroxide, heavy metallic salt and compound cryolite.
2. Organic materials: atrazine, lauric acid, benzoic acid, sodium oxalate, cellulose acetate
3. Ceramics: kaolin, silica and calay
4. Dyes: anthraquinone, black iron oxide, butyrate, titanium hydroxide, zinc sulfide, azo dyes
5. Food: soy protein, gelatinized starch, vinasse, triticin, wheat starch
6. Pharmaceuticals: analgin (The first domestic application of flash dryer)
Features
1. SXG rotating flash drying machine is equipped with a special cooling device at the bottom, thus avoiding material deterioration due to high temperature.
2. Wind distribution device can reduce the resistance to drying equipment and provide air volume for the dryer.
3. This rotary flash dryer uses particular pressurized sealing device and bearing cooling device to effectively prolong the service life of the drive part.
4. Material fineness and final moisture content can be adjustable.
5. Short staying time of material can prevent the material from sticking to the wall and the thermosensitive material from deteriorating.
SXG rotating flash drying machine is applicable to dry viscous, thixotropic, thermosensitive powdery and granular materials in the dyes, pigment, chemical, ceramics, food and pharmaceutical industry. The appropriate materials can be dried by this drying equipment include:
1. Inorganic materials: boric acid, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, metal hydroxide, heavy metallic salt and compound cryolite.
2. Organic materials: atrazine, lauric acid, benzoic acid, sodium oxalate, cellulose acetate
3. Ceramics: kaolin, silica and calay
4. Dyes: anthraquinone, black iron oxide, butyrate, titanium hydroxide, zinc sulfide, azo dyes
5. Food: soy protein, gelatinized starch, vinasse, triticin, wheat starch
6. Pharmaceuticals: analgin (The first domestic application of flash dryer)
Features
1. SXG rotating flash drying machine is equipped with a special cooling device at the bottom, thus avoiding material deterioration due to high temperature.
2. Wind distribution device can reduce the resistance to drying equipment and provide air volume for the dryer.
3. This rotary flash dryer uses particular pressurized sealing device and bearing cooling device to effectively prolong the service life of the drive part.
4. Material fineness and final moisture content can be adjustable.
5. Short staying time of material can prevent the material from sticking to the wall and the thermosensitive material from deteriorating.
Company Profile
Established in 2000, with more than 19 year experience 150 workers 16000 square meter.
With a expertise technical team make machine as customer requirement
With a professional service team will help u installation debugging production in time
Have a laboratory room for the client do trail.
Each yeat the technical team develop 2 new products.
With CE ISO19001 ISO14001more than 100 patents
Annual output value 1.2 Billion.
Certifications
Our Advantages
We are Factory
Establish in 2000. we have own factory. more than 19 year experience 150 workers 16000 square meter.
Design
We have expertise technical team can make scheme as u requirement, just tell us u requirements
Strictly testing
Each machine before leaving factory we must pass strictly testing.
Product packaging
Recommend Products
Vacuum harrow dryer
suitable for the powder granule paste material slurry material, oxide material can collect organic solution.
make machine as u requirement
Vibrating bed dryer
Suitable for the powder and granule in chemical industry, foodstuff industry, pharmaceutical industry, such as salt plastic...
make machine as u requirement
Flash dryer
Suitable for the paste material powder in foodstuff pharmaceutical industry, chemical industry...
make machine as u requirement
