Распылитель для мгновенного кофе
11 000,00 $ - 69 900,00 $
Профессиональная Высокоэффективная гидроксикрахмал графеновая распылительная сушилка одобренная CE ISO
- Категория: Оборудование для сушки распылением >>>
- Поставщик: Jiangsu Yutong Drying Engineering Co. Ltd.
Сохранить в закладки 62275651663:
Описание и отзывы
Характеристики
Jiangsu Yutong Drying Engineering Co.,ltd
Establish in 2000 with more than 19 year experience 150 workers 16000 square meter.
main machine:spray dryer,vacuum dryer, flash dryer, belt dryer. fluid bed dryer, granulator,mixing machine,crusher sieve non standard machine as customer requirement.
we have good establiship with USA, UK, Cyprus, panama, Ecuador, Brazil, Bolivia, Kenya, Vietnam, Saudi Arabia, Turkey, Iran, Ukraine, uzbekistan, Russia, Bangladesh, Philippines, Malaysia, Oman, yemen, Sudan...
Product Description

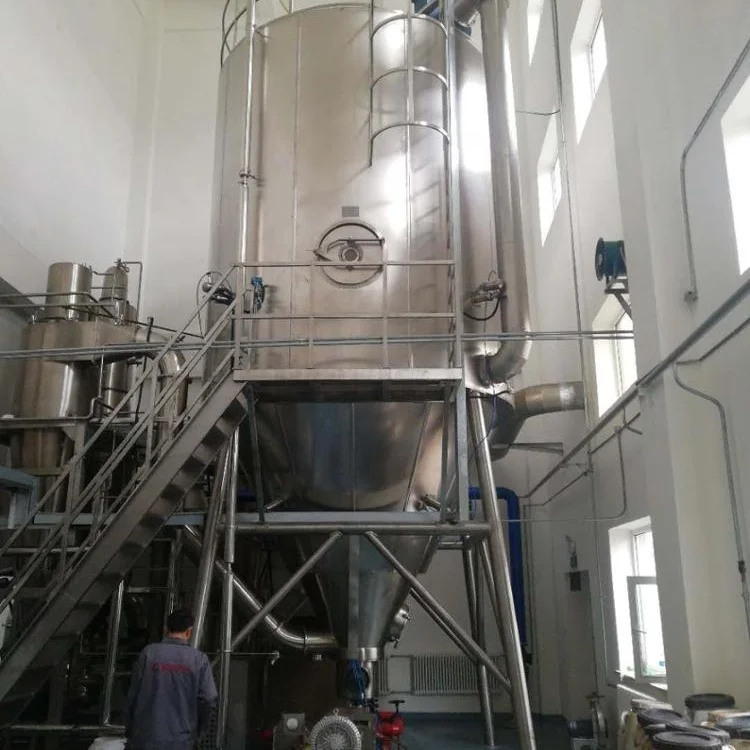

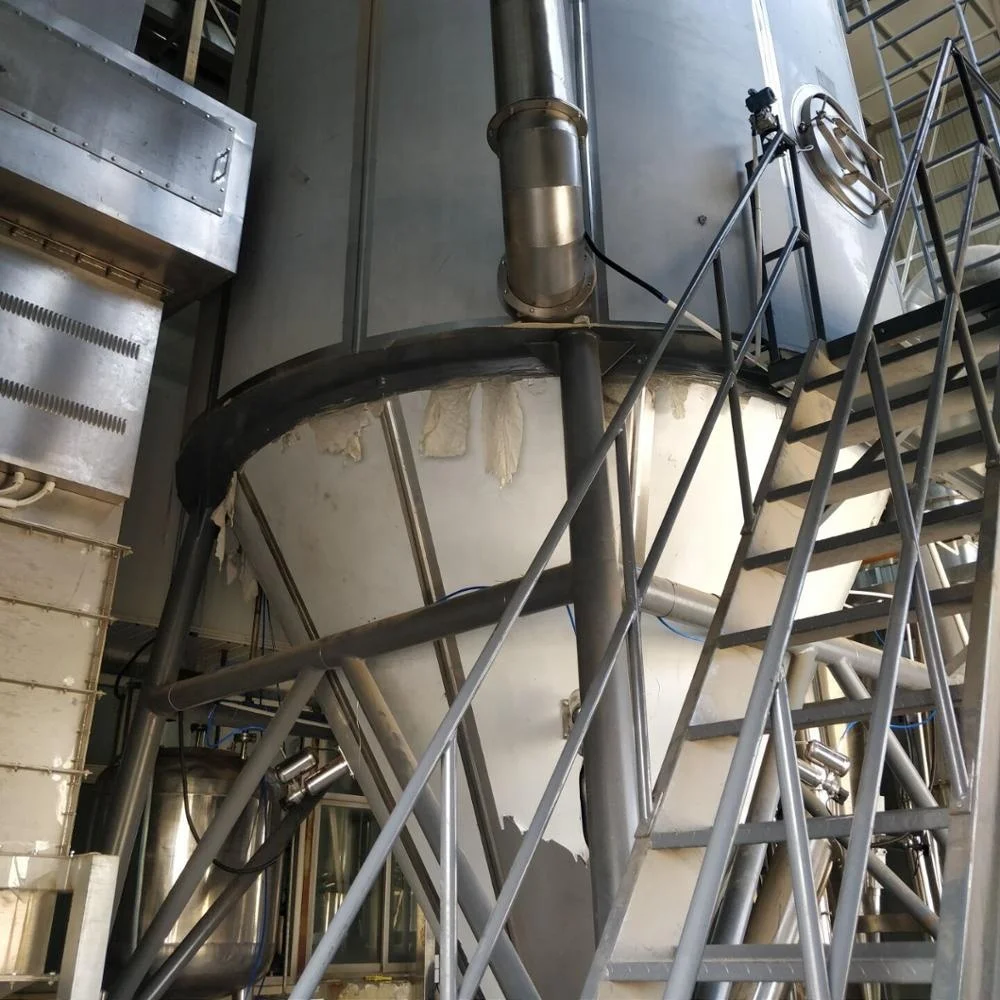

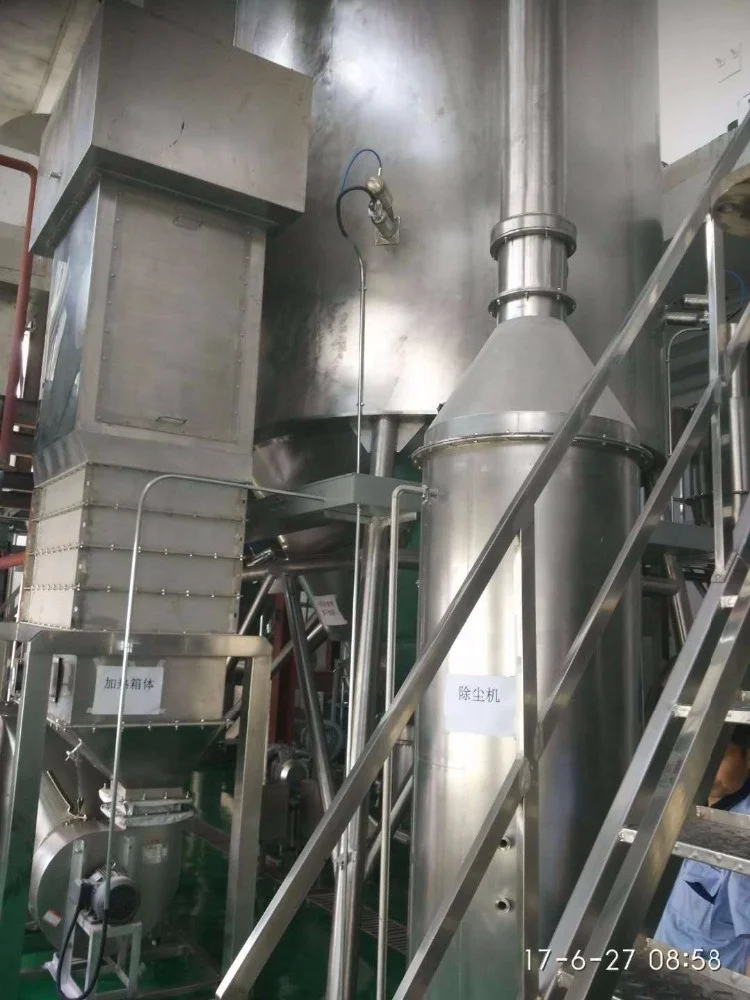

Professional high efficiency high speed centrifugal spray dryer work principle
After filtering and heating, the air enters into the hot air distributor at the top of the centrifugal spray dryer, and the hot air will spirally and evenly goes into the drying chamber. The material liquid via high-speed centrifugal atomizer rotates into extremely thin vaporific liquid globule and parallelly flows with the hot air, and then the liquid will be dried into powdery products in a very short time (5-10 seconds). The waste gas after filtering will be expelled through the fan. For the wet organic solvent materials, the spray drying machine can be designed with closed cycle process. It can utilize cyclic nitrogen to dry the materials.
Features
1.LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
2.This spray dryer has excellent uniformity, liquidity and solubility as well as high purity.
3.This spray drying machine has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.
1.LPG centrifugal spray dryer with fast drying speed can constantly evaporate 95%-98% moisture. The drying time is about 5 seconds to 15 seconds. This drying equipment is especially suitable for thermosensitive substance.
2.This spray dryer has excellent uniformity, liquidity and solubility as well as high purity.
3.This spray drying machine has simple production process and easy operation. After drying, it does not need to grind and screen, which can reduce production procedure and enhance the purity.
Model | ZPG-25 | ZPG-50 | ZPG-80 | ZPG-100 | ZPG-150 | ZPG-200 | ZPG-300 | ||||||
Evaporation capacity kg/h | 25 | 50 | 80 | 100 | 150 | 200 | 300 | ||||||
Feed capacity kg/h | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | ||||||
Final powder capacity kg/h | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 24-42 | 36.8-56.4 | 55-85 | ||||||
Solid content % | 18-30 | ||||||||||||
Final moisture% | 3-5 | ||||||||||||
Electric power kw | 63 | 99 | 132 | 153 | 204 | 246 | 330 | ||||||
Heat source | Electric+Steam Gas, As u requirement | ||||||||||||
Collection method and collection degree | The first cyclone separator and the second cyclone seprator(collection powder) The bag cloth duster also can helo u collect the powder,but if the material have absorb feature please do not use bag cloth duster.u can use the water film duster can help u solve smell problem. | ||||||||||||
Inlet temperature degree | 160-220 | ||||||||||||
Outlet temperature degree | 80-100 | ||||||||||||
Overall dimension(m) | 7x4x6.2 | 8x5x6.9 | 9.8x5.7x8 | 11x6.2x8.9 | 12.2x7x10.75 | 14.1x7.8x11.9 | 15x9x13 | ||||||
Attention before offering
1. Liquid name and property: solid contents (or water contents), viscosity, surface tension and PH value.
2. Dry powder density, residual water contents allowed, particle size, and maximum temperature allowed.
3. Output, daily shift time.
4. Energy that can be supplied: steam pressure, electricity properly, fuel of coal, oil and natural gas.
5. Control requirement: whether or not the inlet and outlet temperatures should be controlled.
6. Powder-collecting requirement: whether it's necessary to use cloth bag filter and the requirement of the environment of the exhausted gas.
1. Liquid name and property: solid contents (or water contents), viscosity, surface tension and PH value.
2. Dry powder density, residual water contents allowed, particle size, and maximum temperature allowed.
3. Output, daily shift time.
4. Energy that can be supplied: steam pressure, electricity properly, fuel of coal, oil and natural gas.
5. Control requirement: whether or not the inlet and outlet temperatures should be controlled.
6. Powder-collecting requirement: whether it's necessary to use cloth bag filter and the requirement of the environment of the exhausted gas.
7.Raw material with organic solution?what is it?how many?
Our Company
Established in 2000, with more than 19 year experience 150 workers 16000 square meter.
With a expertise technical team make machine as customer requirement
With a professional service team will help u installation debugging production in time
Have a laboratory room for the client do trail.
Each yeat the technical team develop 2 new products.
With CE ISO19001 ISO14001more than 100 patents
Annual output value 1.2 Billion.
Testing machine
Testing machine(1)
Suitable for the test machine material content
Testing machine(2)
suitable for the machine roughness.
Testing machine(3)
Suitable for the machine material hard.
Testing machine(4)
Suitable for the welding inspection.
Testing machine(5)
Hot line type air speed machine
(suitable for the fan to know the air speed,machine pipe air port speed)
.
Testing machine(6)
Testing temperature(machine bearing temperature,material surface temperature)
Certifications
Packing & Delivery
After test machine fit the requirement.
packed by film first then put them carefully in plywood case.
Directly to truck or container
as customer requirement
Directly to container
as customer requirement
FAQ
1.Why i can believe Yutong?
with more than 19 year experience 150workers 16000 square meter.expertise technical team we can make scheme as u as u requirement
with IS01990 1S014001 CE...
2.what about the after service , if i can do not use machine well, what will u do?
Please do not worry we will arrange technical staff come scene help u debugging and will train u by free.
Recommend Products
Vacuum harrow dryer
suitable for the powder granule paste material slurry material, oxide material can collect organic solution.
make machine as u requirement
Flash dryer
Suitable for the paste material powder in foodstuff pharmaceutical industry, chemical industry...
make machine as u requirement
Vibrating bed dryer
Suitable for the powder and granule in chemical industry, foodstuff industry, pharmaceutical industry, such as salt plastic...
make machine as u requirement
Похожие товары
Модель ZPG, центробежный распылитель, китайские традиционные экстракты трав, распылительная сушилка, цена
13 800,00 $ - 14 000,00 $
Высококачественная сушильная машина с распылителем серии ZPG
13 600,00 $ - 14 000,00 $
Сертифицированное CE ISO высококачественное китайское традиционное оборудование для сушки травами
15 000,00 $ - 89 900,00 $

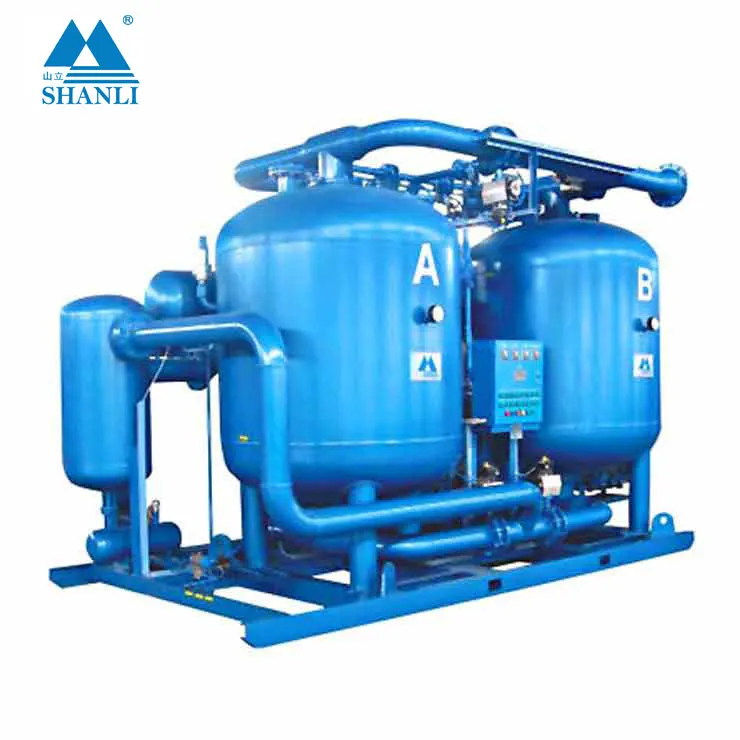

Shanli 200m 3/мин сушилка для воздуха с нулевой очисткой и сжатием тепла
