Высокоточные весы для грузовика 3x18 м 120 т от производителя

Высокоточные весы для грузовика 3x18 м 120 т от производителя

Категория: >>>
Поставщик: Taian Zhonghang Weighing Apparatus Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

High precision 3x18m 120t truck scale weighbridge manufacturer

With the high precision, good stability load cell and weighing indicator, SCS series electronic truck scales are pitless and high performance weighing apparatus of main goods which are widely used in port, warehouse, factory, and freight yard. Optional accessories include Large display and PC weighing management system.

Item	Capacity	Platform Size(m)	Module/Section	Load Cell	Devision value(kg)
SCS-20t	20t	2.3×5m	1/1	4	5 kg
SCS-20t	20t			2.3×8m	5 kg	2/2	6
SCS-30t	30t	3×5.8m	1/2	4	10 kg
				3×9m		2/4	6
				3×11.6m		2/4	6
SCS-50/ 60t	50/60t	3×9m	2/4	6	10 kg
				3×16m		3/6	8
				3×18m		4/8	10
SCS-80t	80t	3×15m	3/6	8	20 kg
				3×16m		3/6	8
				3×18m		4/8	10
SCS-100t	100t	3×15m	3/6	8	50 kg
				3×16m		3/6	8
				3×18m		4/8	10
SCS-120t	120t	3×16m	3/6	8	50 kg
				3×18m		4/8	10
				3.2×21m		4/8	10
SCS-150t	150t	3×16m	3/6	8	50 kg
				3×18m		4/8	10
				3.2×21m		4/8	10
				3.2x24m		5/10	12

Remarks: Other different size or special capacity can be customized according to customers' needs.

Truck Scale Paramater:

Advantages:
1) 10mm thick smooth plate
2) 300mm high U-beam 6 pieces, 2 pieces C-channel
3) With OIML approved double shear beam load cells
4) Inclusive indicators
5) Materials: carbon steel materials, U-mold beams
6) Surface finishing: sandblasting, hot painting and mettler Toledo painting
7) Load cells: any type like double shear beam or column type
8) Cutting: all cutting was made by prisma cutting machine
9) If you have any other special requests, we can also try it for you Why choosing us?

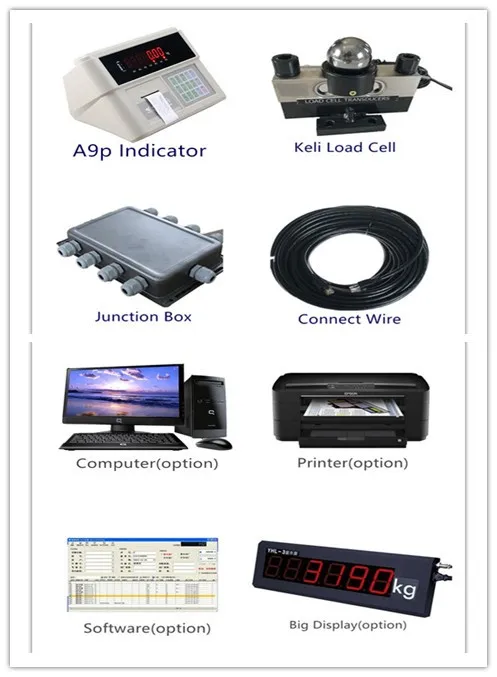

Standard accessory part include:
Weighing indicator:Electronic type or digital type
Load cell/sensor:Electronic type or digital type
Printer:Panasonic Brand/Epson Brand optional
Junction boxes:Waterproof type wire junction boxes
Connect cable:20m or 30m(depends on the distance from scale house to scale)
Screw:Bolts-screws,limit screw,loading cell screw,cover plate screw
