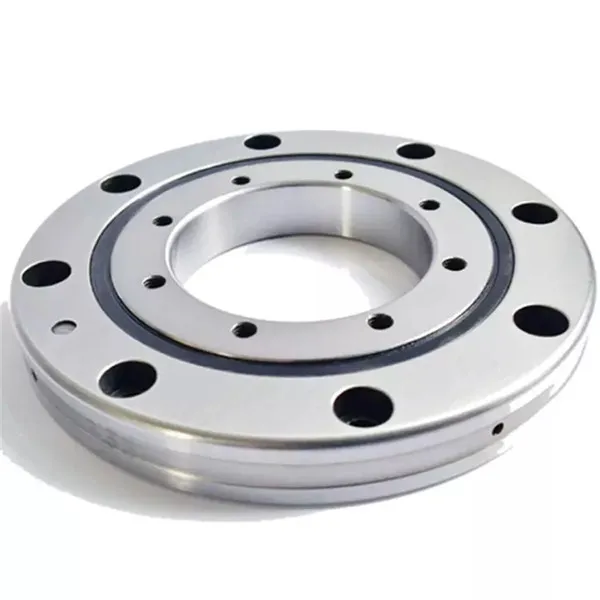

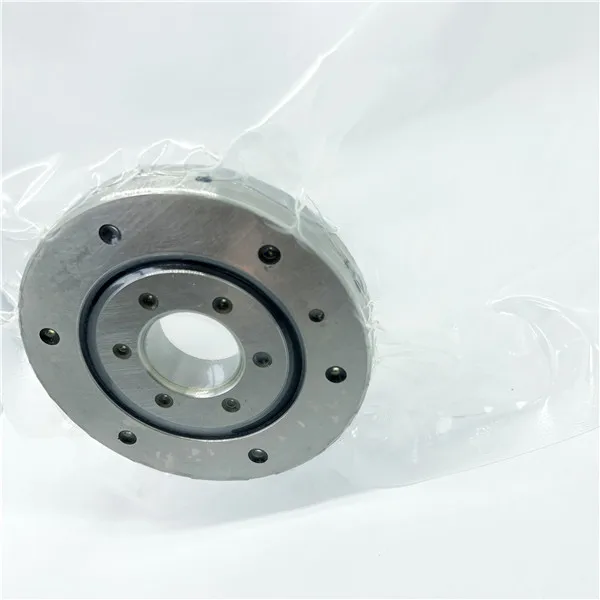

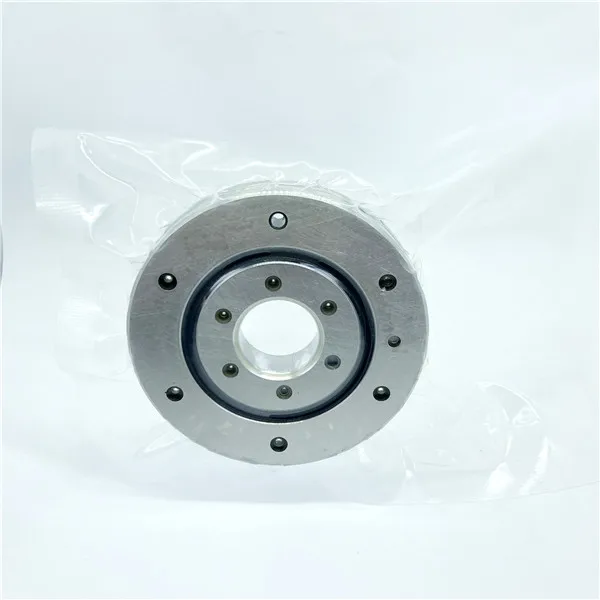

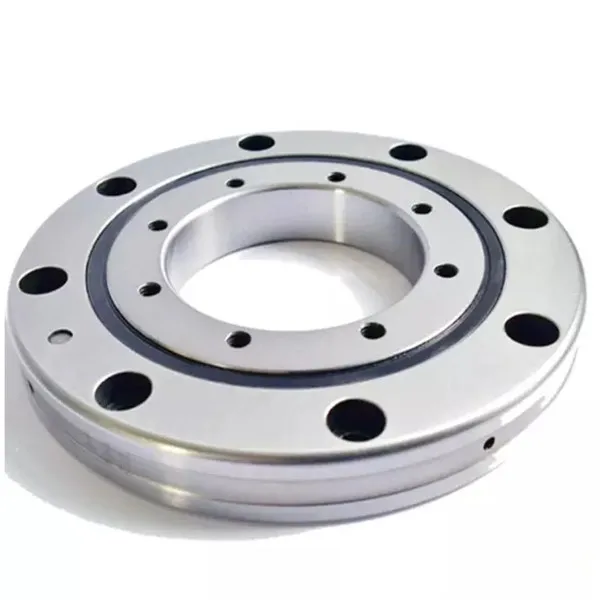

Поперечный роликовый поворотный подшипник RU124X
- Категория: Опорно-поворотные устройства >>>
- Поставщик: Changsha IGS Machinery Co. Ltd.
Сохранить в закладки 62371459693:
Описание и отзывы
Характеристики
Product Description

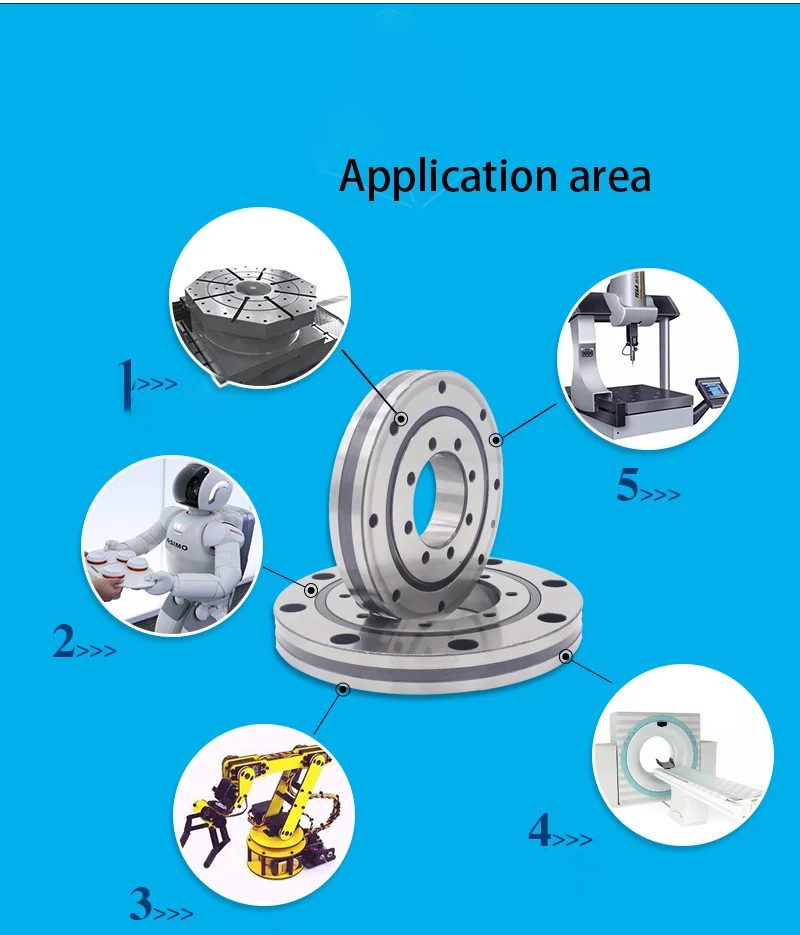

Cross Roller Rings are used in large quantities in the ROTARY TABLES of MACHINING CENTERS, the main SPINDLE for MULTIPLE MACHINE
TOOLS, and ROBOTS.
TOOLS, and ROBOTS.
Detailed Images
Crossed Roller Bearing is mainly consisted of an outer ring, an inner ring, a plurality of rollers and a plurality of spacers. The roller lies between the inner ring and the outer ring. The spacer is placed between rollers to prevent the mutual friction between rollers so as to decrease the torque resistance for rotation. In addition, the surface of the roller and the rolling track is linear contact. So, when the bearing is loaded, the loading area will be very large. Thus, the elastic deformation will be less, and the bearing will achieve a long service life. Each roller in Crossed Roller Bearing is crossed at 90° angle, which is able to bear the loading force from axial, radial and the other direction at the same time.
Size Information
Model | d | D | Dpw | B | rmin | kg |
RU42 | 20 | 70 | 41.5 | 12 | 0.6 | 0.29 |
RU66 | 35 | 95 | 66 | 15 | 0.6 | 0.62 |
RU85 | 55 | 120 | 85 | 15 | 0.6 | 1 |
RU 124(G) | 80 | 165 | 124 | 22 | 1 | 2.6 |
RU 124X | 80 | 165 | 124 | 22 | 1 | 2.6 |
RU 148(G) | 90 | 210 | 147.5 | 25 | 1.5 | 4.9 |
RU 148X | 90 | 210 | 147.5 | 25 | 1.5 | 4.9 |
RU 178(G) | 115 | 240 | 178 | 28 | 1.5 | 6.8 |
RU 178X | 115 | 240 | 178 | 28 | 1.5 | 6.8 |
RU 228(G) | 160 | 295 | 227.5 | 35 | 2 | 11.4 |
RU 228X | 160 | 295 | 227.5 | 35 | 2 | 11.4 |
RU 297(G) | 210 | 380 | 297.3 | 40 | 2.5 | 21.3 |
RU 297X | 210 | 380 | 297.3 | 40 | 2.5 | 21.3 |
RU 445(G) | 350 | 540 | 445.4 | 45 | 2.5 | 35.4 |
RU 445X | 350 | 540 | 445.4 | 45 | 2.5 | 35.4 |
SX series
SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX011860 SX0118/500
XSU series
XSU080168 XSU080188 XSU080218 XSU080258 XSU080318 XSU080398 XSU140414 XSU140544 XSU140644 XSU140744 XSU140844 XSU140944
RA series
RA10008 RA11008 RA12008 RA13008 RA14008 RA15008 RA16013 RA17013 RA18013 RA19013 RA20013
RU series
RU124G RU148G RU178G RU228 RU297 RU445 RU228X RU297X RU445X RU228G RU297G RU445G
RB series
RB7013 RB8016 RB9016 RB10016 RB10020 RB11012 RB11015 RB11020 RB12016 RB12025 RB13015 RB13025 RB14016 RB14025 RB15013 RB15025
RB15030 RB16025 RB17020 RB18025 RB19025 RB20025 RB20030 RB20035 RB22025 RB24025 RB25025 RB25030 RB25040 RB30025 RB30035 RB30040
RB35020 RB40035 RB40040 RB45025 RB50025 RB50040 RB50050 RB60040 RB70045 RB80070 RB90070 RB1000110 RB1250110
RE series
RE7013 RE8016 RE9016 RE10016 RE10020 RE11012 RE11015 RE11020 RE12016 RE12025 RE13015 RE13025 RE14016 RE14025 RE15013 RE15025
RE15030 RE16025 RE17020 RE18025 RE19025 RE20025 RE20030 RE20035 RE22025 RE24025 RE25025 RE25030 RE25040 RE30025 RE30035 RE30040
RE35020 RE35025 RE40035 RE40040 RE45025 RE50025 RE50040 RE50050 RE60040
SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX011860 SX0118/500
XSU series
XSU080168 XSU080188 XSU080218 XSU080258 XSU080318 XSU080398 XSU140414 XSU140544 XSU140644 XSU140744 XSU140844 XSU140944
RA series
RA10008 RA11008 RA12008 RA13008 RA14008 RA15008 RA16013 RA17013 RA18013 RA19013 RA20013
RU series
RU124G RU148G RU178G RU228 RU297 RU445 RU228X RU297X RU445X RU228G RU297G RU445G
RB series
RB7013 RB8016 RB9016 RB10016 RB10020 RB11012 RB11015 RB11020 RB12016 RB12025 RB13015 RB13025 RB14016 RB14025 RB15013 RB15025
RB15030 RB16025 RB17020 RB18025 RB19025 RB20025 RB20030 RB20035 RB22025 RB24025 RB25025 RB25030 RB25040 RB30025 RB30035 RB30040
RB35020 RB40035 RB40040 RB45025 RB50025 RB50040 RB50050 RB60040 RB70045 RB80070 RB90070 RB1000110 RB1250110
RE series
RE7013 RE8016 RE9016 RE10016 RE10020 RE11012 RE11015 RE11020 RE12016 RE12025 RE13015 RE13025 RE14016 RE14025 RE15013 RE15025
RE15030 RE16025 RE17020 RE18025 RE19025 RE20025 RE20030 RE20035 RE22025 RE24025 RE25025 RE25030 RE25040 RE30025 RE30035 RE30040
RE35020 RE35025 RE40035 RE40040 RE45025 RE50025 RE50040 RE50050 RE60040
Related Products
Packing&Shipping
Packing Details：Cartons+Pallet
Delivery Details ： According to the order quantity.
Shipping Details：BY DHL ,FEDEX , TNT ,UPS, BY AIR , BY SEA
Delivery Details ： According to the order quantity.
Shipping Details：BY DHL ,FEDEX , TNT ,UPS, BY AIR , BY SEA
Company Introduction
IGS is a professional bearing and machinery hardware parts supplier for more than 12 years, we have established a strict quality
assurance system, maintains high standards of efficiency and assure clients that the offered products are highly dependable. For
us, quality has always been an integral part and culture of our organization and stringent efforts are made to ensure that the
customers get value for their money.
IGS makes sure that the products manufactured are in compliance with the International Standards.We are specialized in : Plastic
wheel , door and window roller, CNC Linear guide rail kit, linear motion bearing
linear guide ,One way clutch bearing, Ball bearing, Needle roller bearing, ceramic bearing, rod ends bearing, spherical plain
bearing, Pillow block bearing ,Slewing ring bearring, taper roller bearing, cylindrical roller bearing, bronze bushing bearing ,
roller chain and sprocket.
We exported to many countries, such as United States,Canada ,Mexico,Italy, Turkey,United Kingdom, Germany,Sweden, Spain, France
,etc.
We are not trying to be the biggest,but the best.
assurance system, maintains high standards of efficiency and assure clients that the offered products are highly dependable. For
us, quality has always been an integral part and culture of our organization and stringent efforts are made to ensure that the
customers get value for their money.
IGS makes sure that the products manufactured are in compliance with the International Standards.We are specialized in : Plastic
wheel , door and window roller, CNC Linear guide rail kit, linear motion bearing
linear guide ,One way clutch bearing, Ball bearing, Needle roller bearing, ceramic bearing, rod ends bearing, spherical plain
bearing, Pillow block bearing ,Slewing ring bearring, taper roller bearing, cylindrical roller bearing, bronze bushing bearing ,
roller chain and sprocket.
We exported to many countries, such as United States,Canada ,Mexico,Italy, Turkey,United Kingdom, Germany,Sweden, Spain, France
,etc.
We are not trying to be the biggest,but the best.
FAQ
1. Are you a factory or trading company ?
A:We have our own plastic wheel bearing factory,also sell other type bearings
2.Do you provide samples ?
A:Yes, we can send samples for free, just need you bear the freight cost
3. What is your MOQ ?
A:For standard type,no MOQ
4. What is the transportation?
A:Small quantity ,by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea or air.
5. Can you provide OEM service?
A:Yes, we provide OEM service , do as your size , packing and other requirements
6. Could you tell me the delivery time of your goods?
A:In stocks need 3~7 days, out of stocks need 10~30 days
7. Can you give me discount on the goods?
A:Yes, of course. Pls. send me your Email, you’ll get more
A:We have our own plastic wheel bearing factory,also sell other type bearings
2.Do you provide samples ?
A:Yes, we can send samples for free, just need you bear the freight cost
3. What is your MOQ ?
A:For standard type,no MOQ
4. What is the transportation?
A:Small quantity ,by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea or air.
5. Can you provide OEM service?
A:Yes, we provide OEM service , do as your size , packing and other requirements
6. Could you tell me the delivery time of your goods?
A:In stocks need 3~7 days, out of stocks need 10~30 days
7. Can you give me discount on the goods?
A:Yes, of course. Pls. send me your Email, you’ll get more
