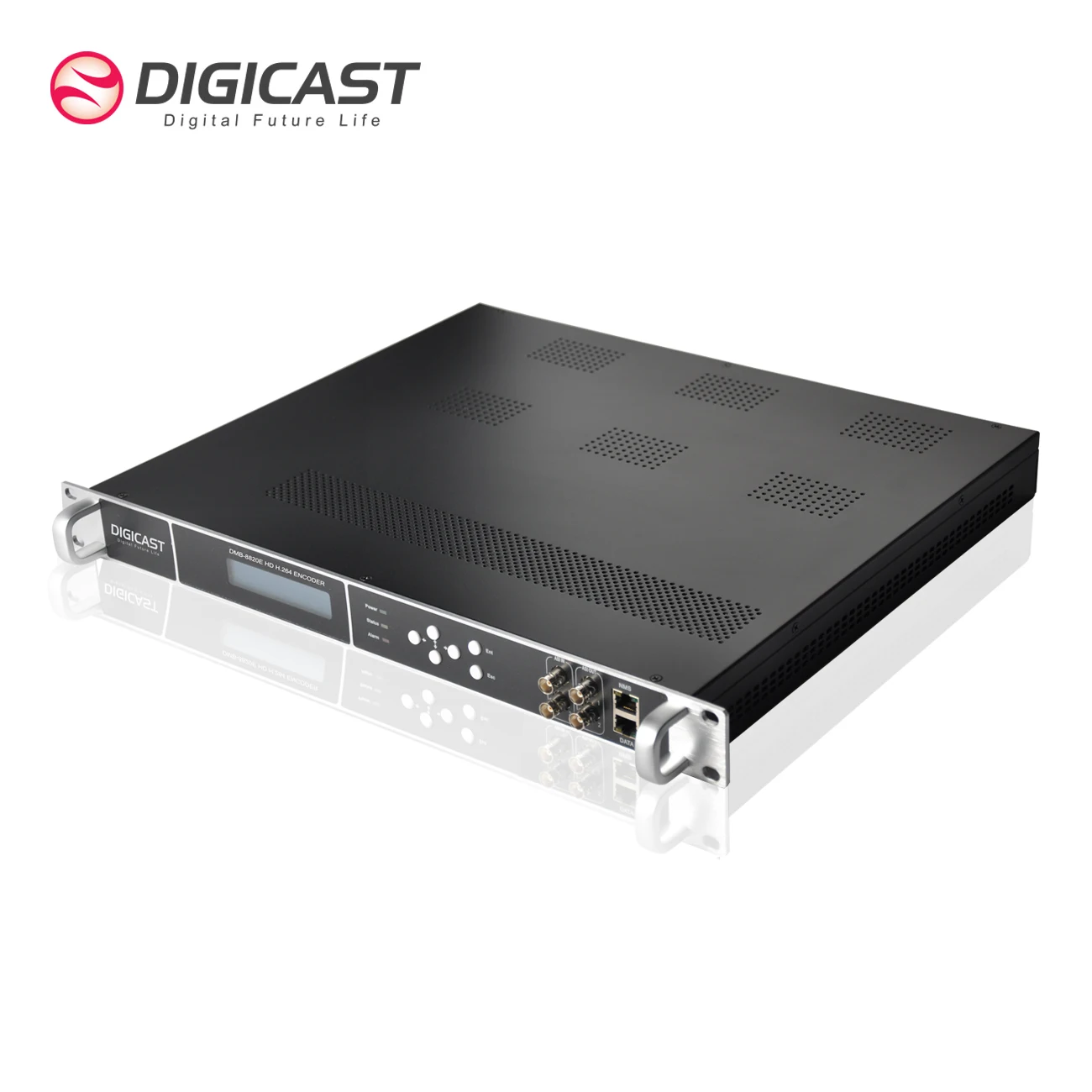

Многоканальный кабель TV HD MPEG 4 AVC H.264 кодировщик для входа и выхода HDMI до 24 каналов ASI IP
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Hangzhou Dtcore Technology Co. Ltd.
Сохранить в закладки 62386668770:
Описание и отзывы
Характеристики
Product Description
Video Encoding | Video compression: H.264/AVC Video inputs: 4/8/12/16/24*HDMI The Input Resolution: 1920x1080@60P, 1920x1080@60i,1920x1080@50P, 1920x1080@50i, 1280x720@60P, 1280x720@50P ,720x576@50i, 720x480@60i The Output Resolution: 1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Encoding: MPEG-4 AVC/H.264 Bit-rate : 1Mbps~13Mbps Rate Control : CBR,VBR GOP Structure : IPPPP (P Frame adjustment, without B Frame ) | ||||||
Audio Encoding | Encoding : MPEG-1 Layer 2,AAC Resolution : 24-bit Audio Gain : 0-255 Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps Sampling rate : 48KHz | ||||||
ASI Input | Connector BNC: female, 75Ω Packet Length: 188 bytes Number of Input Ports : Dual separate ASI ports Signal Level : 200-800mVp-p Maximum bit-rate per port : ≤100Mbps | ||||||
ASI Output | DVB-ASI 2 Separate ASI (Select from modulation Channels or MPTS channel) MPEG-2 TS over DVB-ASI (EN 50083-9) 75Ω, BNC, 188Bytes | ||||||
IP Output | RJ45 Port 100/1000M GbE Port Simultaneous output with 4/8/12/16/20/24 *SPTS and 1*MPTS ,UDP/RTP Filter Null Packet Total Bitrate 1-200Mbps, (Should be More than Encoding bitrate) MPEG-2 TS over UDP/RTP, unicast, and multicast streaming Configurable packet size: (2-7)x188Bytes | ||||||
Multiplexing Spe. | Maximum PID Remapping 180 input per channel PID remapping by automatically or manually Accurate PCR adjusting PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert | ||||||
Gerneral Option | Interface: 1*RJ-45,100/1000M Base-T network interface Local operation: keyboard on front panel, LCD display Remote control: web-based management/NMS | ||||||
Physical and Power | Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz Consumption: 60W Operating temperature: 0 ~ 45℃ Storage temperature: -20 ~ 80℃ Relative humidity: 10%~90%(non-condensing) Dimensions: 482mm(W)×380(D)mm×45mm(H)(19inch,1RU) Weight: 6 KGS | ||||||
Main Features
* 2* ASI and IP (UDP/RTP/RTSP) output
* Input interface: 4/8/12/16/24 Channel HDMI, 4 HDMI ports per module
Up to 6 Modules in Back panel
* Built-in PCR capability
* Support multiplexing with external 1*ASI in
Up to 6 Modules in Back panel
* Built-in PCR capability
* Support multiplexing with external 1*ASI in
* Providing PSI/SI compilation and NIT, LCN insertion

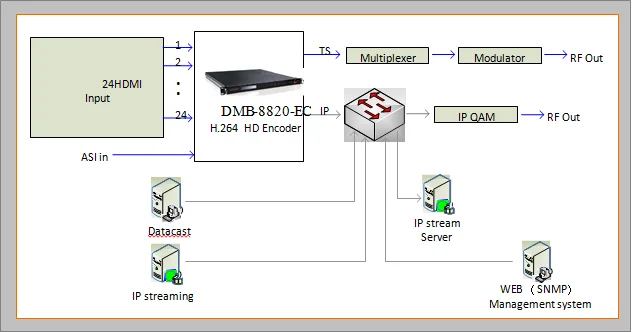

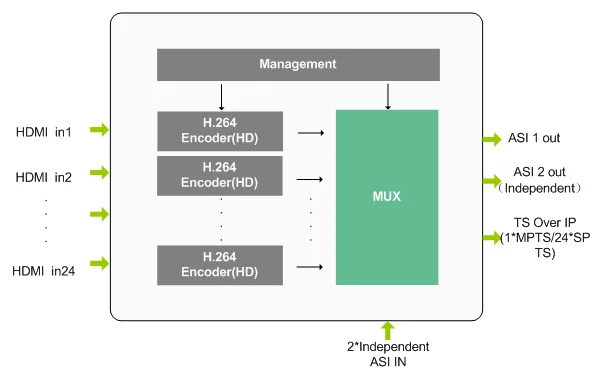

Application & Diagram
Praise From Customers
About Us
Product Line
Certifications
FAQ
1.Can you provide OEM service as per our request? Is it free?
With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
2.What about your Warranty?
We provide new free spare parts in 5 years because of the product quality problems, except for man-made damage.
3.About the shipping way?
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such as FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
4.Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,anydesk whatsapp etc.

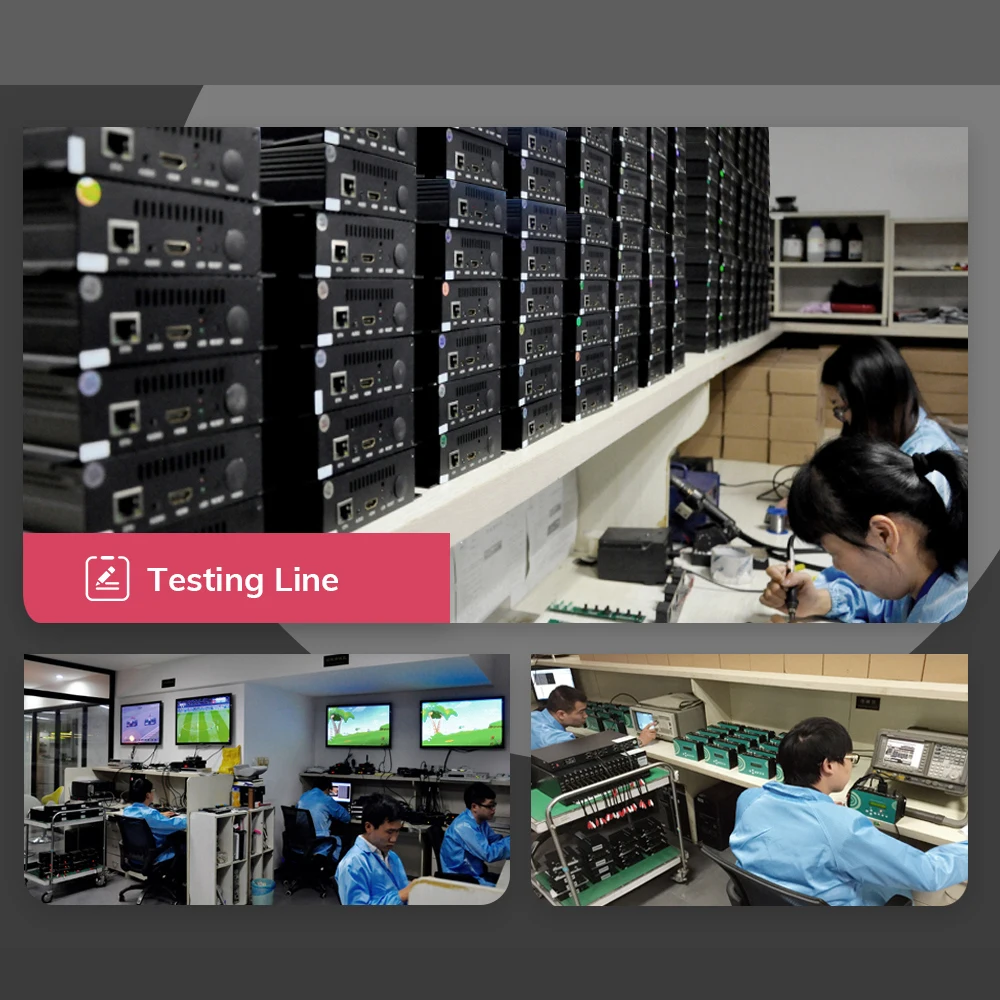

5.How does your factory do regarding quality control
Quality is very important and always be put at the first place,Every product will be tested before it is shipped to ensure that
every device is delivered to you with high quality
6.Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
7.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.
2.What about your Warranty?
We provide new free spare parts in 5 years because of the product quality problems, except for man-made damage.
3.About the shipping way?
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such as FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
4.Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,anydesk whatsapp etc.
5.How does your factory do regarding quality control
Quality is very important and always be put at the first place,Every product will be tested before it is shipped to ensure that
every device is delivered to you with high quality
6.Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
7.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
Contact us
Contact Person | Lisa Lee |
E-mail | service@ digicast.cn |
Company Website | www.digicast.cn |
Whatsapp/Wechat Phone | +86 18167118312 |
Skype | 8618167118312 |
Похожие товары

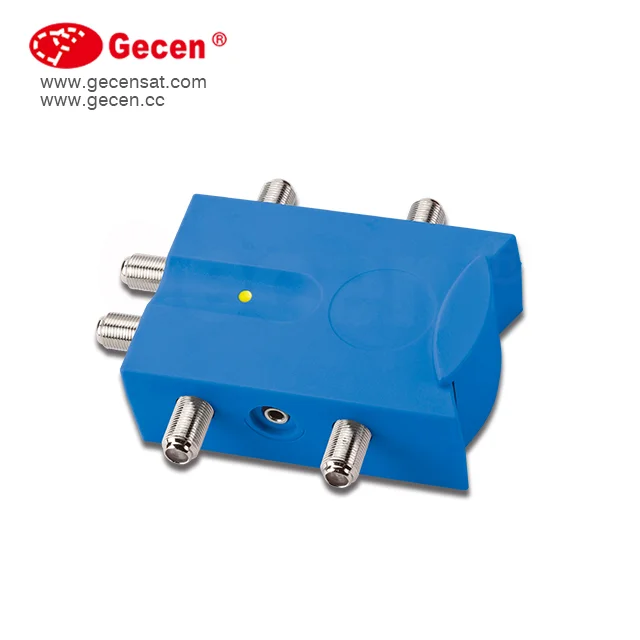

Gecen усилитель бытовой CATV Внутренний Сигнал Mini GCH-504G
Fullwell FTTH XG(S)-PON NG-PON2 1270/1577 & 1310/1490 & нм и нм активный WDM оптический приемник/мини оптический узел
12,00 $ - 12,50 $
Fullwell 1310 нм/1490 нм/1550 нм FTTH CATV приемник оптический преобразователь мини-узел с 2RF
11,00 $ - 11,50 $

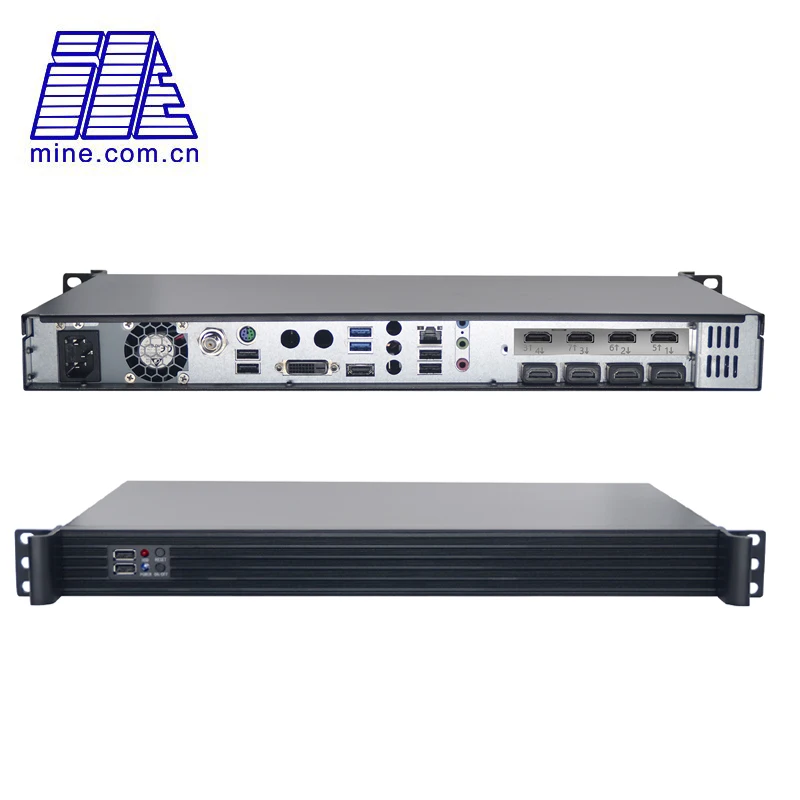

1U 4 канала H.265 HEVC hd-sdi видео кодировщик поддержка RTSP RTMP UDP RTP ONVIF Потоковое вещание кодирования
745,00 $ - 759,00 $
TS8100 HDMI-ASI Hashcode, удаление кодировщика с аудио-кодом

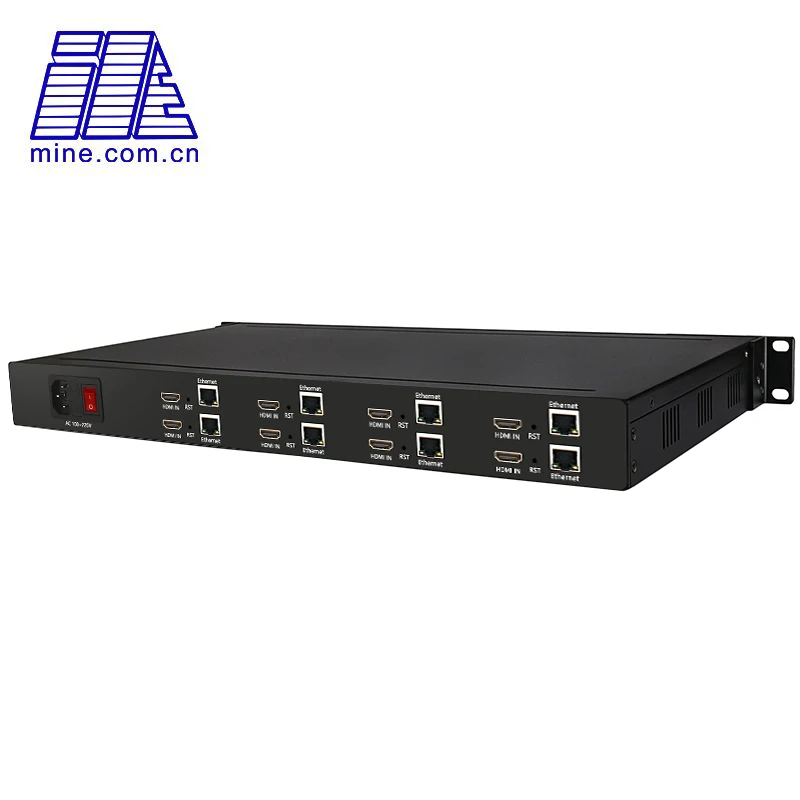

Новый кодировщик видеосигнала 8 HDMI H.265 для прямой трансляции IPTV через IP в Wowza,YouTube

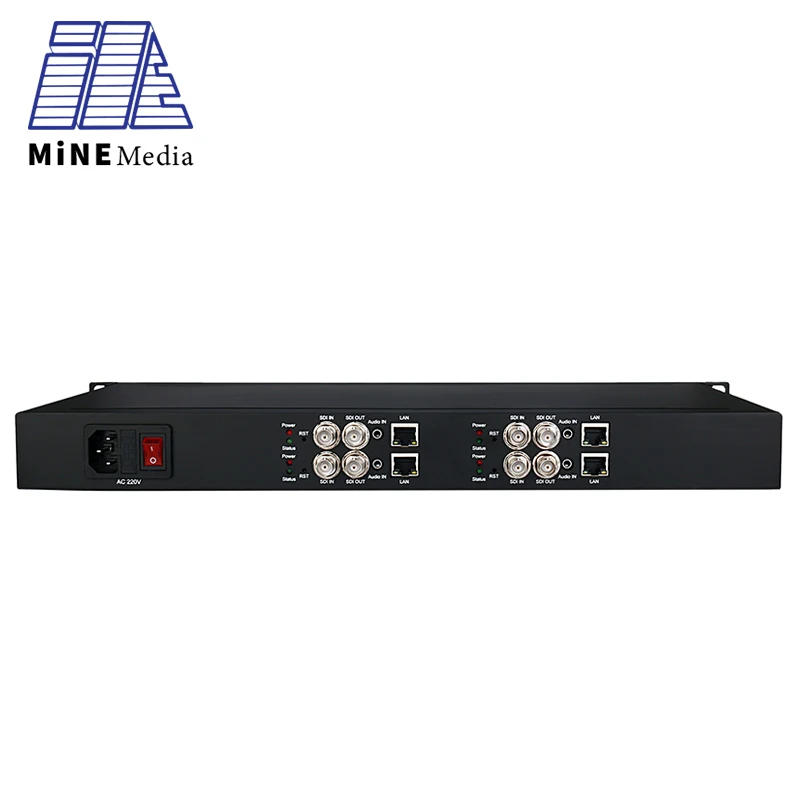

1U 4 канала стеллаж для выставки товаров-монтажник H.265 RTMP RTSP ONVIF HD/SD/3G SDI к IP TV потоковой передачи видеокодер
