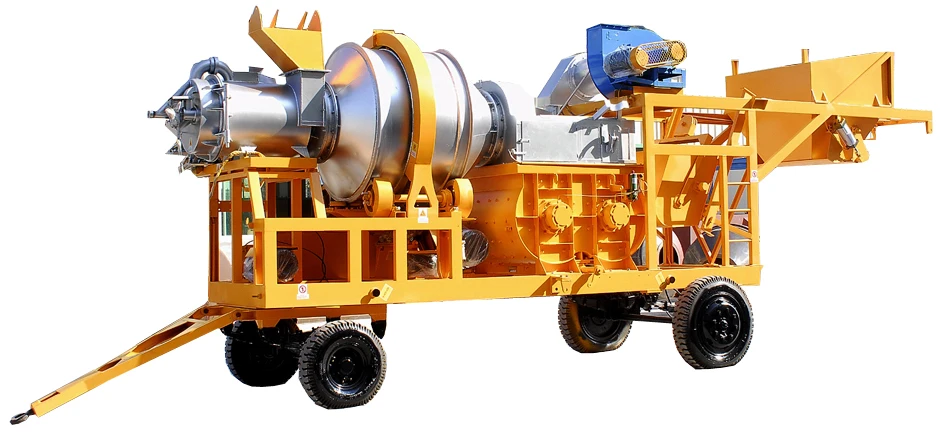

Mobile asphalt mixing machinery mixing plant QLB60 for road paving asphalt

Product Introduction:

1.QLB60 series asphalt plant easily expanded into mobile type, convenient for using in different working conditions.

2.The drum adopts gear drive, frequency conversion, positive and negative going motion, intermittent heating.It’s double shaft mixing, batch production. Blade and lining board adopts high wear-resisting material, with long service life.

3.The standard configuration of QLB Mobile asphalt plant is cyclone filter. The aggregate, bitumen and filler all adopt the batch-type metering, with high precision and reliable performance.

Advantages:

1.Drying System

        The scientific design is efficient and energy-saving

Simulation and optimization of material curtain design can ensure thermal efficiency up to 90% with unique on-line intelligent detection function, allowing the roller to realize high heat exchange while saving fuel.

                                                           2.Combustion System

First-class burners are easy to use and environmentally friendly

New generations of axial-flow oil/gas burner led by  and jointly developed by China and Europe can not only adjust the ratio of variable frequency air to oil but also have low noise and are more energy - saving, environment-friendly and safe.

3.Dust Collection System

All-around environmental protection, stable quality, and high efficiency

                                                                    4.Screening System

 Low warehouse mixing rate, maintenance-free and easy operation

Digital simulation, dynamic simulation, ensures the warehouse mixing ratio is less than 5%. The energy-saving vibrator can be driven directly, with high transmission efficiency and no maintenance. Mesh tension can be identified for easy operation.

5.Measuring System

Patents are more stable and accurate

The weighing mechanism with a strong self-adapting ability is equipped with the unique two-door coarse and fine-scale patent combination and secondary tracking measurement for accurate measuring. Bring you a more accurate “oil - stone ratio" to ensure the quality of finished products.

                                                                        6.Mixing System

 High efficiency, energy saving, stable and wear resistance

The material mixing model was optimized by simulation; materials in each mixer are homogeneously mixed to increase the mixing efficiency by 25% while reducing energy consumption by 20%. The mixing arm is precision cast with high-strength wear-resistant alloy steel, using the most advanced heat treatment method at present and additionally adding wear-resistant trace element coating.

20 years of research and development experience in wear-resistant technology makes the equipment more durable, the mixing more uniform and the quality of finished products more reliable.

7.Conveying System

 The optimized design is smooth and reliable

The use of scraper conveyor and plate elevator can avoid the problems of elongation and deformation of parts and skid during the conveying process so that the line can be unblocked all the way.

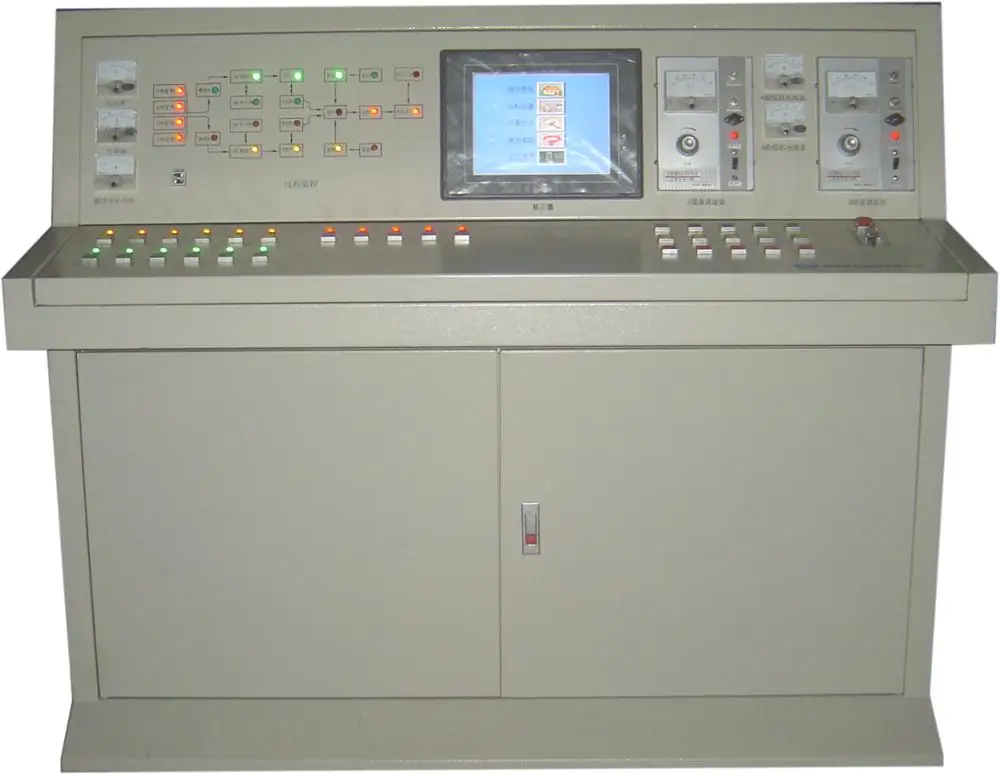

                                                      8.Intelligent Control System

 Multiple securities without downtime, cloud monitoring is more convenient

Equipped with self-developed dual computer synchronous production management and control system and drying roller fault warning patent, it has multiple securities without downtime. The unique real-time burner instantaneous flow and oil consumption display technology and cloud data real-time update function enable the burner to perform accurate remote service. The more intimate control system makes your operation simpler and more convenient.

Main Parameter

Our Services

1-After-sales service

SANQGROUP has established an integrated marketing system consisting of "Sales,Maintenance ,Fitting ,Information and Advgertisement "based on the market-oriented policy as well as the high quality products,perfect services and good faith for market development and therefore the marketing network has covered every port of the world. We consider customers the most important element for creating the enterprise's benefit. Sanqgroup have received users' recognition for the perfect services. We will always keep our promise for customer in any ports of the word sice we do what we planced.

• 24 hours on line sercvice


• Regular after-sale visit


• All after -sale service problem will be solved in 72 hours


• Accessories gloabally supply


• Lifetime technique suport


• Enginnerserve overseas avaiable

2-Spare Parts and Service

Sanqgroup deliver solutions tailored to each customer's requirments.We set great store by advising and working with our customers right from first contact to plant commissioning.Our in-house technical deparment ensures clarification of all technical issues and thoroughly prepares all project drawings. After cpmmissoning of the plant we are happy to provide advice to ensure that the plant always fuctions in the best possible way an has long lifespan.

SANQGROUP has a complete spare parts supply system ,equipped with skilled professional and technical personnel ,to provide clients with pure spare part sand thoughtful service 7*24 hours every day.
