Сенсорный промышленный нагреватель воздуха NTL 152 150 Вт для электрических
- Категория: >>>
- Поставщик: Wenzhou Natural Automation Equipment Co. Ltd.
Сохранить в закладки 62433379299:
Описание и отзывы
Характеристики
Products Description
• Low surface temperature
• Quick mounting due to clip fixing
• Double insulated (plastic)
• Wide voltage range
• Small size

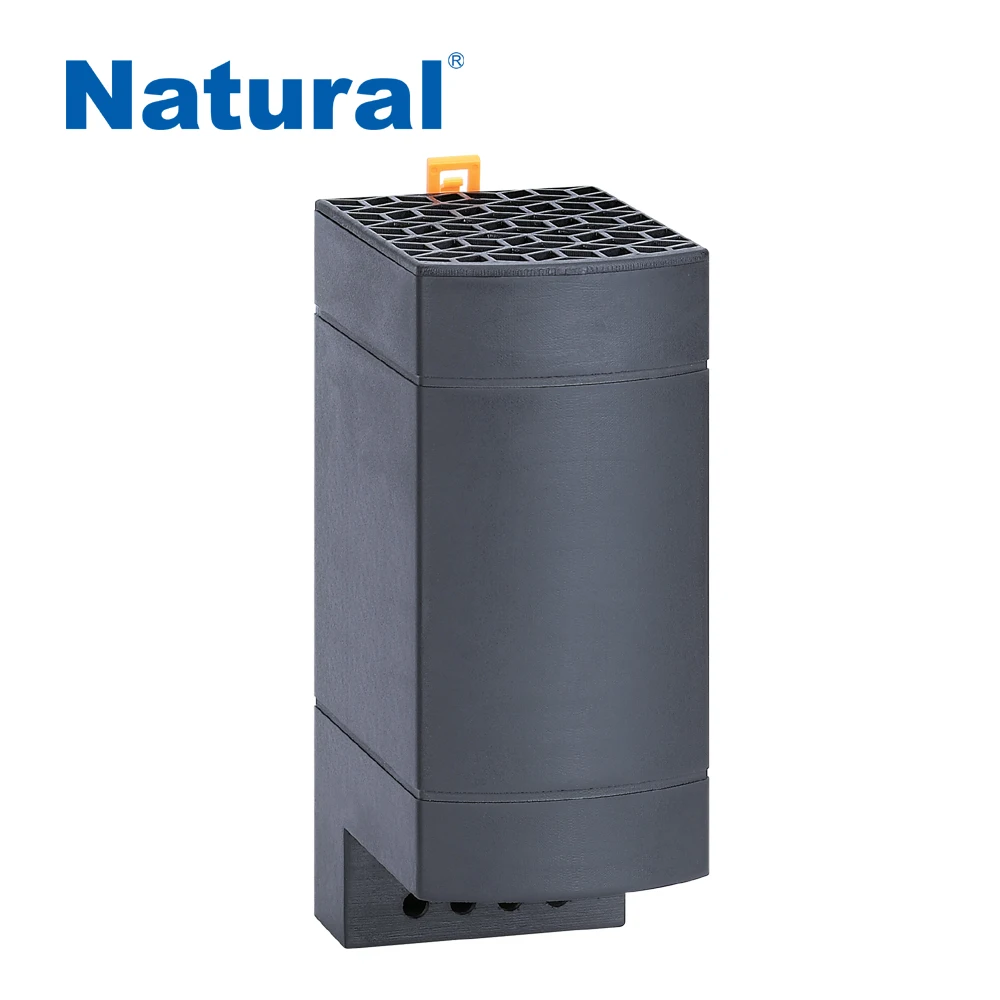

Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. Our complete range of thermostats and hygrostats can directly be connected to the heater NTL 152. This heater is also available in a version with plug-in thermostat requiring no additional wiring. The heaters are designed for permanent operation.
• Quick mounting due to clip fixing
• Double insulated (plastic)
• Wide voltage range
• Small size
Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. Our complete range of thermostats and hygrostats can directly be connected to the heater NTL 152. This heater is also available in a version with plug-in thermostat requiring no additional wiring. The heaters are designed for permanent operation.
Technical Data：CE RoHS ISO9001 Patent
NTL 152 | ||
Operating voltage | 120-260V AC/DC or 12V DC or 24V DC or 48V DC¹(min. 110V, max. 265V) | |
Heating element | PTC resistor - temperature limiting | |
Surface temperature | < +80°C (+176°F), except upper protective grille | |
Connection | 4-pole terminal 2.5mm², torque 0.8Nm max. | |
Casing | plastic according to UL94 V-0, black | |
Mounting | clip for 35mm DIN rail, EN 60715 | |
Fitting position | vertical airflow (air outlet up, connection on bottom) | |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) | |
Operating/Storage humidity | max. 90% RH (non-condensing) | |
Protection type/Protection class | IP20 / II (double insulated) | |
Note | other voltages on request | |
¹ Drilling marks for screw mounting are indicated on mounting frame.
Hot Products
About Us
Production Process
THE EXHIBION And CERTIFICATE
FAQ
1. Are you a factory or a trading company?
We are a factory,founded in 2006, has over 13 years experience in producing thermostat, heaters, voltage protector etc.
2. What certification you have?

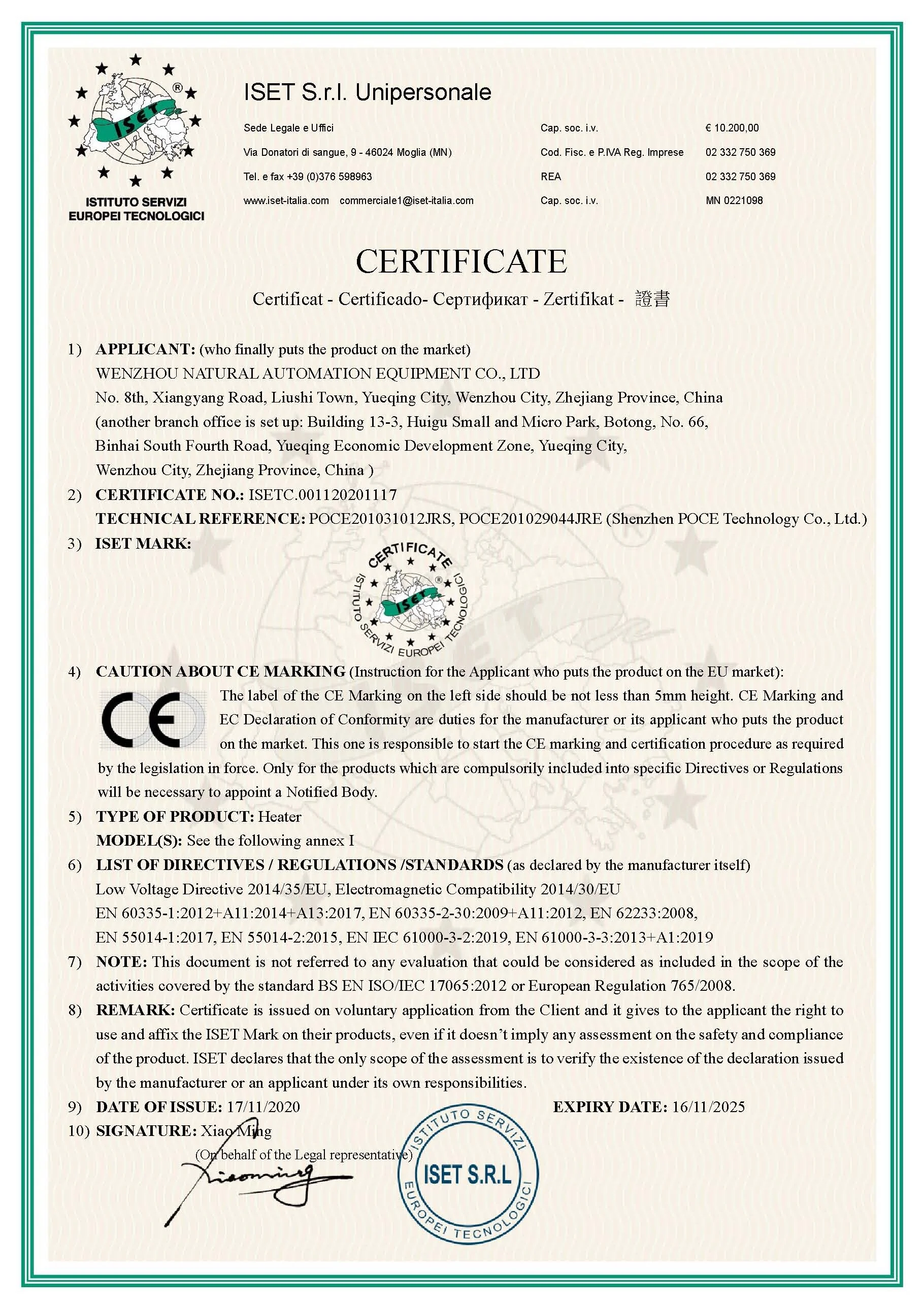

Products are with CE, RoHS, IP55, Design Patent, Utility Patent, etc. Management system: ISO9001: 2015
