Ручной токарный станок

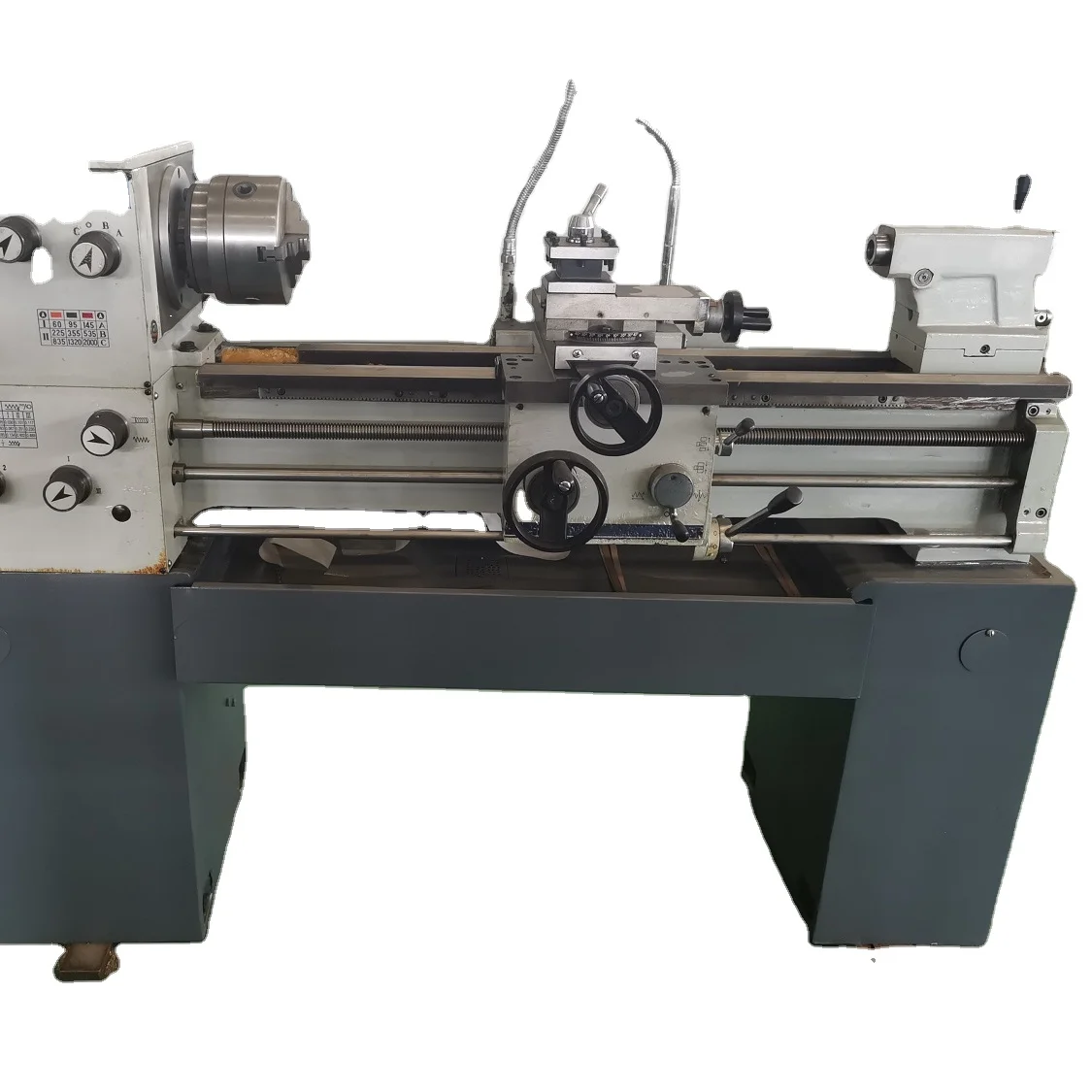

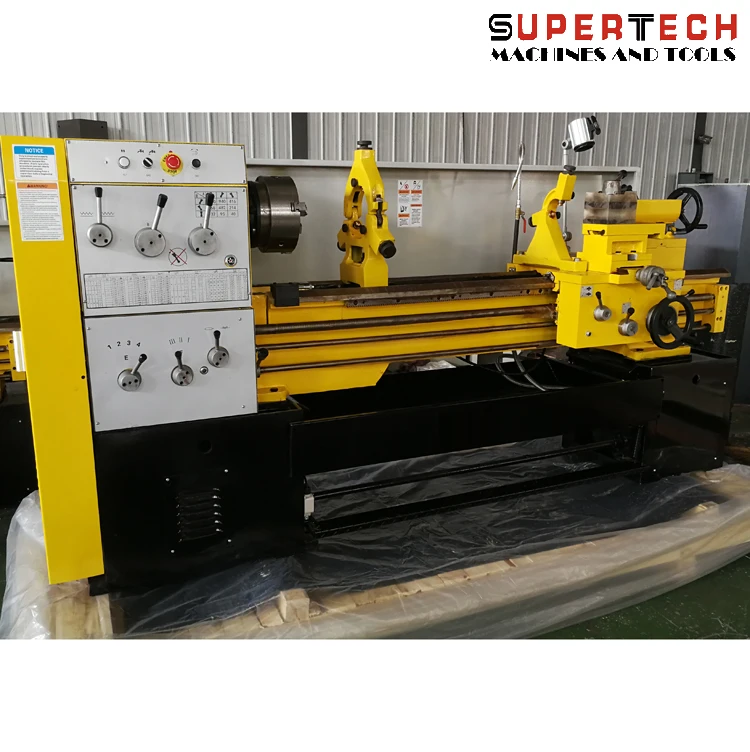

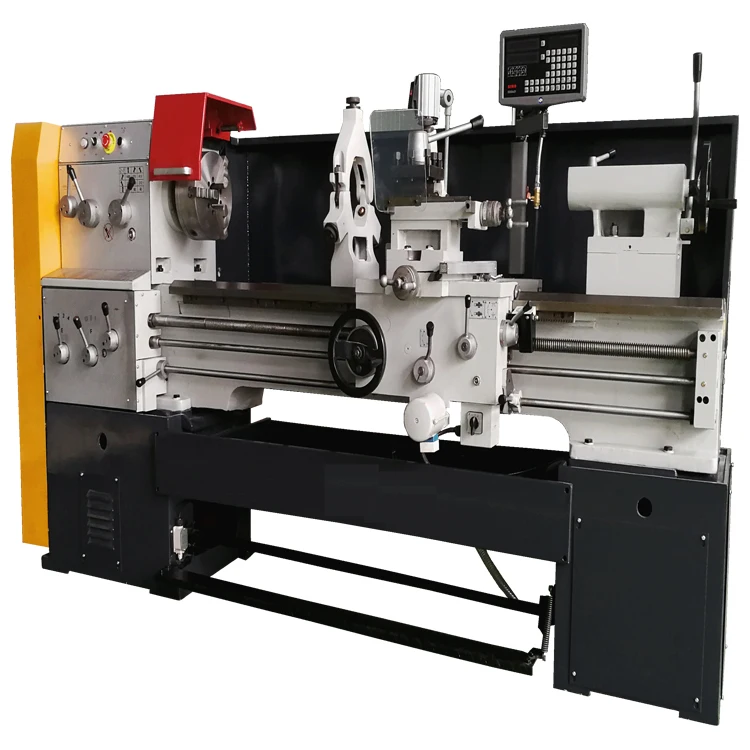

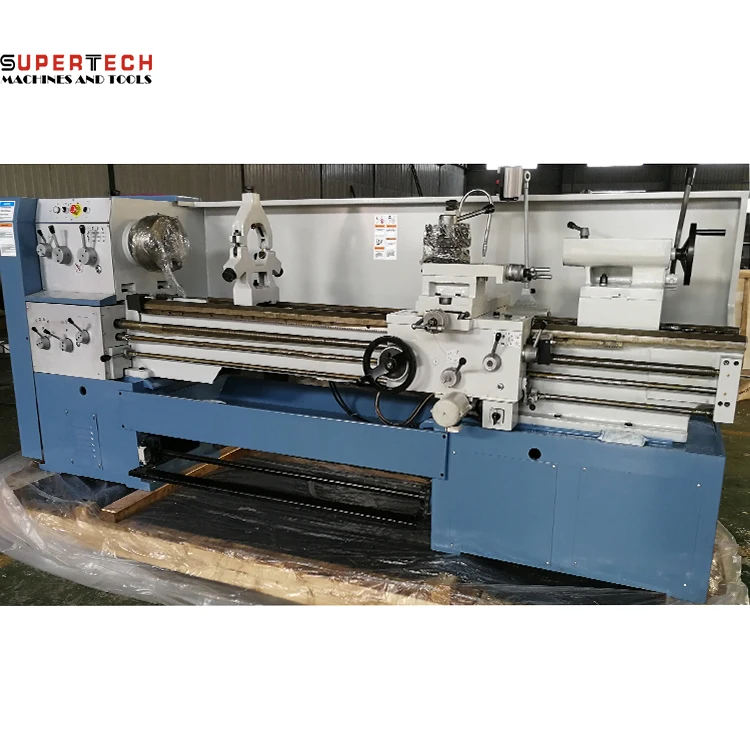

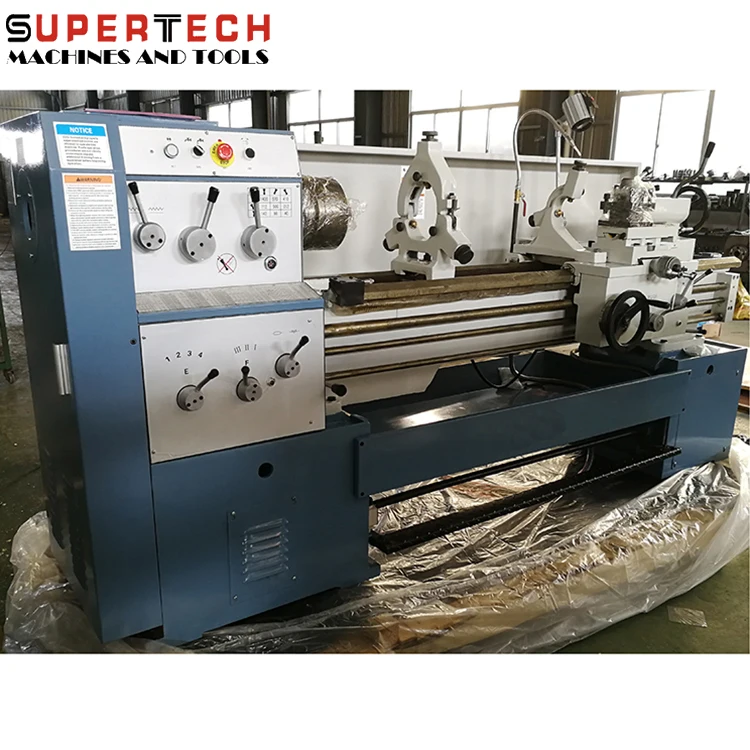

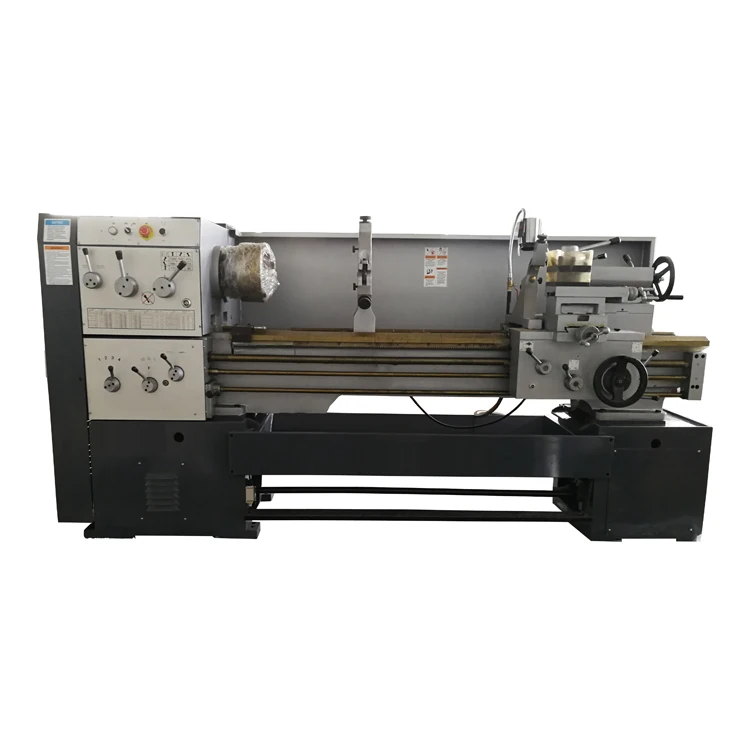

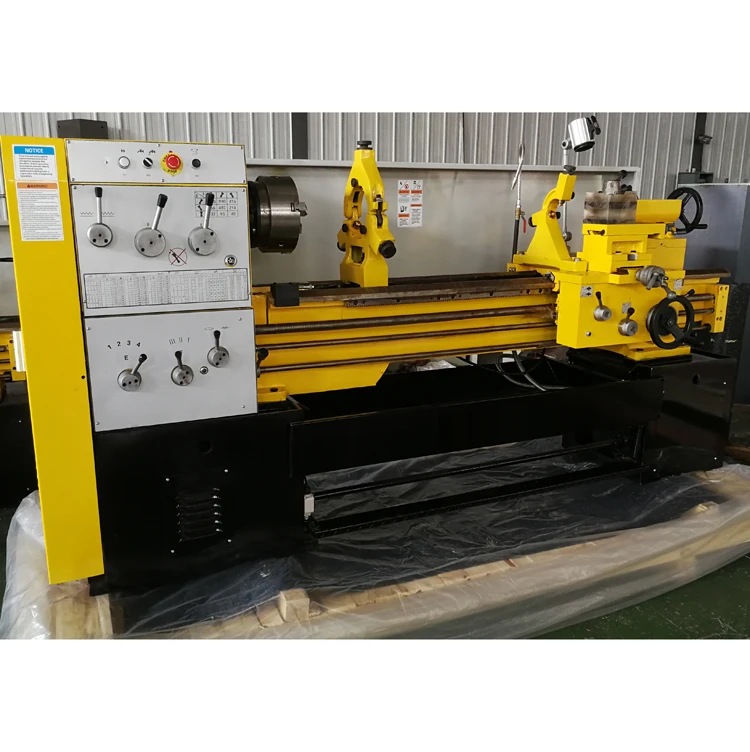

CA6150 Расстояние между центрами 1500 мм Настройка деталей Мини токарный

CA6150 Расстояние между центрами 1500 мм Настройка деталей Мини токарный

Категория: Ручной токарный станок >>>
Поставщик: Supertech Machine Tool Co. Ltd.

Цена:5 310,00 $ - 5 530,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

PRODUCT FEATURES

(1)THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.

(2)GEARS PRECISELY GROUND TO REDUCE NOISE.

(3)SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION.

(4)RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.

(5)INTEGRAL CASTING BASE.

TECHNICAL PARAMETERS

SPECIFICATION		Units	LC510A/1500MM
CAPACITY	Max.swing over bed	510mm
	Y-axis travel	Max.swing over cross slide	330mm
	Z-axis travel	Max.swing over gap	670mm
	Table size	Effective length of gap	200mm
	Spindle power	Center Distance	1500mm
	Maximum spindle speed	Bed Width	360mm
HEADSTOCK	Spindle hole	82mm
	Spindle nose to table	Spindle nose	ISO-C8
	Spindle center to column surface distance	Spindle taper	MT8
	Positioning accuracy	Spindle speed(Number)	(9steps)40-1300rpm
FEEDS AND THREADS	Max.travel of top slide	95mm
		Max.travel of cross slide	200mm
		Max.size of toolshank	20*20mm2
		Longitudinal feeds range	36kinds 0.0832-4.66mm/r
		Cross feeds range	36 kinds 0.048-2.69mm/r
		Metric threads range	29kinds 0.25-14mm
		Inch threads range	33kinds 2-40inch
	Machine weight	Moudle threads range	17kinds 0.5-3.5mπ
TAILSTOCK	Dia.of tailstock sleeve	65mm
		Taper of tailstock sleeve	MT5
		Max.travel of tailstock	140mm
MOTOR	Main drive motor	5.5KW
		Coolant pump motor	90W
PACKING SIZE	LWH(LC410/1000mm)	293113175cm
WEIGHT	N.W/G.W(LC410/1000mm)	1750/2000kgs

STANDARD ACCESSORIES PART:INSTALL ON THE LATHE

Work lamp Rapid travel
Coolant system
Thread-cutting dial
3-jaw chuck(Φ250mm)
Longitudinal touch stop
Steady rest & follow rest
Full-length splash guard
Foot brake and brake ribbon

STANDARD ACCESSORIES PART:INSIDE THE PACKAGE WITH THE LATHE

Oil gun

Paddings

Face plate

Drive plate

Change gears

4-jaw chuck (Φ320mm)

Dead centre and centre sleeve

One whole set spanner and tool box

Operation manual

SPECIAL USE ACCESSORIES(OPTIONAL PIRCE)

Drill chuck set

Live centre(MT4)

Taper cutting function

2axis or 3axis Digital readouts(SINO)

USA type Quick change tool post

Europe type Quick change tool post

Italy type Quick change tool post

CE-conformity(Chuck guard,Toolpost guard and leadscrew guard)

Cutting tool holders set(7pcs or 9pcs)
