GT полностью автоматизированная теплица с лишним
- Категория: Прочие теплицы >>>
- Поставщик: Sichuan Green Triangle Technology Co. Ltd.Sichuan Ltd.
Сохранить в закладки 62499027147:
Описание и отзывы
Характеристики

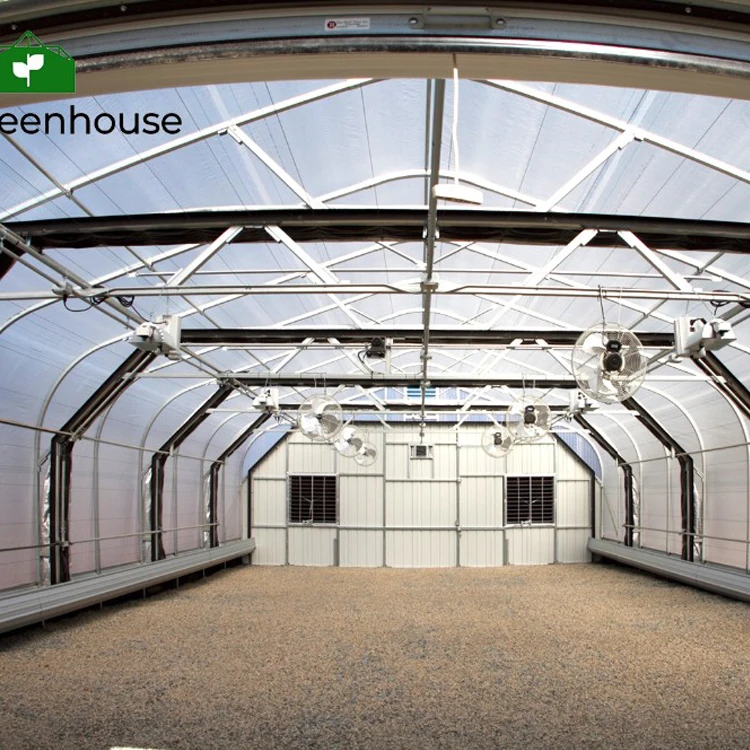

Blackout Greenhouse
blackout is a shading greenhouse, there are two kinds of materials, one is film(black,white,green), the other is blackout screen
blackout is a shading greenhouse, there are two kinds of materials, one is film(black,white,green), the other is blackout screen
Blackout Greenhouse is a more advanced type of greenhouse, which uses very advanced science and technology, excellent materials and unique design skills to combine the previous single greenhouses together.
It is very flexible, clever use of space,it is stronger overall, better efficiency, and can save a lot of time, its use is very environmentally friendly and has an economic effect.
Suitable for high-value vegetables, fruits and flowers production, especially in extremely cold or hot area. Helpfully to produce high quality product and stable quantity against fluctuant outdoor environment.
Greenhouse shading system advantages:
1.In winter, it can keep the greenhouse warm so that the vegetables and flowers can grow well.
2.In summer, the it can shade the sunlight.
3.To reduce water evaporation in soil and effectively anti-drip
Tape | Blackout Greenhouse |
Lengh | 10 - 200 meters (Customizable) |
Span Width | 6m~12m, customization |
Height | 3m-7m, customization |
Structure | Galvanized Steel pipe, diameter 25, 32, 40, 42, 50, 60 milimeters |
Covering | Plastic film/Pc sheet/Glass |
Snow Load(Customized) | 0.5 KN/㎡ |
Wind Load(Customized) | 0.6 KN/㎡ |
Name | Technical Data |
Shade net Thickness | 150, 180, 200 micron |
Light Transmission (%) | >88 % |
Temperature | -15 ℃—60 ℃ |
Tensile Strength | ≥30MPa |
Tear Resistance | ≥580% |
The composition of the greenhouse greenhouse shading system:
The main equipment of the system includes geared motor, drive shaft, drive shaft, rack and pinion, supporting hanging wheel, driving edge profile and curtain line.
Greenhouse Light Deprivation System is the blackout screen, we use 3 layers breathable shading net, quarantee 5 years, one layer black, one layer white or aluminum.

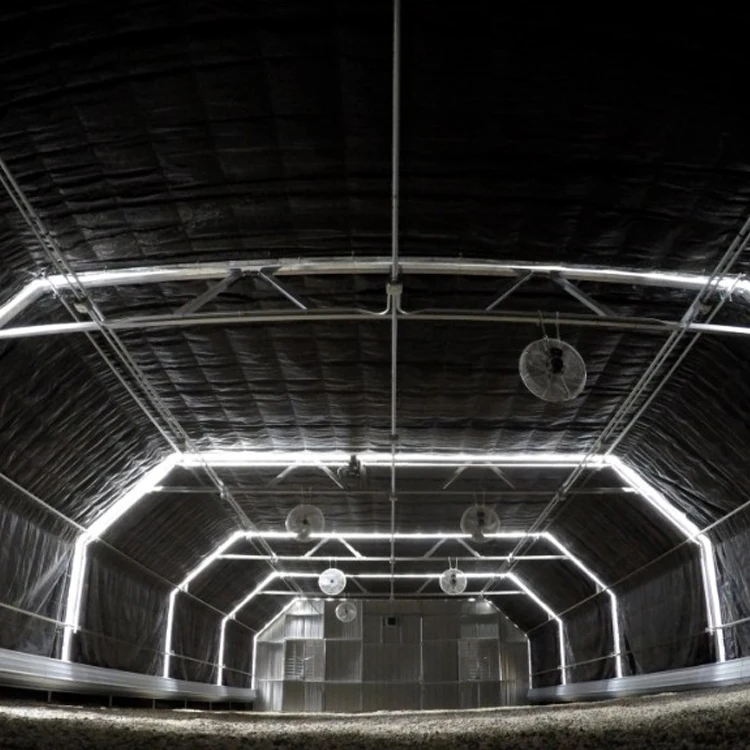

Auto Blackout Light Deprivation Greenhouse
Our 100% 3 Layers Automatic Blackout Greenhouse Light Deprivation Systemis widly used for medical plants, which required 13 to 15hours in dark so that can trick the flowers.When we install the 100% 3 Layers Automatic Blackout Greenhouse Light Deprivation System , we will need driving motors(220V/240V/380V,50HZ/60HZ,Single phase/Three phase), rack and pinoins, shaft pipes, pull and push pipes, screen wire, fixed kits etc.
The most important for 100% 3 Layers Automatic Blackout Greenhouse Light Deprivation System is the blackout screen, we use 3 layers breathable shading net, quarantee 5 years, one layer black, one layer white or aluminum. Considering the large quantity of LED/HPS lights inside the blackout greenhouse, our 100% 3 Layers Automatic Blackout Greenhouse Light Deprivation System use flame retardant screen, in this way, we can make sure all equipment is safe.

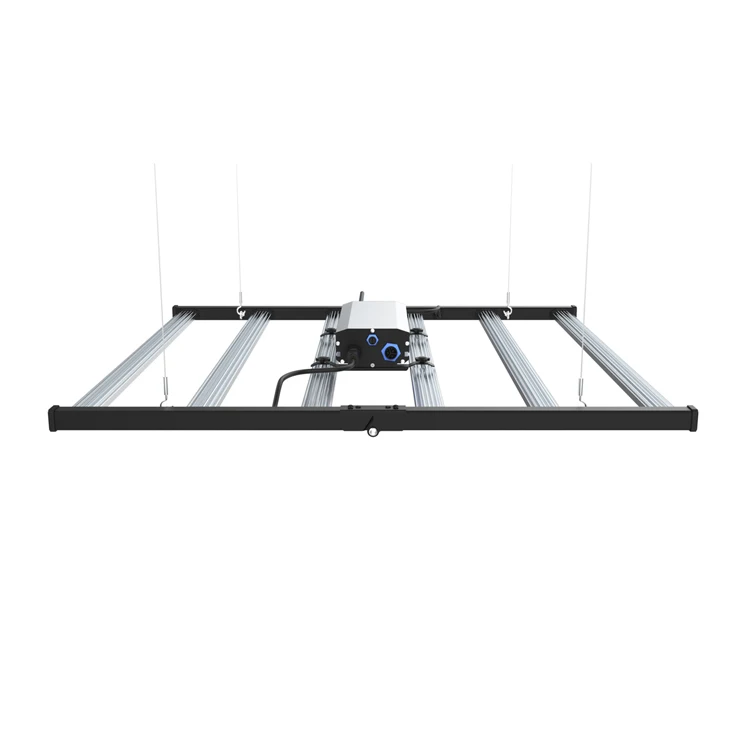

LED/HPS lights:
High efficiency (2.7umol s -1 per watt) .High output for high intensity.Ambient temperatures from 0°C（32°F) to 35°C(95°F)

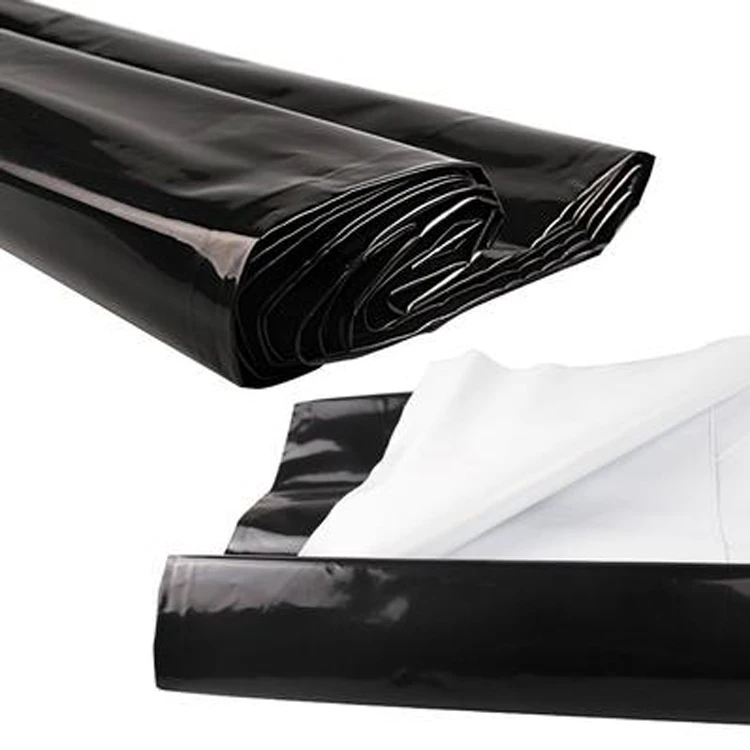

PE/PO film
The greenhouse is covered with PE/PO film, anti-aging, anti-ultraviolet, anti-drip, the service life is 3-5 years.
GLASS
4mm, 5mm, 5+6A+5, 4+9A+4 hollow glass
There are many gutters, large span, large displacement, strong wind resistance, suitable for large areas of wind and heavy rainfall.

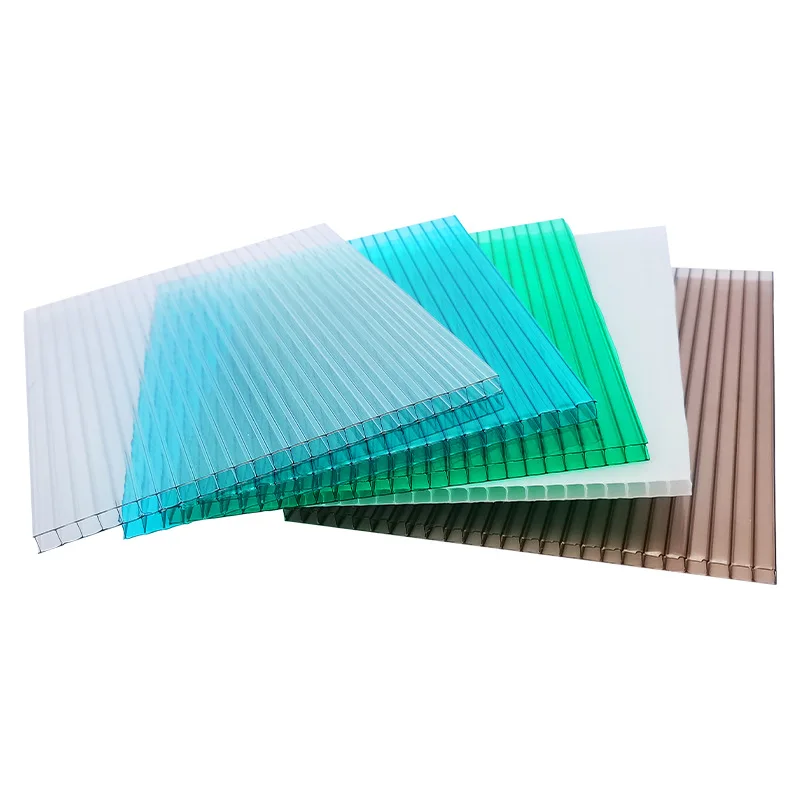

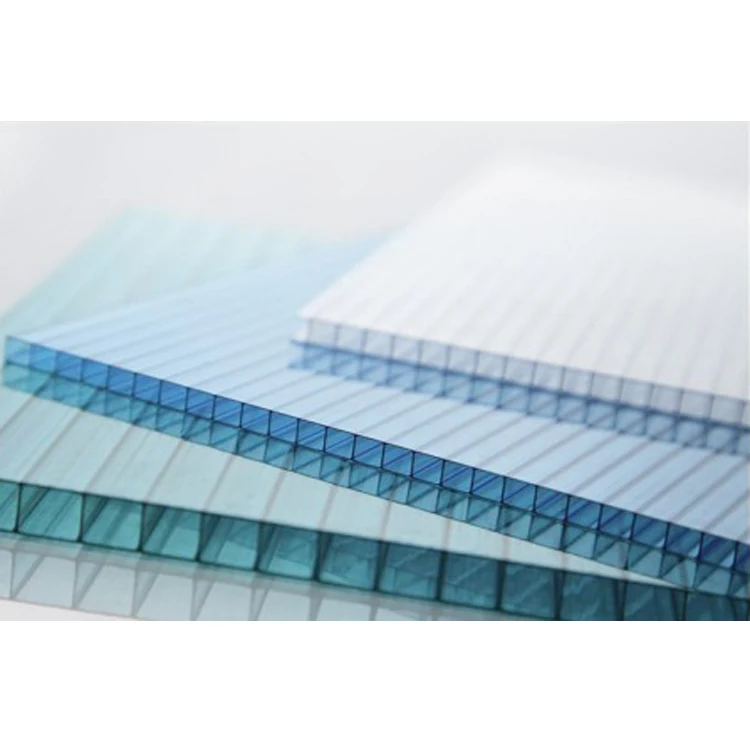

PC SHEET
Polycarbonate panels are less expensive in comparison to almost any other plastic sheet, and they are easier to work with than glass or acrylic. Use polycarbonate panels for your next custom project.

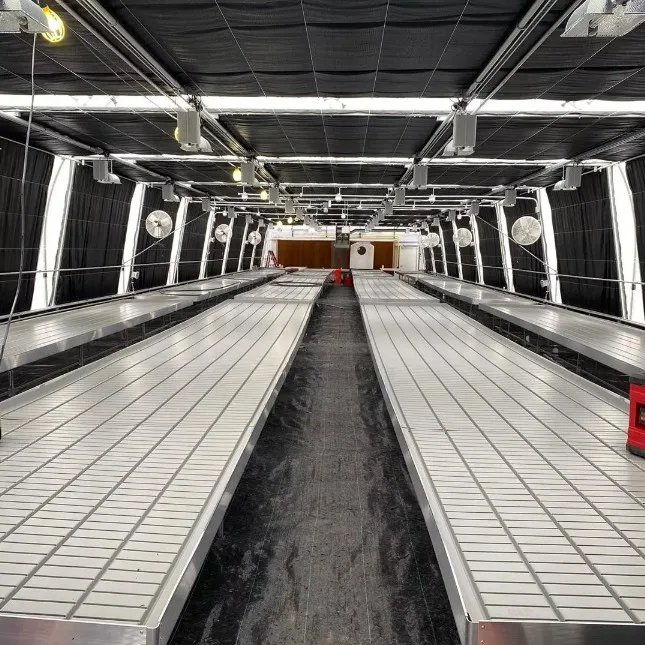

Bench System:
1.Rolling bench, fixed bench,rotary bench and ebb&flow bench system.
2.High space effiency,convenient for planting and high productive for crops.
2.High space effiency,convenient for planting and high productive for crops.
Shading System:
1.High pressure sodium lamp,or LED lamp;
2.Semi-auto control or intelligent control;
3.Persistant ligh for pants grows.
2.Semi-auto control or intelligent control;
3.Persistant ligh for pants grows.
Cooling system
Cooling fan and cooling pad
Great performance of ventilation Low operating cost Fast cool-down low noise High efficiency motor
Irrigation System:
1.Drip,impulse sprinkler, micro sprinkler and fog spray irrigation system.
2.Water saving and smart.
2.Water saving and smart.
1.Port:Shanghai port & Qingdao port & according to customer's requirements
2.Lead time: 15 days after payment
3.Packing Details： The normal package is carton(Size：L*W*H).But we also pack it according to customer's special request.
You can choose the best way to transport according to your actual situation.
3.Packing Details： The normal package is carton(Size：L*W*H).But we also pack it according to customer's special request.
You can choose the best way to transport according to your actual situation.
1. Factory or trading company?
We are a trading company separated from the factory and also a manufacturer
2. How long is the delivery time?
Delivery time is 10 days to 60 days after receiving the deposit. It depends on the size of the greenhouse.
3. How long is the warranty period?
If there is any problem within 12 months after installation, we will provide spare parts free of charge.
4. Can greenhouse design be provided?
We can design the greenhouse according to your land and plants after receiving the deposit, and we can give simple drawings before signing the contract.
5. Choose single shed or multi-span shed?
It is related to the plants that are planted and can be used, the multi-span shed is more expensive and space-saving, and the single shed is simpler and more economical.
6. How to install the greenhouse?
We will send engineers to the customer site to guide the installation. Clients should hire enough local workers for installation work.
7. How many days will the greenhouse installation take?
Generally a simple round arch single shed, about 2-5 days.
8. What systems do you need?
We have systems for opening windows, cooling, shading, shading, irrigation, heating, CO2, etc., which are selected according to climatic conditions and plant growth needs as well as the economic situation of customers.
9. Blackout Greenhouse
blackout is a shading greenhouse, there are two kinds of materials, one is black and white film, the other is blackout screen, black net may be black shading net
10. What are the payment terms?
In general, our payment method is 30%-50% TT deposit, and TT pays the balance before loading. Or you can give your own payment term and we can negotiate.
