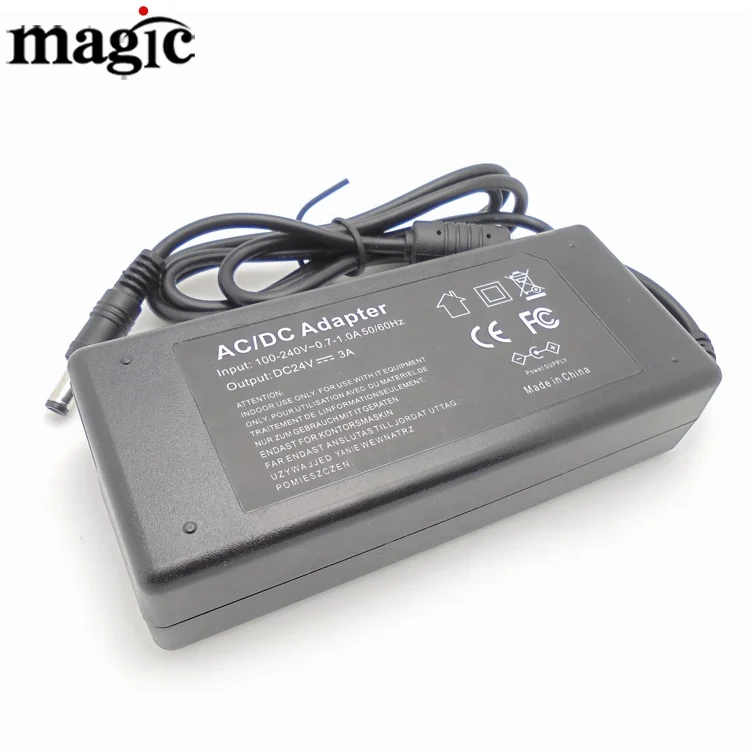

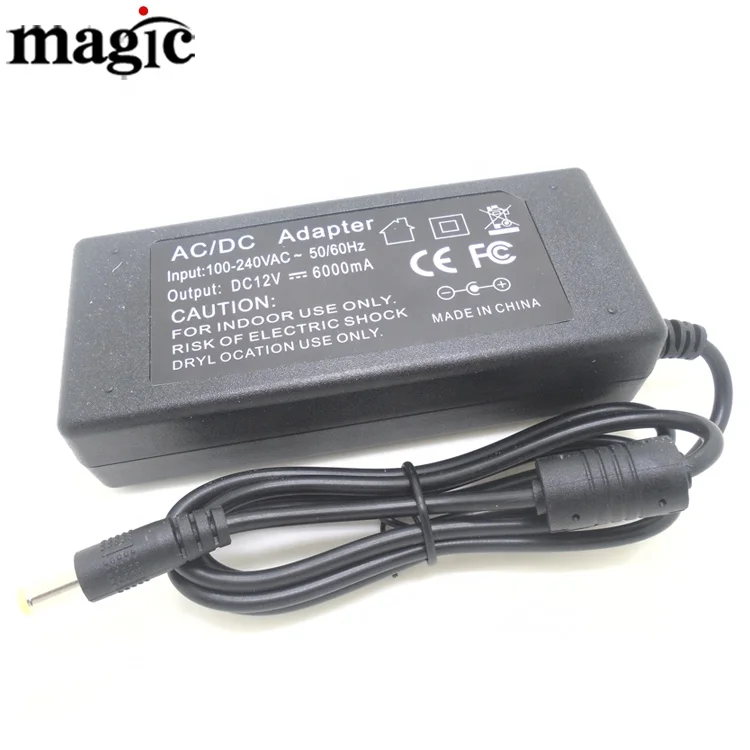

Ac 220v to Dc 24V 12V 72W адаптер питания трансформатор источник для светодиодной ленты
- Категория: >>>
- Поставщик: Shenzhen Magic Led Lighting Co. Ltd.
Сохранить в закладки 62527557737:
Описание и отзывы
Характеристики
Product Description
AC110V AC230V 72W DC24V 12V 12volt DC charger for led strip light
Protecting characteristic: short circuit/overload
Fully enclosed plastic case
Universal AC input /Full range
2 years quality assurance
Pulg:USA,Euro,UK,AU…
Electrical specifications
Model | 72W-DP | 72W-DP | ||
Output | DC output voltage | 12V | 24V | |
Output voltage tolerance | ±5% | ±5% | ||
Rated output current | 6A | 3A | ||
Output current | 0~10A | 0~5A | ||
Output power | 72W | 72W | ||
Ripple and noise | 100mVp-p | 240mVp-p | ||
Line regulation | ±1% | ±1% | ||
Load regulation | ±5% | ±5% | ||
Voltage adj . range | Fixed | |||
Setup rise hold up time | 500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load | |||
Input | Input voltage range | 90～264VAC 135～370VDC | ||
AC input current | 0.7A/100VAC | |||
Efficiency | 80% | 83% | ||
AC inrush current | 45A/230VAC | |||
Leakage current | 0.75mA/240VAC | |||
Frequency range | 47～63Hz | |||
Protection characteristic | Over load protection | 110%~150%rated output power | ||
Protection mode : Hiccup mode ,auto-recovery after fault condition is removed. | ||||
Environment | Working temperature | 0℃~+50℃ | ||
Working humidity | 20%~90% RH non-considering | |||
Storage Temp,humidity | -20℃~+85℃,10~95%RH | |||
Temp.coefficient | ±0.03% /℃(0~50℃) | |||
Vibration | 10~500Hz, 2G 10min./1 cycle ,period for 60 min. each along X Y Z axes | |||
Safety | Withstand voltage | I/P-O/P:3000 VDC | ||
Safety standards | EN60950 | |||
Insulation resistance | I/P-O/P:100M Ohms/500VDC/25℃/70%RH | |||
EMI conduction&radiation | Compliance to EN55024, EN61000-3-3 | |||
EMS immunity | Compliance to EN61000-3-3 | |||
Harmonic current | Compliance to | |||
Others | Weight/Packing | 0.5kg/ PCS | ||
Dimension | 132*58*31MM | |||
Connector | DC Connector | 5.5X2.1mm | ||
Cable Length | 1m | |||
Remark:
1. All parameters are specified at 230VAC input, rated load, 27℃ 70%RH ambient
2. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor
3. Tolerance: includes set up tolerance, line regulation, load regulation
4. DC voltage : the output voltage set at point measure by plug terminal &50% load
5.Line regulation is measured from low line to high line at rated load
6.Load regulation is measured from 20% to 100% rated load
7.The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives
1. All parameters are specified at 230VAC input, rated load, 27℃ 70%RH ambient
2. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor
3. Tolerance: includes set up tolerance, line regulation, load regulation
4. DC voltage : the output voltage set at point measure by plug terminal &50% load
5.Line regulation is measured from low line to high line at rated load
6.Load regulation is measured from 20% to 100% rated load
7.The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives

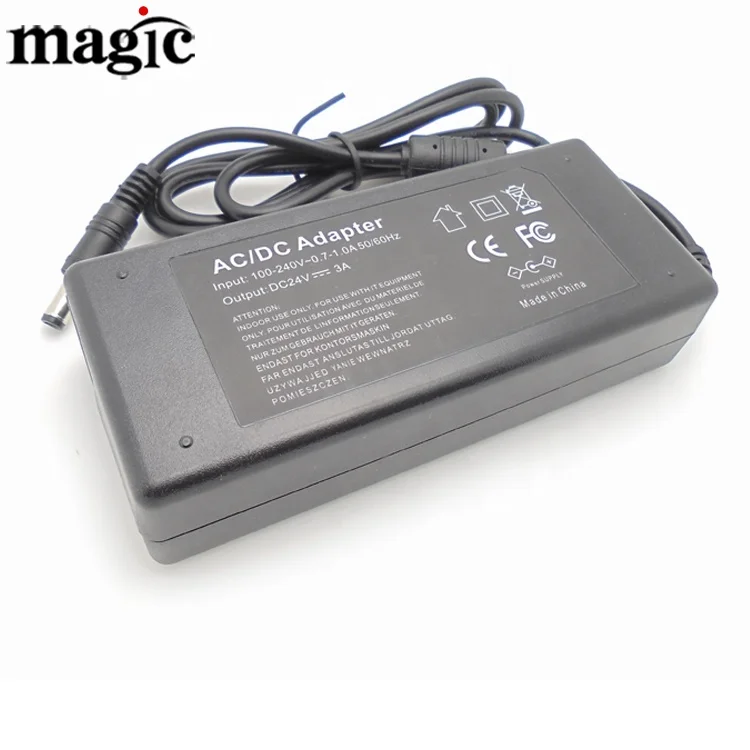

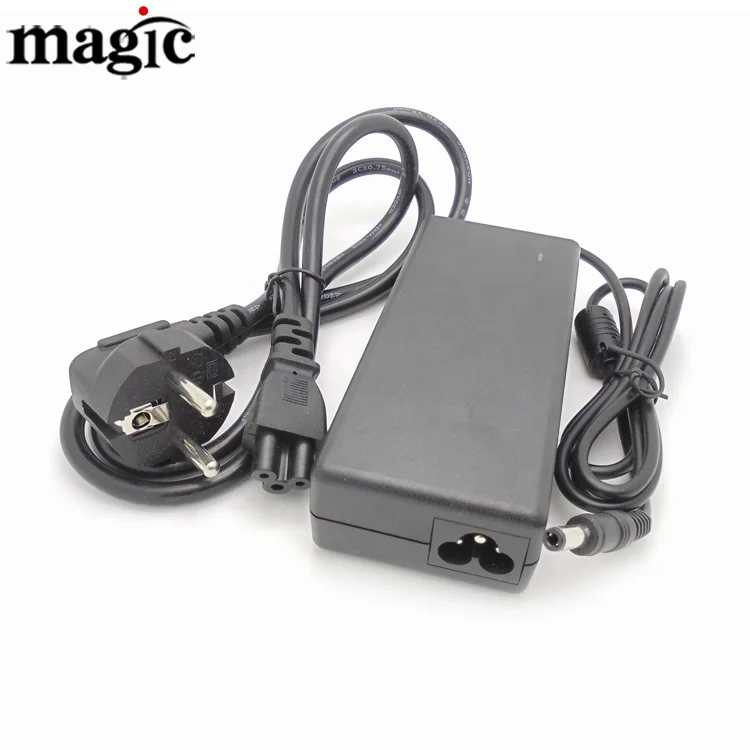

Detailed Images
AC110V AC230V 72W DC24V 12V 12volt DC charger for led strip light
Packing & Delivery
Package
Delivery
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Destination | Express/Courier DHL/TNT/UPS/FedEx | Ship by Air | Ship by EMS | Ship by Sea |
North Amercia | 3-7 days | 5-7 days | 15.-20 days | 15-24 days |
South Amercia | 3-7 days | 5-7 days | 15.-20 days | 15-24 days |
European Countries | 3-7 days | 5-7 days | 15.-20 days | 15-24 days |
Africa Countries | 3-7 days | 5-7 days | 15.-20 days | 15-24 days |
The Middle East | 3-7 days | 5-7 days | 15.-20 days | 15-24 days |
Australia | 3-7 days | 5-7 days | 15.-20 days | 15-24 days |
Company Profile
Shenzhen Magic LED Lighting Co.,Ltd. was founded in 2014 ,it is an excellent Enterprise and Specialize in High Quality Led Strip lighting products with more than 7 years experience and holds strong R&D and Manufacturing Capacity
Our company has 1,000sqm plant and with strong engineering capability,high quality management and advanced productions equipment, such as 4pcs High Speed SMT Machine, 4PCS Reflow oven and others test machine.
Our products win great success throughout the world, mainly in Europe, South Africa, North America and Australia. We guarantee our products comply with international quality standards with CE ROHS approved.
Except manufacturer high quality LED Strip,we also provide high quality accessories for LED Strips
We accept :Custom design,Custom size, OEM and ODM
Our company has 1,000sqm plant and with strong engineering capability,high quality management and advanced productions equipment, such as 4pcs High Speed SMT Machine, 4PCS Reflow oven and others test machine.
Our products win great success throughout the world, mainly in Europe, South Africa, North America and Australia. We guarantee our products comply with international quality standards with CE ROHS approved.
Except manufacturer high quality LED Strip,we also provide high quality accessories for LED Strips
We accept :Custom design,Custom size, OEM and ODM
Customer Reviews
Our Services
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.Distributorship is offered for your unique design and some of our current models.
5.Protection of your sales area, ideas of design and all your private information.
Why Choose Us
(2) 8 years experience in LED lighting industry.
(3) Unique designed, good quality, competitive price.
(4) Full range of indoor and outdoor LED lighting solution.Zero improper after sales service if any quality issue happened.
Похожие товары
Ультратонкий Светодиодный источник питания с постоянным напряжением переменного тока в постоянный светодиодный драйвер алюминиевый корпус 24 В для европейского рынка
XLG-800-36 переменного тока в Dc Светодиодный драйвер Smps CE Rohs 3 года Гарантии Промышленный импульсный источник питания трансформатор
7 254,63 ₽ - 8 398,41 ₽

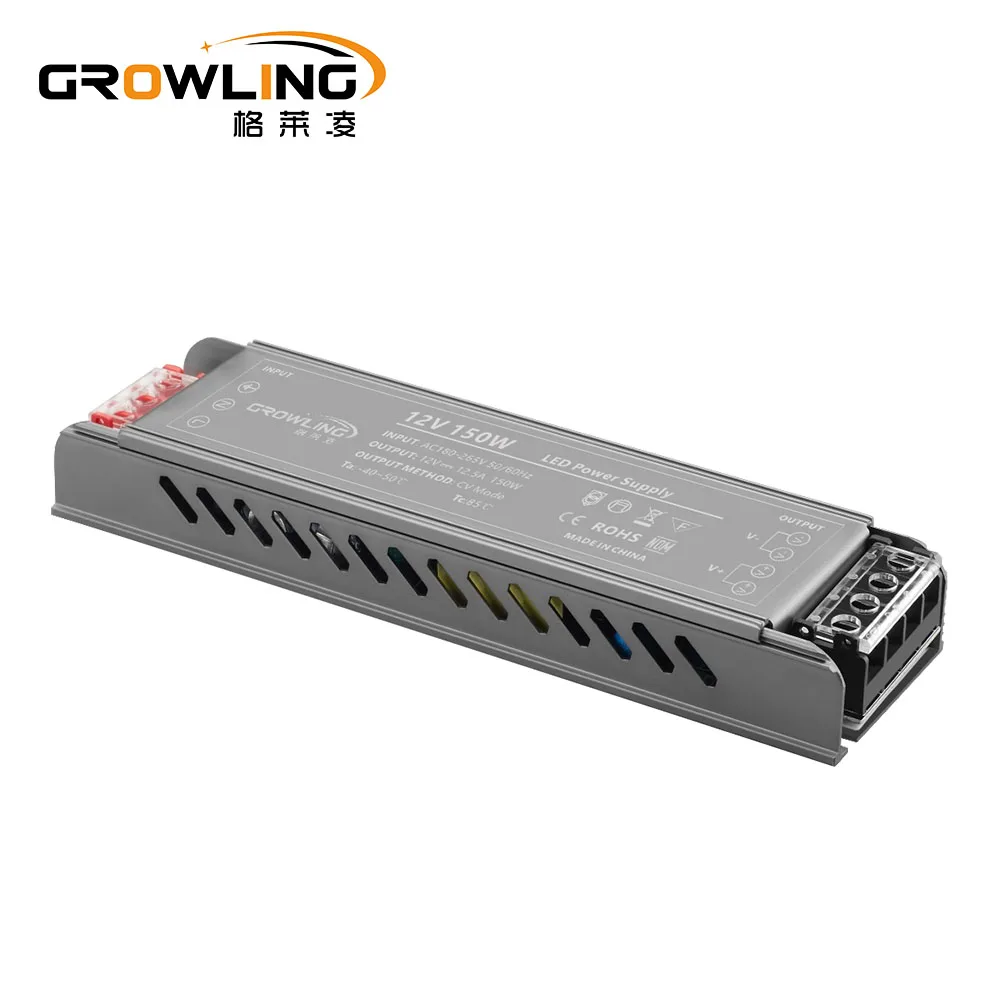

Лидер продаж ip20 ip40 12V 24V 60W 100W 150W источник питания импульсный светодиодный цифровой
563,06 ₽ - 585,14 ₽

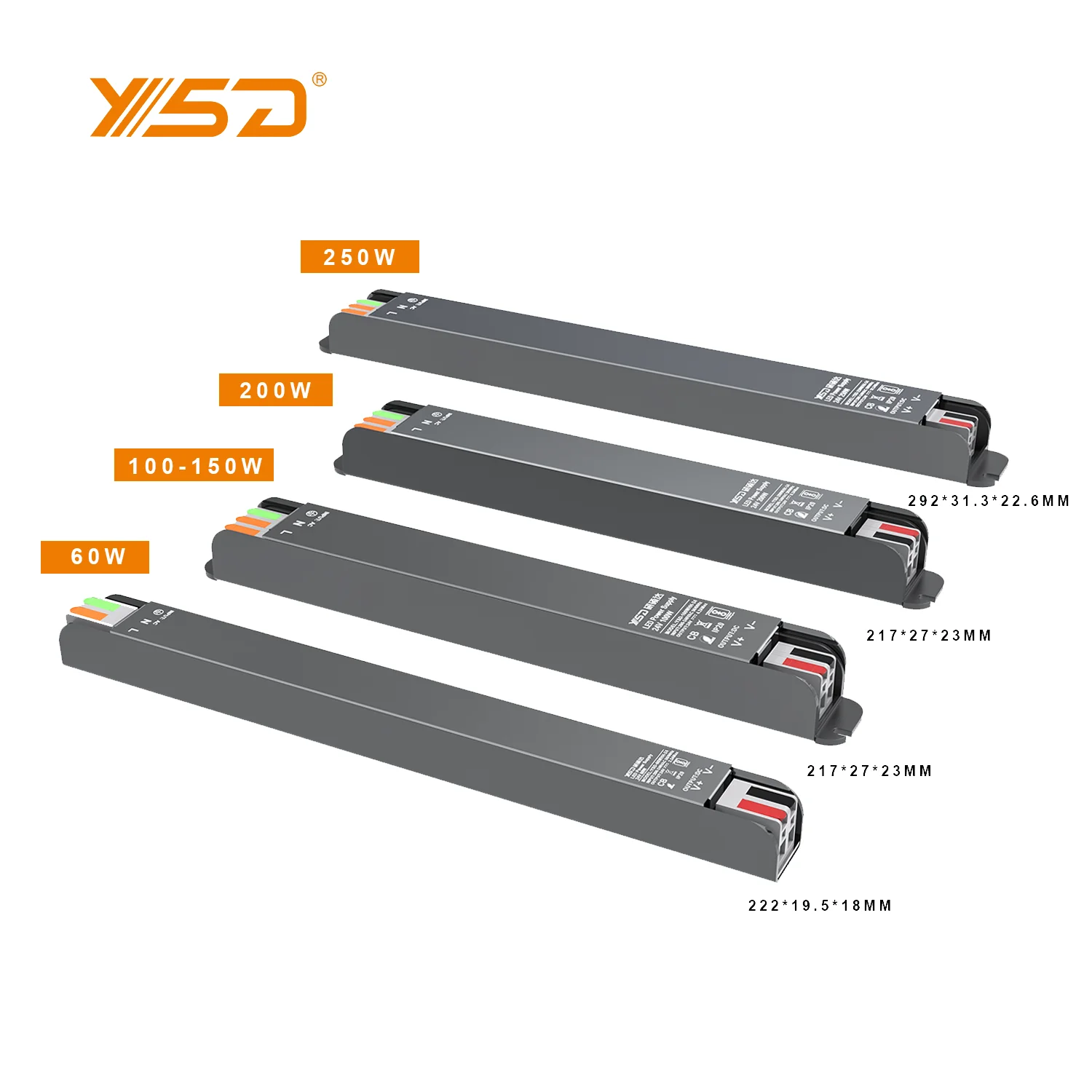

Сверхмаленький источник питания IP20 60 Вт 100 200 250 AC-DC для помещений 12 В 24 48 ультратонкие драйверы
430,58 ₽ - 540,98 ₽

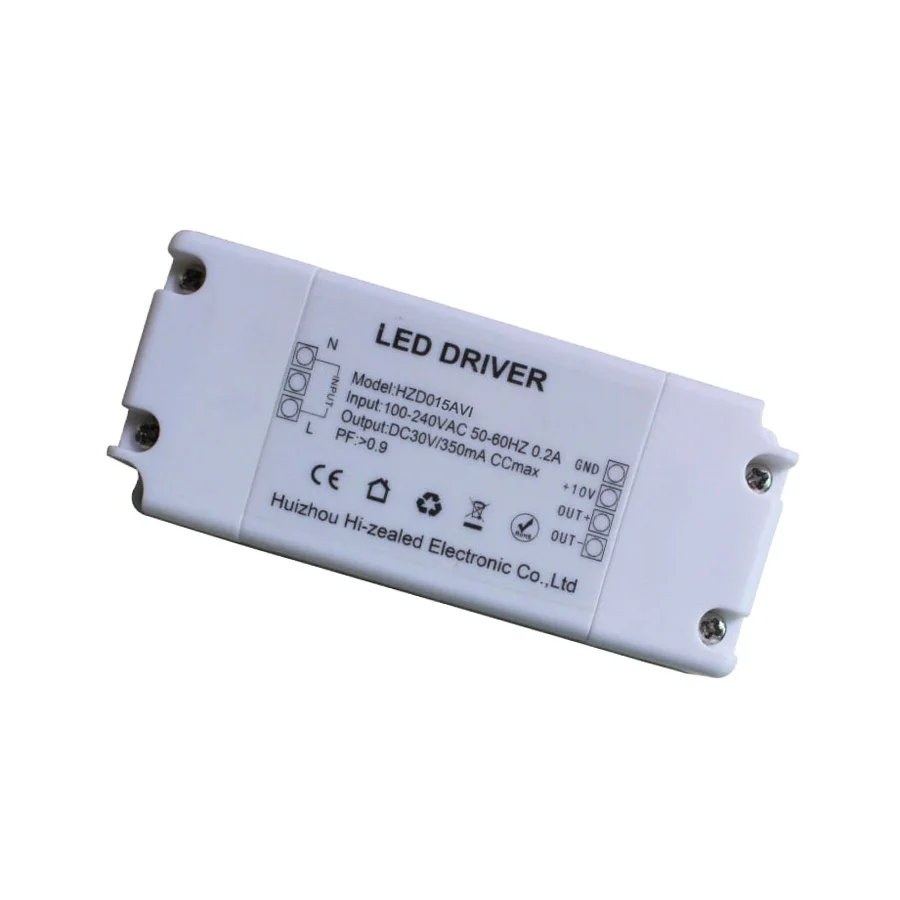

Производитель 15 Вт 0-10 В светодиодный драйвер pwm затемнения Светодиодный источник питания с регулируемой яркостью
