GAS MASS FLOW CONTROLLER,
GAS MASS FLOW METER








Machine Introduce

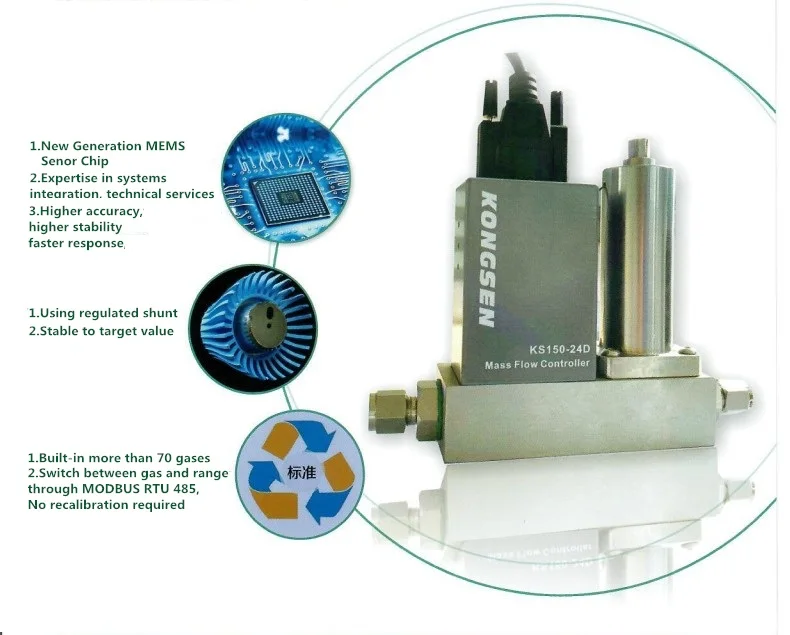

Mainly used for accurate measurement and control of gas mass flow. Using internal compensating stabilized overcurrent structure and the new generation MEMS Sensor Chip which can fully and quickly respond to the difference between volume flow and mass flow caused by pressure and temperature, also can quickly and accurately measure the mass flow of process gas for control. Our gas mass flow meter is suitable for a variety of flows Measurement occasion.



The mass flow meter uses the new generation MEMS sensor chip technology, which has higher accuracy,,faster response,better
repeatability and higher stability than traditional mass flow meters.
The mass flowmeter precision parts are precision processed by high-end export professional manufacturers, have large-scale machining center equipment and adopt IATF16949: 2016 production management, which guarantees production capacity and precision and replaceability of parts.







Performance Parameter
Model
SY-K01-1
Flow range
0-50SLM, 0-100SLM, 0-150SLM
Accuracy
+/1.5%FS
Repeatability
+/0.2%FS
Max Measurable Flow
100%FS
Working Range
1%-100%FS
Fastest Respone Time
≤3S
Preheating Start Time
<1S
Temperature
5-50℃
Working Hunidity
0-100%, Non-condensing
Withstand Voltage
1MPA

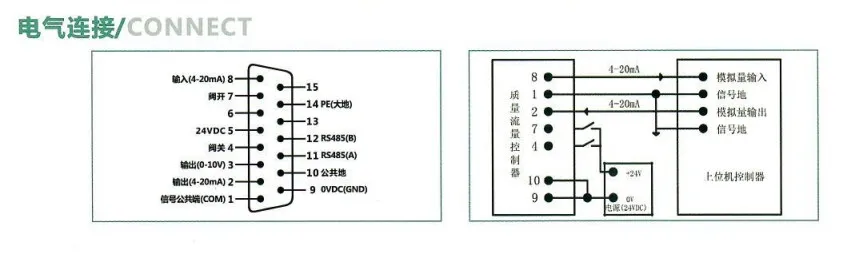

Input/output
Modbus RTU 485, 4-20mA, 0-10vdc
Voltage
24V DC
Connection
3/8" or customized

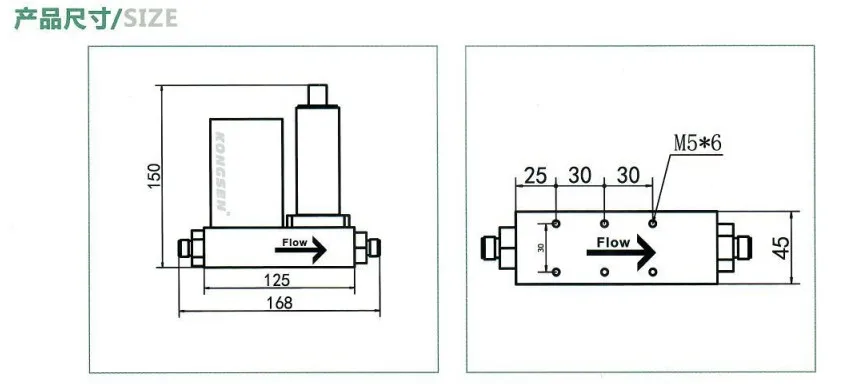

Size
168*45*150mm
Min order 1PC is acceptable.



OEM Service
Zhejiang Shengyi Machinery Co.,Ltd
Available Material:
Brass,Copper,Carbon Steel,Stainless Steel,Steel Alloy,Aluminum Alloy,etc.
Heat Treatment:
Annealing,Quenching,Nitriding,Hardening,Tempering,Normalizing,etc.
Tolerance:
As per drawing.(+/-0.05mm,+/-0.01mm)
Surface Treatment:
Zinc-Plated,Nickel-Plated,Chrome-Plated,Anodize,Phosphating,Chemical Blackening,Salt Bath Nitriding,etc.
Lead Time:
20-45Days Depends On Quantities and complexity
Application:
Forklift,Crane,Train,Truck,Lawnmower,Rail Road Euipment,medical device, industrial machine, automobile, electric appliance,Automation  machine,other industries,etc,
Payment Term:
L/C at sight
T/T 30% deposit and balanced 70% to pay before shipment.
Port Of Loading:
Shanghai or Ningbo,etc.
Production Equipment:
CNC Machining center,CNC Lathe,Grinding Machine,Milling Machine,Sawing Machine,Welding Machine,Hydraulic Press Machine,Drilling and Tapping Machine,Gear Shaping Machine,etc.
Inspection Equipment:
Electronic Penumatic Measuring Instrument,Three Coodinate Detection Equipment,Rockwell Hardness Tester,Digital Ultrasonic Flaw Detector,Surface Roughness Measuring Instrument,Leeb Hardness Tester,Cladding Measuring Instrument,Salt Spraying Tester,Gear Measurement Center,etc.
QC:
1.Incoming material will be checked before production.
2.Strict processing quality control.
3.100% inspection before shipment.
4.We are responsible for product quality to the end user.
Package:
Method 1:Carton box or corrugated carton
Method 2:Wooden case or wooden crate
Method 3: Iron basket or plastic basket
Method 4: Pallet

After-sales Service:
We will follow up goods for customers and help to solve problems after sales.
We are a OEM factory to supply machinery parts according to the drawings oe samples.
Small order or sample order is acceptable.


















Processing



ASSEMBLY 1

ASSEMBLY 2





ASSEMBLY 3

ASSEMBLY 4





ASSEMBLY 5

ASSEMBLY 6
