Factory Price 48V 5KW 5500 Watt 5KVA MPPT Solar Inverter
- Категория: Солнечные инверторы >>>
- Поставщик: Guangdong Panpower Power Supply Co. Ltd.Guangdong Ltd.
Сохранить в закладки 62555203881:
Описание и отзывы
Характеристики
factory price 48V 5KW 5500 watt 5KVA MPPT solar inverter 5500w
Product Description
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Mains Features
* 5000W, 5500W Pure sine wave Output
* Built-in Max 80A AC Charger
* Built-in 80A/100A MPPT solar charge controller
* PV range 120VDC~450VDC
* Max PV Voltage 500V
* Built-in Max 80A AC Charger
* Built-in 80A/100A MPPT solar charge controller
* PV range 120VDC~450VDC
* Max PV Voltage 500V
* Max PV Power 6000W
* Inverter can work without battery
* USB/RS232/WIFI monitor function(optional)
* Surges to 2X continuous power for 5 seconds for motor loads
* Overload and short circuit protection
* Selectable charging current based on applications
* Configurable AC/Solar input priority via LCD setting
* Compatible to mains voltage or generator power
* Smart battery charger design for optimized battery performance
* Selectable input voltage(90V~280V) range for home appliances and personal computers
* Inverter can work without battery
* USB/RS232/WIFI monitor function(optional)
* Surges to 2X continuous power for 5 seconds for motor loads
* Overload and short circuit protection
* Selectable charging current based on applications
* Configurable AC/Solar input priority via LCD setting
* Compatible to mains voltage or generator power
* Smart battery charger design for optimized battery performance
* Selectable input voltage(90V~280V) range for home appliances and personal computers
Connection diagram
Specifications
Model | 5500W | 5000W |
RATED POWER | 5500VA / 5500W | 5000VA / 5000W |
INPUT | ||
Voltage | 220/230/240VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
Surge Power | 11000W | 10000W |
Efficiency (Peak) | 94%~97% | |
Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY | ||
Battery Voltage | 48 VDC | 48 VDC |
Floating Charge Voltage | 54 VDC | 54 VDC |
Overcharge Protection | 63 VDC | 63 VDC |
SOLAR CHARGER & AC CHARGER | ||
Max. PV Array Open Circuit Voltage | 500VDC | 500VDC |
Max. PV Array Power | 6000 W | 5000 W |
MPP Range @operating Voltage | 120~450VDC | 120~450VDC |
Max. Solar Charge Current | 100 A | 80 A |
Max. AC Charge Current | 100 A | 100 A |
Max. Charge Current | 80 A | 80 A |
PHYSICAL | ||
Dimension, D x W x H (mm) | 100 x 300x 440 | |
Net Weight (kgs) | 10 | 9.7 |
Communication Interface | USB/RS232/Wifi | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity (Noncondensing) | |
Operating Temperature | -10°C to 50°C | |
Storage Temperature | -15°C to 60°C | |

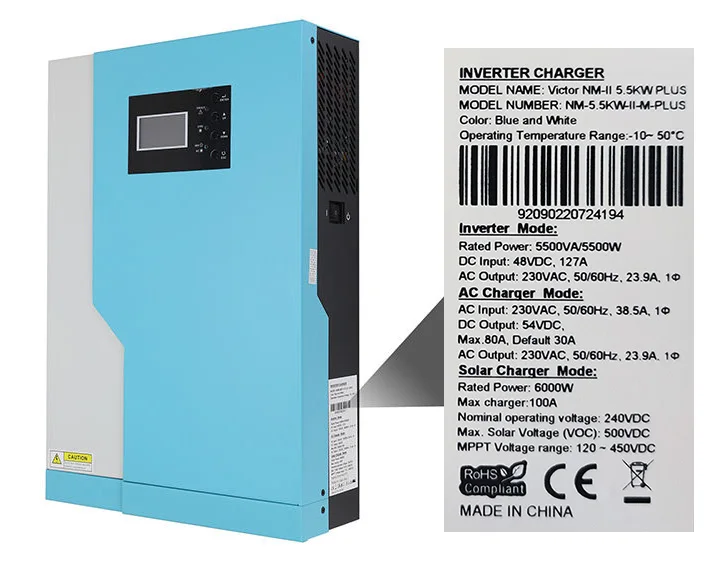

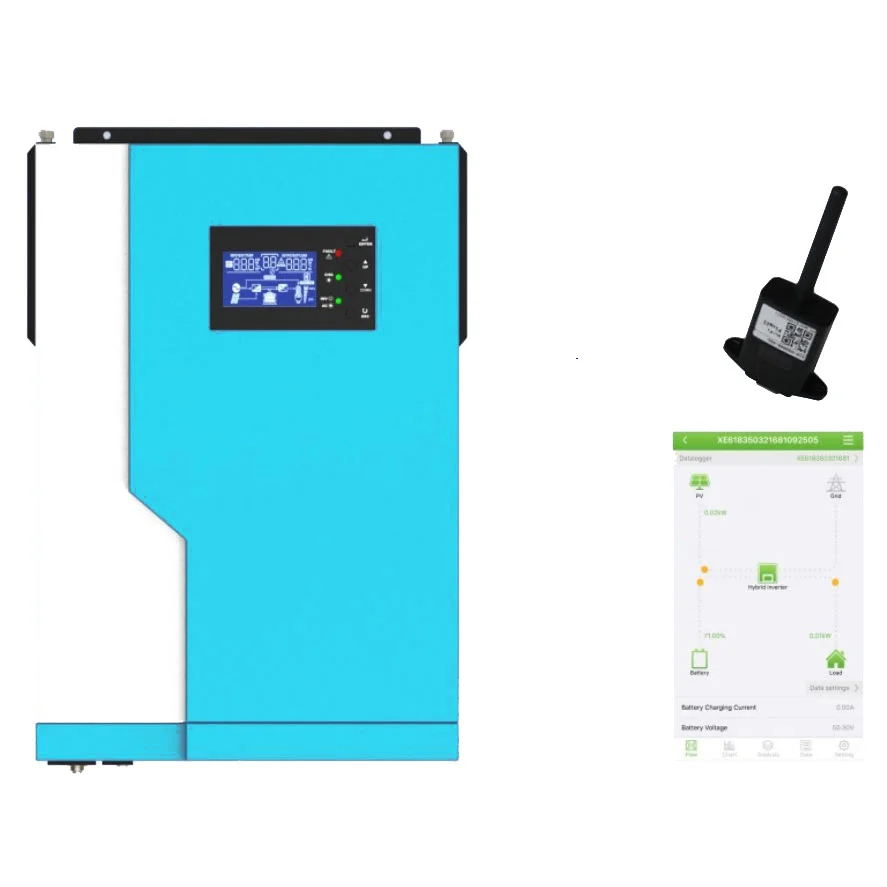

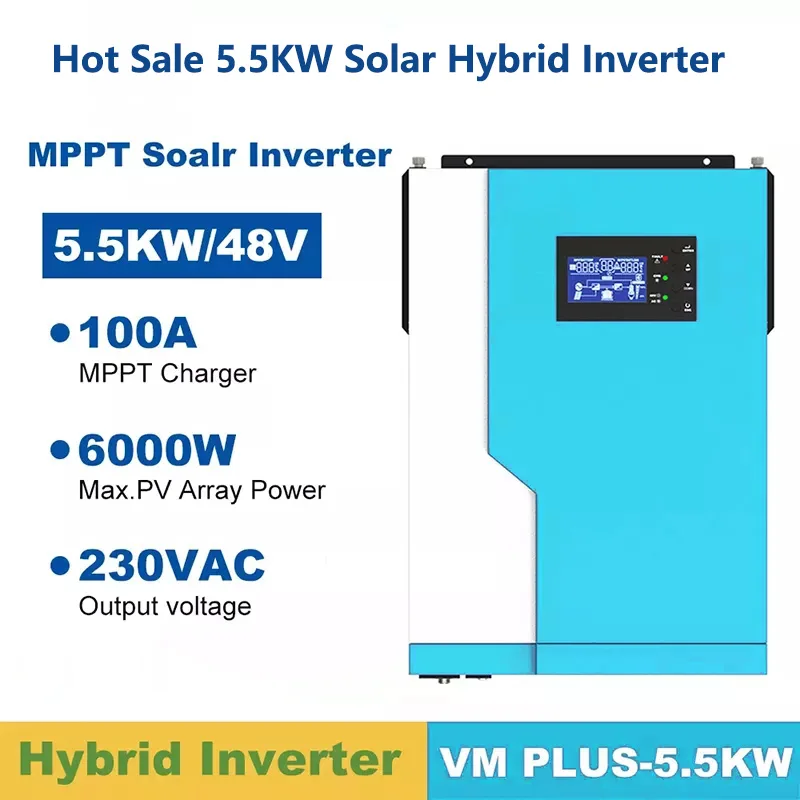

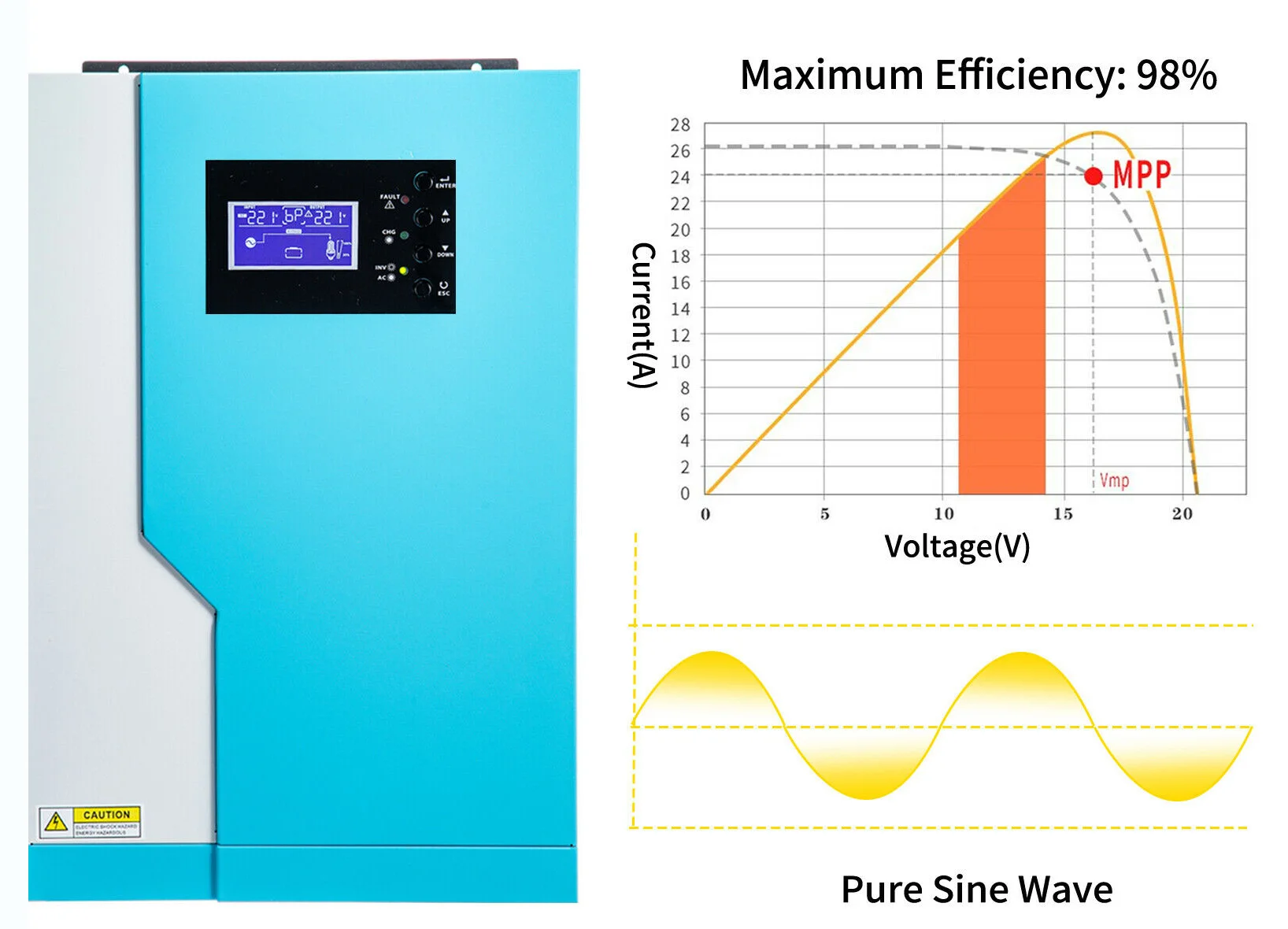

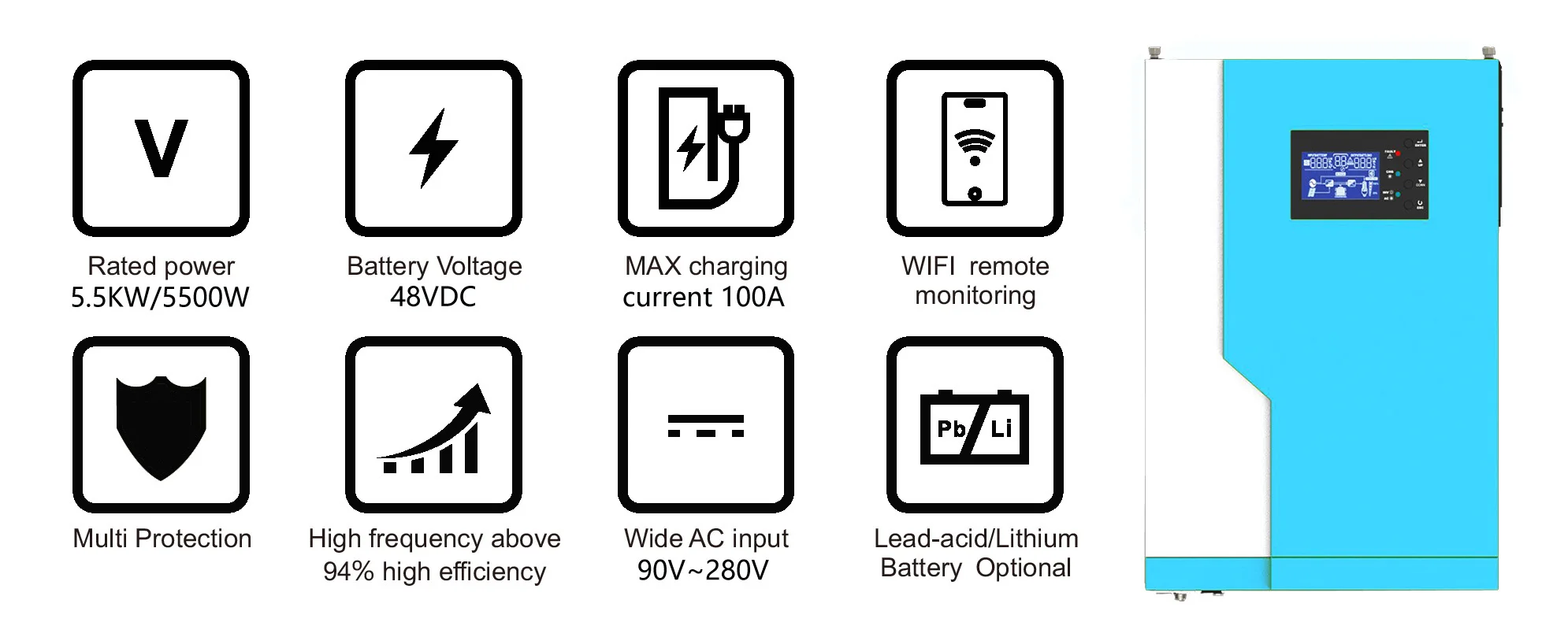

Detail Pictures
Production & Packing
Company Information
Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in China, producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS, Inverter, EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation,railway, bank, security, electric power, road, national defense, insurance, electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service.
Our advantages, which include up-to-date technology, 20 years rich production experience, first rate production equipment, strong R&D capacity, quick response to the market and new design concept. These foundations so allow us to continually develop new high quality products in compliance with the application of electrical grid of both China and foreign countries. All our efforts bring us the new technology and intellectuality of power supplies. At the same time, we won the honor of "national high-tech enterprise".
FAQ
Q: What’s the payment term?
A: Credit card, T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
A: Yes, all are true pure sine wave.
Q: Is this hybrid inverter?
A: yes. Hybrid AC & solar charger; Hybrid work with solar & AC power.
A: yes. Hybrid AC & solar charger; Hybrid work with solar & AC power.
Q: What is the delivery time?
A: Inverter in stock. Can delivery immediately.
Q: What is the shipping way?
A: By Air, by Sea or by Express.
A: By Air, by Sea or by Express.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
