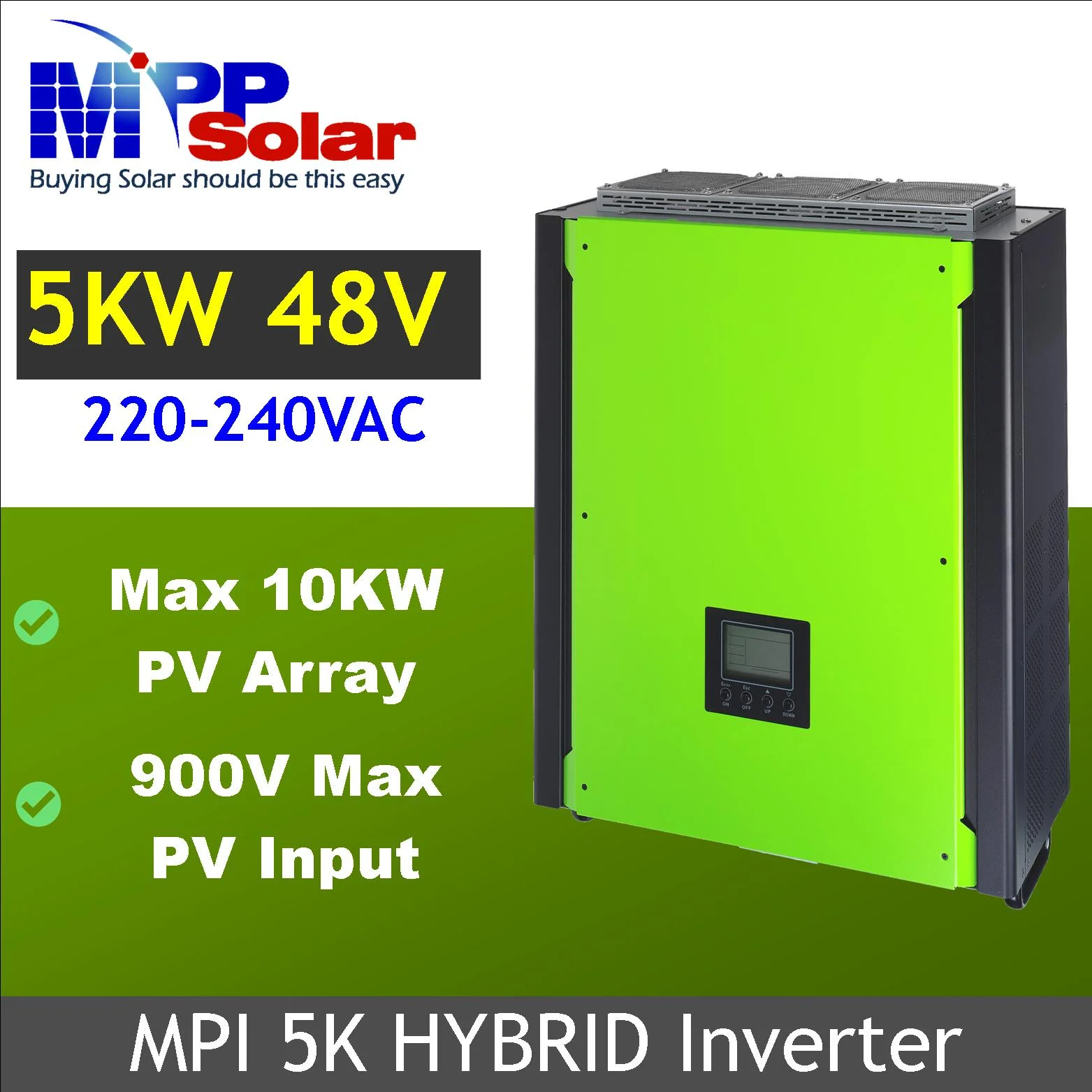

(MPI 5kw plus) 230vac 5000w 48vdc Hybrid Solar inverter MPPT solar charger MAX PV input 900vdc Battery Charger 60A

Share on (10000000111951):


Price:

Quantity:


Product Overview

Description



Product Description





















SPECIAL FEATURES




  • High PV input design, 900V (Voc) max input

  • Parallel up to 6 units*

  • Batteryless operation (single unit mode only)**

  • Hybrid Mode, Off-Grid Mode available


MAIN FEATURES


  • 220-240V European type output, Single Phase

  • Max 5KV output, pure sine wave

  • 48V system voltage

  • Max solar power 10kw , MPPT type solar charger, 2 PV input

  • Max utility charging 100A max ( adjustable)

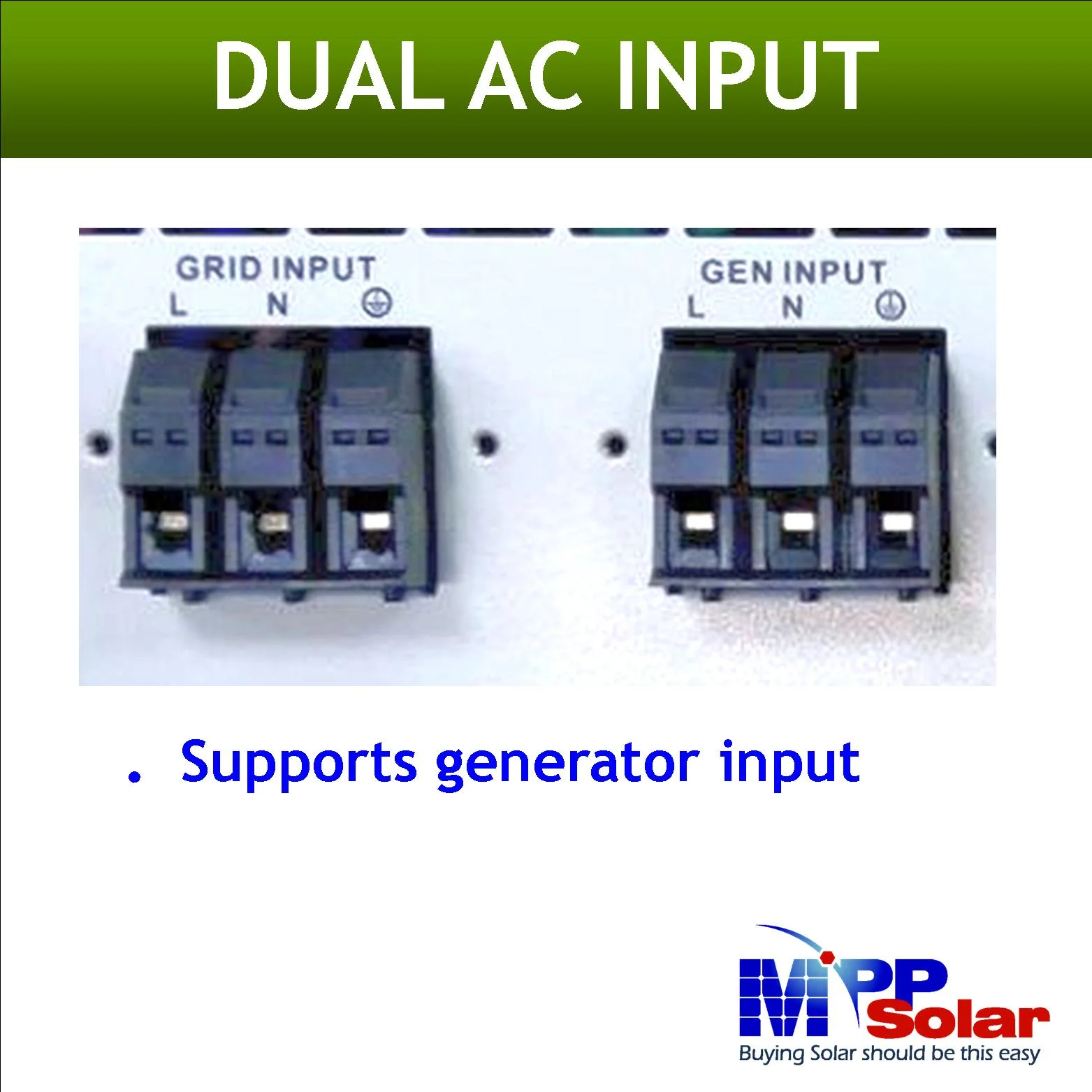

  • Supports generator use + genset starter dry conact (grid-tie disabled)

  • Adjustable bulk/float/low cut off setting

  • Programmabel parameters

  • Indoor installation only

  • LCD + LED indicators

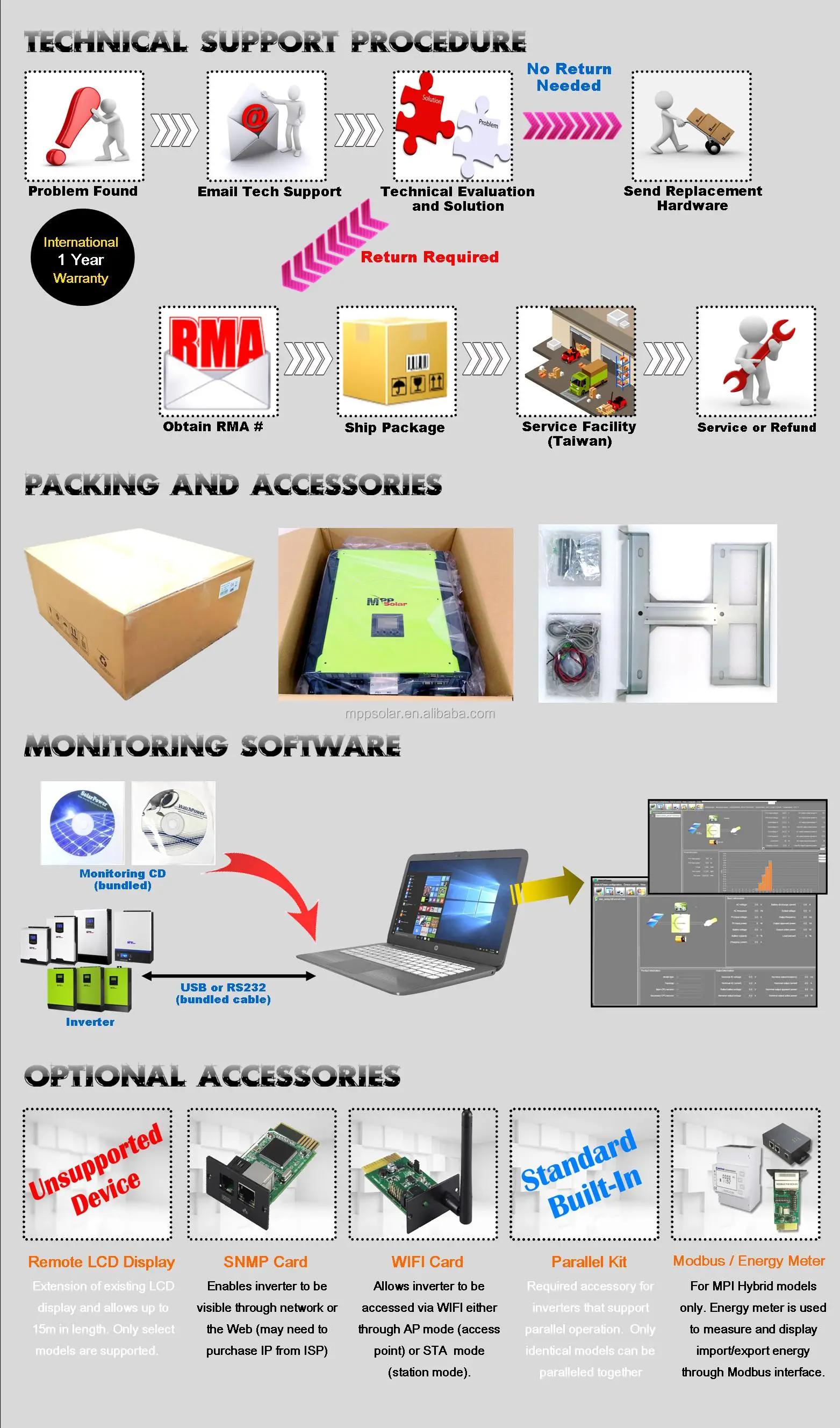

  • FREE monitoring software

  • USB, RS232 communication interface

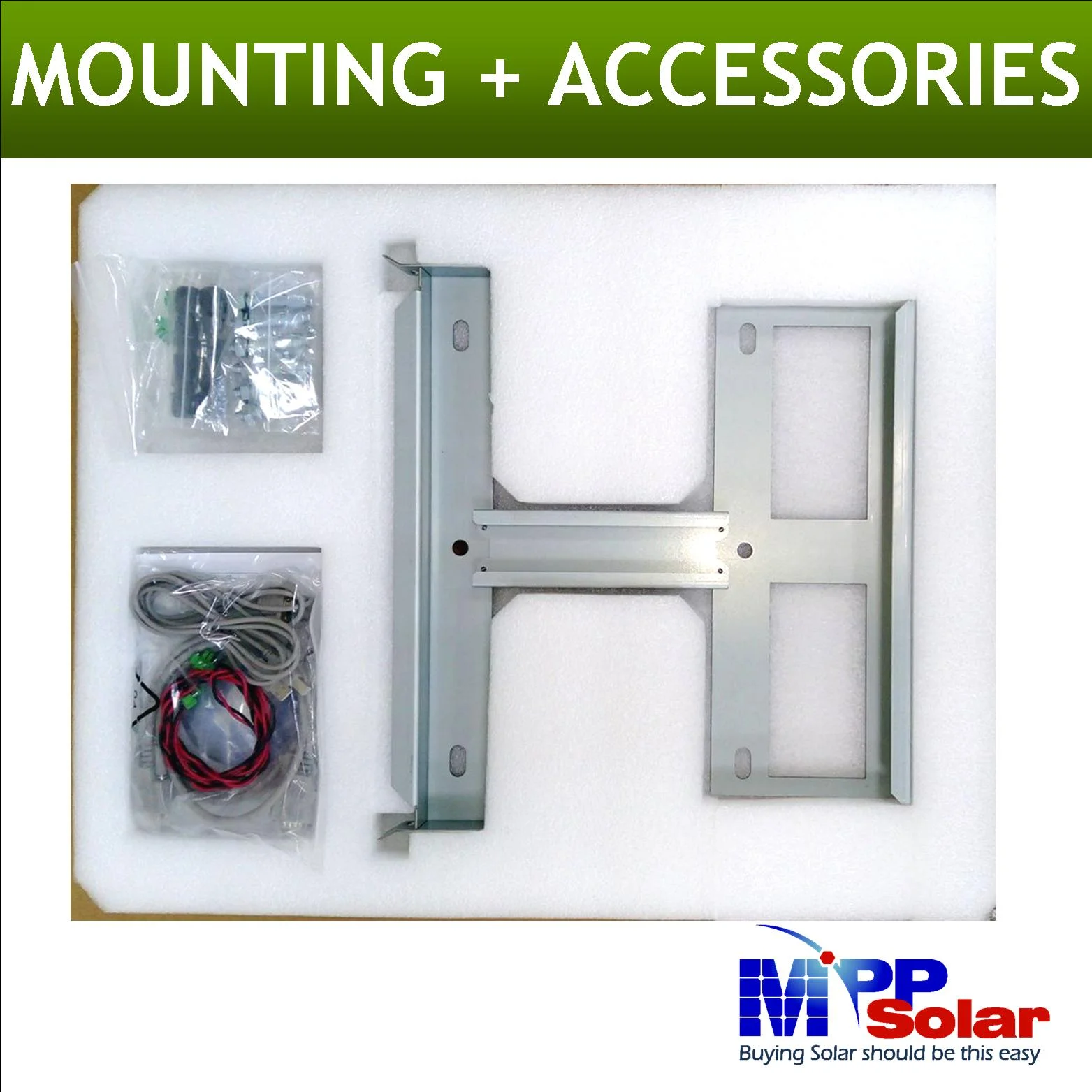

  • Lightweight, easy to install
