Product Overview

Description


3KW/3.2KW/5.5KW REVO Series Solar Inverter with 120-450VDC MPPT Range








REVO II Solar Inverter-1





REVO Series Energy Storage Inverters Parallel Operation up to 6 units for 3KW/3.2KW/5.5KW







Key Features:


1.Touch screen display


2.PV and utility power take the load at same time(can setting)


3.Output power factor PF=1.0


4.On&Off Grid with energy storage


5.Energy generated record,load record,history Information and fault record


6.Language and time setting


7.Structure with dust filter


8.AC charging and AC output time setting


9.Charging voltage and charging current timing


10.External Wi-Fi device optional


11.Parallel operation  up to 9 units


12.Connected with battery optional


13.Wide PV input range 120-450VDC


14.Independent CPU


15.MAX PV Array power 5000W


16.Solar and Utility supply power to the load when solar power is not sufficient to load


17.The CT sensor will monitor the power consumption of the system and will make sure no excess PV power is delivered to the grid company .





REVO-II-41


Product Show:



















Wall Mounted Integrated Solar Power Inverter Technical Specification


Built-in MPPT Solar Controller




































































































































































MODEL



REVO II 3K-24



REVO II 3.2K-48



REVO II 5.5K-48



Max PV Array Power



4500W



Rated Output Power



3000W



3200W



5500W



Maximum PV Array Open Circuit Voltage



500VDC



MPPT Range @ Operating Voltage



120-450VDC



MPPT Tracker Number



1



GRID-TIE OPERATION



GRID OUTPUT (AC)



Nominal Output Voltage



220/230/240VAC



Output Voltage Range



184-265VAC



Nominal Output Current



13.6A/13.0A/12.5A



14.5A/13.9A/13.3A



25A/23.9A/22.9A



Efficiency



Up to 93.5%



OFF-GRID, HYBRID OPERATION



GRID INPUT



Acceptable Input Voltage Range



120-280VAC



Frequency Range



50Hz/60Hz (Auto sensing)



BATTERY MODE OUTPUT (AC)



Nominal Output Voltage



220/230/240VAC



Output Wave Form



Pure sine wave



BATTERY & CHARGER



Nominal DC Voltage



24VDC



48VDC



Maximum Solar Charge Current



90A



Maximum AC Charge Current



60A



Maximum Charge Current



90A



Emergency output power



Maximum output power



3000W



3200W



5500W



Surge Power



6000W



6400W



11000W



Automatic Transfer Time



<8ms



GENERAL



INTERFACE



Parallel Function



Yes



Communication



USB or RS232/Dry-Contact



ENVIRONMENT



Humidity



0~90% RH (No Condensing)



Operating Temperature



0 to 50 °C



Net Weight(KG)



11.75



11.9



Rough Weight(KG)



12.75



13.1



Dimension (W x D x H)mm



345x476x133.2















MORE PRODUCTS TO CHOOSE










































APPLICATION OF OUR PRODUCT



1. Living house and home building.


2. Office building, factory and warehouse.


3. Shopping mall, stadium and so on.


4. Power station, field operation and some huge engineer construction.


5. Suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.

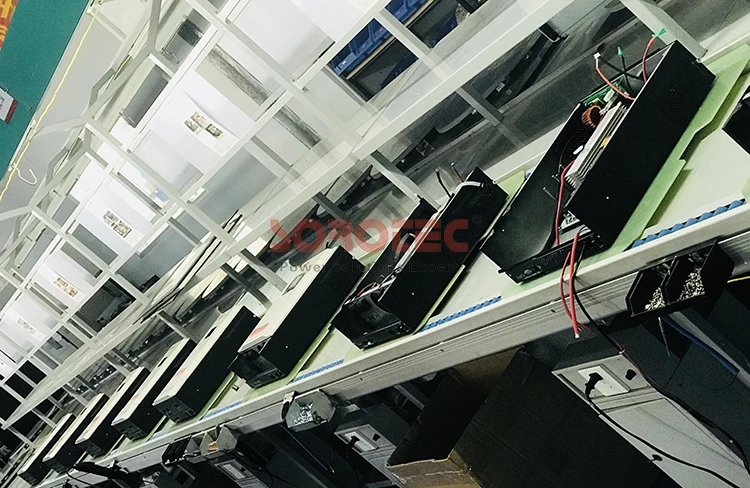

FACTORY SHOW

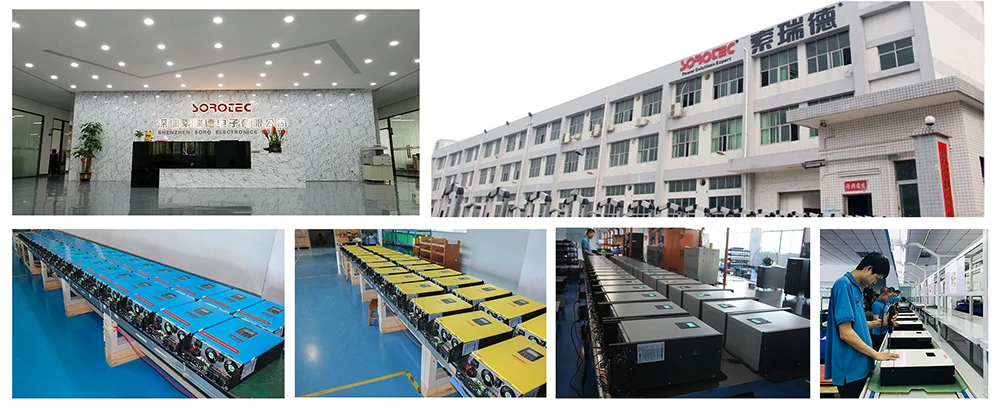

SOLAR

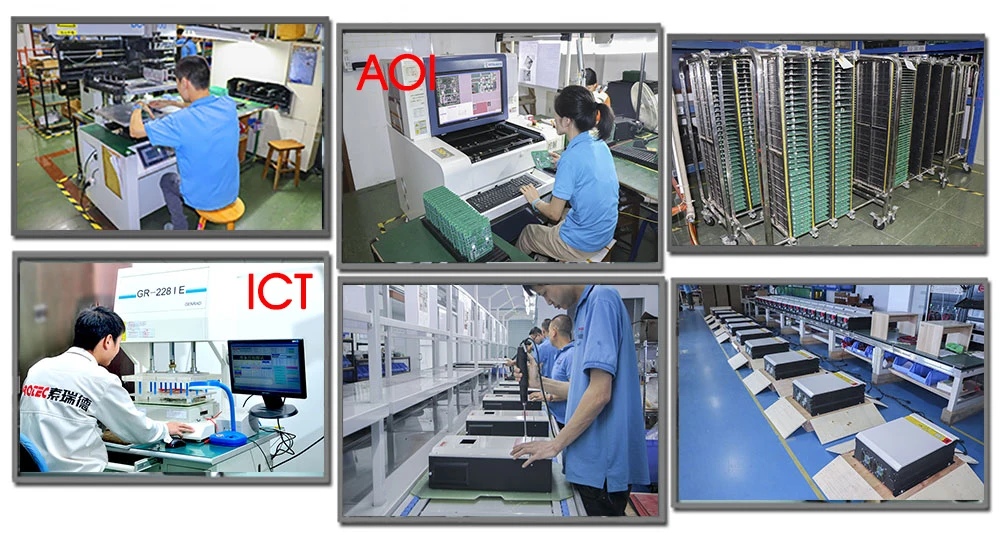

HTB1o6











COMPANY SHOW

Introduction of Company


Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.


Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.





.jpg











TRADE SHOW


















WHY CHOOSE US ?




1,QC Control


The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards.


2,Best Partner


We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.











CERTIFICATIONS


















OUR MARKET












PACKAGING







FAQ










FAQ






1.How to choose suitable inverter?





If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter.





For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on.





Modified wave can be started with some inductive loads, but effect for load using life,because capacitive loads and inductive loads need high quality power.





 .......................................................................................................................................................................................................................................





2.How do I choose the size of the inverter?





Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.





Notice:





Resistive load: you can choose the same power as the load.





Capacitive loads: according to the load, you can choose 2-5 times power.





Inductive loads: according to the load, you can choose 4-7 times power.





........................................................................................................................................................................................................................................





3.How connection between batteries and an power inverter?





We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.





  .....................................................................................................................................................................................................................................





4.How to calculate the load of working hours requires configuration of the battery size?





We will usually have a formula to calculate, but it is not hundred percent accurate, because there is also the battery's condition, the old batteries have some loss,so this is only a reference value:





Work hours = battery capacity * battery voltage * 0.8/load power (H= AH*V*0.8/W)





.......................................................................................................................................................................................................................................
