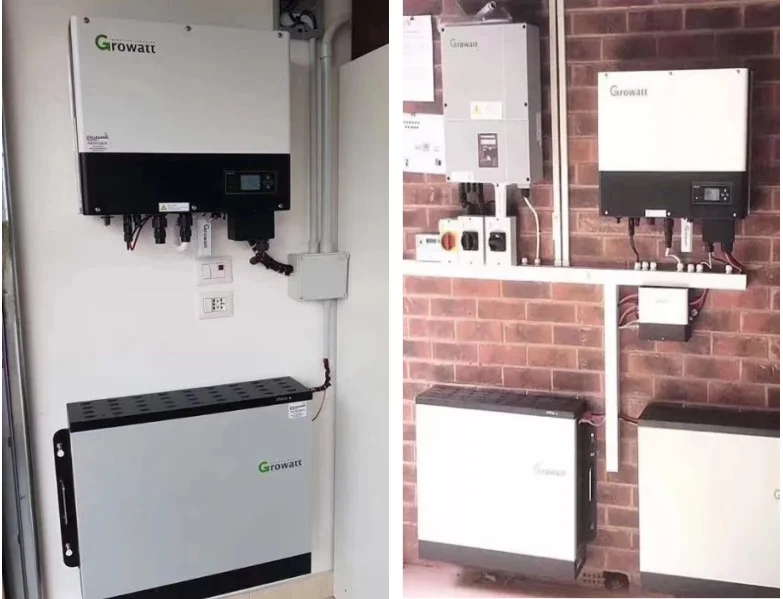

GTG 76 GROWATT SPH 10000TL3 BH Inverter 8000w 4kva 5000w 6kva Three Phase 8K 10kw Hybrid Inverters with ATS S Switch
- Category: Solar Inverter >>>
- Supplier: Eitai (Xiamen) New Energy Technology Co. Ltd.
Share on (62514427322):
Product Overview
Description
Our Advantage
Product Description
Datasheet | SPH 4000TL3 BH | SPH 5000TL3 BH | SPH 6000TL3 BH | SPH 7000TL3 BH | SPH 8000TL3 BH | SPH 10000TL3 BH | ||||||
Input data(DC) | ||||||||||||
Max. recommended PV power (for module STC) | 5200W | 6500W | 7800W | 9100W | 10400W | 13000W | ||||||
Max. DC voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | ||||||
Start Voltage | 160V | 160V | 160V | 160V | 160V | 160V | ||||||
MPP voltage range / normal voltage | 160V-1000V / 600V | 160V-1000V / 600V | 160V-1000V / 600V | 160V-1000V / 600V | 160V-1000V / 600V | 160V-1000V / 600V | ||||||
Max. input current per MPP trackers | 12A/12A | 12A/12A | 12A/12A | 12A/12A | 12A/12A | 12A/12A | ||||||
Max. short-circuit current per MPP trackers | 15A/15A | 15A/15A | 15A/15A | 15A/15A | 15A/15A | 15A/15A | ||||||
Number of MPP trackers/ strings per MPP tracker | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | ||||||
Output data(AC) | ||||||||||||
AC nominal power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA | ||||||
Max. current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A | ||||||
Nominal AC voltage/range | 230V/400V; 310~476V | 230V/400V; 310~476V | 230V/400V; 310~476V | 230V/400V; 310~476V | 230V/400V; 310~476V | 230V/400V; 310~476V | ||||||
AC grid frequency/range | 50/60Hz; 45~55Hz/55~65 Hz | 50/60Hz; 45~55Hz/55~65 Hz | 50/60Hz; 45~55Hz/55~65 Hz | 50/60Hz; 45~55Hz/55~65 Hz | 50/60Hz; 45~55Hz/55~65 Hz | 50/60Hz; 45~55Hz/55~65 Hz | ||||||
Power factor(@nominal power) | 1 | 1 | 1 | 1 | 1 | 1 | ||||||
Adjustable power factor | 0.8leading…0.8lagging | 0.8leading…0.8lagging | 0.8leading…0.8lagging | 0.8leading…0.8lagging | 0.8leading…0.8lagging | 0.8leading…0.8lagging | ||||||
THDi | <3% | <3% | <3% | <3% | <3% | <3% | ||||||
AC grid connection type | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | 3W+N+PE | ||||||
Stand alone(AC power) | ||||||||||||
Max. AC output power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA | ||||||
Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A | ||||||
Nominal AC output voltage | 230V/400V | 230V/400V | 230V/400V | 230V/400V | 230V/400V | 230V/400V | ||||||
Nominal AC output frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | ||||||
THDv | <3% | <3% | <3% | <3% | <3% | <3% | ||||||
Switch time | <0.5S | <0.5S | <0.5S | <0.5S | <0.5S | <0.5S | ||||||
Battery data (DC) | ||||||||||||
Battery voltage range | 160~550V | 160~550V | 160~550V | 160~550V | 160~550V | 160~550V | ||||||
Max charging and discharging current | 25A | 25A | 25A | 25A | 25A | 25A | ||||||
Continuous charging and discharging power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W | ||||||
Type of battery | Lithium / Lead-acid battery | Lithium / Lead-acid battery | Lithium / Lead-acid battery | Lithium / Lead-acid battery | Lithium / Lead-acid battery | Lithium / Lead-acid battery | ||||||
Capacity of battery | 5~50kWh | 5~50kWh | 5~50kWh | 5~50kWh | 5~50kWh | 5~50kWh | ||||||
Efficiency | ||||||||||||
Max. efficiency | 97.6% | 97.8% | 98.0% | 98.2% | 98.2% | 98.2% | ||||||
Euro European efficiency | 97.0% | 97.2% | 97.3% | 97.4% | 97.4% | 97.5% | ||||||
Battery charge/discharge efficiency | 97.4% | 97.4% | 97.4% | 97.4% | 97.4% | 97.4% | ||||||
GROWATT 10kw Hybrid Inverter SPH 10000TL3 BH 10kw with ATS-S Switch 4kva 5000w 6kva 10kw Inverter Three Phase 8000w SPH8KW
Customer Feedback
Recommend Products

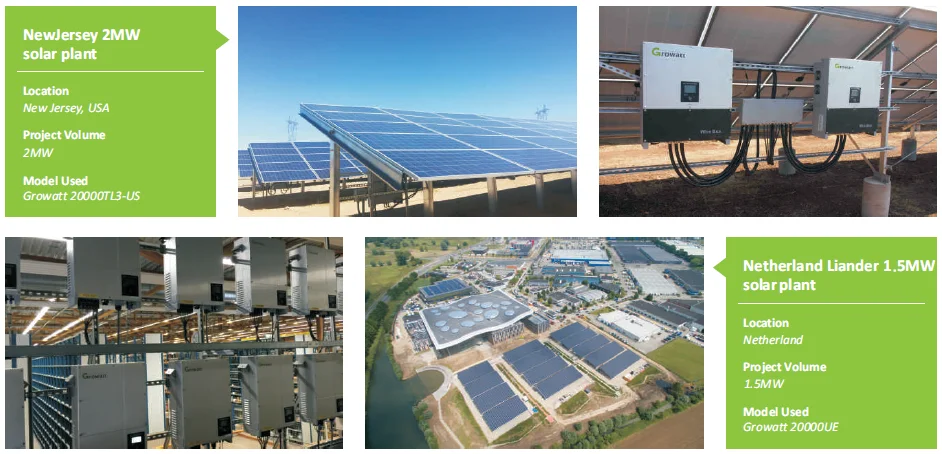

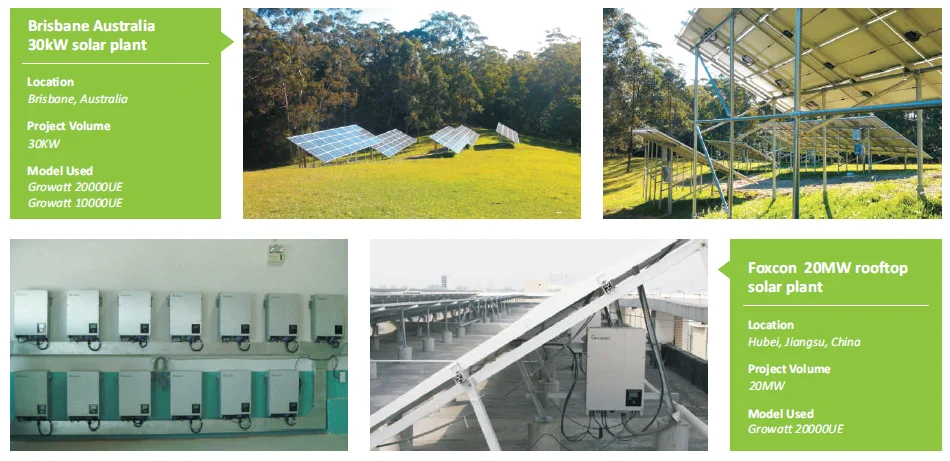

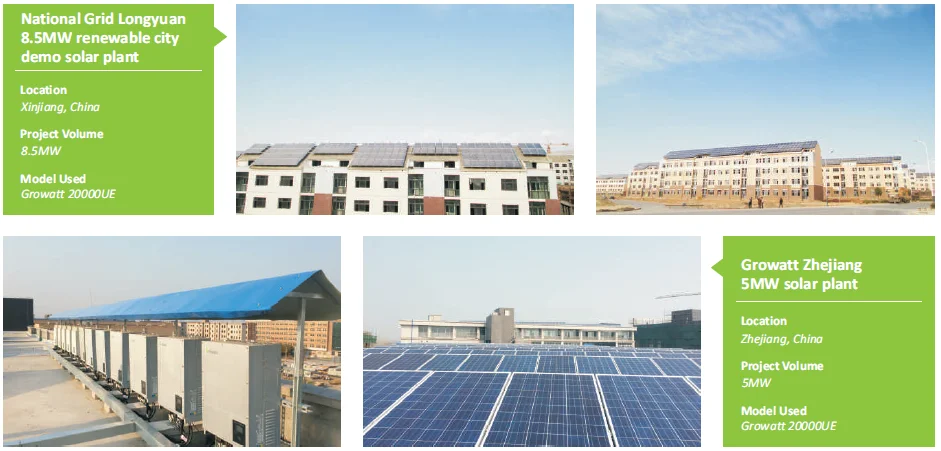

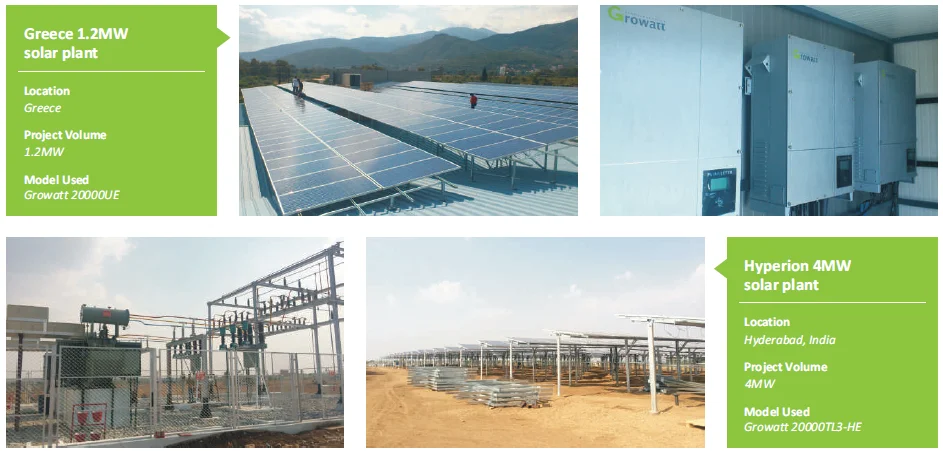

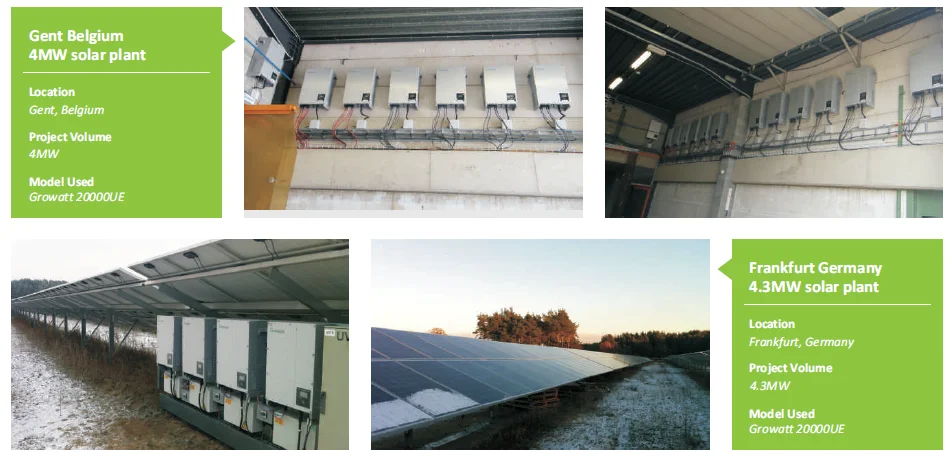

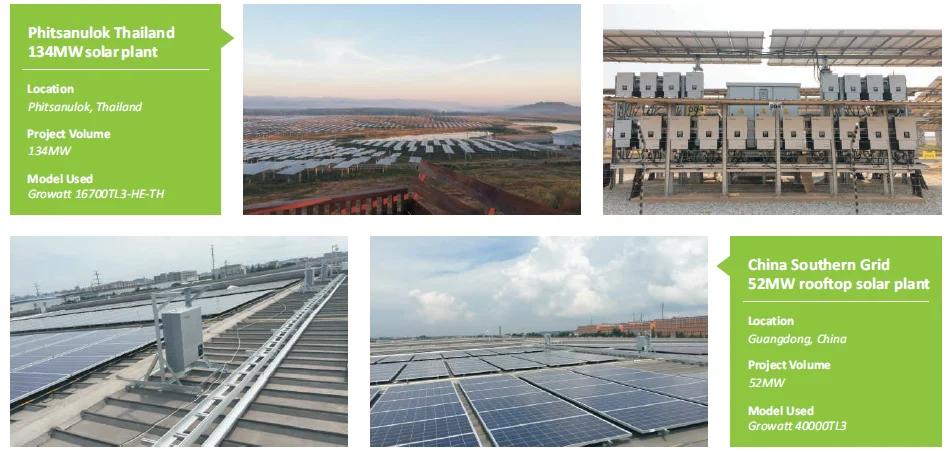

Application
Production&Package
Exhibition
Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia,
Thailand,India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D
investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service.
By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the
globe,growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand. Growatt really concerns about the R&D investment each year the R&D cost takes at least 15% of total investment. And Growatt will continue to integrate global resources, promote technology innovation and strive to lead in providing user side smart energy solutions across the world.
Thailand,India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D
investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service.
By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the
globe,growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand. Growatt really concerns about the R&D investment each year the R&D cost takes at least 15% of total investment. And Growatt will continue to integrate global resources, promote technology innovation and strive to lead in providing user side smart energy solutions across the world.
