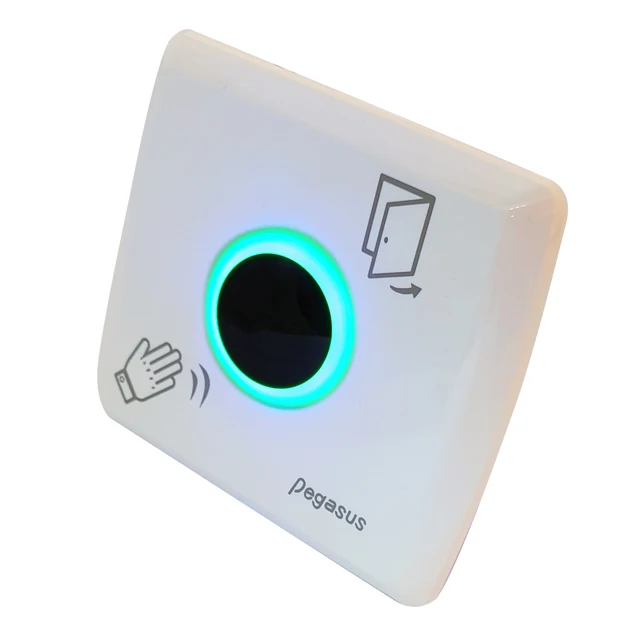

DC / AC 10~24V Flush Mount Contactless Infrared Sensor Exit Button

Product Overview

Description



Features

•Built-in micro controller for decoding infrared signal to avoid interference from the noise.

•With bi-color status LED (Power on: Green / Proximity: Blue).

•Adjustable proximity range: 1.5~10cm, depending on the reflection rate of different object.

•Support adjustable opening time 0.5~15 Sec. or latched ON or OFF output.

•With N.C. and N.O. output.

Specifications

•Dimensions: 8(plate) x 98(W) x 86(L)mm

•Hole distance: 83.5mm / 60mm

•Material : Polycarbonate fire proof material

•Power supply : DC / AC 10V~24V

•Relay contact rating : 1A@ 30VDC, 3A@ 24VDC, 2A@ 120VAC

•Current :

  DC

  Standby Current:34mA@10VDC, 21mA@24VDC

  Operating Current:145mA@10VDC, 65mA@24VDC

  AC

  Standby Current:66mA@10VAC, 40mA@24VAC

  Operating Current:177mA@10VAC,110mA@24VAC

•Operating temperature: -20℃ ~ 75℃

•Life :

  Mechanical : 10,000,000 operations min(at 1800 operations / hr)

  Electrical : 100,000 operations min(at 1200 operations / hr)

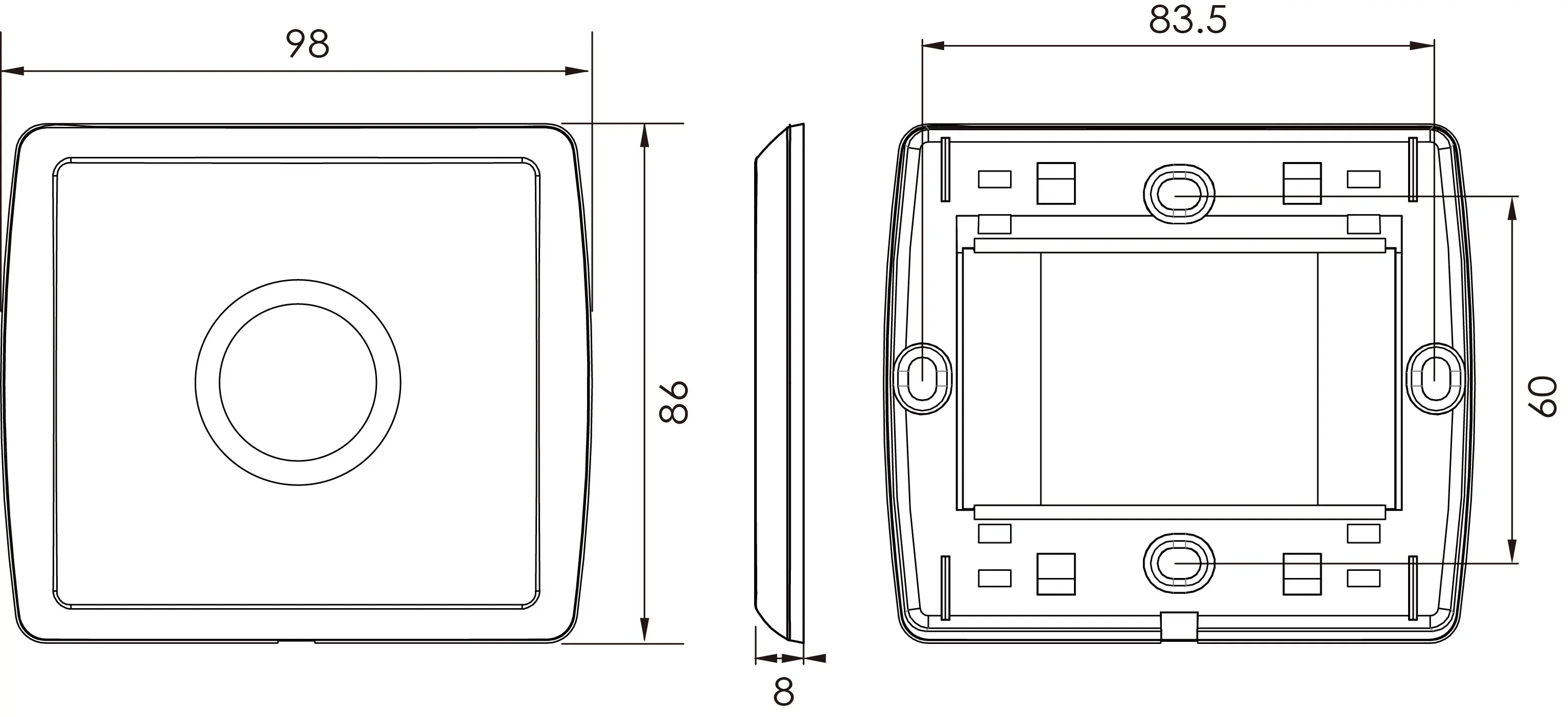

Dimension: Unit(mm)

How to assembly

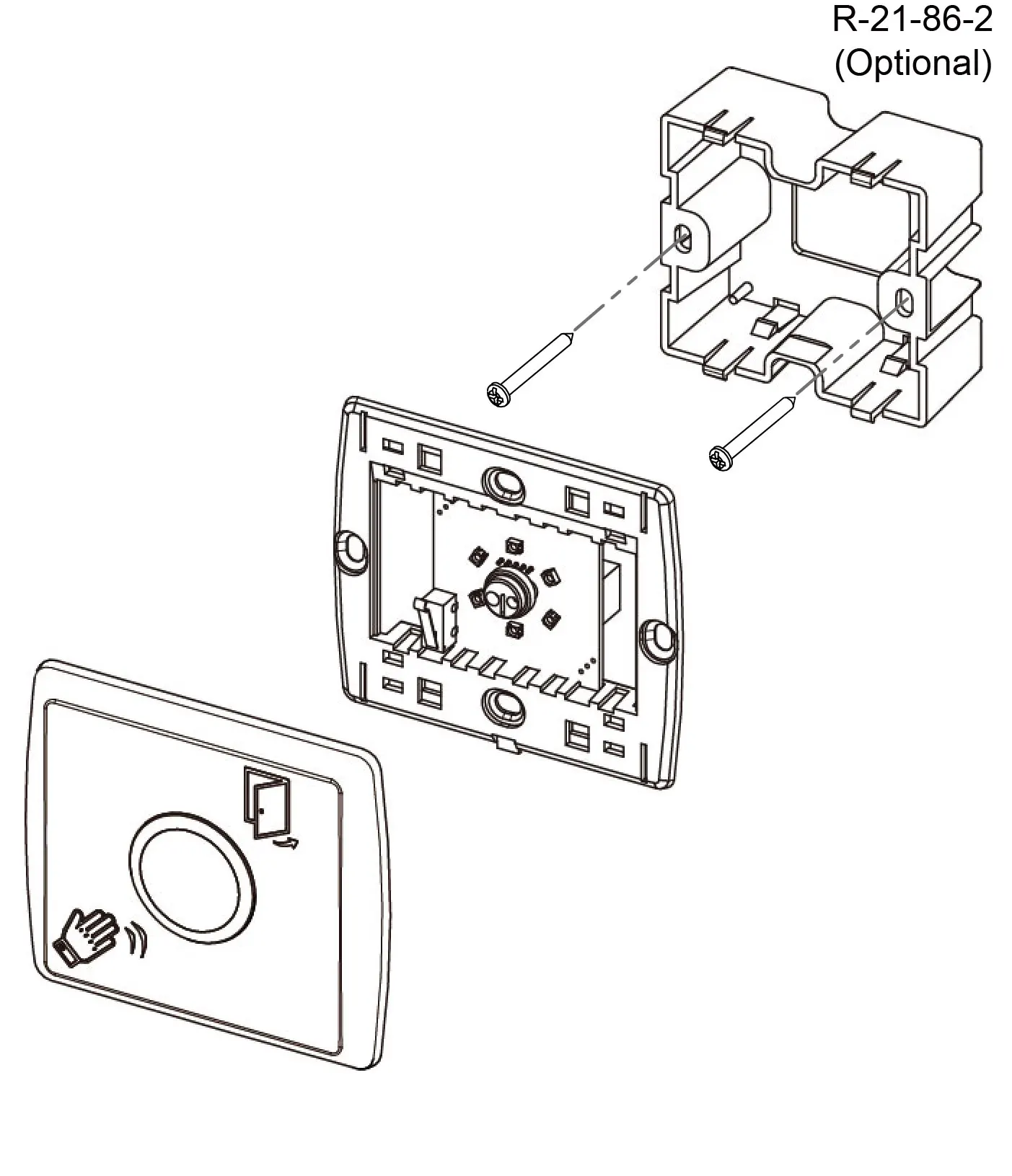

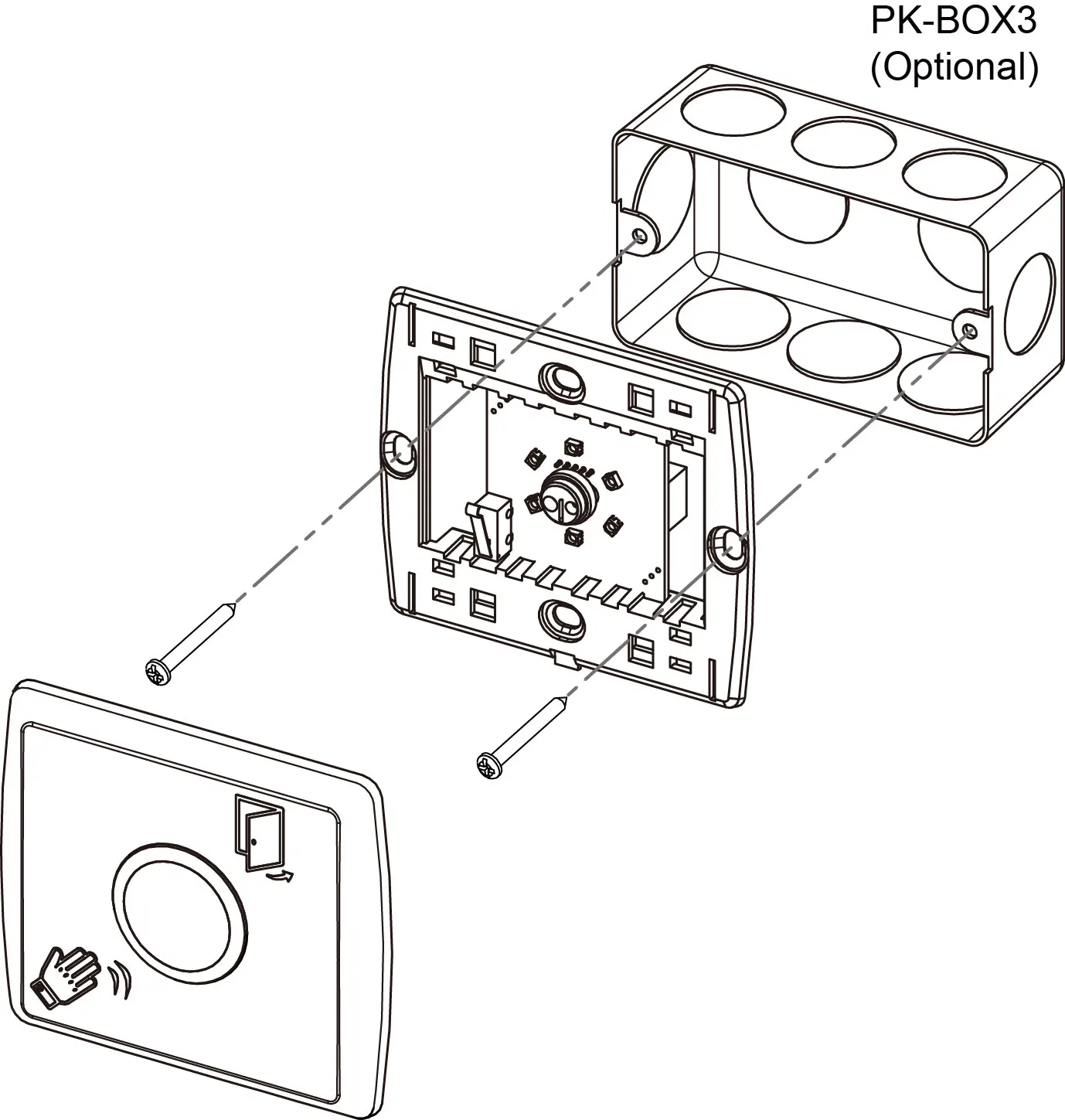

Mounting box for EU standard	Mounting box for US standard

Example Applications
