Camelsecu Factory Direct High Quality No Touch Wireless Exit Button with Remote Control
- Category: Inductive Switch >>>
- Supplier: Shenzhen Camel Security Co. ltd
Share on (62070600713):
Product Overview
Description

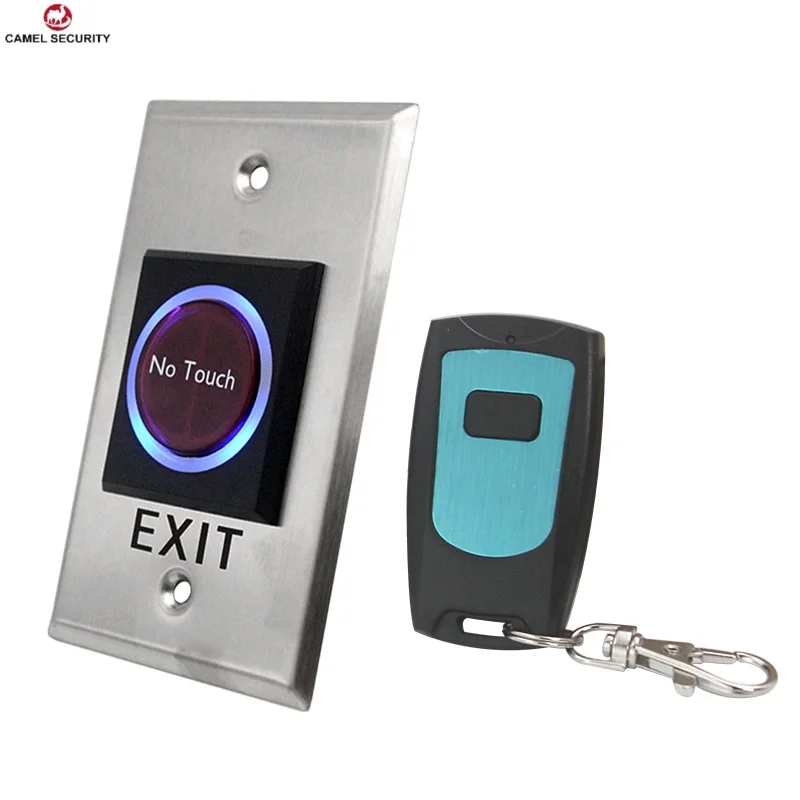

Camelsecu Factory Direct High Quality No Touch Wireless Exit Button with Remote Control
Product Introduction
Different sizes, lanauges and symbol options for Camelsecu Factory Direct High Quality No Touch Wireless Exit Button with Remote Control

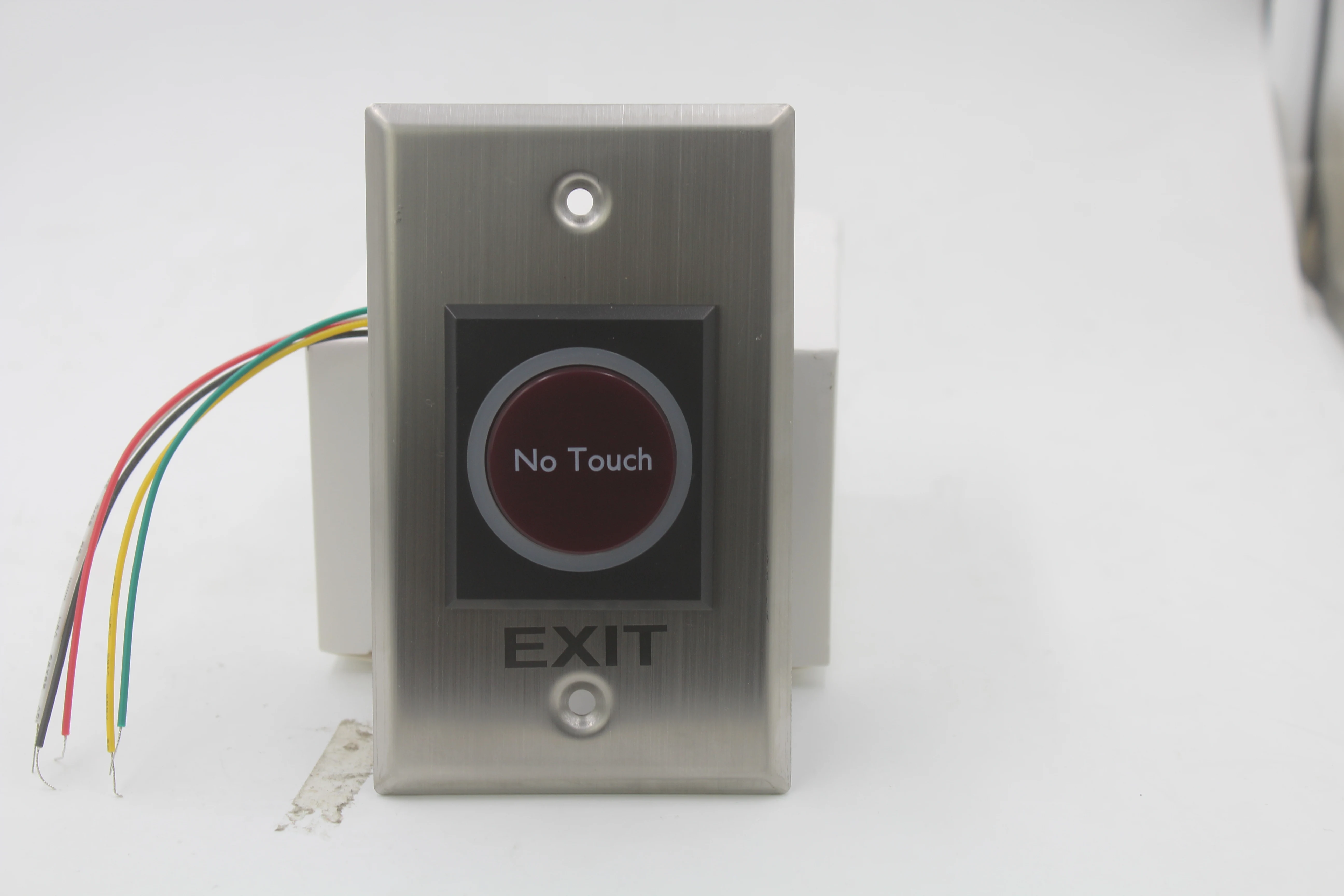

K1-RR series IR Sensor No Touch Touchless exit button is casted by 304 stainless steel plate. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years, becoming a classic style.

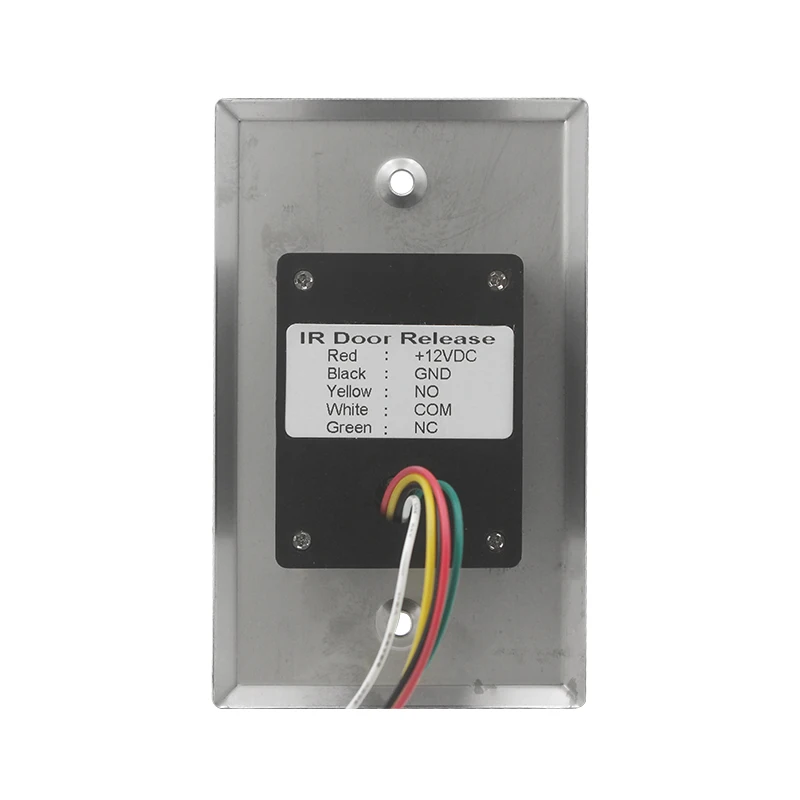

K1-RR series touchless exit button is IR Sensor technology with 5 cables included for NO (Normal Open), NC (Normal Close) and COM (Common) and +12V DC and GND, it has blue and green 2 colors LED indicator. Blue color when standby ang Green color when actived.
The remote controler could work in 30m in open side.
Our standard version is 2 types of switch content for options. Type A is No Touch letters with EXIT. Type B is Hand Symbol with EXIT. OEM your language or logo will meet our great care and fast answer.
115*70mm size is popular in American countries.
Technical Parameter
Datasheet for Camelsecu Factory Direct High Quality No Touch Wireless Exit Button with Remote Control
| Parameter | Description |
| Size | 115*70mm |
| Standard Structure | 304 Stainless Steel Panel, IR Sensor Button |
| Panel Material | 304 Stainless Steel Panel, Sandblast Finished |
| Current | 3A @ 12V DC, 24V DC Available |
| Output Contact | NO/NC/COM /LED |
| Mechanical Life | 100,000 tested |
| Operating Temperature | 10-55℃ (14-131F) |
| Operating Humidity | 0-95% (non-condensing) |
| Weight | 0.13kg |
| Package | 100pcs/15kg/51*43*33cm/ctn |

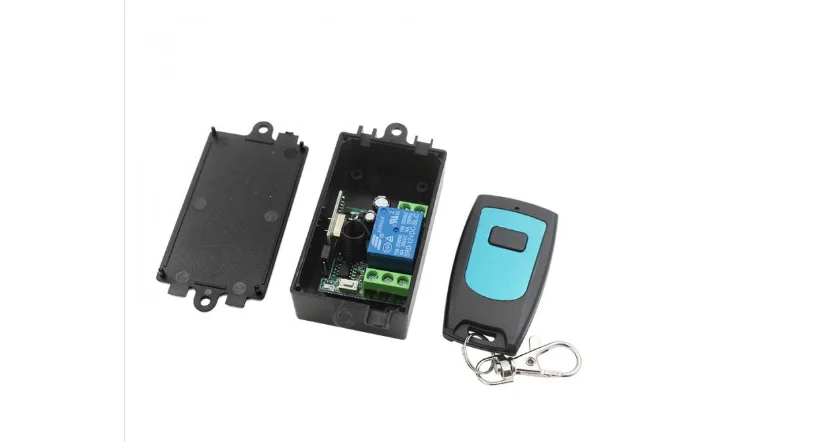

Technical Parameter for the remote controller
| Model | 807M |
| Working Voltage | 12V DC |
| Max. Quantity of Transmitter | 16pcs |
| Size | 80*55*28mm |
| Working Frequency | 433 MHz |
| Contacts | N.O/N.C/COM |
| Transmitting Distance | ≥30m in the open area |
| Accessories | Additional transmitters are available |
| Standard Package | 200pcs/carton/51*46*25cm |

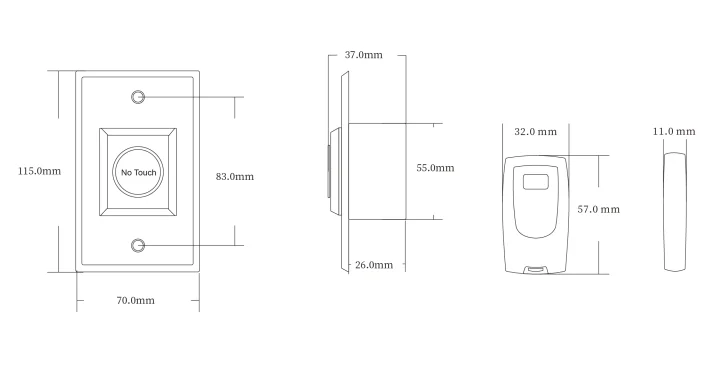

Structure for Camelsecu Factory Direct High Quality No Touch Wireless Exit Button with Remote Control
Features
More options for Camelsecu Factory Direct High Quality No Touch Wireless Exit Button with Remote Control
1, Different sizes available for different countries: European size 86*86mm, ANSI Size 115*70mm
2, No Touch sign or Hand Symbol, different facelates to meet different requirements

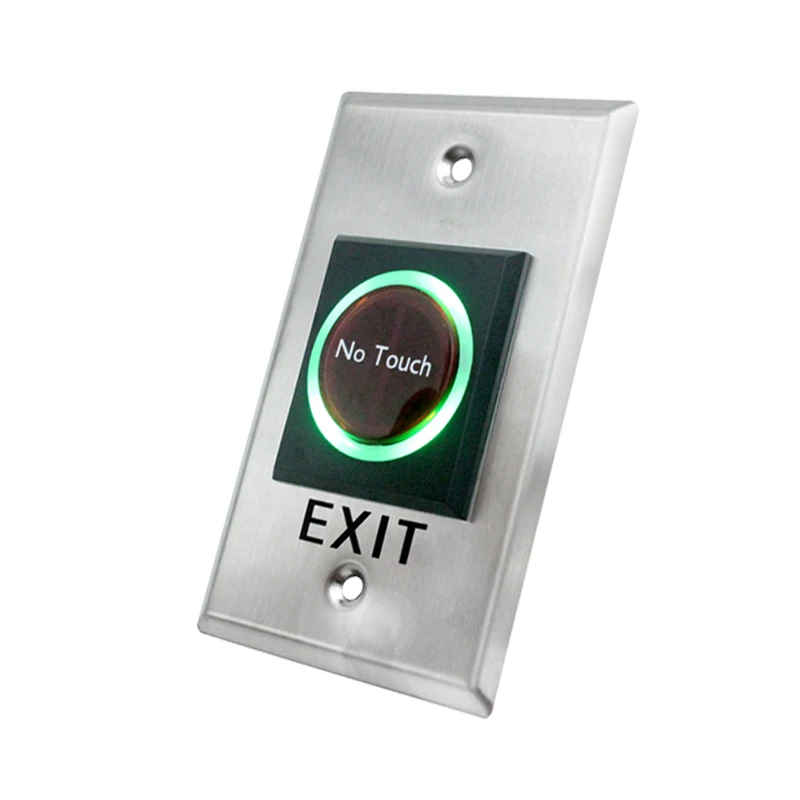

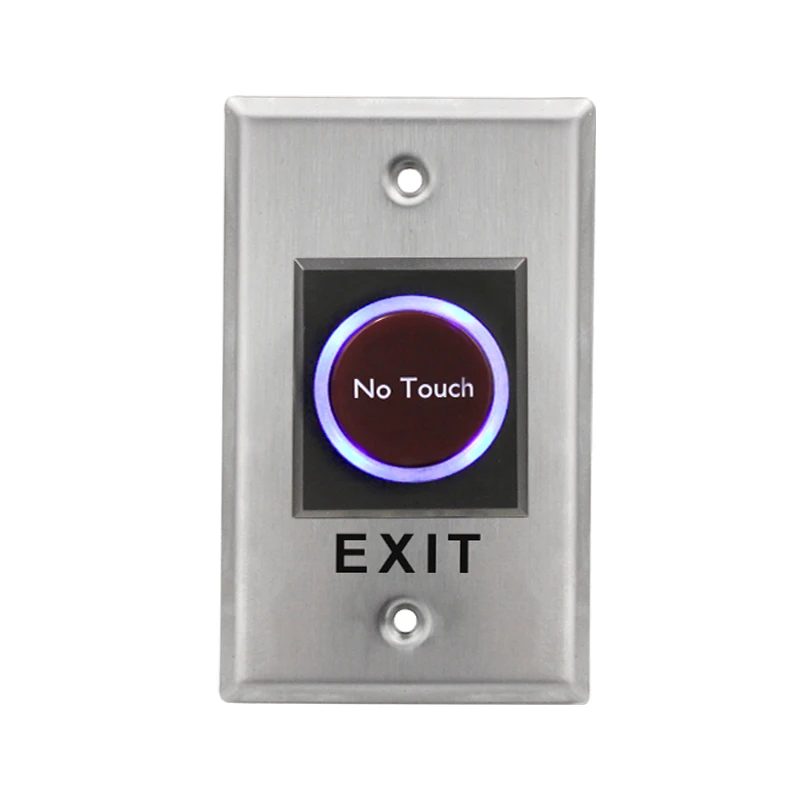

3, Blue and Green colors LED indicator, blue color when standby, green color when actived
4, 304 Stainless Steel Faceplate, elegant design with safety handle. It is same material used for turnstile gate barrier. 304 Stainless steel is much better than 201 stainless steel, which other factory used.
5, CE RoHS Certification, we are honered to provide CE RoHS Certifications
6, 3 years warranty to ensure you after sales service
7. OEM/ODM experiences for top ranking brands, customization available.
More touchless no touch exit button are available with unique designs:
Related Products
Company Information
FAQ
Q: Could i get a free sample for testing?
A :Yes,we could offer a free sample to you for testing,please contract our sale team.
Q:Do you offer a customized service?
A:Yes,please contract our sale team to talk about the detail.
Q:Are you a factory or a trading company?
A: we are factory,and we have 2 factories,one is located in ZhongShan city,one is located in shenzhen city,GuanDong province.
Q:Where is your main marker?
A: We have experienced in exporting for more than 10 years and our market extends to Europe, America, Asia, Australia and Africa.
Q:Do you accept OEM and can I apply my brand to your product?
A:Yes, we do OEM and we can produce goods with your brand.
Q:How Many years for warranty?
A:3 years for exit button,1 year for door locks.
Q:How to make the payment?
A:Normally By T/T.
