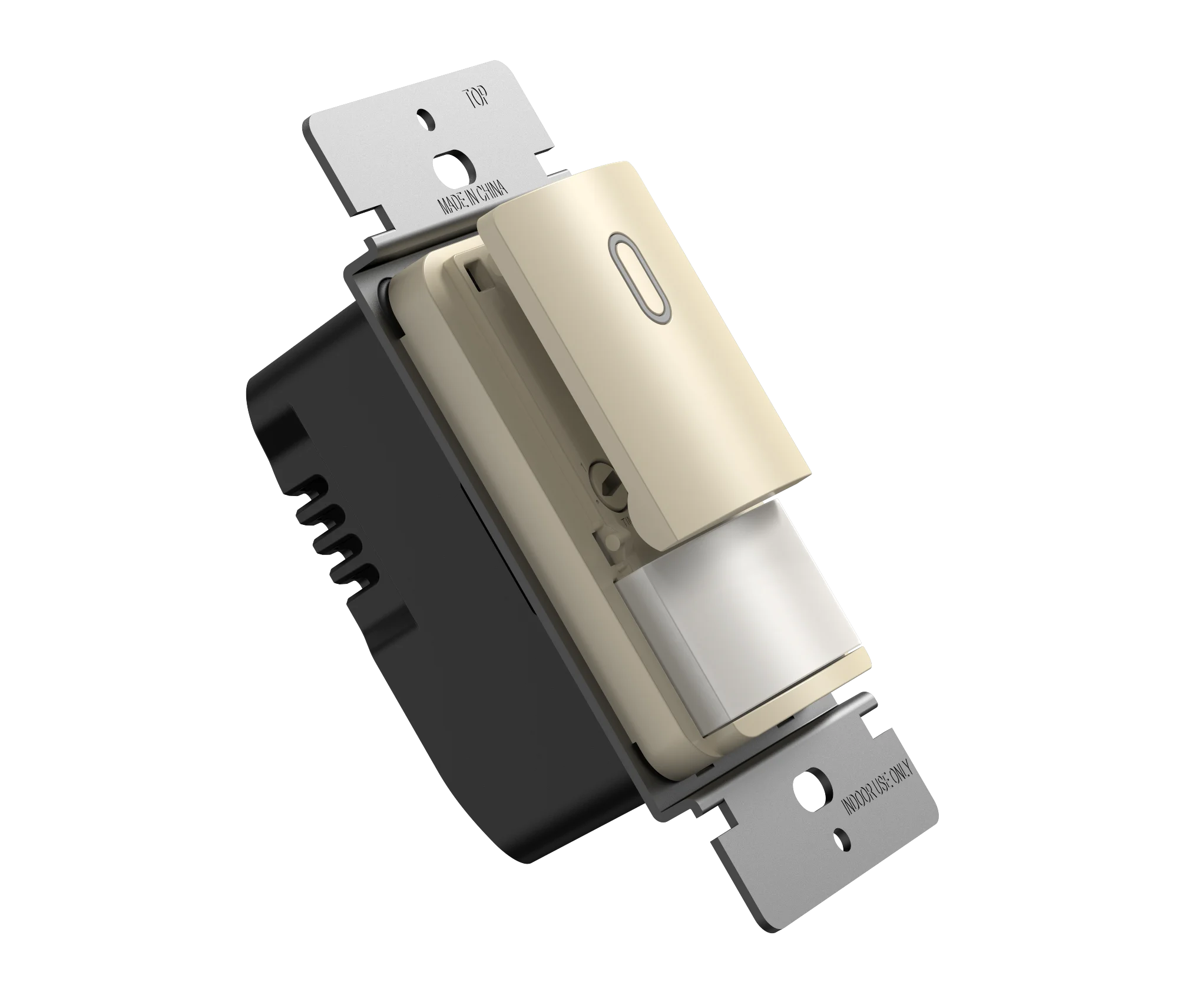

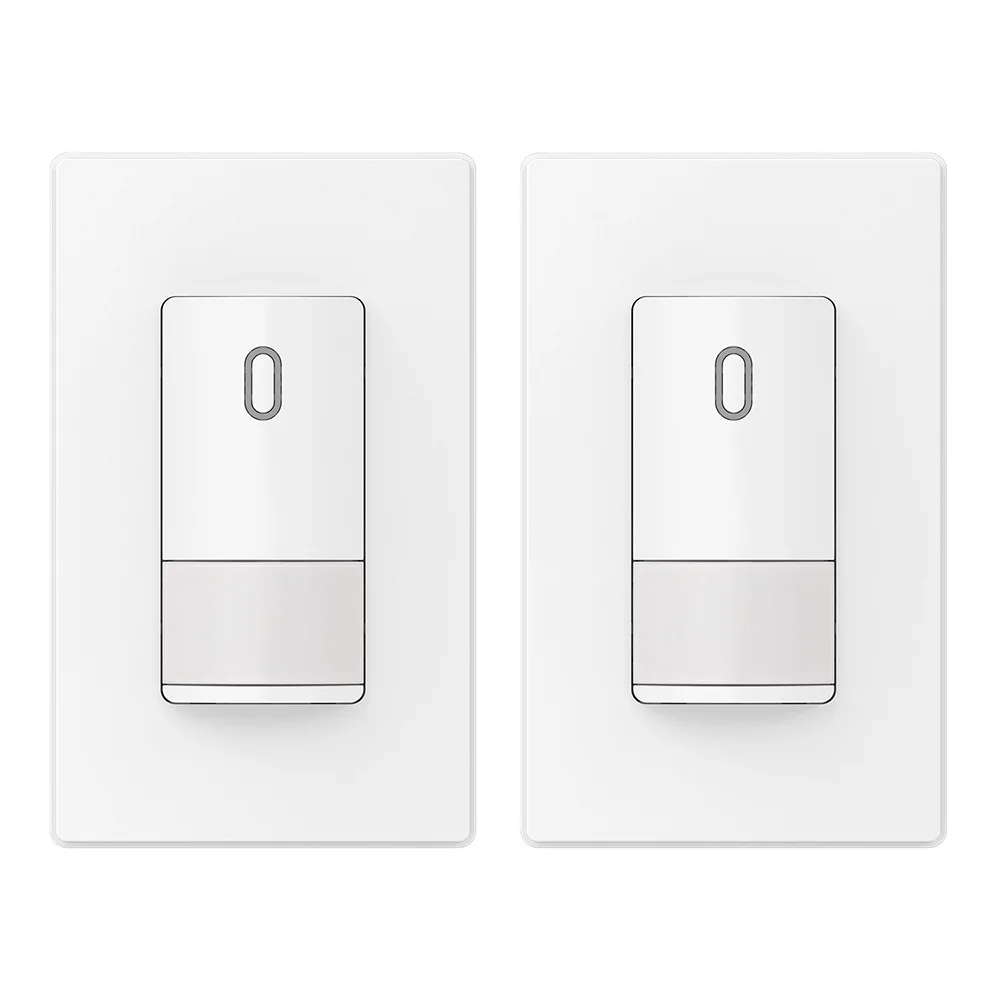

Однополюсный датчик свободного места переключатель 120 277 в PIR и датчик положения света ИК датчик движения
- Category: Inductive Switch >>>
- Supplier: Suzhou Ele Mfg Co. Ltd.
Share on (1600391493045):
Product Overview
Description
Products Description
Marketing Copy | Easy to install- NO NEUTRAL WIRE REQUIRED - ideal for homes of all ages. Replace existing switch or sensor in as little as 15minutes. Ultra slim profile, easily fits in electrical box and wall plate. Extremely low standby power consumption. |

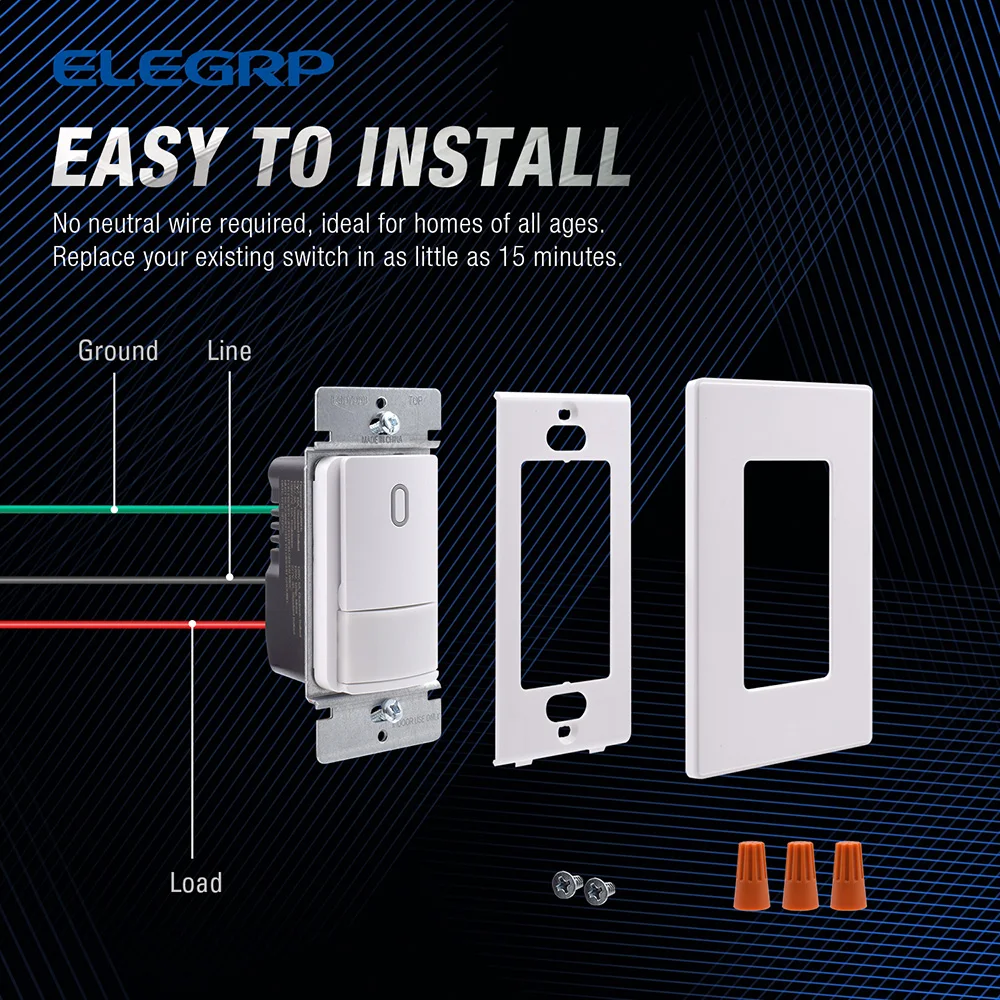

Easy to install | NO NEUTRAL WIRE REQUIRED - ideal for homes of all ages. Replace existing switch or sensor in as little as 15 minutes. Ultra slim profile, easily fits in electrical box and wall plate. |

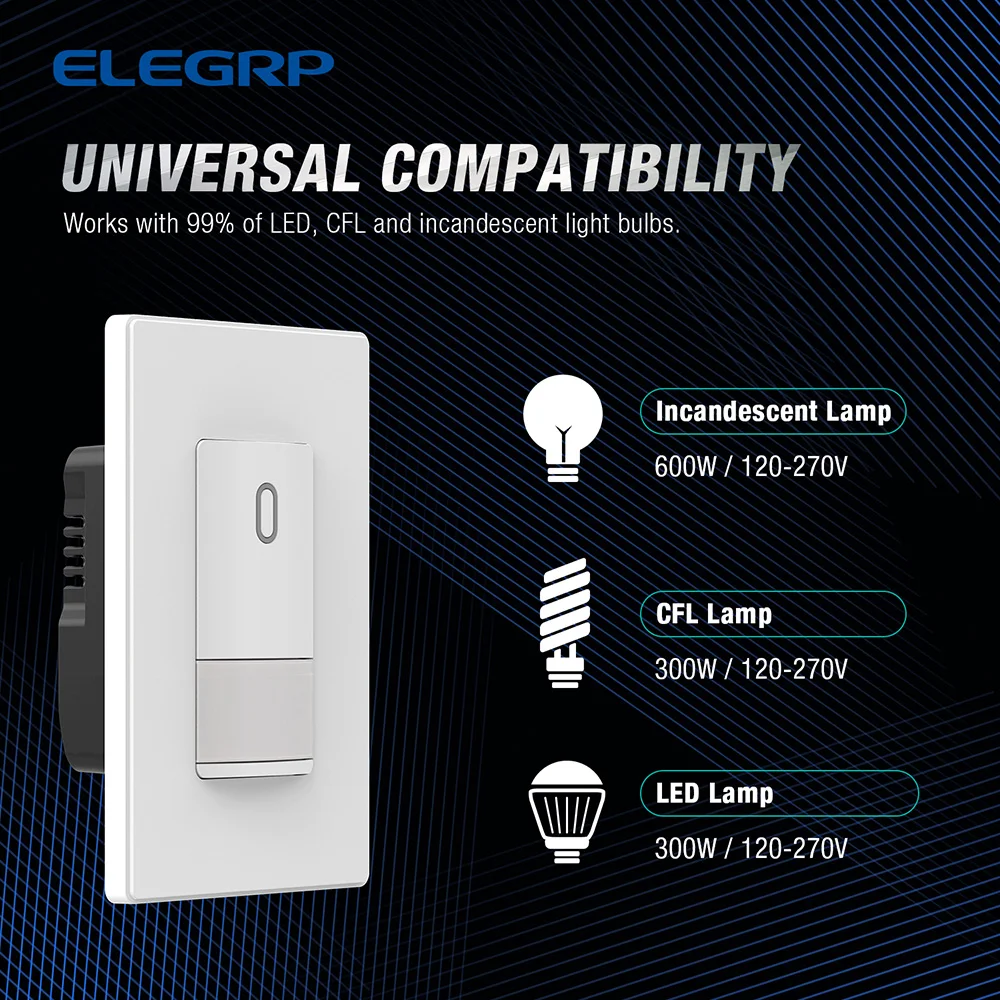

Universal Compatibility | Works with 300W LED, 300W CFL and 600W incandescent light bulbs on the market. |
Multiple Control | Can be used as single-pole or 2 location control. Features multiple setting modes of Automatic or Manual ON/OFF for different usage scenarios at home. |
High Quality | Extremely low standby power consumption. Energy saving and long operating life. Flame resistant material has reached the highest grade of 5VA |

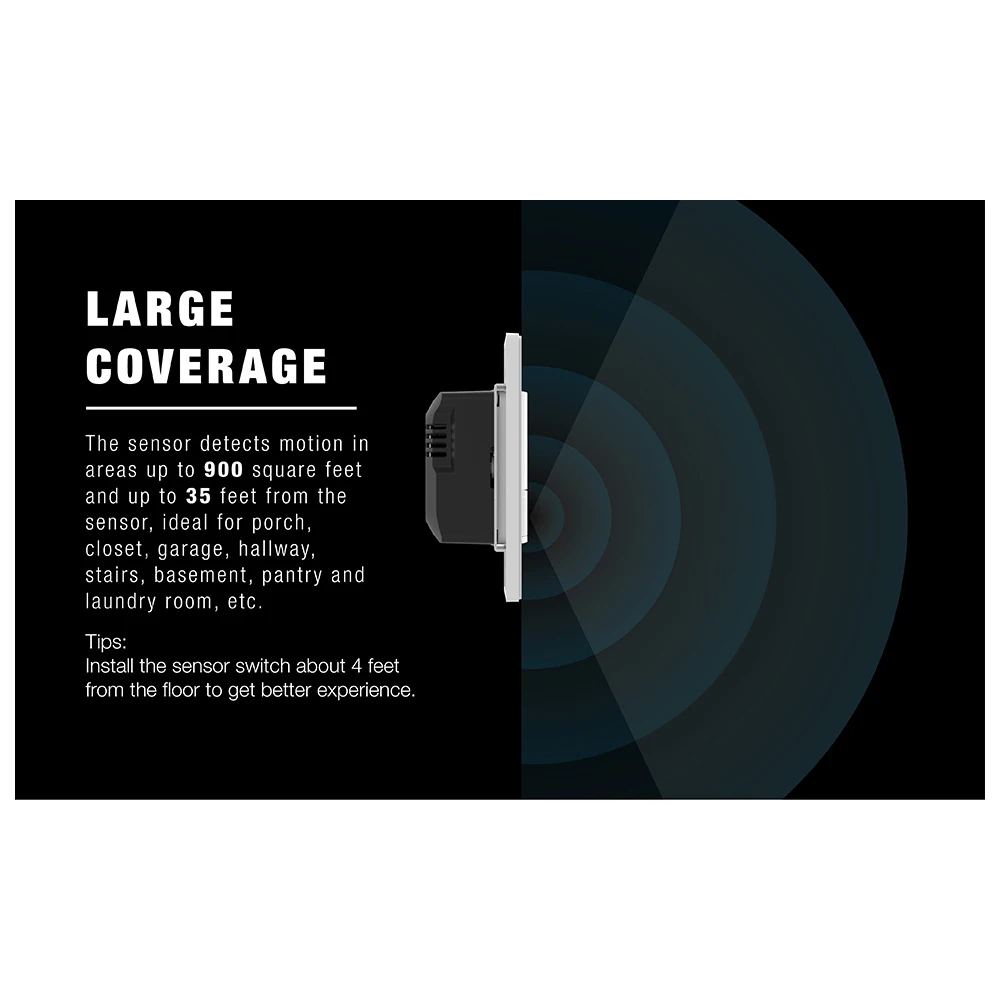

LARGE COVERAGE | The sensor detects motion in areas up to 900 square feet and up to 35 feet from the sensor, ideal for porch, closet, garage, hallway, stairs, basement, pantry and laundry room, etc. |

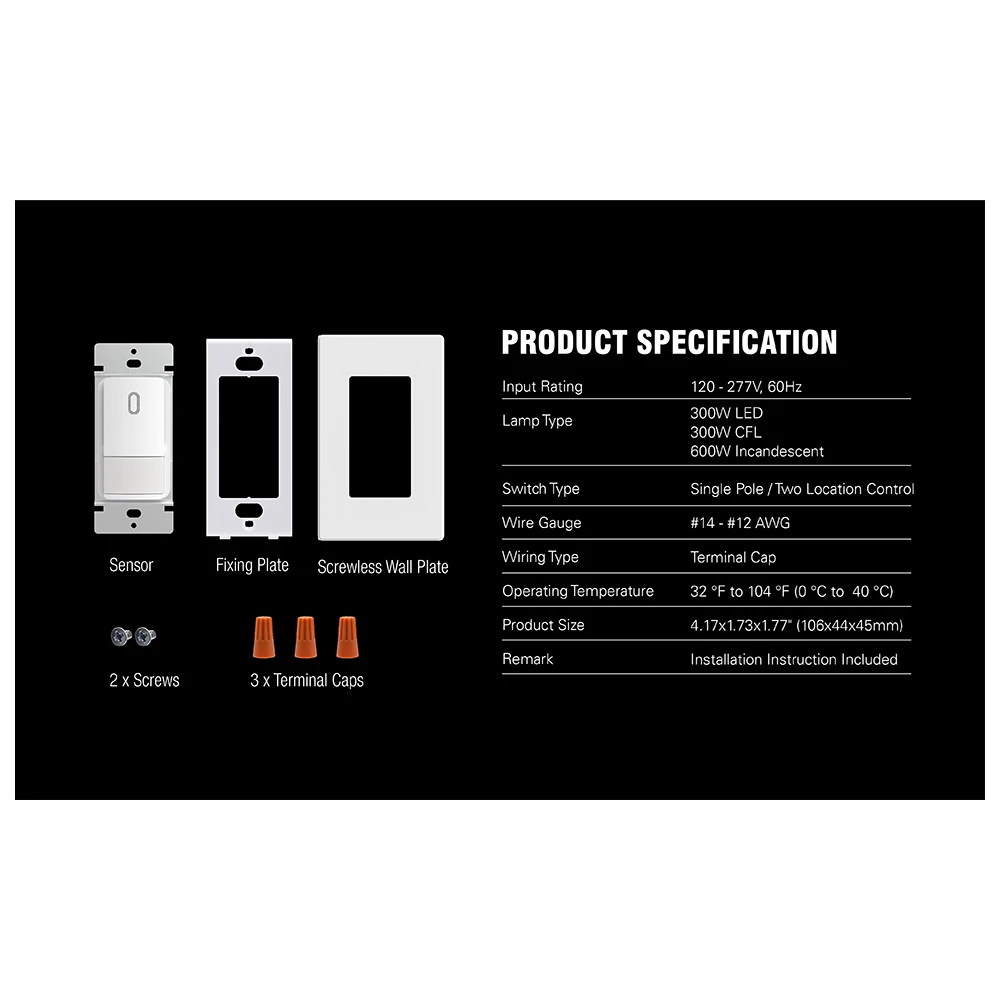

PRODUCT SPECIFICATION
Input Rating: 120 - 277V, 60Hz
Lamp Type:
Wiring Type: Terminal cap
Operating Temperature:
Lamp Type:
300W LED, 300W CFL, 600W Incandescent
Switch Type:
Switch Type:
Single Pole / Two Location Control
Wire Gauge: #14 - #12 AWGWiring Type: Terminal cap
Operating Temperature:
32℉ to 104℉ (0℃ to 40℃)
Product Size: 4.17x1.73x1.77" (106x44x45mm)
Remark:
Remark:
Installation Instruction Included

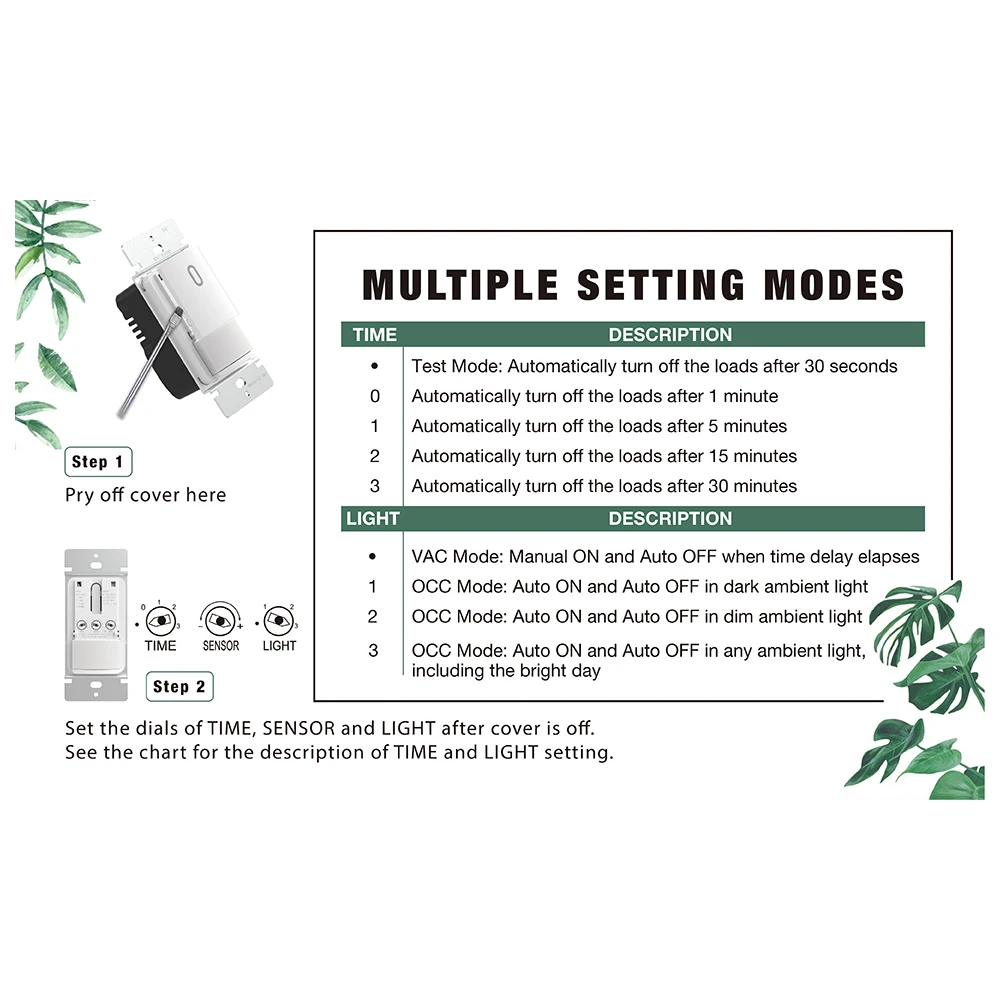

MULTIPLE SETTING MODES - Features multiple setting modes for different usage scenarios at home | ||||||||
Set It Into An Occupancy Sensor Switch | ||||||||
OCC Mode: Automatic ON & Automatic OFF | ||||||||
1. Set delay TIME to " • " , "0", “1” , “2” or "3" as desired. | ||||||||
2. Set human body SENSOR sensitivity as desired. | ||||||||
3. Set LIGHT sensitivity to “1”, “2” or "3" as desired. DO NOT set the LIGHT to " • ". | ||||||||
Set It Into A Vacancy Sensor Switch | ||||||||
VAC Mode: Manual ON & Automatic OFF | ||||||||
1. Set delay TIME to " • " , "0", “1” , “2” or "3" as desired. | ||||||||
2. Set human body SENSOR sensitivity as desired. | ||||||||
3. Set LIGHT sensitivity fully counterclockwise to " • " to disable automatic ON function. | ||||||||
The device will turn on the loads manually only and turn off the loads automatically when the time delay elapses. | ||||||||
Company Profile
Experienced in OEM, ODM, MRO, Retailer business;
ELE make life protective products with higher standard than UL requirements
Provide competitive price with superior products for customers
ELE has patents both in USA and China
ELE make life protective products with higher standard than UL requirements
Provide competitive price with superior products for customers
ELE has patents both in USA and China

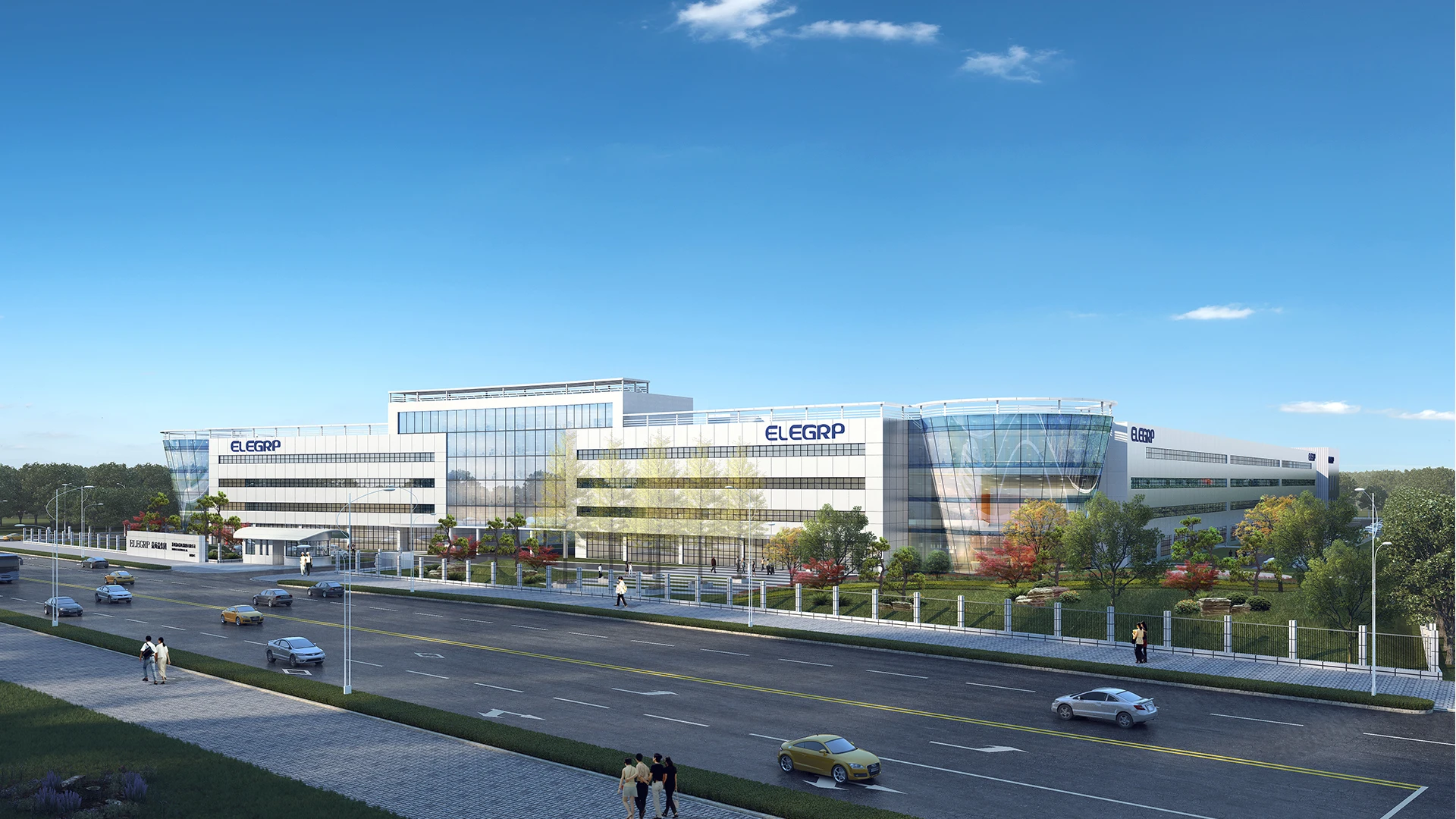

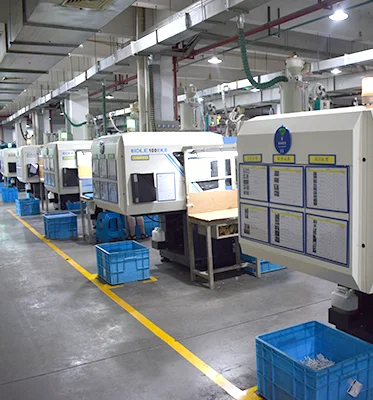

Engineering and manufacturing of electrical safety equipment since 2000, ELEGRP is leading innovation and technology upgrade in leakage circuit interrupter devices, water pumps, wire & cable and smart home appliances. Headquarter locates in Suzhou with three manufacturing bases in Suzhou, Wenzhou and Shanghai, we focus on investing in R&D and industrial automation to keep the leading capacity. ELEGRP believes in providing friendly solutions by adopting a consumer-centric and efficient problem-solving approach. Going above and beyond in the future continuously in electrical safety use and smart home appliance, ELEGRP will constantly make explorations and innovations to meet the ever-changing demand of our consumers.
