Product Overview
Description
Grinding Your Device, Shining Our Dream
CNC Cylindrical Grinder
GO-350
PRODUCT SPECIFICATIONS
category | GO-350 |
Distance between centers | 1000mm |
Workpiece length | 1000mm |
Center height | 175mm |
Max.workpiece weight | 150kg |
Longitudinal axis: X axis | |
Max travel | 270mm |
Speed | 0.001-10000mm/min |
Cross axis: Z axis | |
Max. travel | 1200mm |
Speed | 0.001-10000mm/min |
Wheel head | |
Max.spindle power | 7.5kw |
Wheel linear velocity | 50M/s |
Wheel head rotate range | 0-225〫 |
Workhead | |
Revolve speed range | 1-1000rpm |
Max.spindle power | 1.2kw(FANUC) |
Grinding circularity | < 0.0008 µm |
Tailstock | |
Taper matching | MT4 |
Max.sleeve travel | 35mm(1.37”) |
Sleeve diameter | 50mm |
Taper fine tuning travel | ±20µm |
Control system | FANUC Oi-TF PLUS |
Option installation | Acoustic system End face measure system OD measure system |
Critical Part
Wheelhead
The most improtant component for complete machine is the wheelhead with its integrated B axis.
This swivels automatically, making it possible to use up three grinding wheels. This means that workpiece can be completely machined in the same clamping. The 0.0001 degree resolution guarantees outstanding values for positional stray(repetition) and positional deviation(angular deviation) .
Combinations with two external grinding wheels and one internal grinding wheel, with the option of using internal grinding built-in spindles up to 120000 rpm.
This swivels automatically, making it possible to use up three grinding wheels. This means that workpiece can be completely machined in the same clamping. The 0.0001 degree resolution guarantees outstanding values for positional stray(repetition) and positional deviation(angular deviation) .
Combinations with two external grinding wheels and one internal grinding wheel, with the option of using internal grinding built-in spindles up to 120000 rpm.
B-axis
Multi-functional
WORKHEAD
The versatile universal workhead enables both live spindle grinding and grinding between centers. The machine can also be fitted with specially designed chuck workhead for chuck applications. The workhead are equipped with roller bearings ,are low maintenance and have an excellent roundness accuracy of under 0.0004mm during live spindle operations. The fine adjustment allows for taper corrections in the 1µm range during live spindle operations. Like the tailstock, the workhead is also equipped with a pneumatic lifting device to facilitate movement during setup and resetting.
Workhead
Fine adjustment
TAILSTOCK
The generously dimensioned barrel, designed for the use of Morse 3 or 4 taper centers, glides in the tailstock housing.The center pressure can be adjusted with the delicate precision required for grinding high-precisions workpieces.The fine adjustment enables taper corrections in the range below 1 µm when grinding between centers.
A pneumatic lifting process facilitates movement during setup and restting.
Tailstock
Fine adjustment
C-AXIS (option install)
Complete machining also entails form, non-circular and thread grinding operations. These process are made possible by the position and speed-controlled C-axis. The standard C-axis with measuring system on the drive motor is suitablefor thread grinding. The machine enables axis-parallel grinding of conventional to high accuracy threads and polygons, eccentrics, control cams, cams etc.Can be manufactured cost-effectively and in the highest precision with high speed machining(HSM).
C-axis

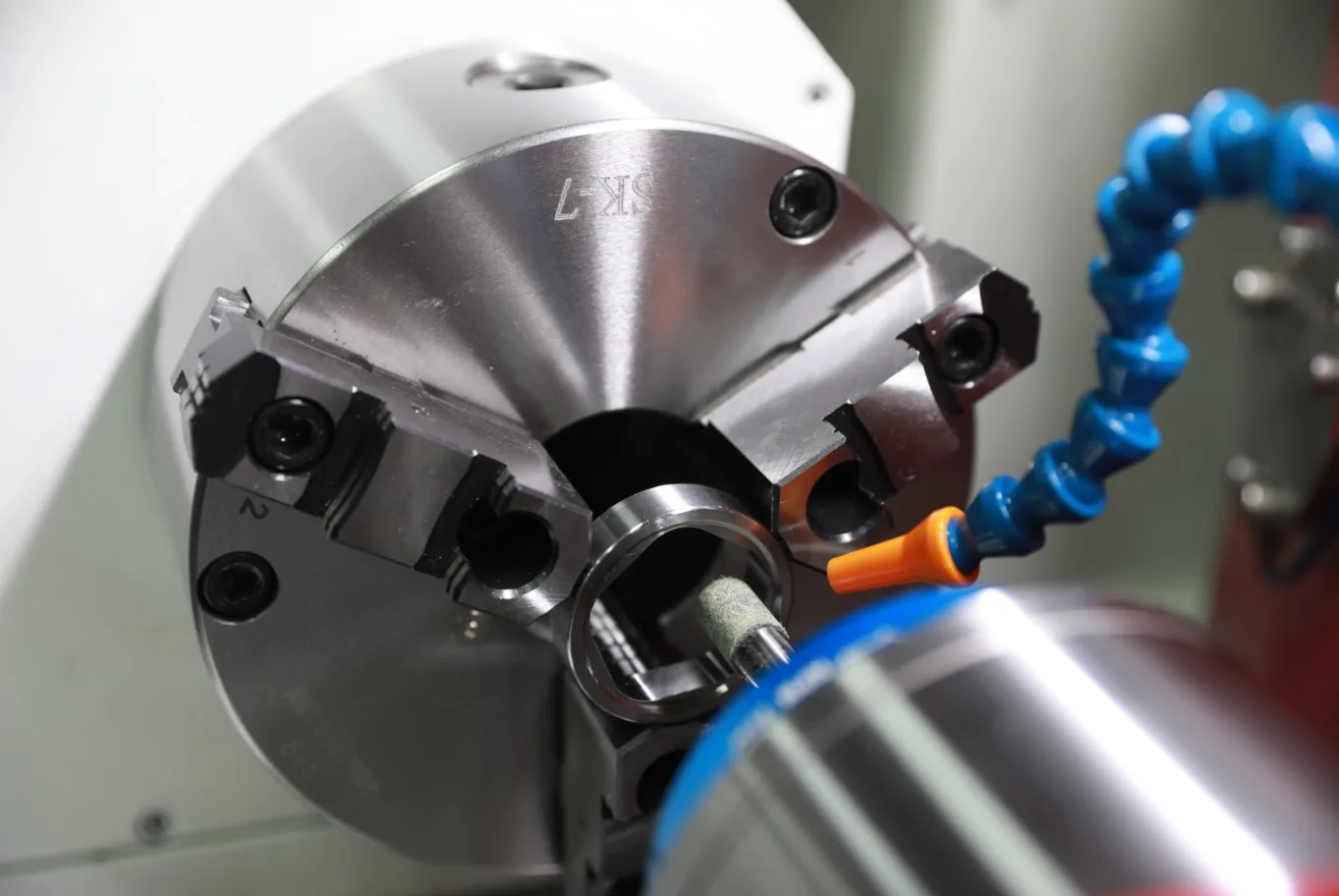

Internal non-circular grinding
Thread grinding

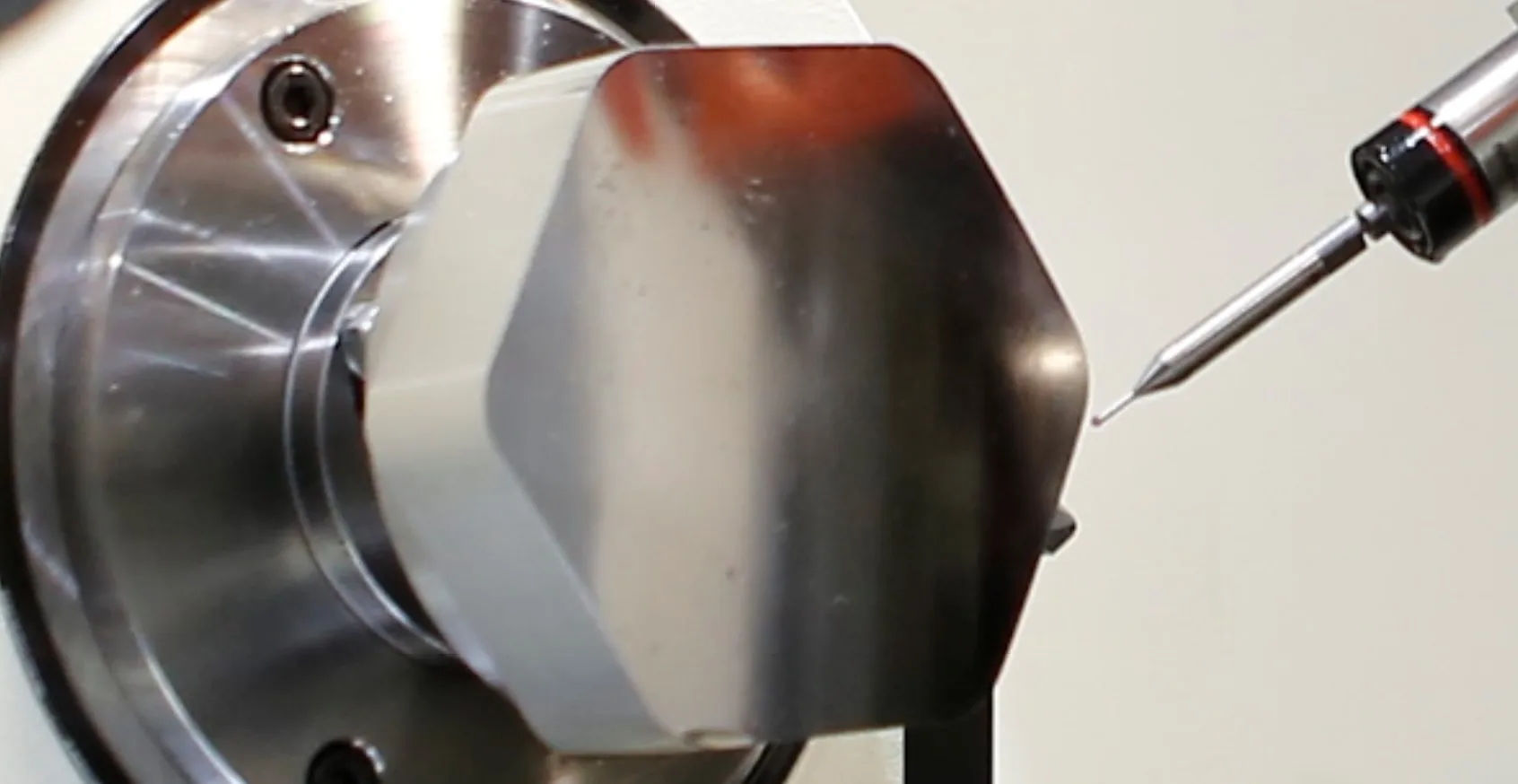

Polygons
Eccentrics
Cams
Recommend Products
GJ-400A
GJ-400B
GO-350
G0-354
GO-356
GJ-412
Belt Driven Spindle
Built-in Motor Spindle

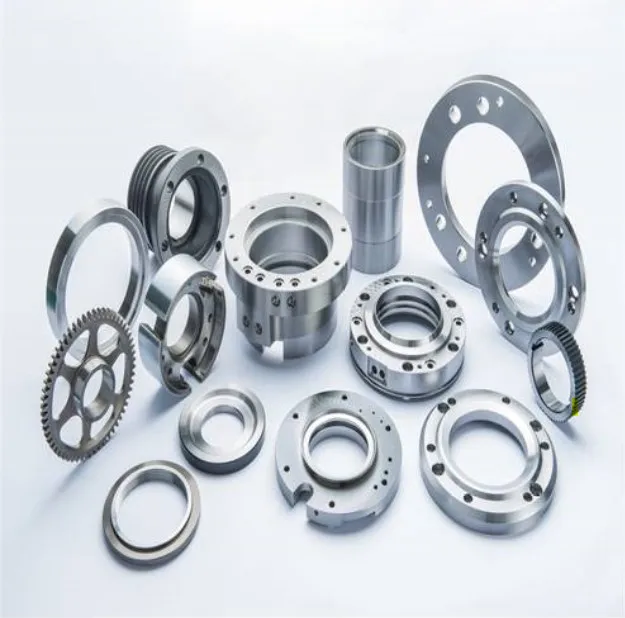

Precision component manufacturing
