Пневматическая шлифовальная машина для шлифования твердосплавных пуговиц

Product Overview

Description

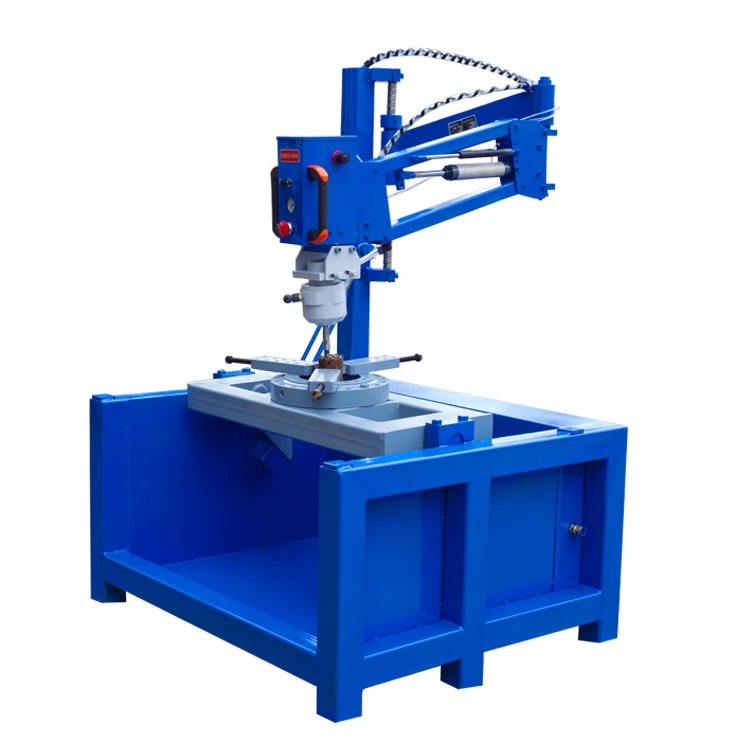

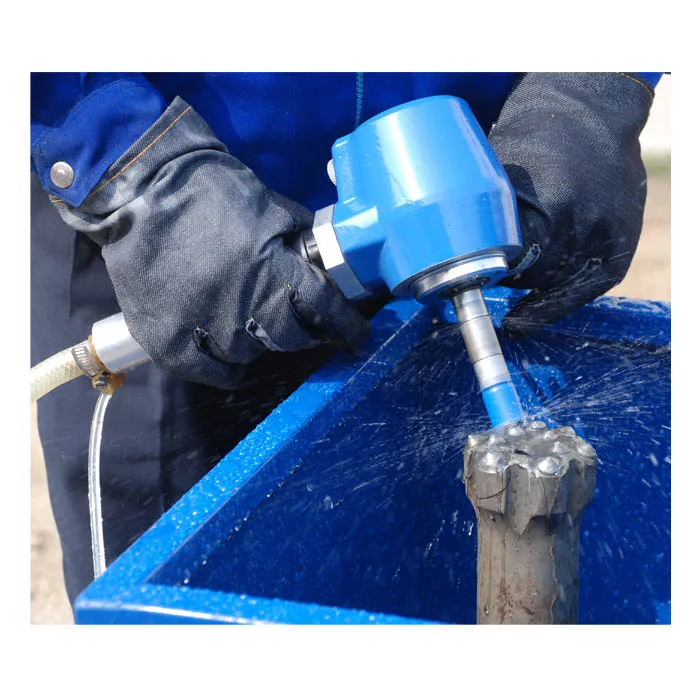

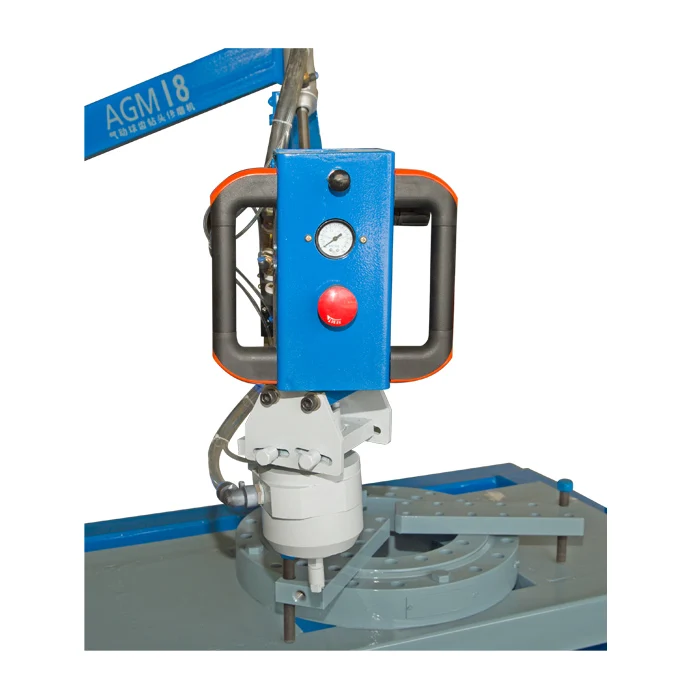

Pneumatic Button Bit Grinder Machine For Grinding Carbide Buttons

(1)Button bits grinder

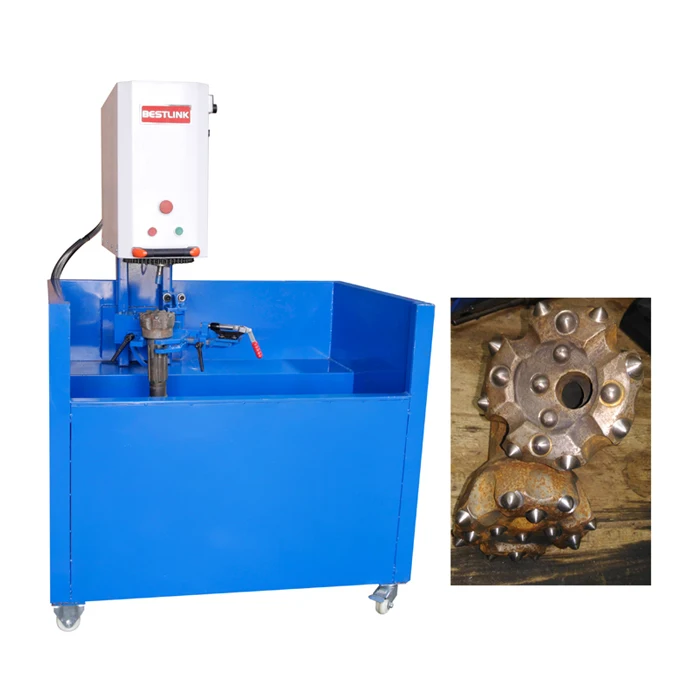

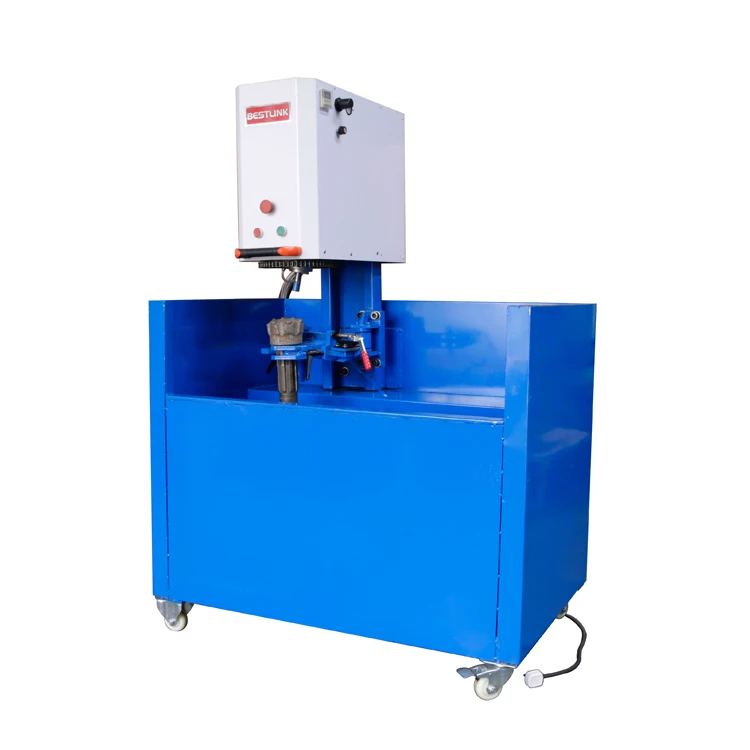

EGM20 electric button bits grinder is new arrival!







Specifications:

Electric button bits grinder
EGM20
Working air pressure	5-7bar(100 psi)
Air consumption	1.2-1.8m3/min
Max.water pressure	4bar(60 psi)
Water consumption	2-4L/min
Rated power(motor)	1.5KW
Coolant/flushing medium	Water
Air hose diameter	19mm
Water hose diameter	6mm
Weight	200KG
Electric power data	1 phase220V,50Hz or3 phase,380V,50Hz



The grinder can work with 4 kinds of grinding cups together to get better grinding effect just by replace the coupling chuck.



(2) Diamond Grinding Cups



BESTLINK supplies you 4 kinds of grinding cup for your various need.

The grinding cups sizes are ranged from 6mm to 25mm; a special size is on clients request.
