Aluminum Profile System For Aluminum Roller Placon Fluent 9
US $12.00-$15.00
rice bucket elevator conveyor bucket elevator belt for elevator
- Category: Material Handling Equipment >>>
- Supplier: Shandong Pawo Machinery Co. Ltd.
Share on (10000000901827):
Product Overview
Description
Products Description
Breif Introduction:

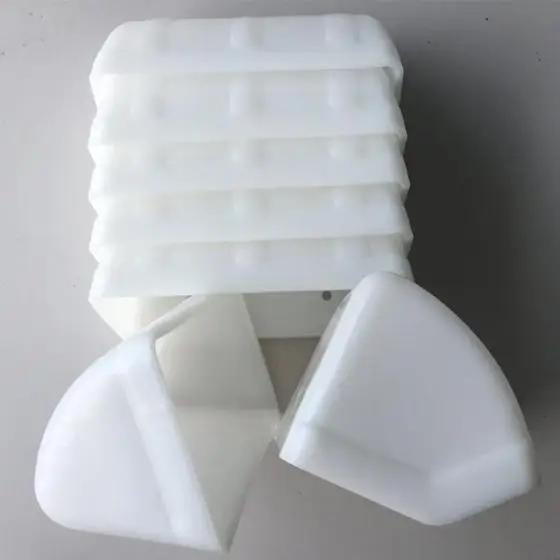

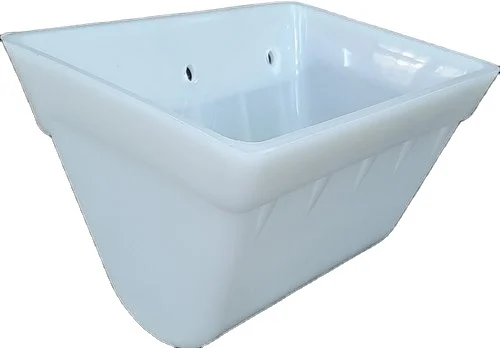

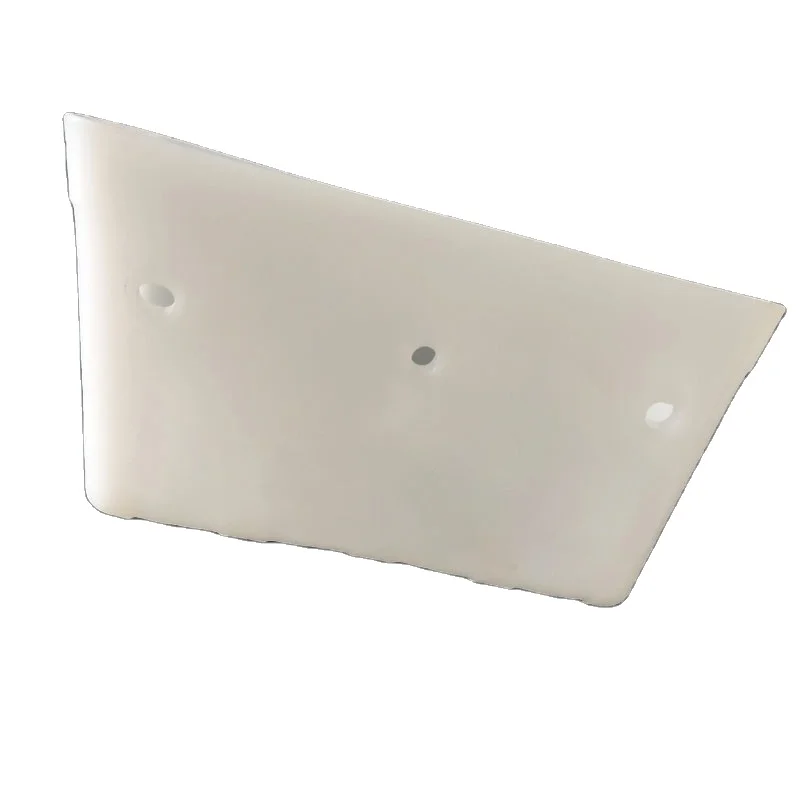

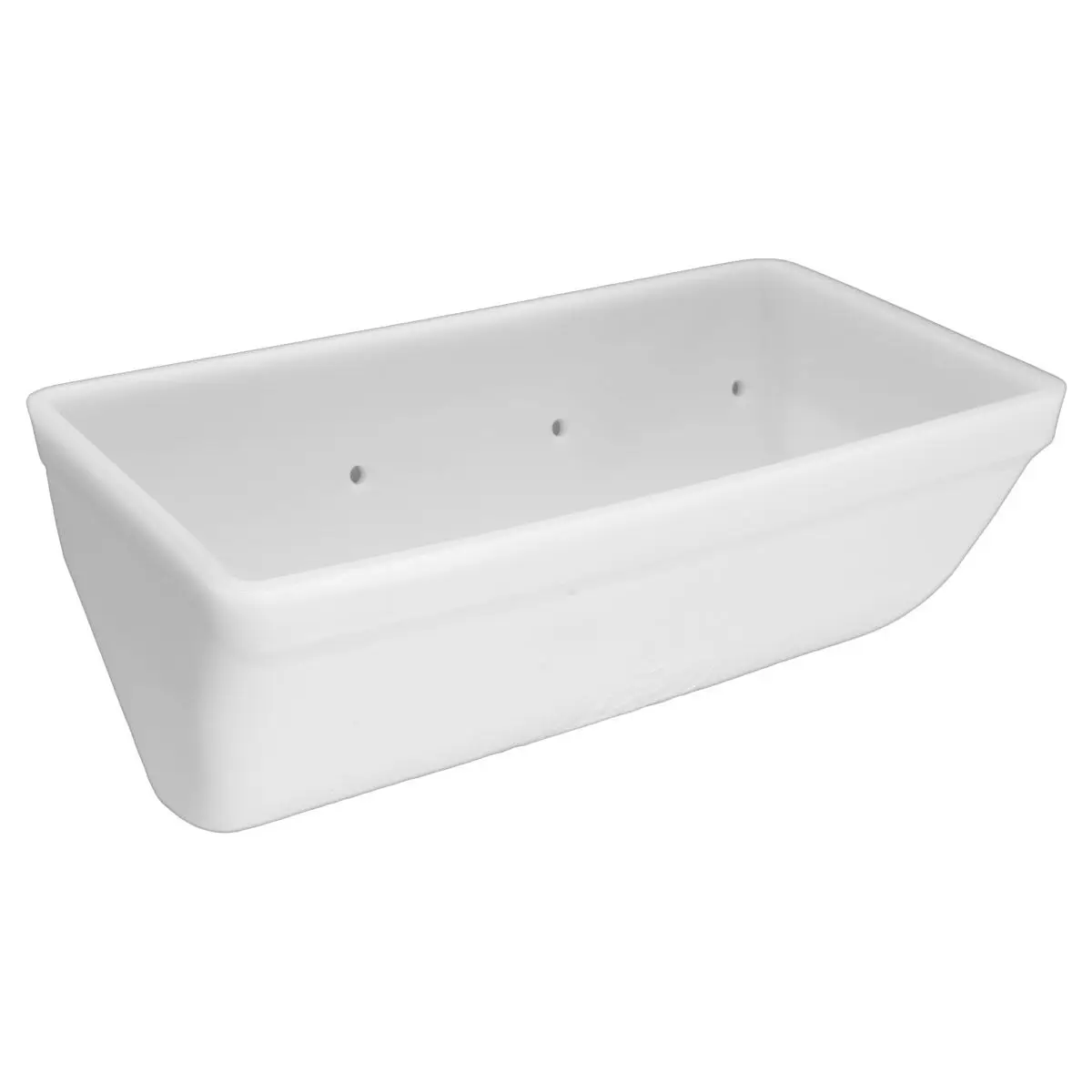

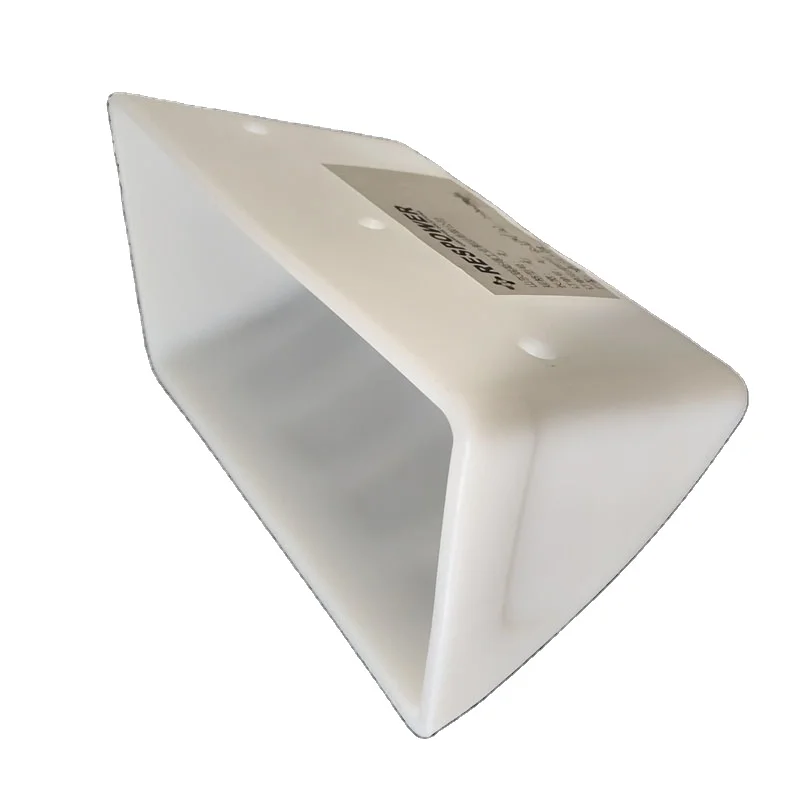

ELEVATOR BUCKETS

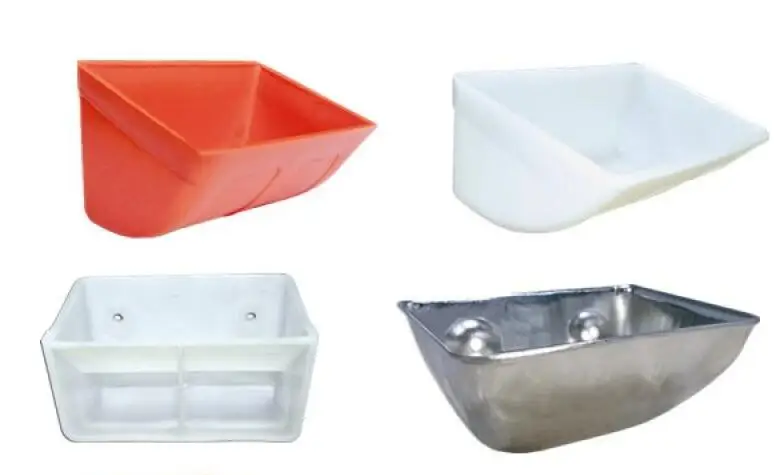

Light weight and high-strength plastic bucket, nylon bucket, integral stamped steel bucket.
ELEVATOR BUCKETS
Light weight and high-strength plastic bucket, nylon bucket, integral stamped steel bucket.
Features:
1.High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2.Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3.Good pliability , low product damage percent of only 1.
4.No spark caused in operation, avoid the possibility of dust exploration.
5.Clean discharge, wide temperature applications.
1.High intensity, wear-resistance, corrosion-proof, with longer life span than steel buckets.
2.Light weight, extend the life span of the bucket, reduce the energy consuming of the elevators.
3.Good pliability , low product damage percent of only 1.
4.No spark caused in operation, avoid the possibility of dust exploration.
5.Clean discharge, wide temperature applications.
Details Images

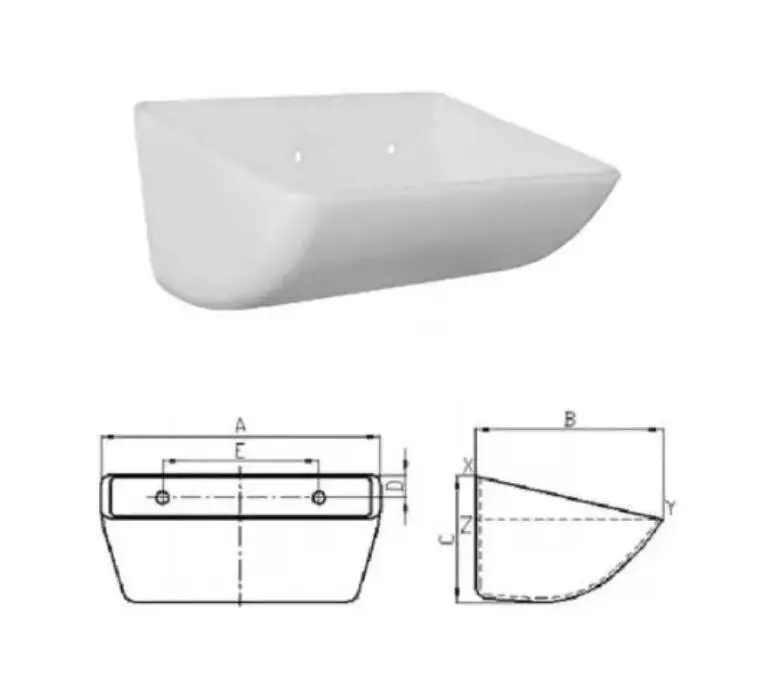

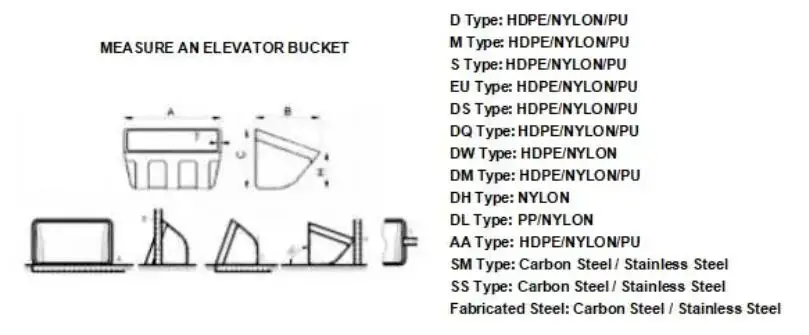

Specifications for elevator bucket
Model | Length A （mm） | Pro. B （mm） | Distance C （mm） | Capacity（X-Y）(L) | Capacity（Z-Y）*10%(L) | |||||
15X8 | 380 | 220 | 142 | 6.3 | 4.9 | |||||
14X7 | 370 | 188 | 132 | 5.00 | 3.85 | |||||
13X8 | 340 | 220 | 138 | 5.60 | 4.70 | |||||
12X7 | 315 | 188 | 123 | 4.25 | 3.33 | |||||
11X6 | 290 | 174 | 110 | 3.00 | 2.44 | |||||
9X6 | 240 | 172 | 110 | 2.50 | 2.00 | |||||
8X5 | 203 | 147 | 111 | 1.96 | 1.50 | |||||
7X5 | 188 | 144 | 92 | 1.20 | 1.01 | |||||
6X4 | 159 | 113 | 77 | 0.67 | 0.57 | |||||
5X4 | 140 | 115 | 80 | 0.63 | 0.55 | |||||
4X3 | 107 | 91 | 62 | 0.30 | 0.22 | |||||
Fitting holes and hole diameter can be customized. | ||||||||||

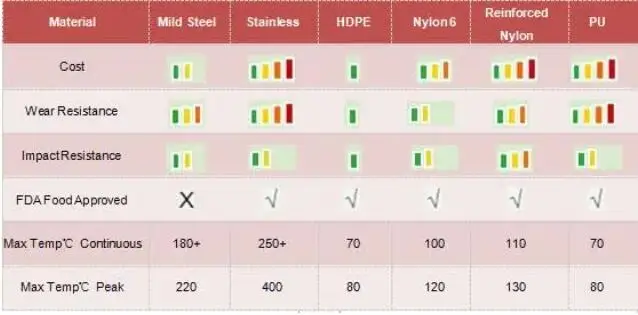

HDPE: Tough and flexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than 1g/cm³ .
Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
PU: Extremely abrasion resistance, tough and flexible, and are suitable for handling sharp, cutting and sticky products.
Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.
Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
PU: Extremely abrasion resistance, tough and flexible, and are suitable for handling sharp, cutting and sticky products.
Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.
ELEVATOR BUCKET VENTING
A venting bucket can improve the efficiency of some bucket elevators when handling certain products. On dense materials such as lour, meals, and mash feeds, the vents allow air to escape through the cup as it fills, which permits the cup to fill more completely. During discharge, air can return through the cups as it empties, thus preventing a vacuum that could hold some of theproducts in the cup and cause backlegging.
On extremely light materials such as alfalfa meal, screenings and bran, a vented bucket not only minimizes blowing of the product during loading and discharge, but also reduces air turbulence in the leg as the bucket travels empty down the return side of the elevator. A reduction in air currents minimizes the vacuum which can draw a light product through the down leg and back to the boot.

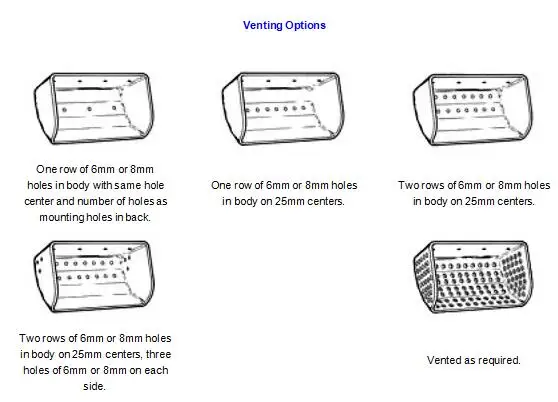

We have four standard patterns available which offer varying amounts of air release for the handling of most products. Custom venting is available upon request
A venting bucket can improve the efficiency of some bucket elevators when handling certain products. On dense materials such as lour, meals, and mash feeds, the vents allow air to escape through the cup as it fills, which permits the cup to fill more completely. During discharge, air can return through the cups as it empties, thus preventing a vacuum that could hold some of theproducts in the cup and cause backlegging.
On extremely light materials such as alfalfa meal, screenings and bran, a vented bucket not only minimizes blowing of the product during loading and discharge, but also reduces air turbulence in the leg as the bucket travels empty down the return side of the elevator. A reduction in air currents minimizes the vacuum which can draw a light product through the down leg and back to the boot.
We have four standard patterns available which offer varying amounts of air release for the handling of most products. Custom venting is available upon request

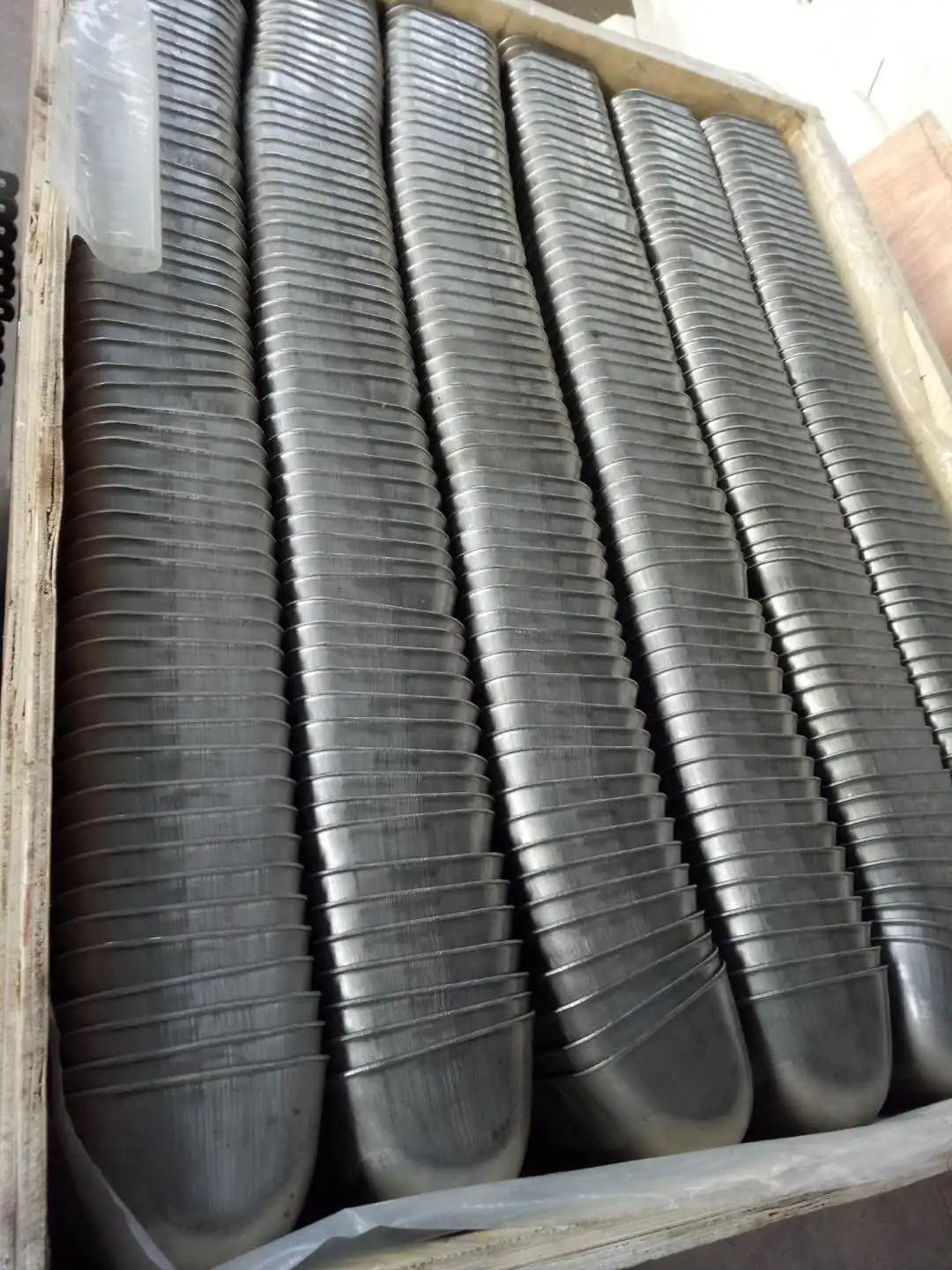

Product packaging
Why Choose Us?
Professional, dedicated, attentive
1.Professional services help you to choose a suitable conveyor belt,design your site and max your profit.2.Rich experience on manufacturing and trading,ensures your trouble-free shopping.
FAQ
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
