Aluminum Profile System For Aluminum Roller Placon Fluent 9
US $12.00-$15.00

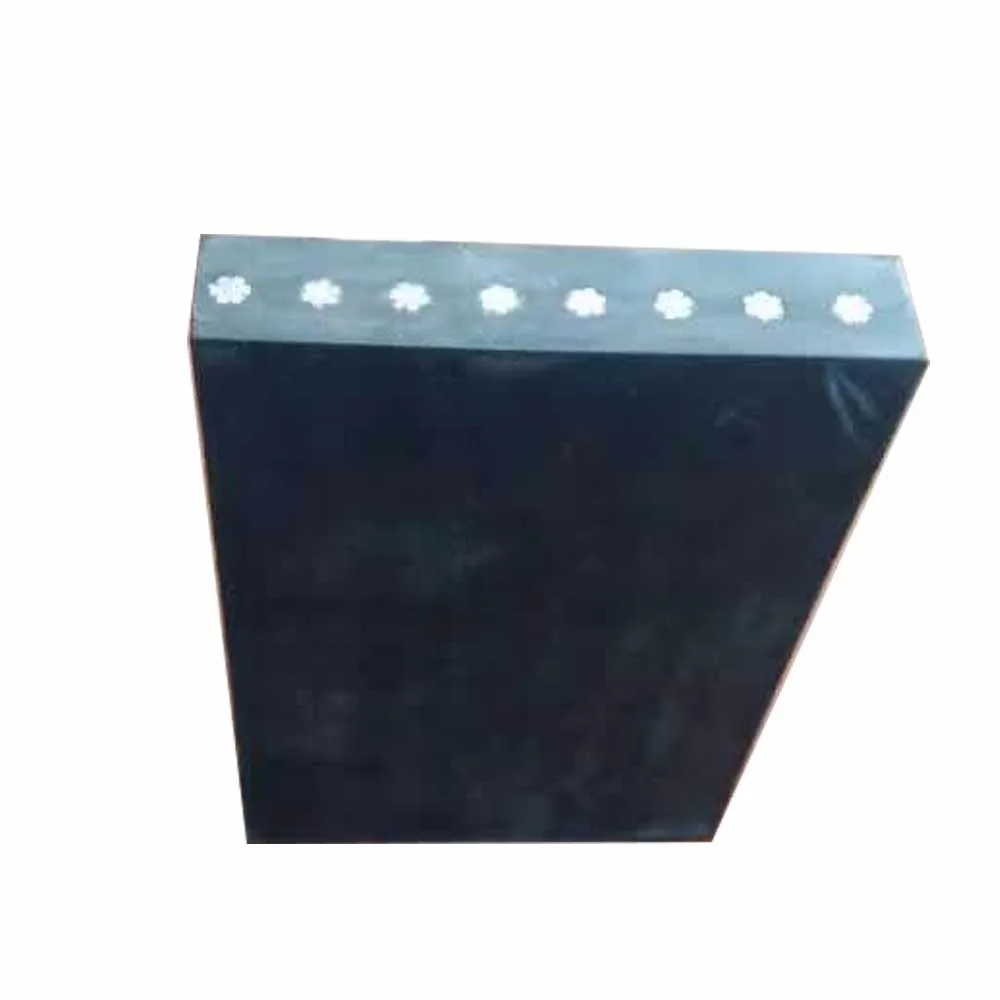

Hot Vulcanization stainless steel cord conveyor belt
- Category: Material Handling Equipment >>>
- Supplier: Qingdao,Zhongye,Yufeng,Tape,Co.,Ltd.
Share on:
Product Overview
Description
Standard Specifications For Steel Cord Conveyor Belt
| Specification | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 | ST6300 | ST7000 | ST7500 |
| Tensile Strength | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 | 6300 | 7000 | 7500 |
| Max Diameter of Cord(mm) | 4 | 4.5 | 5 | 6 | 7.5 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 | 12.8 | 13.5 | 15.0 |
| Pitch of Cord | 12 | 12 | 12 | 12 | 15 | 15 | 15 | 15 | 16 | 17 | 17 | 18 | 19 | 21 |
| Top Rubber Cover Thickness(mm) | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Bottom Rubber Cover Thickness(mm) | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 | 10 | 10 | 10 |
| Weight(kg/m2) | 22.5 | 24 | 25.9 | 31.8 | 36.1 | 40.4 | 43.8 | 45 | 45.1 | 50.7 | 53.4 |
