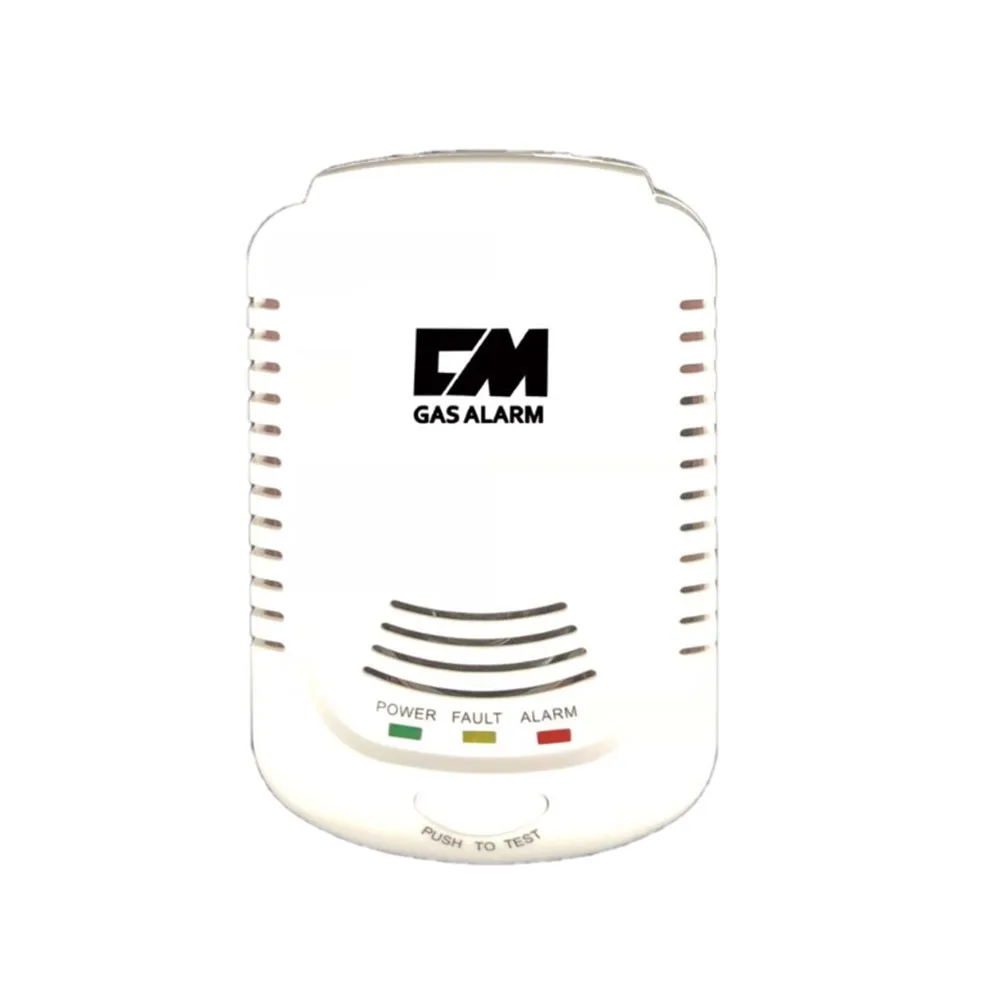

Gas Detector CM 808
- Category: Gas Analyzers >>>
- Supplier: CHUNG MEI FIRE FIGHTING SUPPLIER CO. LTD.
Share on (10000000974198):
Product Overview
Description
1. MODEL NO. : CM-808P (Wall Type) CM-808C (Ceiling Type)
2. POWER SUPPLY : Plug Type Cable Type
3. POWER ON : Green LED is ON with voice-warning message
4. STAND BY : Green LED is ON.
5. ALARMINDICATION : Green LED is ON & Red LED is Flashing Continue
6. SIGNAL OUTPUT : Relay output: Green: NC / White: NO / Blue: COM INSTALLING
7. LOCATION : Semi-diameter to gas source < 1.5m.
(1). LPG (gas gravity is heavier than air) : height from floor 0.3 ~ 1.0m
(2). LNG (gas gravity is lighter than air) : height from ceiling 0.3 ~ 1.0m
2. POWER SUPPLY : Plug Type Cable Type
3. POWER ON : Green LED is ON with voice-warning message
4. STAND BY : Green LED is ON.
5. ALARMINDICATION : Green LED is ON & Red LED is Flashing Continue
6. SIGNAL OUTPUT : Relay output: Green: NC / White: NO / Blue: COM INSTALLING
7. LOCATION : Semi-diameter to gas source < 1.5m.
(1). LPG (gas gravity is heavier than air) : height from floor 0.3 ~ 1.0m
(2). LNG (gas gravity is lighter than air) : height from ceiling 0.3 ~ 1.0m
Feature Of Product
Gas Detector
1.2 Types of Gas Leak Detecting: Can detect LPG (liquefied petroleum gas) and LNG (natural gas and methane)
2.2 Types of Warning Messages: Both human voice message and built-in buzzer sound will warn you loudly when alarming
3.2 Functions of Auto-testing: Automatically detect sensor-failure and easy self-test button
4.2 Ways of Usage: Standalone type for household or wiring to control panel for monitoring system
5.3 Colors of Indicating Lights: Easy to read and can immediately tell different situations of Alarm/Fault/Normal
6.High Sensitivity: Smart combustible gas detector with built-in microprocessor control parts
1.2 Types of Gas Leak Detecting: Can detect LPG (liquefied petroleum gas) and LNG (natural gas and methane)
2.2 Types of Warning Messages: Both human voice message and built-in buzzer sound will warn you loudly when alarming
3.2 Functions of Auto-testing: Automatically detect sensor-failure and easy self-test button
4.2 Ways of Usage: Standalone type for household or wiring to control panel for monitoring system
5.3 Colors of Indicating Lights: Easy to read and can immediately tell different situations of Alarm/Fault/Normal
6.High Sensitivity: Smart combustible gas detector with built-in microprocessor control parts
Specification
1. Model No : CM-808P (Wall Type) / CM-808C (Ceiling Type)
2. Power Supply : Plug Type / Cable Type
3. Power On : Green LED Is On With Voice-Warning Message
4. Stand By : Green LED Is ON.
5. Alarmindication : Green LED is ON & Red LED is Flashing Continue
Di-Di Sound With Voice-Warning Message
6. Signal Output : Relay Output: Green: Nc / White: No / Blue: Com Installing
7. Location : Semi-Diameter To Gas Source < 1.5m.
(1). LPG (Gas Gravity Is Heavier Than Air) : Height From Floor 0.3 ~ 1.0m
(2). LNG (Gas Gravity Is Lighter Than Air) : Height From Ceiling 0.3 ~ 1.0m
2. Power Supply : Plug Type / Cable Type
3. Power On : Green LED Is On With Voice-Warning Message
4. Stand By : Green LED Is ON.
5. Alarmindication : Green LED is ON & Red LED is Flashing Continue
Di-Di Sound With Voice-Warning Message
6. Signal Output : Relay Output: Green: Nc / White: No / Blue: Com Installing
7. Location : Semi-Diameter To Gas Source < 1.5m.
(1). LPG (Gas Gravity Is Heavier Than Air) : Height From Floor 0.3 ~ 1.0m
(2). LNG (Gas Gravity Is Lighter Than Air) : Height From Ceiling 0.3 ~ 1.0m
SPECIFICATION
SENSOR | Semiconductor | ALARM DENSITY | 2500PPM (±1500PPM) |
INITIAL | Within 3 minutes | OPERATING | 0 C ~ 50 C |
OPERATING | AC 90V ~ 240V, 50 - 60Hz | HUMIDITY RANGE | 10% ~ 95% |
DIMENSION | H112 x W73 x D42 mm | SOUND OUTPUT | 85dB / 1M |
INDICATING | Red: Alarm / Orange: Fault / Green: Normal | ||
REMARKS | 1. This is a Combustible Gas Detector, cannot detect the poisonous gas such as CO. | ||
