Portable multi gas detector gas monitor LEL CO H2S O2 gas meter customized

Product Overview

Description

Portable multi gas detector gas monitor LEL CH4 CO H2S O2 gas meter customrized



PG810 series portable gas detecotor can detect 4 kinds of gases at one time. You can use this detector to detect 2 gases, 3 gases, 4 gases at one time.

    It is widely used in oil exploration, oil and gas transportation, oil refining, metallurgy, power plants, chemical industry, oil depot and gas station, mine, tunnels, underground pipeline and other industries.



• Big OLED display, high brightness, high-definition


• Automatically save detecting data for 3048 records of each channel


• Key operation needs to input password to prevent wrong operation


• Automatic calibration fuction, prevent measuring error


• Recover function, prevent the loss of data


• Battery power real-time diaplay, under-voltage hint, lower power automatic shutdown


• Standard mini-USB charging interface, charger is compatible with computer and cell phone's


• Charging protection function, when the battery is full, charger will shutdown automatically


• Connected with computer to realize data download and parameter setting(optional)


• Alarm type: audible and visual alarm, vibration alarm


• STEL and TWA alarm function for toxic gases


• Power on self-test function


• Adjuatable high and low alarm level


• Replaceable modularized sensor







Charging Time	combustible gas, toxic gas, oxygen
Measuring Range	according to the gas chosed
Sampling Method	diffused or pump suction (external electric sampling pump)
Deviation	≤± 3% F.S
Respond Time	T90 < 30 s
Working Temperature	- 20 °C ~ + 55 °C
Working Humidity	< 95% R.H. no condensation
Sensor life	2-5 year

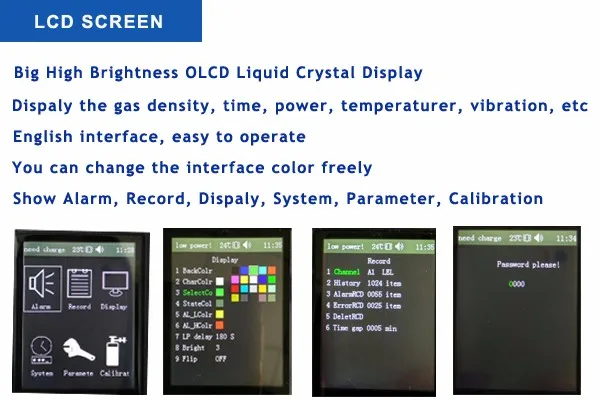

Display Mode	OLED screen shows density, time, battery power, Alarm state,
	percentage progress bar
Display screen	2.4 inch IPS colorful LCD screen, 240*320, 5 class brightness adjustable , reversable display
Data Storage	3048 records each channel
Upload Data	connected to computer via data line(optional)
Alarm Type	Light: wide-angle light emitting diode
	Sound alarm
	Vibration alarm
Working Voltage	DC3.7 V lithium ion battery, 3000 mAh
Charging Time	about 5h
Working Time	combustible gas more than 8 h (continuous); Toxic gas more than 72 h (continuous); 15 h ~ 20 h(LEL, CO, O2, H2S 4 gases)
Protection Class	IP66
Weight	300 g
Appearance Size	156 mm × 83 mm × 48 mm

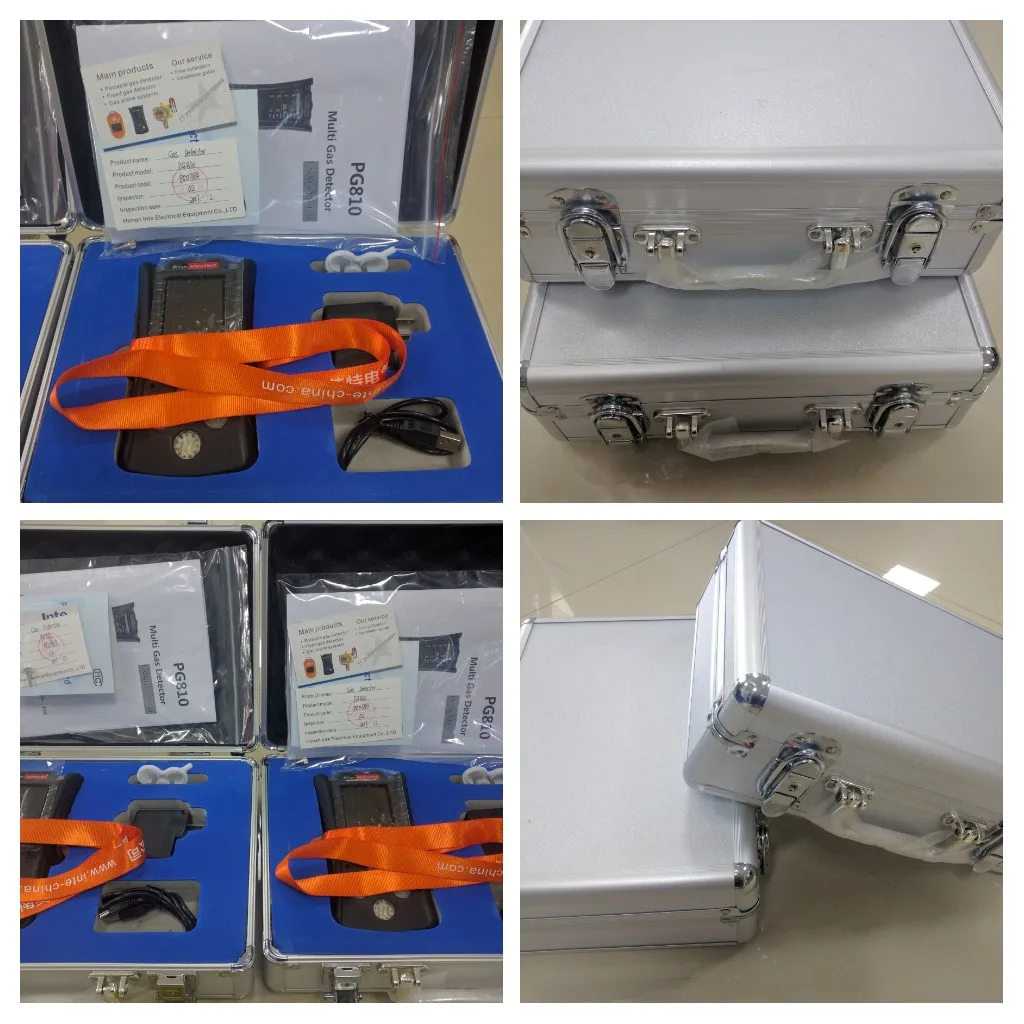

Standard Configuration:Aluminium Alloy box, Charger, gas detector, User manual,  certificate of approval, warranty card, gas hood.













  FAQ:

Q1. Can it applied to other gases?

A: PG810 series can detect a wide range of gases. Please inform us the gases you want to detect to see if it is available

Q2.What certificate can you support?

A: Our products have passed CE, Calibration Cert, Confirmity Cert of Explosion-proof, Pattern Approval Cert of the Measuring Instrument.

Q3. How is the calibration be done?

A: To keep the high sensitivity, please calibrate it at least once a year .

Q4. What about the lead time?
A: We usually deliver the goods in 2-5 working days after the order confirmed.

Q5. Is it OK to print my logo on the gas detector?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. How to contact us?

A: Please send your enquiry to us, we will reply you without delay. Click "SEND" now!
