Product Overview

Description


C2H4 Gas Detector Fixed Ethylene Monitor For Fruit Ripening With CE Certificate





Product Overview





YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations








 C2H4 Gas Detector Fixed Ethylene Monitor For Fruit Ripening With CE CertificateC2H4 Gas Detector Fixed Ethylene Monitor For Fruit Ripening With CE Certificate

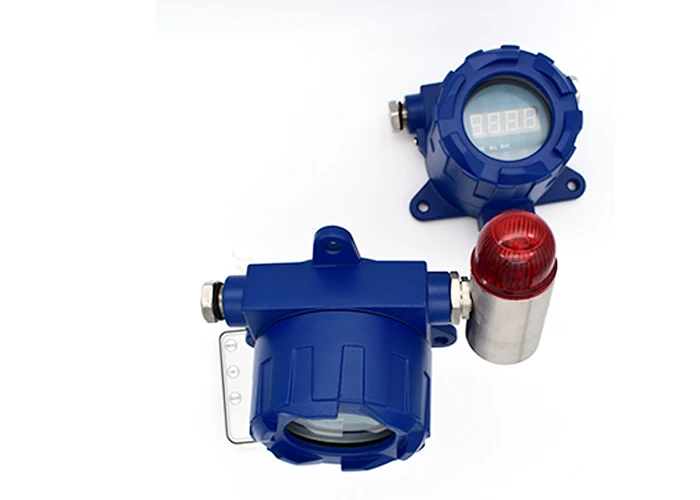

                                With alarm                                    Without alarm





Features



  • Monitor the specific gas concentration in environment or pipeline and alarm.

  • With self-calibration and zero calibration function, makes the detection more accurate and reliable.

  • With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.

  • Two-stage alarm with sound and light, alarm point is settable.

  • Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.

  • Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.

  • Working Voltage:12-36V DC

  • Case:die-cast aluminum + stainless steel (alarm light)


Product advantage






  • 1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.

  • 2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6

  • 3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.

  • 4. Monitor the NH3 ammonia concentration in environment or pipeline and alarm.

  • 5. Data display, can be connect to on/off valve.

  • 6. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.

  • 7. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.

























































































Gas Detected



VOC/TVOC



Detection principle



PID



Install Method



Wall-mounted, piping type, flow-type(according to the detected environment)



Measure Range



0-1ppm, 0-10PPM, 0-20ppm, 0-50ppm,0-100ppm,0-200ppm,0-1000ppm, 0-5000ppm



Resolution



0.001ppm, 0.01ppm, 0.1ppm, 1ppm



Precision



≤± 3% F.S.



Signal Output



4-20MA, 0-5V, RS485, RS232, relay, wireless digital(optional)



Response Time



≤10S



Recovery Time



≤10S



Repeatability



≤±1%



Linearity error



≤±1%



Zero shift



≤±1%(F.S/year)



Display



High light nixie tube display



Connection mode



G1/2 external thread explosion-proof


flexible pipe



Unit



ppm, mg/m³, %VOL



Temperature



-20~50



Humidity



0-90%RH



Explosion-Proof



Ex dCT6



Degree of protection



IP65



Power



12-36V DC



Operating time



24h



Dimensions



180*150*90mm



Weight



≤1.6kg













 fixed alarm monitor-draft























_06














_08








6UA`OC[R7`}[AAL8Q04X8XL








_10











_11


C2H4 Gas Detector Fixed Ethylene Monitor For Fruit Ripening With CE CertificateC2H4 Gas Detector Fixed Ethylene Monitor For Fruit Ripening With CE CertificateC2H4 Gas Detector Fixed Ethylene Monitor For Fruit Ripening With CE Certificate
