FLAT SWIVEL UNIT(2p) PFS 25E Torque At 6bar(N) 3Nm Page 23 24 Pneumatic Material AL(Hard Coated)
FLAT SWIVEL UNIT(2p) PFS 25E Torque At 6bar(N) 3Nm Page 23-24 Pneumatic Material AL(Hard-Coated)
FLAT SWIVEL UNIT(2p) PFS 25E Torque At 6bar(N) 3Nm Page 23-24 Pneumatic Material AL(Hard-Coated)

FLAT SWIVEL UNIT(2p) PFS 25E Torque At 6bar(N) 3Nm Page 23 24 Pneumatic Material AL(Hard Coated)

Share on (10000001788007):


Price:$661.00

Quantity:


Product Overview

Description



Product Description

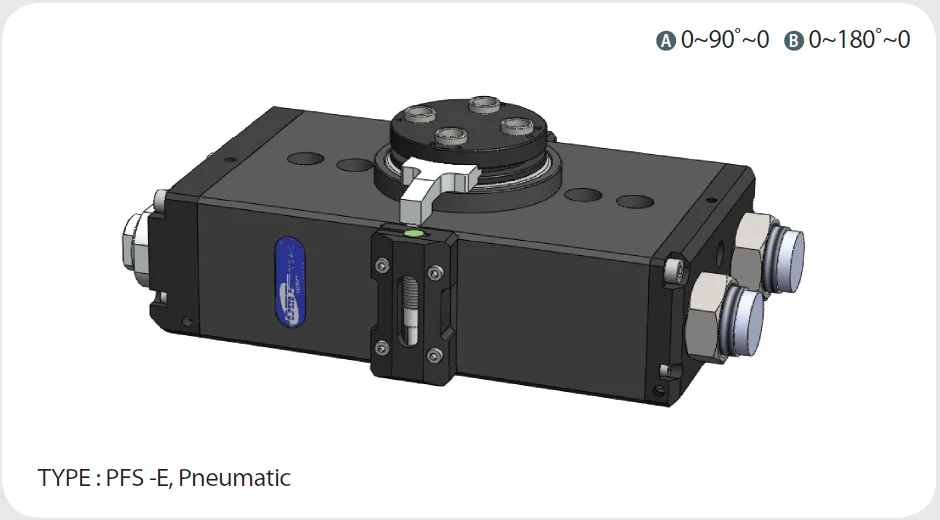

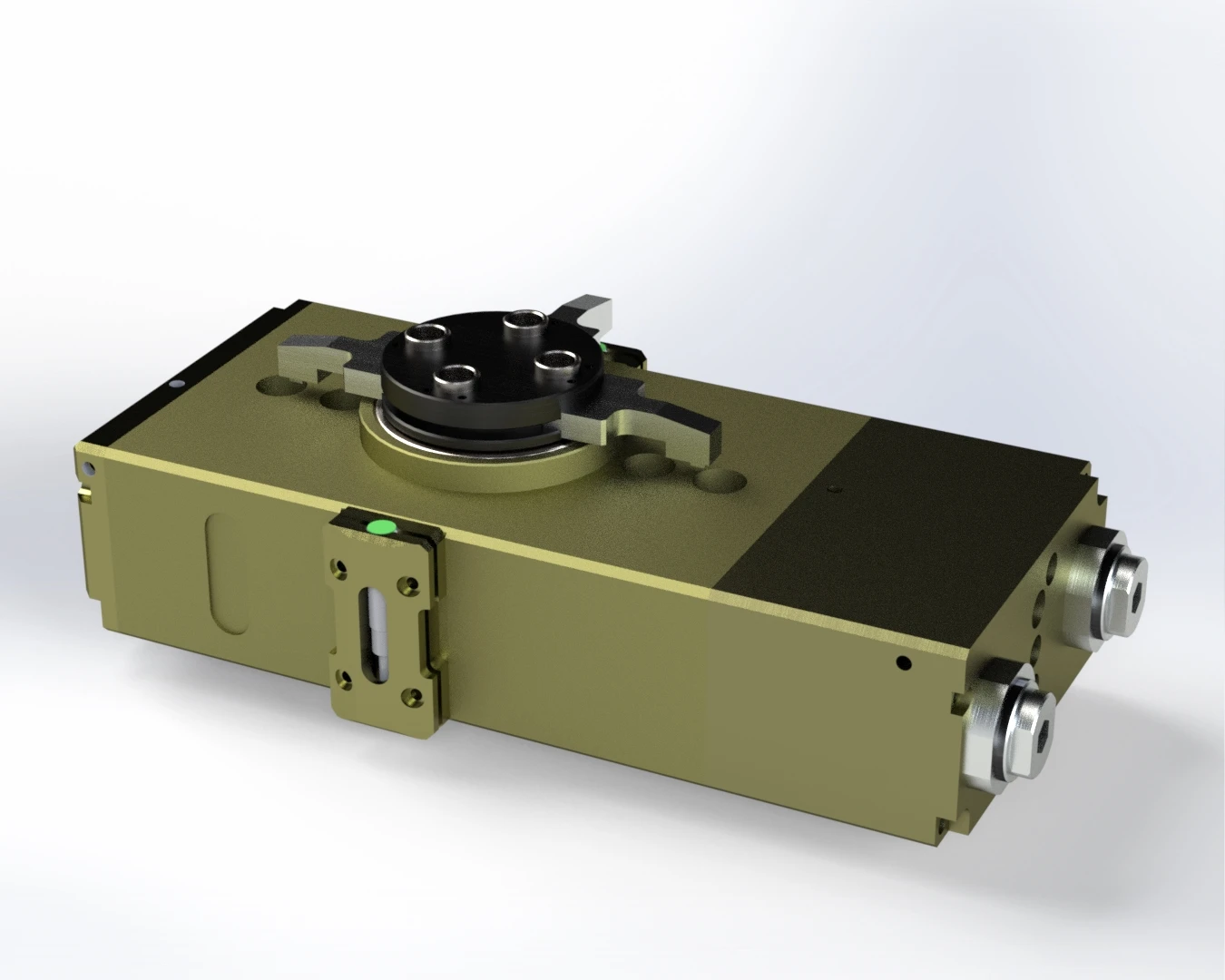

Flat Swivel air Unit (Robot End effector)_PFS

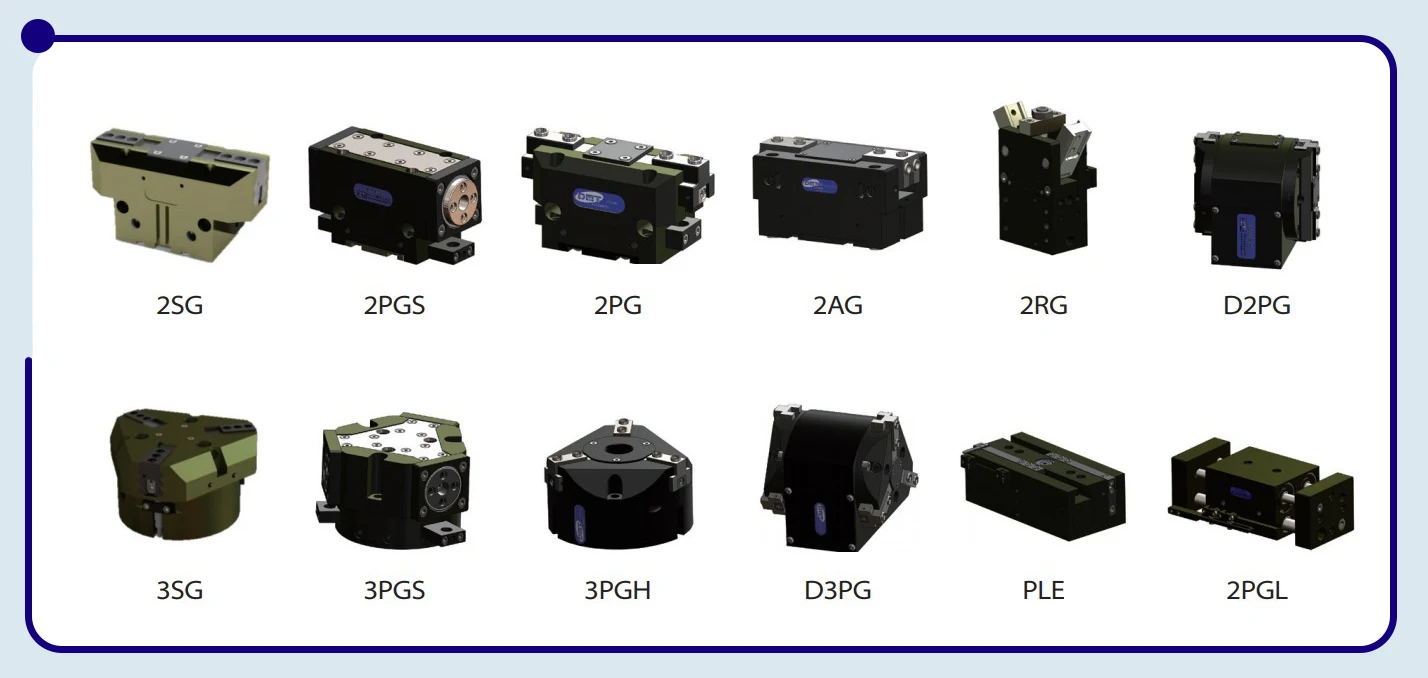

1. Multi product line
2. 2year warranty
3. in 24 hours response
4. Moment power up to 20%
5. Gripping force up to 30%

New Gripper model for your value. It has many advantages.

Applying high-intensity Steel, Applying elliptical pistons,
Durability improvenent, Applying Work check sensing,
Coping with the diversified Mixed mode,
3-stock pitch adjustable Based on the fixed pin.


Gripping systems








Details Images




Technical data
PFS
25E
PFS
25E-4
PFS
34E
PFS
34E-4
PFS
40E
PFS
40E-4
PFS
50E
PFS
50E-4
PFS
63E
**Torque at 6 bars
3Nm

12Nm

22Nm

45Nm
115Nm
No. of
Air feed throughs
0
4
0
4
0
4
0
4
0
Axial payload
600N

1500N
2900N

9000N
11000N
Radial payload
10.4Nm

30.8Nm

68Nm

340Nm
950Nm
Air consumption
Per cycle (2X90º, 2X180º)

22cm3


71cm3


126cm3


384cm3

1410cm3
Cycle time
(1X90º, 1X180º without load)

0.3s


0.5s


0.8s


1s

1s
Mass
1.8kg

2.45kg
2.9kg
4.4kg
5.5kg
9kg
25kg
Mass moment
Ofinertia
45kg cm3

67kg cm3

188kg cm3

1057kg cm3
6140kg
cm2
*Repeat Ability
0.1º

0.1º

0.1º

0.1º
0.1º




Specification


Item
Value
Applicable Industries
Manufacturing Plant
Marketing Type
New Product
Condition
New
Place of Origin
South Korea
Brand Name
DMT
Weight
1.8kg
Power
Gripping force at 6 bars 600N


Our Advantages




1) Patented skills & Over 20 years field know-how

2) Provide User Friendly robot system
: High accuracy, High speed, Long life time

3) 2 years warranty Quick responce within 24 hours
