304 гидравлические электрические ножницы из нержавеющей стали, подъемная платформа с CE

304 гидравлические электрические ножницы из нержавеющей стали, подъемная платформа с CE

Category: Lifting, Pulling & Positioning >>>
Supplier: Jinan,Plk,Machinery,Co.,Ltd.

Price:1 800,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Boom Lifts

Single Scissor Arm Hydraulic Lift Table

Cheap and Customizable

Prices are reduced to extremes with cheap labor costs, cheap electricity bills, relaxed macro economic policy in China. In foreign markets, many import countries give zero tariffs for our lift tables.

Stationary Scissor Lift Tables feature various capacities, heights and platform sizes all based on customers' specific requirements.

Customized units include tandem dual tables, tables with conveyor rollers, tables with wheels or tables with accordion bellows. Yet, we do have standard types as shown below, delivery of which is faster than customized ones.

Standard Conformity

Up to American ANSI/ASME and European EN1570 standards.

Safety Mechanisms Myriad

1. Explosion-proof valves: protect hydraulic pipe, anti hydraulic pipe rupture.

2. Spillover valve: It can prevent high pressure when the machine moves up, adjusting the pressure.

3. Emergency decline valve: it can go down when you meet an emergency or the power is off.

4. Overload protection locking device: in case of dangerous overload.

5. Anti-dropping device: Prevent fall of platform.

6. Automatic aluminum safety sensor: lift platform will stop automatically when coming across barriers.

Tested and Tried by Global Clients

Our lift talbes have been exprorted to all countries around the globe for many years, and no quality complaints have ever been reported yet.

After Sales Service

1) One year Free Parts Replacement Policy whereby any non-human caused mechanical or structural failure qualifies for parts replacement free of charge. Parts include but not limited to pumps, engines, cylinders.
2) Life Technical Support via video link or email, bilingual team 24/7 on standby.

Click Here to Get Latest Quote...

Specs Table

Model	Load Capacity (KG)	Self Height (MM)	Max Platform Height(MM)	Platform Size(MM) L×W	Base Size (MM) L×W		Lifting time (S)	Voltage (V)	Motor (KW)	Net weight (KG)
1000Kg Load Capacity Standard Scissor Lift
HW1001	1000	205	1000	1300×820	1240×640		20~25	customized	1.1	160
HW1002	1000	205	1000	1600×1000	1240×640		20~25		1.1	186
HW1003	1000	240	1300	1700×850	1580×640		30~35		1.1	200
HW1004	1000	240	1300	1700×1000	1580×640		30~35		1.1	210
HW1005	1000	240	1300	2000×850	1580×640		30~35		1.1	212
HW1006	1000	240	1300	2000×1000	1580×640		30~35		1.1	223
HW1007	1000	240	1300	1700×1500	1580×1320		30~35		1.1	365
HW1008	1000	240	1300	2000×1700	1580×1320		30~35		1.1	430
2000Kg Load Capacity Standard Scissor Lift
HW2001	2000	230	1000	1300×850	1220×785		20~25	customized	1.5	235
HW2002	2000	230	1050	1600×1000	1280×785		20~25		1.5	268
HW2003	2000	250	1300	1700×850	1600×785		25~35		2.2	289
HW2004	2000	250	1300	1700×1000	1600×785		25~35		2.2	300
HW2005	2000	250	1300	2000×850	1600×785		25~35		2.2	300
HW2006	2000	250	1300	2000×1000	1600×785		25~35		2.2	315
HW2007	2000	250	1400	1700×1500	1600×1435		25~35		2.2	415
HW2008	2000	250	1400	2000×1800	1600×1435		25~35		2.2	500
4000Kg Load Capacity Standard Scissor Lift
HW4001	4000	240	1050	1700×1200	1600×900	30~40		customized	2.2	375
HW4002	4000	240	1050	2000×1200	1600×900	30~40			2.2	405
HW4003	4000	300	1400	2000×1000	1980×900	35~40			2.2	470
HW4004	4000	300	1400	2000×1200	1980×900	35~40			2.2	490
HW4005	4000	300	1400	2200×1000	2000×900	35~40			2.2	480
HW4006	4000	300	1400	2200×1200	2000×900	35~40			2.2	505
HW4007	4000	350	1300	1700×1500	1620×1400	35~40			2.2	570
HW4008	4000	350	1300	2200×1800	1620×1400	35~40			2.2	655

Production description

PLK Brand HW Series Scissor Lift Tables are high-quality electronic hydraulic scissor lifts with loading capacities ranging from 1,000KG to 4,000KG, and lifting heights up to 4m. We also accept customized platform size and lifting height. It can be installed both on the ground or in the pit.

Product Overview

Click Here to Get Latest Quote...

Feature & Advantage

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.

2. High quality pump station makes scissor lift table lift and fall very stably.

3. all scissors pivot points adopt hardened pins that operate in lubricated-for-life, virtually

maintenance-free bushings.

4. Removable lifting eye to help lift the table and install.

5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.

6. Pressure relief valve prevents overload operation; Flow control valve makes descending speed adjustable.

7. Equipped with aluminum anti-pinch safety sensor underneath the platform while descending.

8. Up to American standard ANSI/ASME and European standard EN1570

9. Safe clearance between scissors to prevent wear and tear during operation.

10. Simple structure makes it much easier to operate and maintain.

13. Stops at the accurate position.

Safety Precautions:

1. Explosion-proof valves: protect hydraulic pipe, anti hydraulic pipe rupture.

2. Spillover valve: It can prevent high pressure when the machine moves up, adjusting the pressure.

3. Emergency decline valve: it can go down when you meet an emergency or the power is off.

4. Overload protection locking device: in case of dangerous overload.

5. Anti-dropping device: Prevent falling of platform.

6. Automatic aluminum safety sensor: lift platform will stop automatically when coming across barriers.

Detailed Images

Real Orders

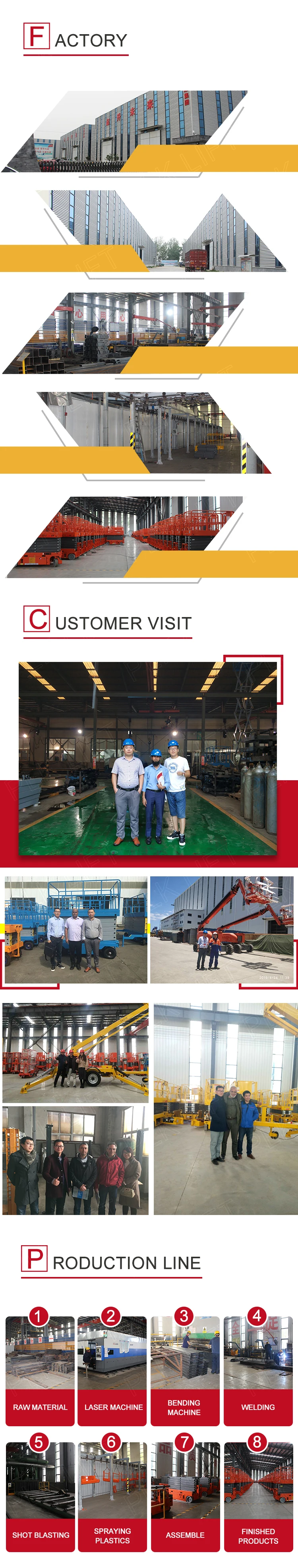

Factory

Factory Introduction:

Our factory is located in capital city in Shandong province, covers 300 acres of land. As a standard factory usually does, we practise 5S workshop management rules, strictly follow market regulation policies and do our share in fulfilling social responsibility. Over the past ten years, we have been expanding our presence globally and earned a considerable share in total market value. All our products are CE marked, meeting European safety standards.

.jpg

Our Services

1) One year Free Parts Replacement Policy whereby any non-human caused mechanical or structural failure qualifies for parts replacement free of charge. Parts include but not limited to pumps, engines, cylinders.
2) Life Technical Support via video link or email, bilingual team 24/7 on standby.

Remarks: All products are CE marked, meeting safety regulations. Should you be interested in any of them, make yourself at home and feel free to contact me. I'm sure a good solution can be offered to you through my patience and dedication to your satisfaction.

Click Here to Get Latest Quote...
