High Output SJ180 Air Cooling EVA Compound Machine Plastic Granules Making Machine
Technical Parameter
| SJΦ180 EVA Air Cooling Granule Line | |||
| No. | Item | Description | Specification |
| 1 | Kneader(optional) | Model | X(S)N-110L |
| Capacity | 110L | ||
| Actuating motor power | 160kw | ||

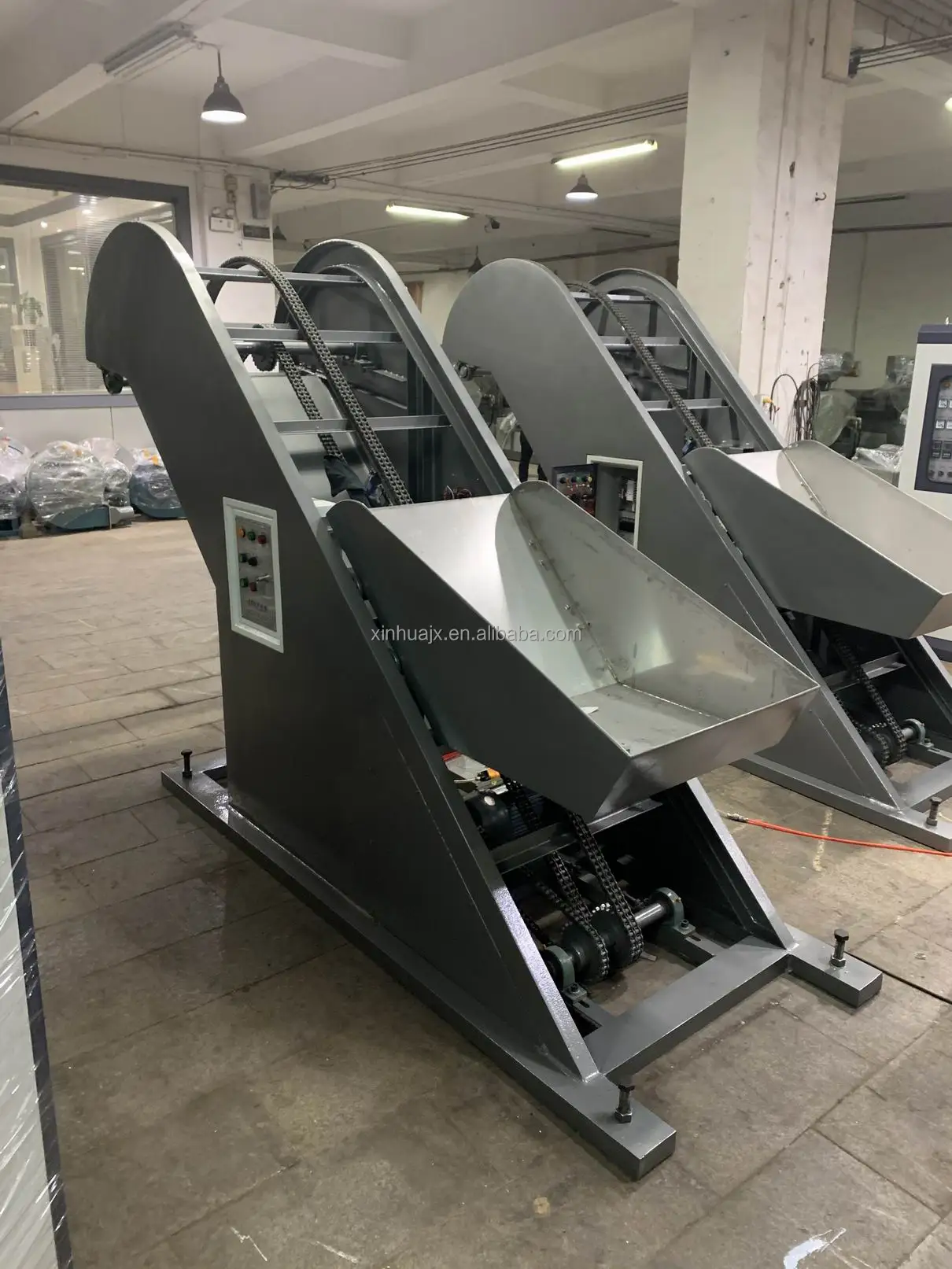

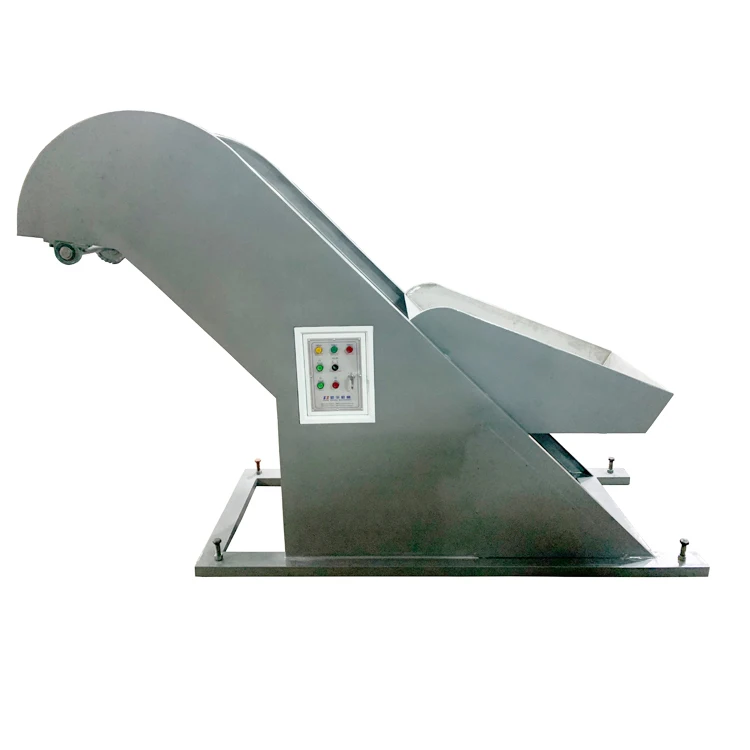

| 2 | Bucket conveyer for EVA | Material | Stainless |
| Motor Power | 1.5kw | ||
| Bucket dimension | 700*600*300mm | ||
| 3 | Mixing roller(optional) | Model | XK-550 |
| Diameter of roller | 550mm | ||
| Main motor power | 90kw | ||

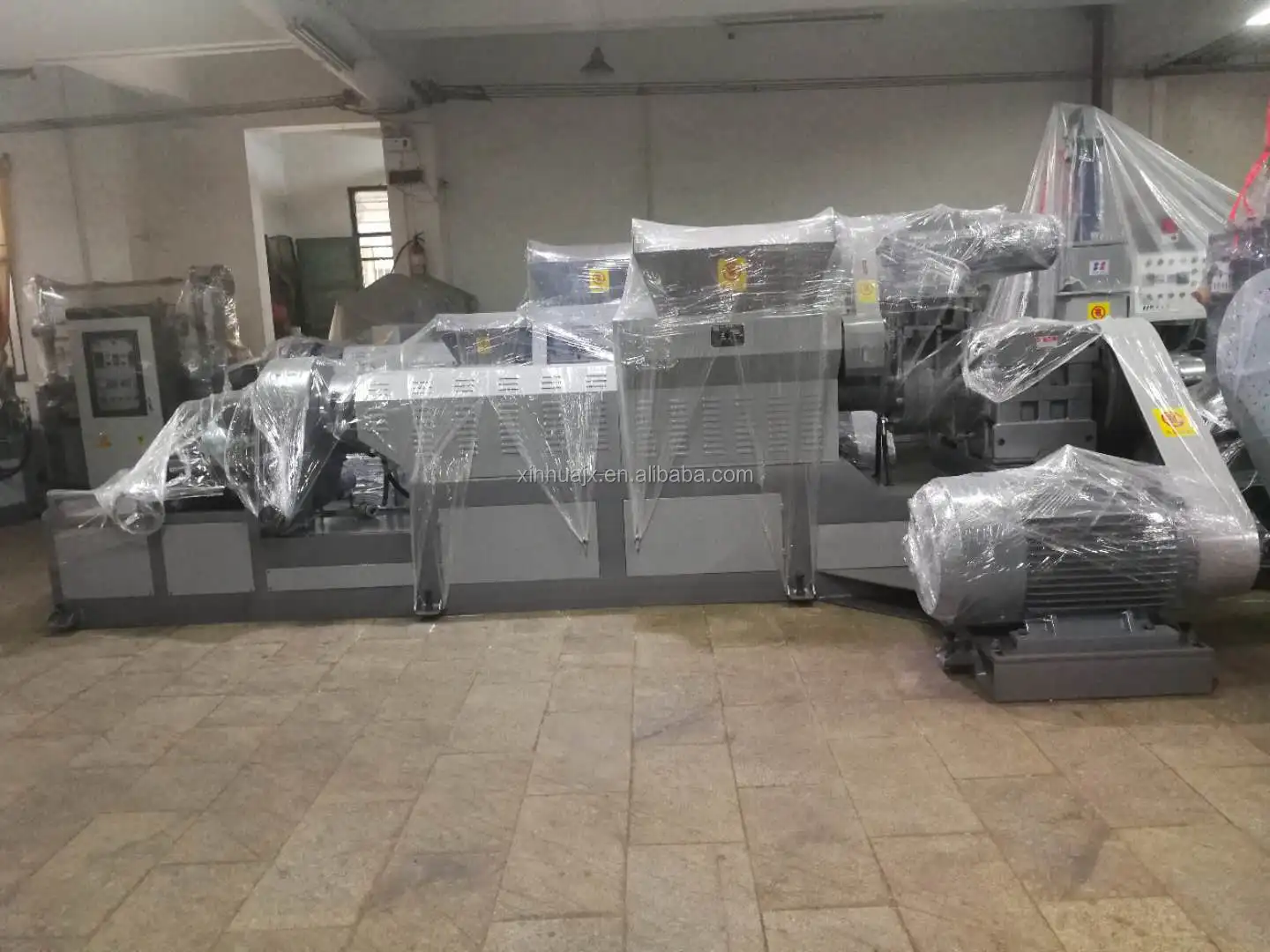

| 2 | Main extruder | Screw dia | Φ180mm |
| Screw Speed | 0-50r/min | ||
| Main motor power | 90kw (all with inverter) | ||
| Feeder motor power | 11kw (all with inverter) | ||
| Cutter motor power | 2.2kw (all with inverter) | ||
| Heat power | 25kw | ||
| Gear box | oil bath lubrication,hardened gear reducer | ||
| Cutting system | air cooling | ||
| Auto thermo control | 5 zones | ||
| Screw/barrel material | 38CrMoAIA | ||
| Barrel cooling system | water cooling | ||
| Granule diameter | 3-5mm | ||
| Output | 700-850kg/h | ||
| Overall dimension (L*W*H) | 4800*2200*1750mm | ||
| Weight | 4000kg | ||

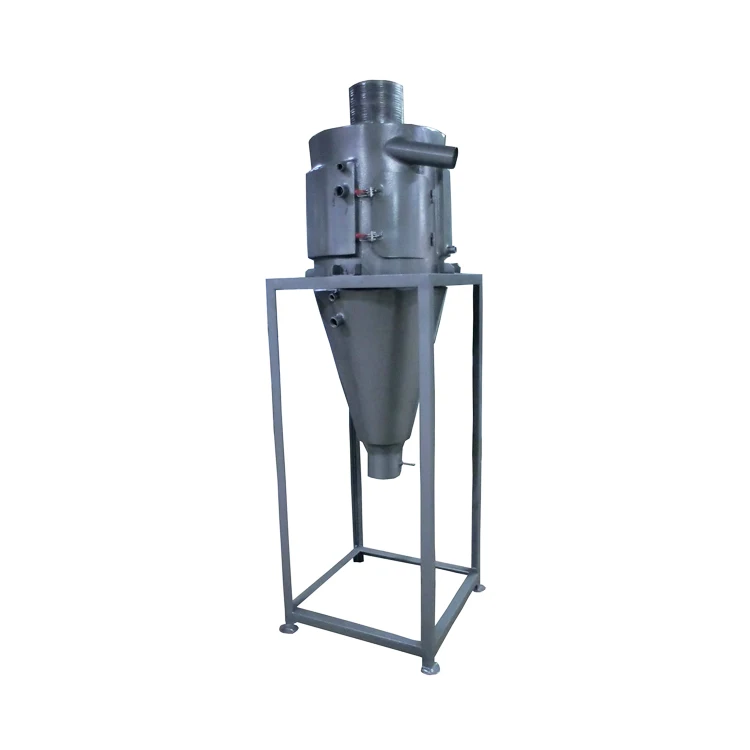

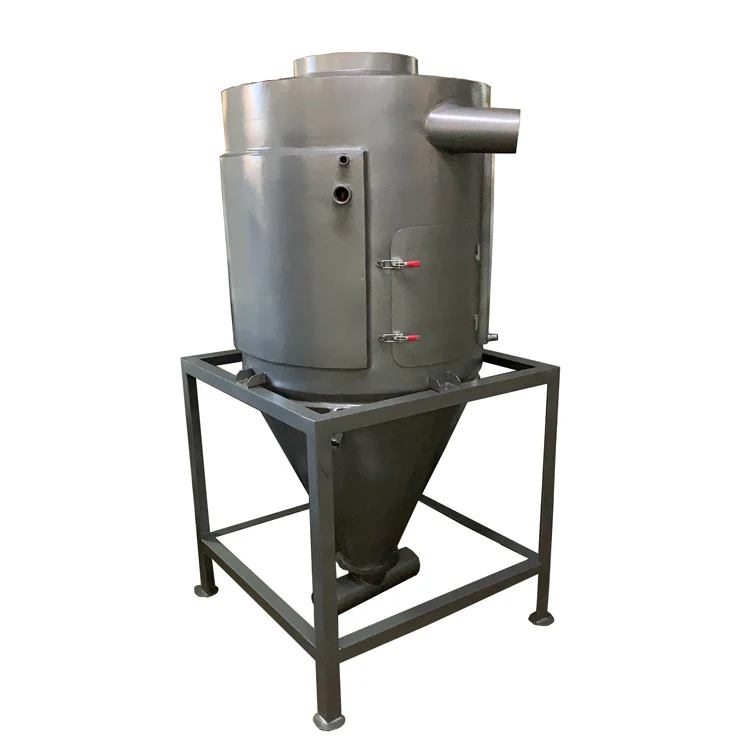

| 3 | Whirlwind cooler | a. Cooling tank diameter | Φ650*1set |
| b. Cooling tank diameter | Φ850*2sets | ||

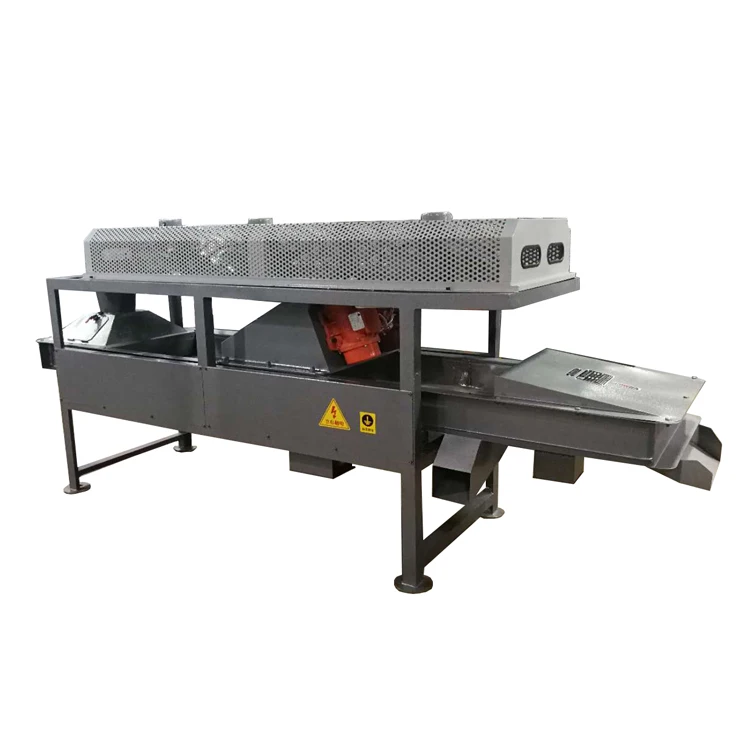

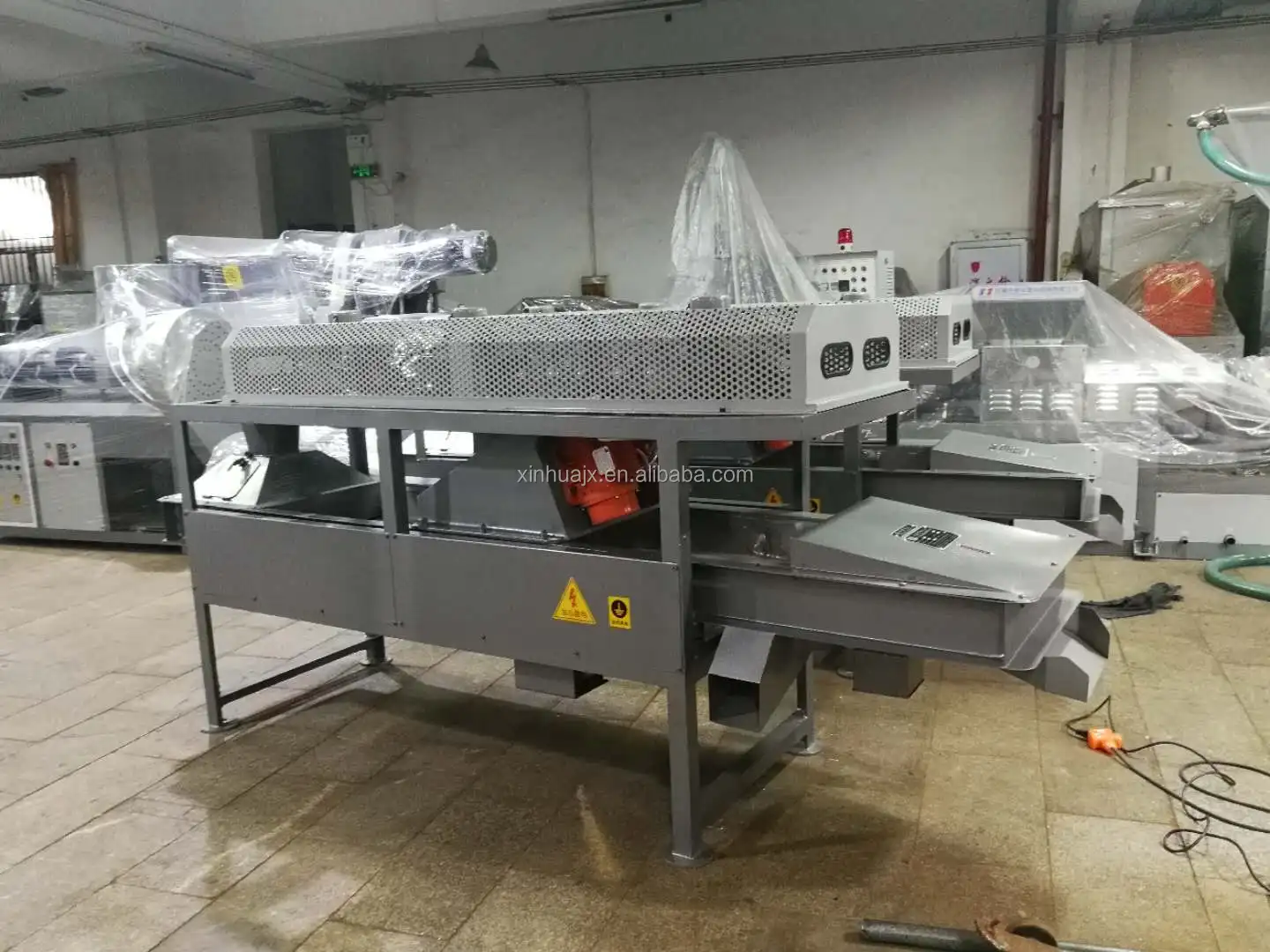

| 4 | Cooling conveyer | Length and width | 4200*610mm |
| Thermal Design Power | 4.5kw | ||
| Material | Stainless | ||

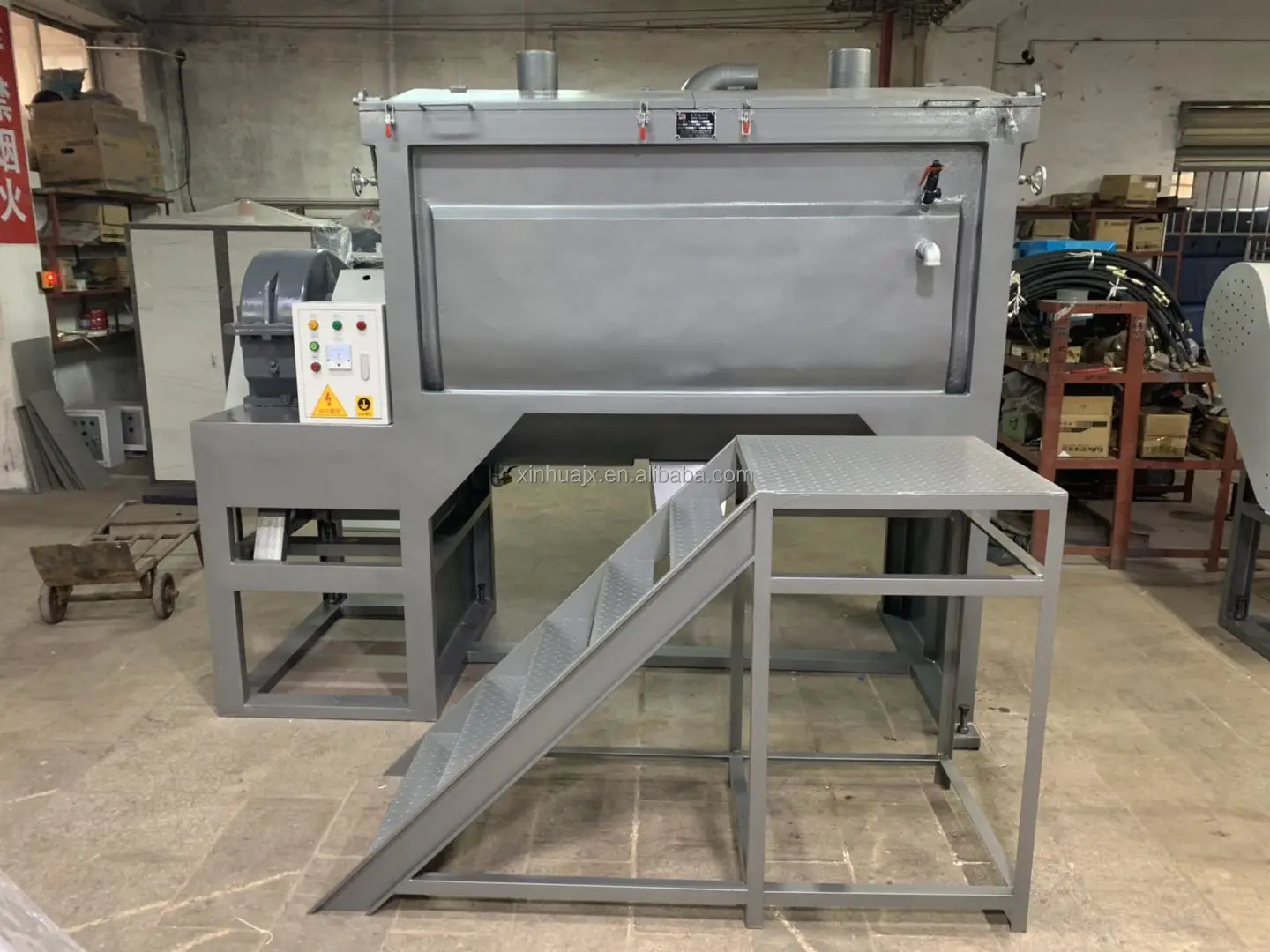

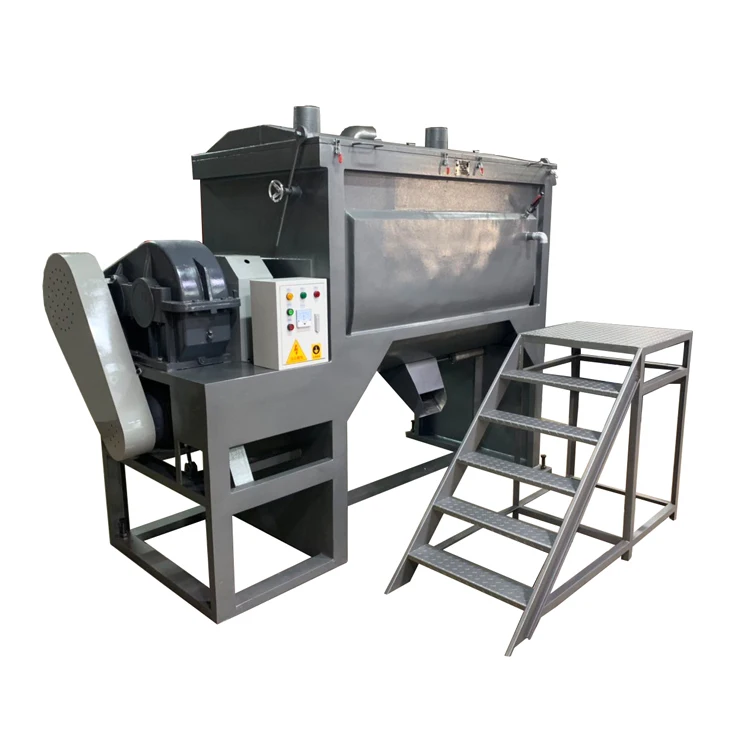

| 5 | Blender | Capacity | 1500L |
| Spindle speed | 9r/min | ||
| Motor power | 15-4kw | ||
| 6 | Air machine | Motor power | 7.5w |
| Screw speed | 2880r/min | ||
Product Description
This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.
The whole production line:
Kneader - Bucket Conveyer - Mixing Roller - Extruder mainframe - Auxiliary Cutter - Whirlwind Cooler(1st Process) - Cooling Conveyer - Whirlwind Cooler(2nd Process) - Mixing machine(blender) - Final prodcts.
Company&Factory
Our Certifications
Exhibition&Customers
Why Choose Us
1, XINHUA MACHINERY are a customer-oriented enterprise.
2, Professional techinicians can help abroad installation and training.
3, Multiple patents have been obtained.
4, Solutions offered to meet your requirements.
5, 12 months guarantee of the machine can be offered.
6, Soon reply after getting your inquiry.
