Пластиковый силиконовый двухвалковый смеситель
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Qingdao,Crowns,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

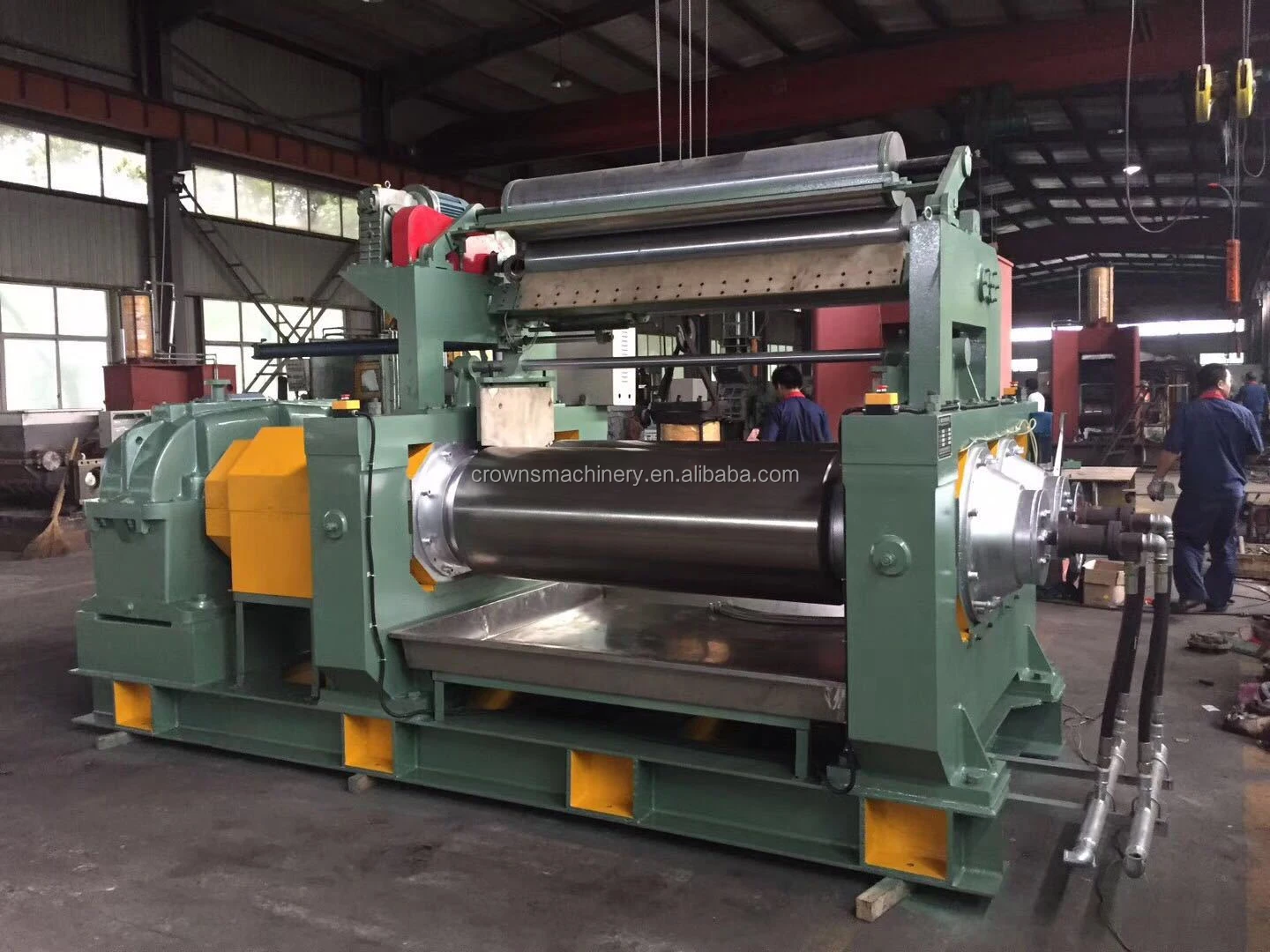

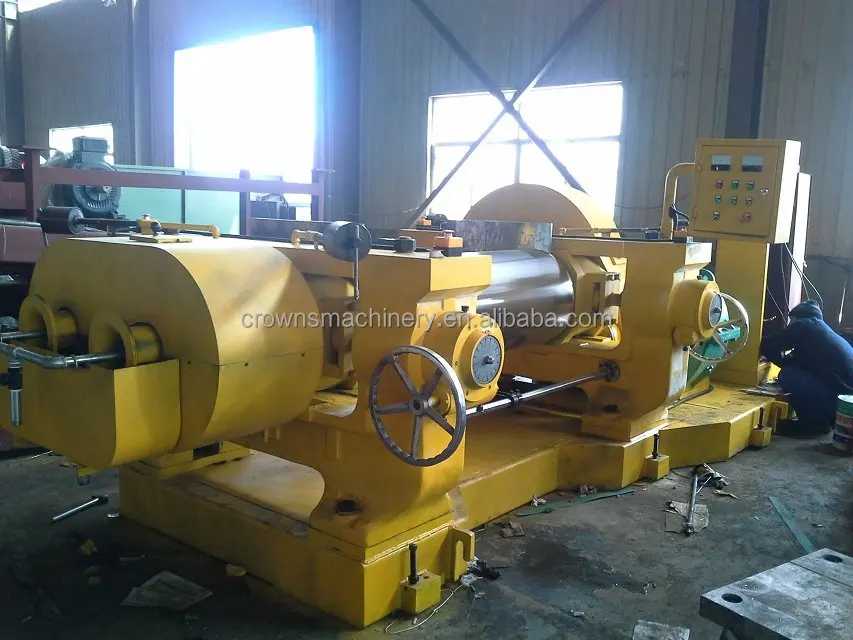

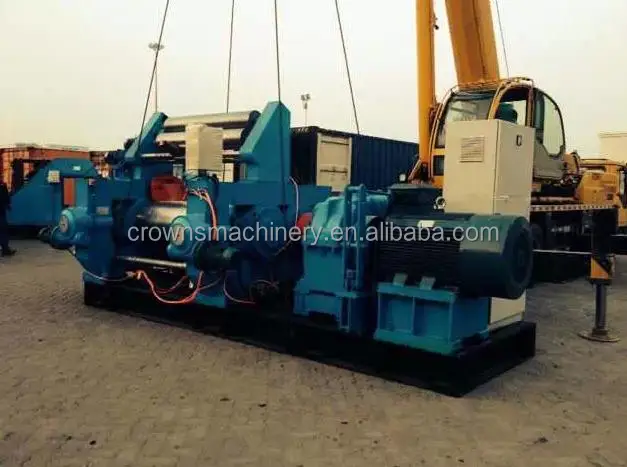

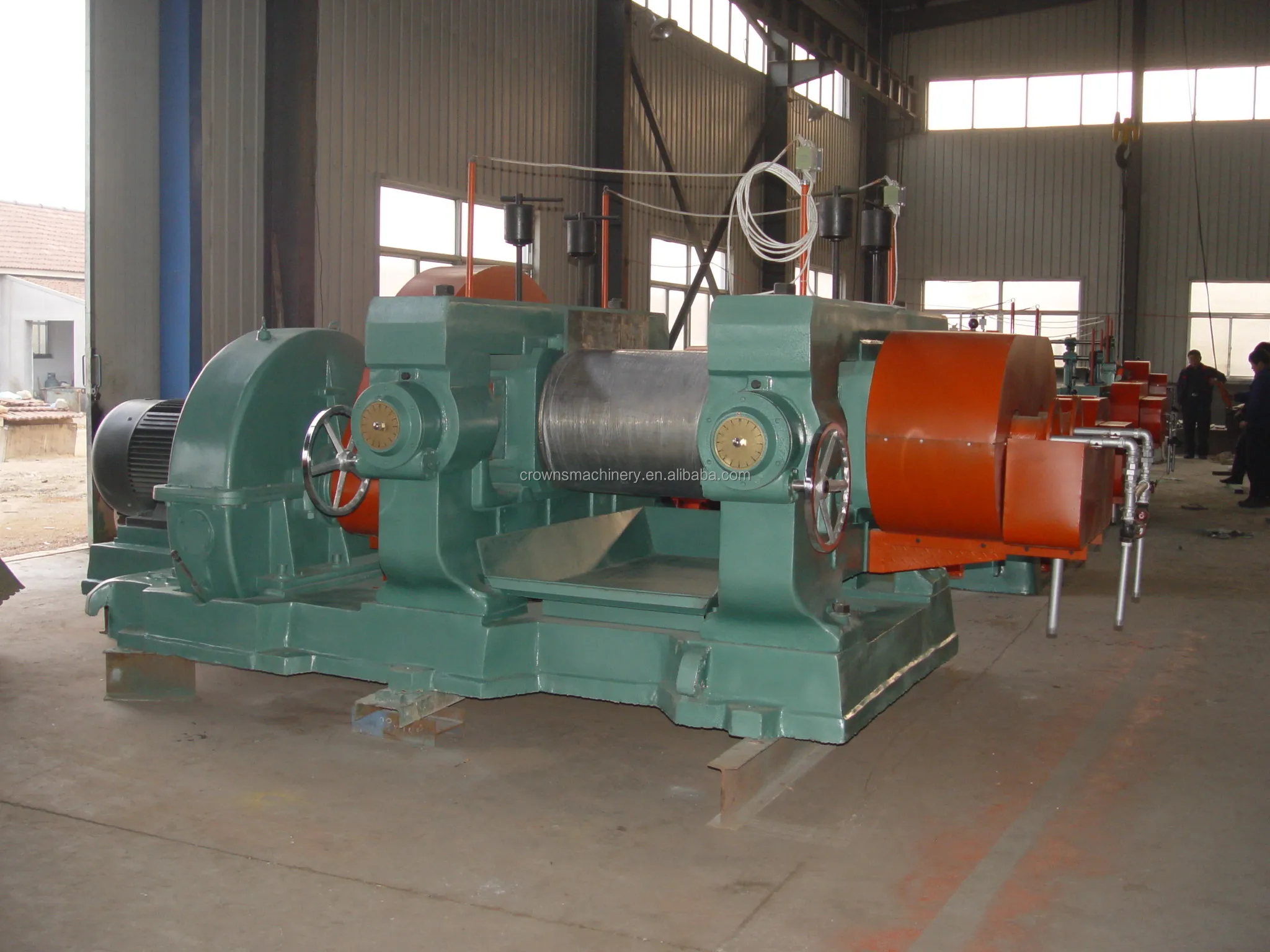

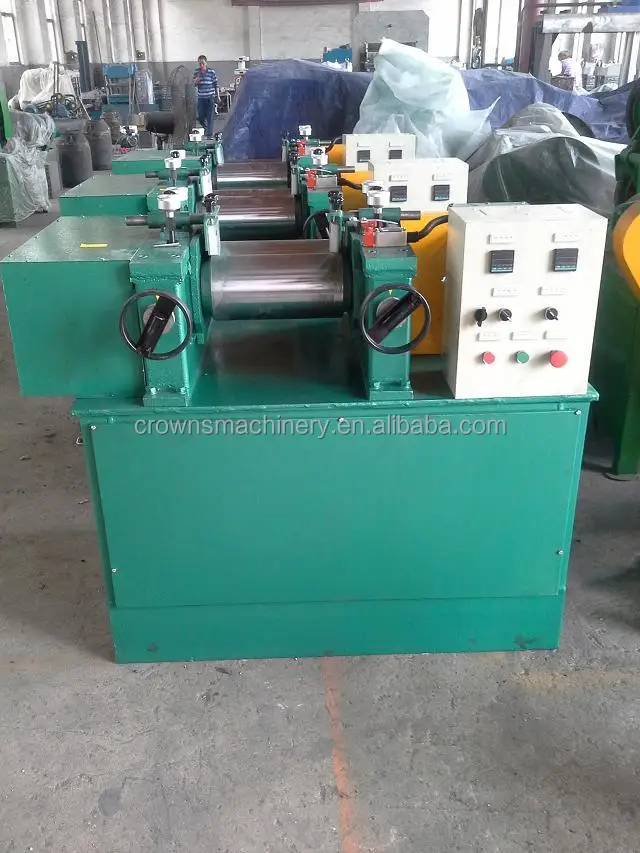

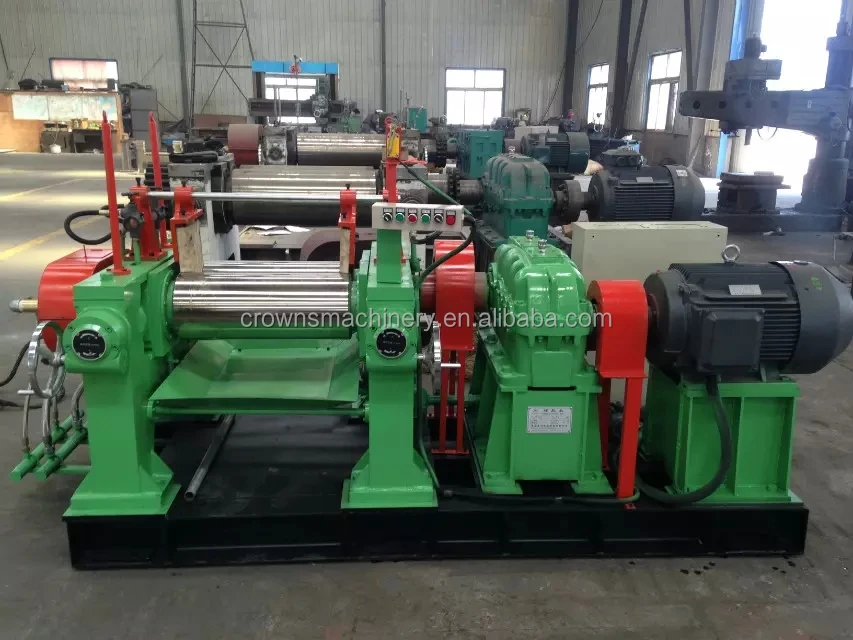

Rubber open mixing mill
Rubber mix mill mainly consists of machine base, machine frame, rolls, drive system, lubricating device, heating and cooling device, roll gap adjusting device, safety brake device, motor and retarder etc.
1. The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2. The machine is equipped with an overload protection device to prevent the main components from being damaged.
3. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5. The base frame is a whole framework, which is convenient for installation.
2. The machine is equipped with an overload protection device to prevent the main components from being damaged.
3. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
5. The base frame is a whole framework, which is convenient for installation.
Type | XK-160 | XK-250 | XK-300 |
roller diameter | 160mm | 250mm | 300mm |
roller working length | 280mm | 620mm | 300mm |
front roll linear speed | 11.24 m/min | 14.4 m/min | 15.1 m/min |
friction ratio of rollers | 1:1.4 | 1:1.17 | 1:1.27 |
Max gap | 8mm | 8mm | 8mm |
motor | 7.5 kw | 18.5 kw | 22 kw |
batch capacity | 1-2 kg | 10-15 kg | 15-20 kg |
machine size | 1080*796*1415mm | 3400*1500*1500mm | 3580*1550*1695mm |
machine weight | 1100 kg | 3500kg | 5200 kg |
Type | XK-400 | XM-450 | XK-560 |
roller diameter | 400mm | 450mm | 560mm |
roller woorking | 1000mm | 1200mm | 1530mm |
front roller linear speed | 16.5m /min | 18.65 m/min | 24.5m/min |
friction ratio of rollers | 1:1.25 | 1:1.27 | 1:1.2 |
Max gap | 10mm | 15mm | 20mm |
motor | 37 kw | 55 kw | 75 kw |
batch capacity | 18-35 kg | 25-50 kg | 50-65 kg |
machine size | 4250*1850*1870mm | 5200*2380*1700mm | 6120*2282*2000mm |
machine weight | 7600kg | 13000 kg | 22000 kg |
We have various type/size MIXING MILL for your choice,just tell us your parameters or working needs,we`ll make it perfect to match your requirements
Product prices are for reference only, please contact us for specific prices.
7x24 hours online service!
Main Features:
1. The roller is made of alloy chilled cast iron (including separation cast or integrated alloy type). Their surfaces are hard and wear resistance
2.Rollers are divided into the hollow roll and drilled roll. The hollow roll(hollow roll inner cavity is bored ,
usually spraying in bored cavity is adopted for heating and cooling ). The hollow roll surface can be machined into smooth roll ,whole smooth roll ,partial grooved roll, welded up alloy roll and so on . For high cooling or heating speed , circumferential drilled roll can be selected
usually spraying in bored cavity is adopted for heating and cooling ). The hollow roll surface can be machined into smooth roll ,whole smooth roll ,partial grooved roll, welded up alloy roll and so on . For high cooling or heating speed , circumferential drilled roll can be selected

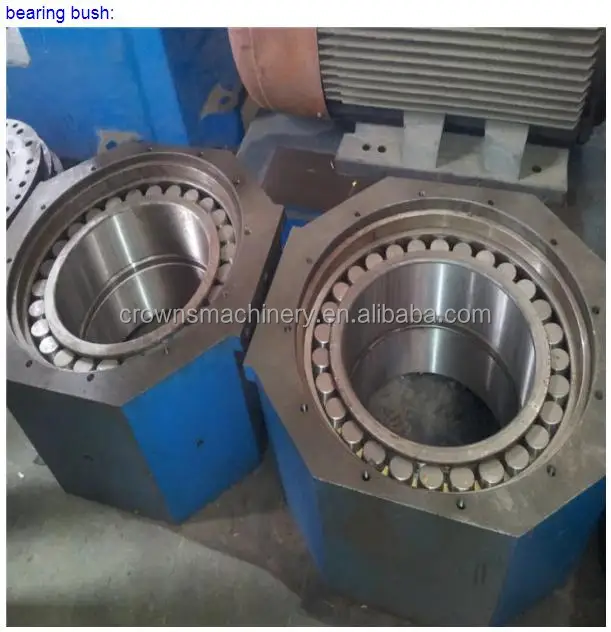

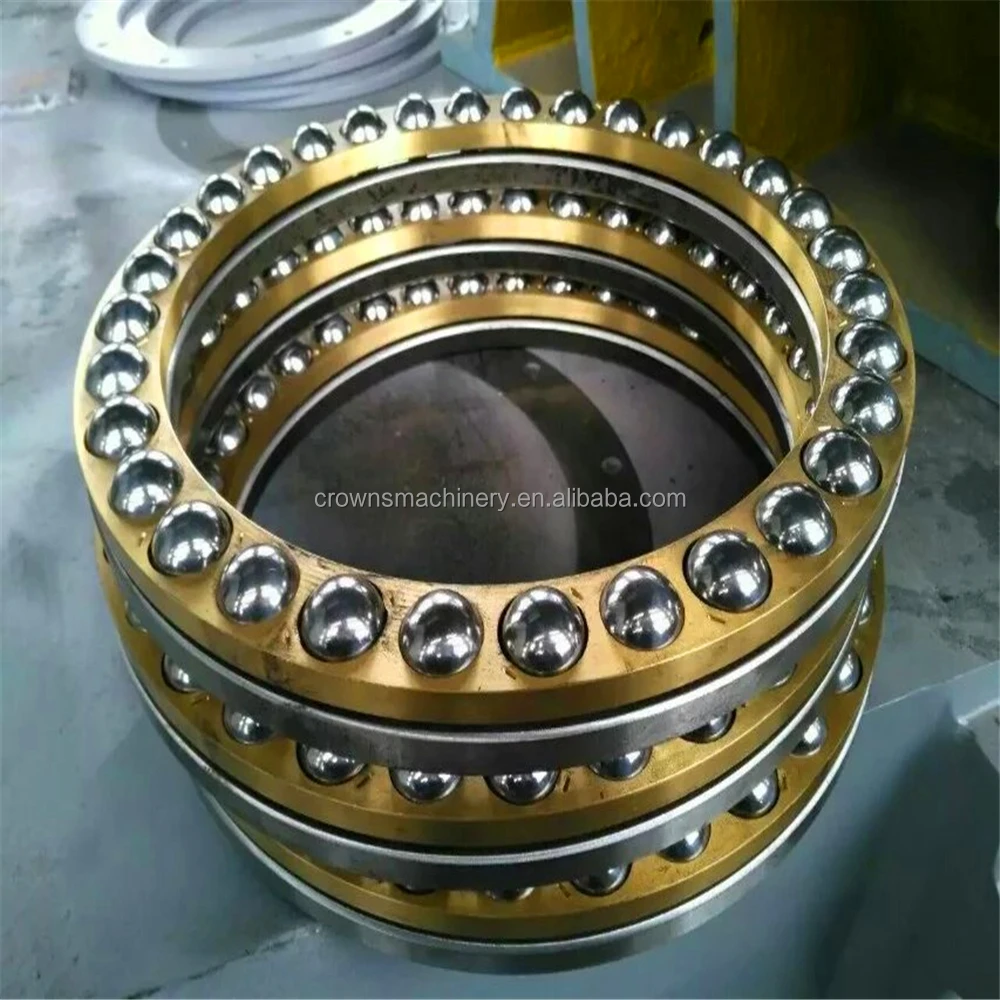

3.The roll is supported on both end by double row spherical bearings . Large machine adopts double bearing . so it has advantages of running smoothly , energy saving , low noise and long service life
4.All series mill are equipped with safety device according to the new station stands , in order to protect the main parts from damaged
5.The roll bearing lubrication : grease lubrication and oil lubrication for order
6.The driving part adopts nylon pin coupling to prevent main parts from being damaged due to overload of transmission part
7.The reducer adopts the hardened gear teeth surface reducer .It has low noise , high transmission efficiency and long service life
8.The base is integral type, the transmission mode is closed transmission , so it is safe and easy for use
9.The user can select the stock blender according to the process
APPLICATION:
Rubber open mixing mill is mainly used for rubber products factory: natural rubber refining, raw rubber and compound ingredient mixing, warming refining and sheeting of glue stock.
CROWNS MACHINERY
Qingdao crowns machinery co.,ltd was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.
CROWNS MAIN PRODUCTS
* Rubber mixing equipment: kneader mixing machine, bucket,mixing mill, bale cutter

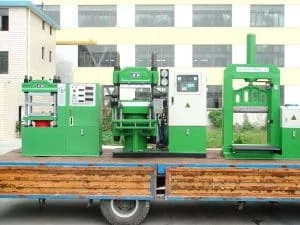

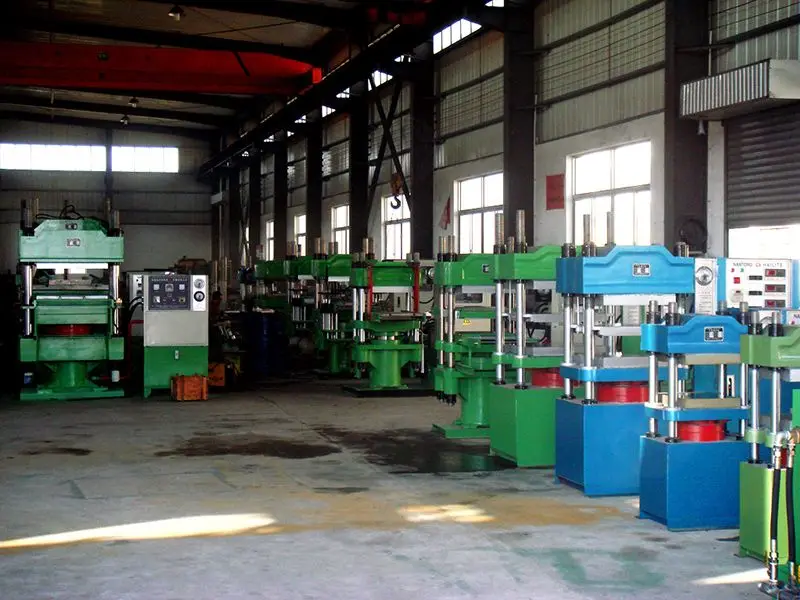

* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
