DB 70/95 полностью автоматическая машина, пластиковая коробка, термоформатор для еды на вынос, алюминиевая фольга, крышки контейнеров для пищевых продуктов
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Wenzhou,Daba,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Introduction :

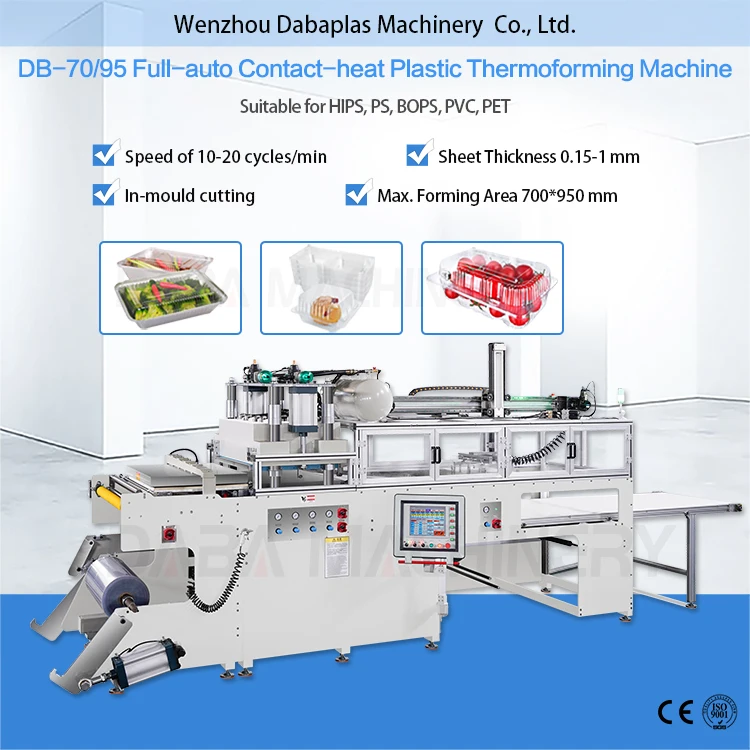

DB-70/95 plastic thermoforming machine is suitable for forming HIPS, PS, BOPS, PVC, PET sheets. It can produces boxes, trays, fast food boxes, dishes,lids, cookies tray, mobile phone tray & other blister tray.
Advantages :
1.Combination of mechanical, electrical and pneumatic components, and it combines the material sending, heating, forming and cutting into one process. The machine with manipulator can stack plastic products.The final products already cut one by one.
2.The whole system is controlled a micro PLC, which can be operated in man-interface. And it is capability reliable, safe and jarless, less error.
3.Servo motor drives the sheet transport system.
4.Telecommuting and memory reserve functions.
5.Simple machine operation, smaller machine size compare with other thermoforming machines aslo have large forming area , low power consumption, .Has quickly production capacity, highly utilization ratios of plastic sheet, Low air consumption and maintenance,beautiful final products, so it is a new generation ideal package equipment.

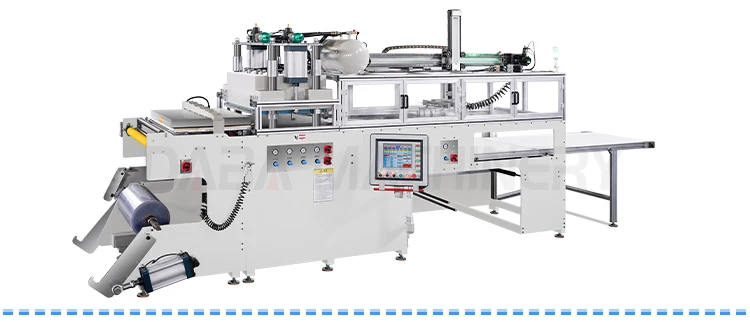

DB-70/95 plastic thermoforming machine adopts the most advanced plastic thermoforming technology and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components, and the whole machine is controlled by micro PLC. The machine has man-interface operation. Combines heating, forming, cutting into one process.
Advantages :
1.Combination of mechanical, electrical and pneumatic components, and it combines the material sending, heating, forming and cutting into one process. The machine with manipulator can stack plastic products.The final products already cut one by one.
2.The whole system is controlled a micro PLC, which can be operated in man-interface. And it is capability reliable, safe and jarless, less error.
3.Servo motor drives the sheet transport system.
4.Telecommuting and memory reserve functions.
5.Simple machine operation, smaller machine size compare with other thermoforming machines aslo have large forming area , low power consumption, .Has quickly production capacity, highly utilization ratios of plastic sheet, Low air consumption and maintenance,beautiful final products, so it is a new generation ideal package equipment.
Machine Parameter | ||||
No | Item | Data | ||
1 | Forming area | 700*950mm | ||
2 | Forming depth | 125mm | ||
3 | Sheet thickness range | 0.15-1mm (0.006''-0.040'') | ||
4 | Sheet roller diameter | 1000mm | ||
5 | Air pressure | 0.7Mpa | ||
6 | Water consumption | 15 Liters/min(15-20℃) | ||
7 | Air consumption | 2000 Liters/min | ||
8 | Production Speed | 600-1200 cycles/h | ||
9 | Voltage | AC380V±15V, 50HZ | ||
10 | Motor power | 13kw | ||
11 | Power consumption | Max. 14KW/h | ||
12 | Heating plate power | 38kw | ||
13 | Weight | 6800kg | ||
14 | Dimension | 6590*1760*2720 mm | ||

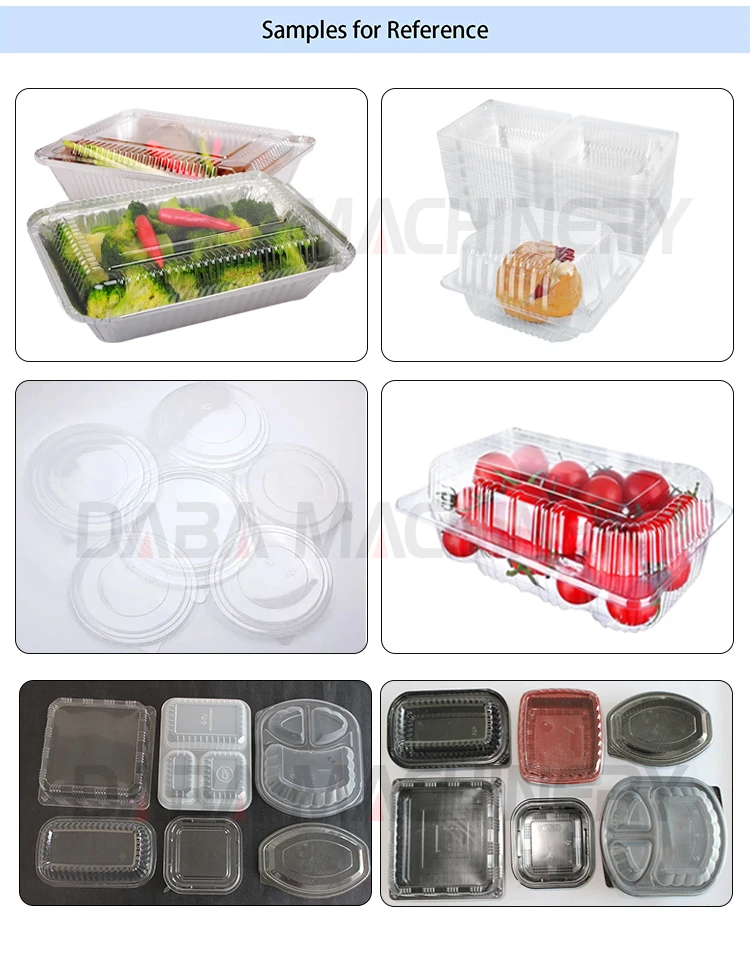

Machine Made Samples
Product Detail

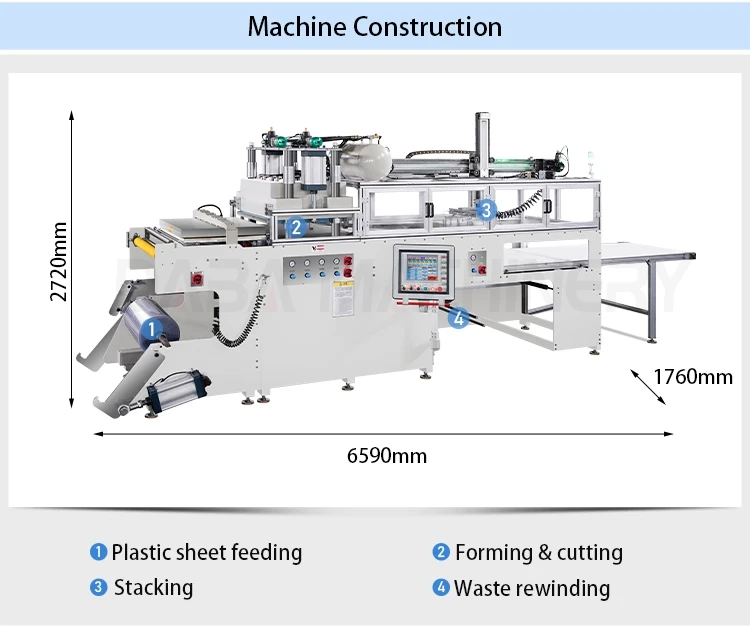

◆ Material feeding - forming & cutting - stacking
Step ❶ : Material Feeding Step ❷ : Pre-heating
Step ❸ : ln-mould Forming & Cutting Step ❹: Stacking by Robot
◆ Highlights of the whole machine
The machine adopts the design of forming and stacking as a whole, which is easier to operate and maintain. Moreover, the machine body adopts thickened steel plate,which ensures the stability of large area forming and stacking.
◆ Feeding Part
The feeding part of the machine is integrated with the machine, which makes the feeding process more stable and can bear larger material roll. The left and right of the feeding frame are respectively controlled by a cylinder to ensure the stability of feeding process.
◆ Pre-heating Part
Heating with electric heating rod can directly heat the sheet, improve the working speed of the machine and enhance the transparency of the sheet. The surface of the new preheating version is treated with Teflon coating, which is not easy to scratch the material.
◆ Heating - Forming - Cutting Part
The machine could finish plastic sheet's heating, in-mould forming, cutting and stacking in one process. The direct contact heating, forming and cutting method makes the final products good shaping and accurate cut. Cutting is a way of sharing blades, it makes material utilization rate high. Servo motor control make the machine with low power consumption and easy maintenance.
◆ Stacking Part
After products finished, they are grasped and stacked by the manipulator automatically.
The guide rail for stacking is imported from Japan and controlled by servo motor to ensure the stability of grabbing and stacking.
◆ Machine Driver
The machine adopts full servo motor control together with reducer. It makes the machine running with small noise, lower consumption, more energy saving and easy maintenance.
We have a complete production line and professional engineers, combined with advanced technology and mature
experience, to produce high-quality machines.
We have three CNC machines for manufacturing machine's mainly part, mold etc.
Mould production capacity of 5-10 sets per month.

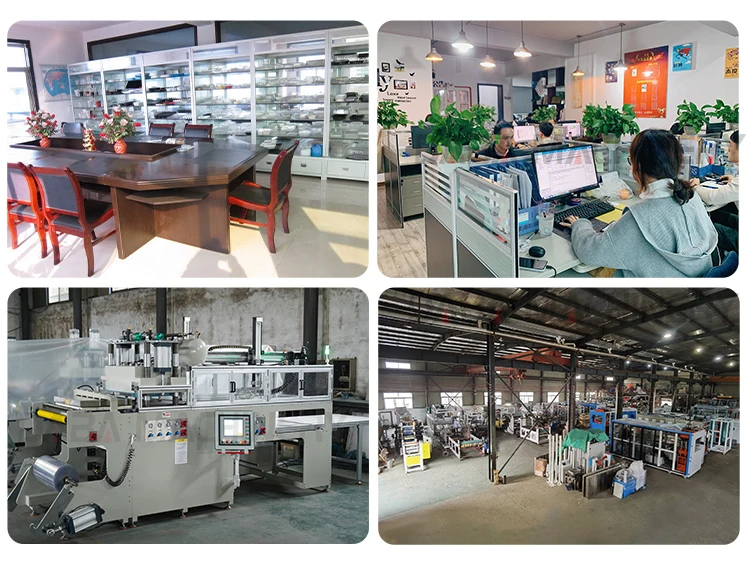

Company Profile
Wenzhou Dabaplas Machinery Co.,Ltd. always adheres to the principle of "survive by quality, relying on science and technology to promote development,adopts a modern technological layout, implements scientific management, and completes the quality system throughout the entire production process.
Our products mainly include:
Plastic positive and negative in-mould cutting thermoforming machine, Full automatic BOPScontact-heat plastic thermoforming machine, Multi-station positive and negative thermoforming machine, Automatic plastic cup thermoforming machine, Cup counting and packing machine, Automatic vacuum forming machine, Multi-station vacuum forming machine, Automatic PP/PET/PS/PVC extrusion, Online crusher, Plastic bag making machine, etc.
We are one of the best high-quality BOPS machine suppliers in China. We have the most cutting-edge BOPS machine manufacturing technology. Our factory have more than 20 years of BOPS machine manufacturing experience and can provide reliable quality BOPS machines and competitive price.
We will make sure that all our clients are completely satisfied in terms of quality of the products delivered to them.
Customer Feedback
Every DaBa machine is quality proven, superior in design and produced as per the highest quality standards. Before leaving our factory, it is tested and retested for performance, productivity and durability. Because of good quality and service, we have won a good reputation among domestic and international customers.Our products sell well in Asia (such as India,Thailand, Vietnam, Indonesia, Malaysia, Sri Lanka), the middle east (Pakistan, Saudi Arabia, Kuwait),Europe(Russia, Rumania,Bulgaria, Italy)Africa (Nigeria, Guinea, Congo), North America and South America.We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiry about our machines, please feel free to contact us.
We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiry about our machines, please feel free to contact us.
Service
1.Purchase Service
DABAPLAS COMPANY have a specialize and efficiency working team.lf you are new on Plastic Processing Machinery area ,Some samples of your products could be shew to us will beappreicate ,we will give you specialized suggestion of whole work .
DABAPLAS COMPANY have a specialize and efficiency working team.lf you are new on Plastic Processing Machinery area ,Some samples of your products could be shew to us will beappreicate ,we will give you specialized suggestion of whole work .
2.Shipping Service
DABAPLAS COMPANY have a spcialized and independent department which just for shippingthe buyer's goods .The workers are knowing T/T,L/C ltems well. All Exported documentscould be made perfectly .
DABAPLAS COMPNAY cooperate with the most famous shipping company in china also.They could provide the best and economic shipping ways to the buyer's port.
3.lnstallation Services
Installation Services are available with all DABAPLAS Company machines. DABAPLAS Comapny willdispatch technician to The Buyer's factory to installation and preoperation of machines.But the buyer need to surpply the round trip tickets ,food ,hotel cost.
4.Clients Training Services
DABAPLAS Company advise The buyer could send own technican come to DABAPLAS factory to learn how to operate machines.DABAPLAS Company technician will teach and train thelerners hand by hand till he can operate machine by himself. obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
DABAPLAS Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.Any parts broken ,Just a pictures or a videos.The new free parts will reach within 3-7Express working days .
Packaging & Shipping
Packaging & Shipping Details:
1. Our standard packing method is film wrapping.
2. Wooden case packing can be provided as required .
3. The delivery date of DB-63/78 Bops plastiic thermoforming machine is within 30 days per set.
4. Transported by sea or land and shipment in Ningbo port or Shanghai port, China.
2. Wooden case packing can be provided as required .
3. The delivery date of DB-63/78 Bops plastiic thermoforming machine is within 30 days per set.
4. Transported by sea or land and shipment in Ningbo port or Shanghai port, China.
FAQ
Q：What's your delivery date? A：Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Could you supply raw materials?
A: We can help you to order the raw materials and arrange the shipment together with machines.
