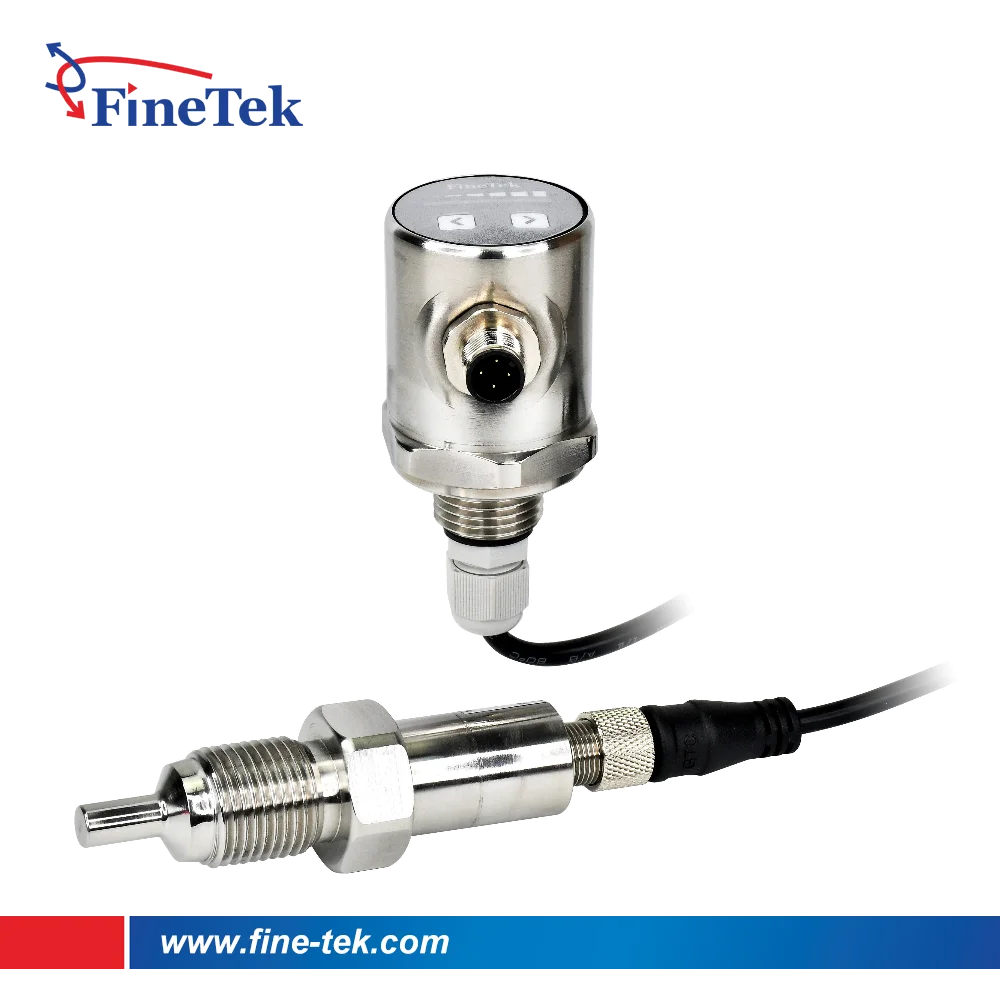

Low Flow Rate Detection FineTek SPX Digital Thermal Dispersion Flow Switch
- Category: Flow Sensors >>>
- Supplier: FINETEK CO. LTD.
Share on (10000009060079):
Product Overview
Description
Digital Thermal Dispersion Flow Switch detection feature is mainly used where the medium is liquid. Due to different application requirements in the working environment, various models are used, for example, standard type, extended type etc.
Two temperature sensing elements are placed in the pipeline. One is heated and the other is not, resulting in a difference in temperature. When the liquid medium flows past the two elements, heat energy is taken away and the temperature of the heated element will fall. The flow rate of the liquid medium is thus calculated according to the difference in temperature of the two elements.
- Thermal dispersion flow switches have higher sensitivity when compared with traditional mechanical switches.
- Unlimited installation locations.
- Will not wear off the structure; liquids containing impurities can still be measured.
- The length of the flow sensor rod can be adjusted according to the environment. The pipe diameter can also be adjusted and used in a wide range of applications.
- Three signal output methods for customers to choose from.
- Replaced the knob with buttons for easier adjustment.
- Digital interface which can be quickly set by using the buttons.
- Multi-segment display with 10 LEDs to sense the liquid flow rate more accurately.
- Petrochemicals
- Hydroelectric plants
- Shipyard
- HVAC Systems
- Steel Industry Food and Beverage
- Pharmaceutical
- Optics and Semiconductor Industry
- Cooling pipes flow control
*Any pipes carrying liquid where flow measurement is needed.
