Water Flowmeter 1.75Mpa For Water Heater Credit Card Machine Automatic Water Dispenser Flow Sensor G1/2 Thread 1 30L/Min
- Category: Flow Sensors >>>
- Supplier: Shenzhen,Robotlinking,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Water Flowmeter 1.75Mpa For Water Heater Credit Card Machine Automatic Water Dispenser Flow Sensor G1/2 Thread 1-30L/Min
Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
Flow speed: 1-30L/min
Insulation resistance: ≥ 100MΩ
Starting pressure: 1Mpa
Hydrostatic pressure testing: ≤ 1.75Mpa
Specification:
The lowest rated working voltage: DC5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~24V
Load capacity: ≤ 10mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: 1.75Mpa
Temperature: -25 ~ +80 °C
External threads: 1/2"
Package included: 1pc x Water Flow Sensor
Size: 54x22mm

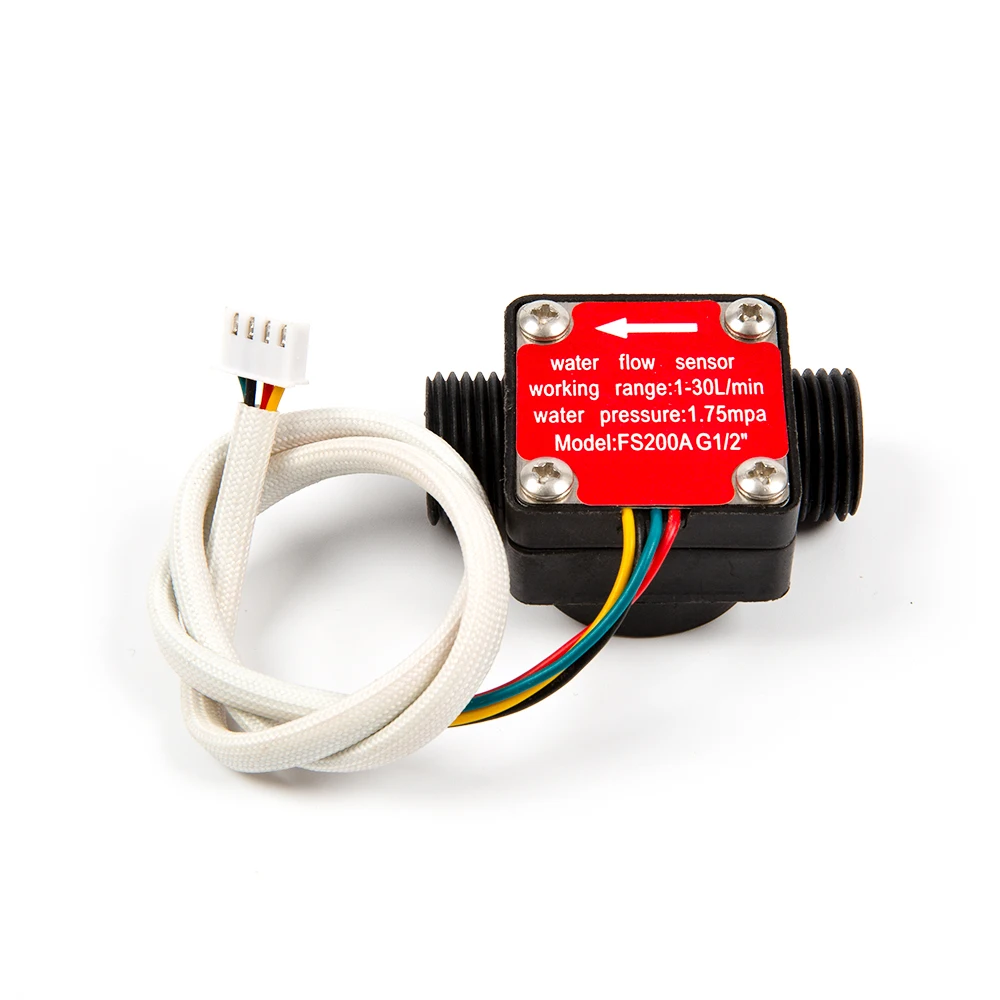

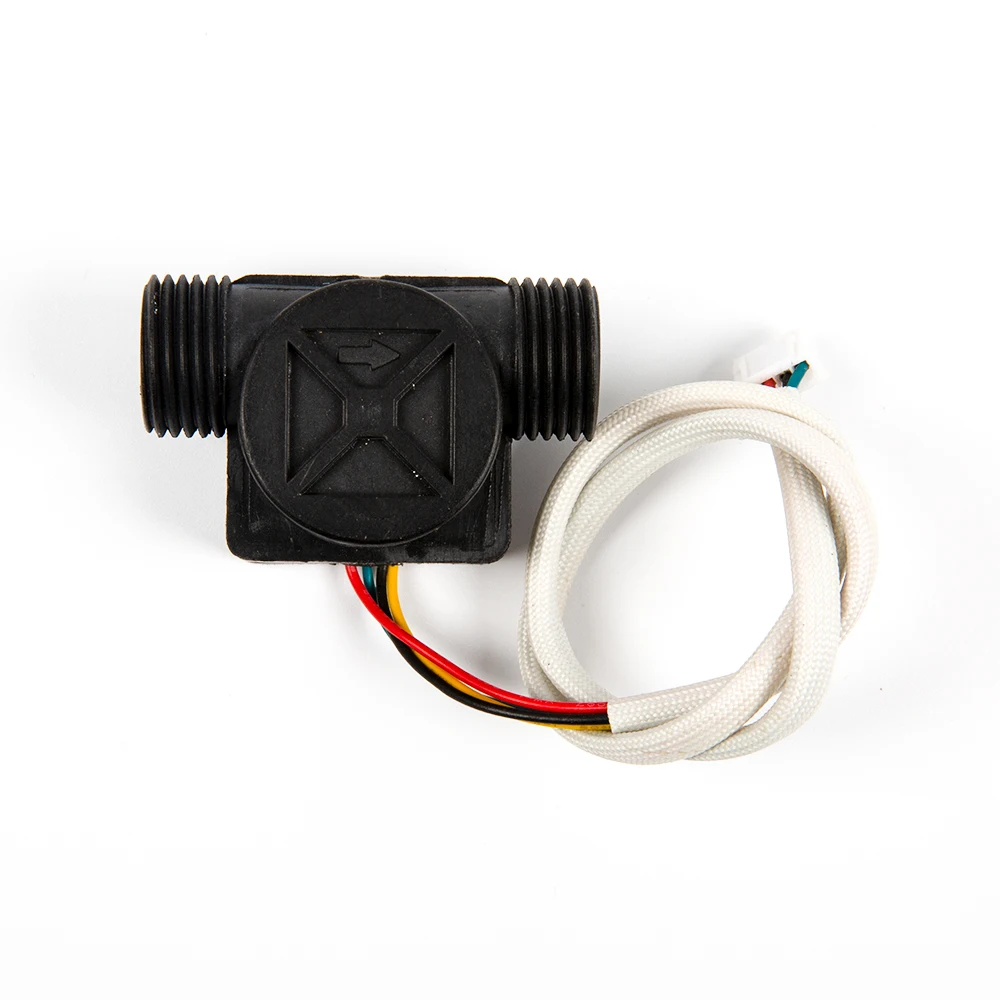

Model No: FS200A | ||||||||
Sensor | Hall Effect ; Pulse Signal | Water Pressure | < 1.2MPA | |||||
Pipe Connection | 1/2 inch | Output Pulse High Level | >DC 4.7V | |||||
Material | Nylon + Glass Fiber | Output Pulse Low Level | <DC 0.5V | |||||
Operating Voltage | DC5-18V | Output Pulse Duty Ratio | 50%±10% | |||||
Working Current | > 10mA | Insulation Resistance | >100MΩ | |||||
Rated Voltage | DC5V | Medium | water / hot water | |||||
Flow Range | 1-30L/min | Medium Temperature | -20°C~+120°C | |||||
Accuracy | F=8.1*Q ±3% (Q=L/min=60) 【F =8.1x1x60 = 486 pulses / liter / minute】 | Apply for | Coffee Machine / Vending Machine / Water Filter System | |||||
