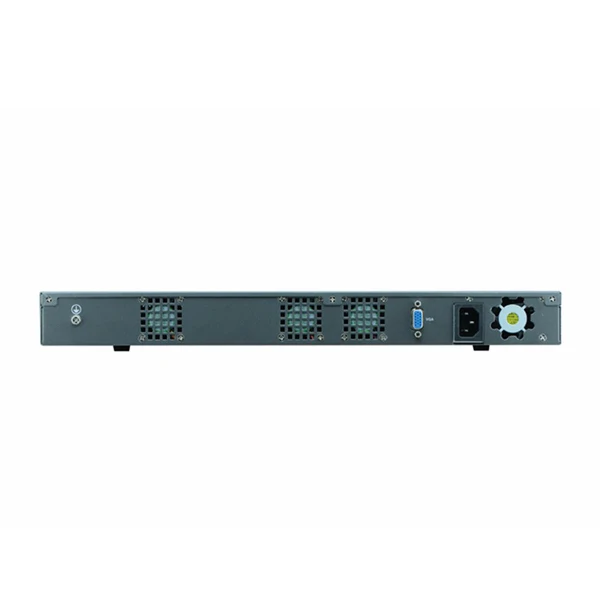

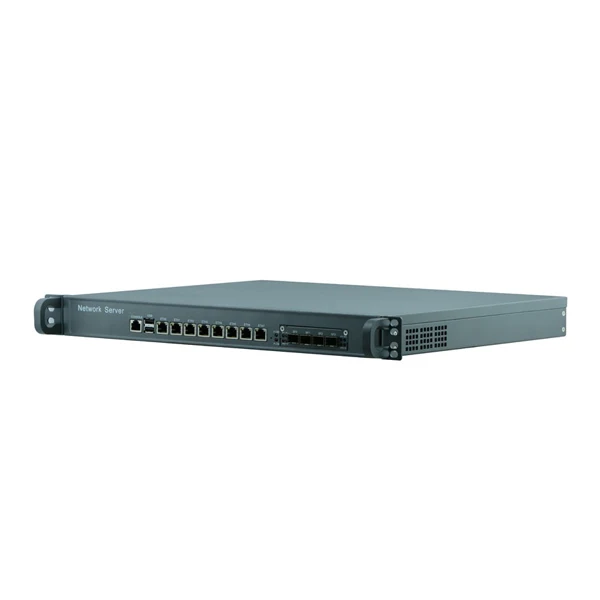

Original factory 1U rack pfsense Network Appliance Firewall BAREBONE PC 8 lans pfsense Firewall barebone PC

General

CPU

Support LGA1151 6th/7th Intel®celeron/Pentium Core™ i3/i5/i7processor

Chipset

SOC, TDP 6W

Memory

DDR4-2400, 2*SO-DIMM, Up to 32 GB

Storage

2*SATA 3.0 2.5 inch or  1*SATA 3.0 3.5 inch

1*MSATA 2.0,the transfer rate up to 6Gbps

Expansion Interface

1*MINIPCIE(Wifi+BT,3G/4G)

BIOS

AMI UEFI BIOS

System

Windows 7/8/10, Linux

I/O Interface

Ethernet

8*Intel WGI211AT, 1Gbps PCIe Ethernet Controller, RJ45

Serial

1*RS232

USB

2*USB 2.0

SFP

4* 1000/10000Mbps fiber interface / network port

Audio

\\

Parallel Port

\\

GPIO

8*Programmable GPIO

Display

Display Interface

1*VGA:max resolution up to 1920*1080@60Hz

Mechanical & Environment

Function

Power on operation,Network wake up,PXE,Watchdog

Dimension

430*360*44.5mm

Power Input

AC 100-240V 2.0A  50-60Hz

Temperature

Operation: -10℃~60℃, Storage: -20℃~70℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
