Lenovo Poweredge SR860 Server

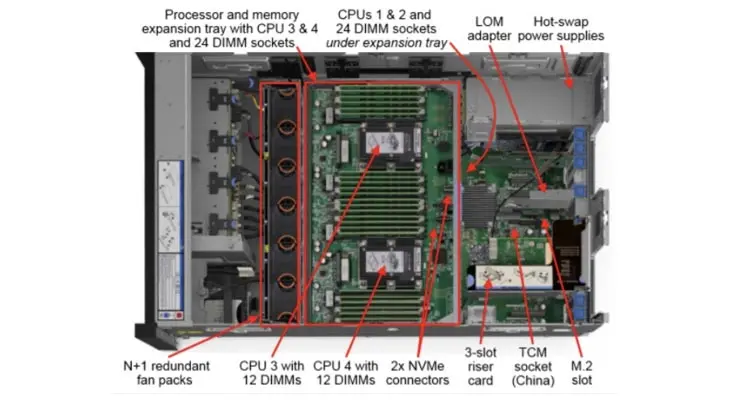

Up to four Intel Xeon Processor Scalable Family of processors, either Gold or Platinum level processors (formerly codename
"Skylake"). Supports processors up to 28 cores, core speeds up to 3.6 GHz, and TDP ratings up to 165W. Two processor sockets on
the system board and two processors on the Processor and Memory Expansion Tray (standard on most models). Two Intel Ultra Path
Interconnect (UPI) links at 10.4 GT/s each. Four processors are connected in a ring topology.
Up to 48 DIMM sockets (12 DIMMs per processor) supporting Lenovo TruDDR4 DIMMs at up to 2666 MHz. RDIMMs and LRDIMMs (Load Reduced
DIMMs) are supported, but memory types cannot be mixed. There are 24 DIMM sockets on the system board, and an additional 24 DIMM
sockets on the processor and memory expansion tray (standard on most models).
Up to 16 2.5-inch hot-swap SAS/SATA bays.
Up to 122.88 TB with 16x 7.68 TB 2.5" SSDs, or up to 32 TB with 16x 2.0 TB 2.5” 7.2K HDDs. Mix of SSDs/HDDs supported.
* No embedded RAID
* 12 Gb SAS/SATA RAID adapters: * RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50
* RAID 730-8i with 1GB cache supports RAID 0, 1, 10, 5, 50
* RAID 730-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60
* RAID 930-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60
* RAID 930-16i and 24i with 4GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60
* 12 Gb SAS/SATA non-RAID: 430-8i and 430-16i HBAs
Up to two hot-swap redundant AC power supplies (all 80 PLUS Platinum certification): 750 W, 1100 W, 1600 W and 2000 W AC options,
supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240
V DC. Second power supply requires either Processor and Memory Expansion Tray or a power interposer card.

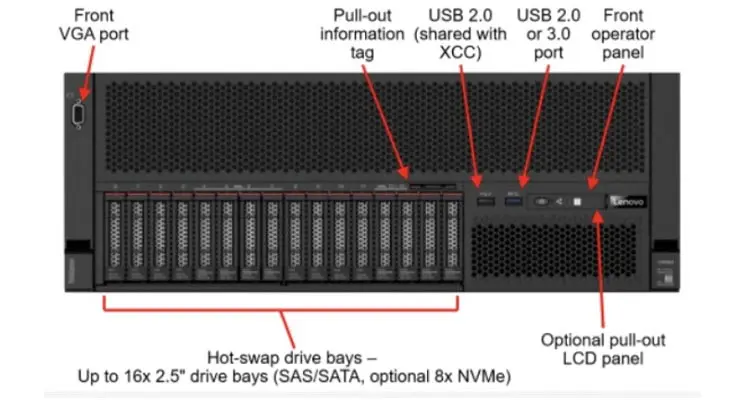

Front: One VGA video port. Two USB 2.0 ports or one USB 2.0 and one USB 3.0 port, model dependent. The first USB 2.0 port can be
configured to support local systems management by using the XClarity Administrator mobile app on a mobile device connected via a
Rear: Two USB 3.0 ports, one VGA video port, one DB-9 serial port, and one RJ-45 XClarity Controller (XCC) systems management
port. The serial port can be shared with the XCC for serial redirection functions.
Internal: Optional M.2 adapter in dedicated slot supporting one or two M.2 drives (for OS boot support, including hypervisor

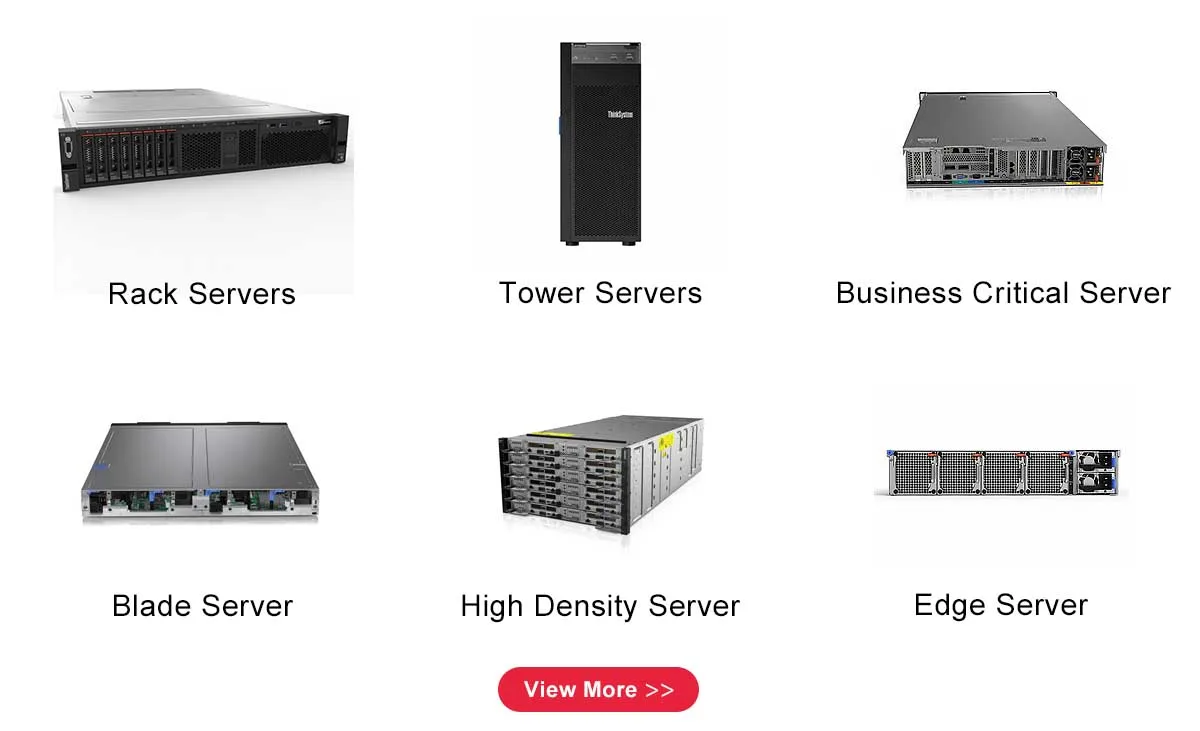

Business Critical Server
