TopDiag P55 Wholesale Inventory Multi function Digital Display Voltage Tester Test Pen for Car voltage tester
- Category: >>>
- Supplier: JDiag Electronics Technology Co. Ltd.
Share on (10000015139464):
Product Overview
Description
Product Description

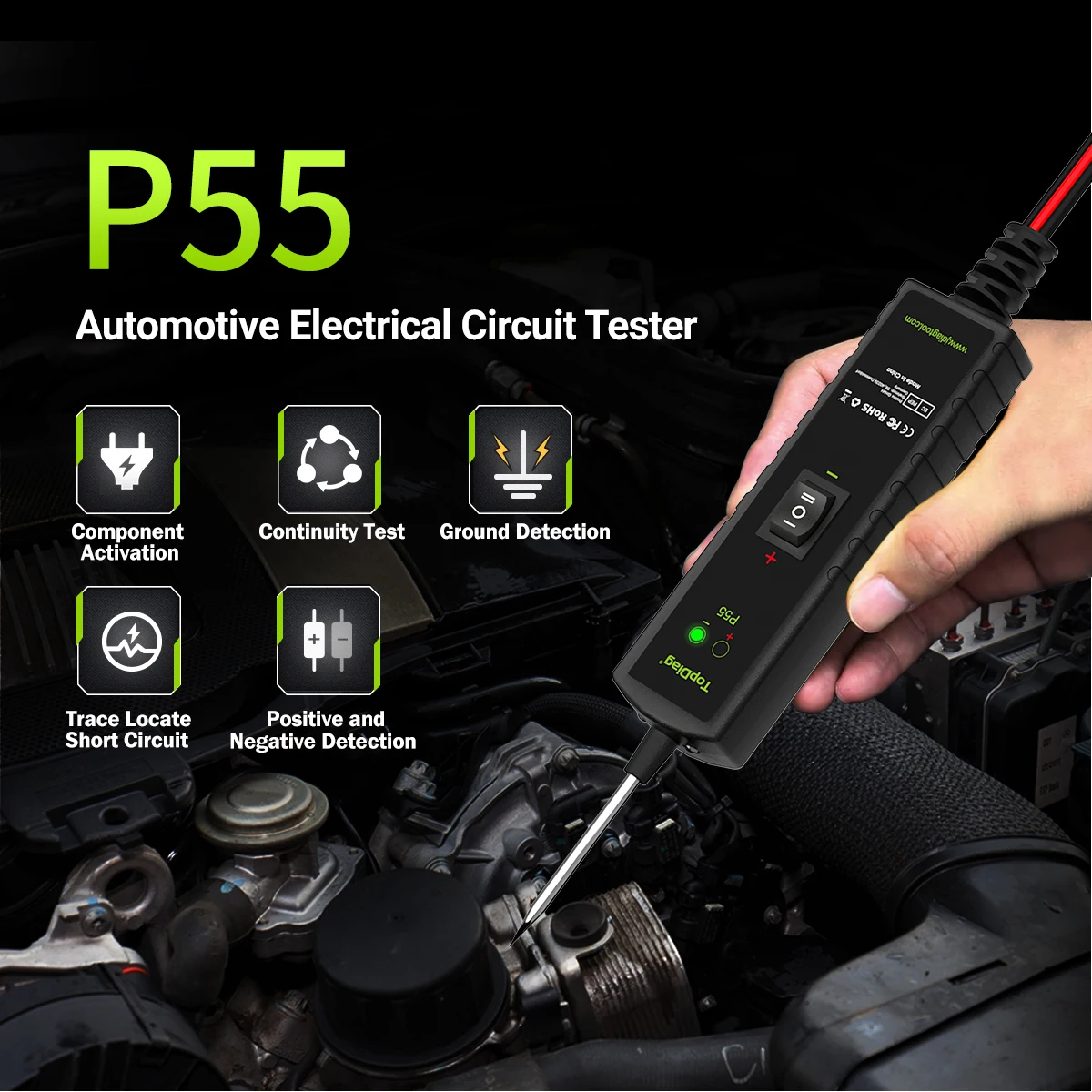

New Product TopDiag P55 Car Electric Circuit Tester Power Probe tool with LED Display Discharger Electrical system circuit tester Short circuit tool
P55 automotive electrical system activator for 12-24V automotive powercircuit diagnosis, compact design, powerful, with reverse connectionand overload protection, the tool probe can be used to test theconductivity and positive and negative detection, activation componentsand other functions, can quickly detect short circuits, broken wires orpoor contact in the vehicle electrical system components, which helpsthe user faster and more accurate understanding of the vehicleproblems, is an efficient and advanced test tool, can greatly improve theefficiency of the user's work.

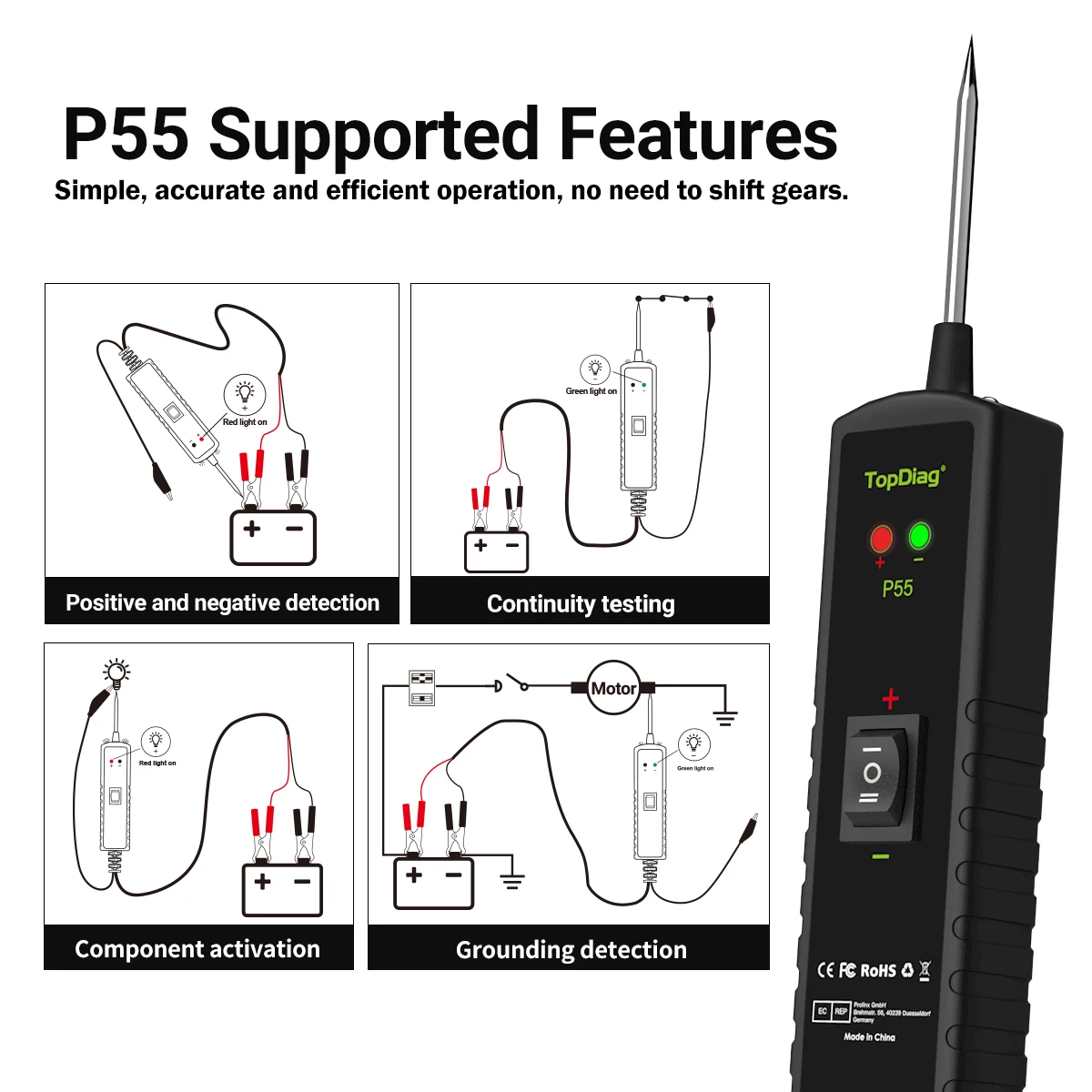

Functions:
Component activation
Continuity testing
Ground detectionTracing and locating short circuits

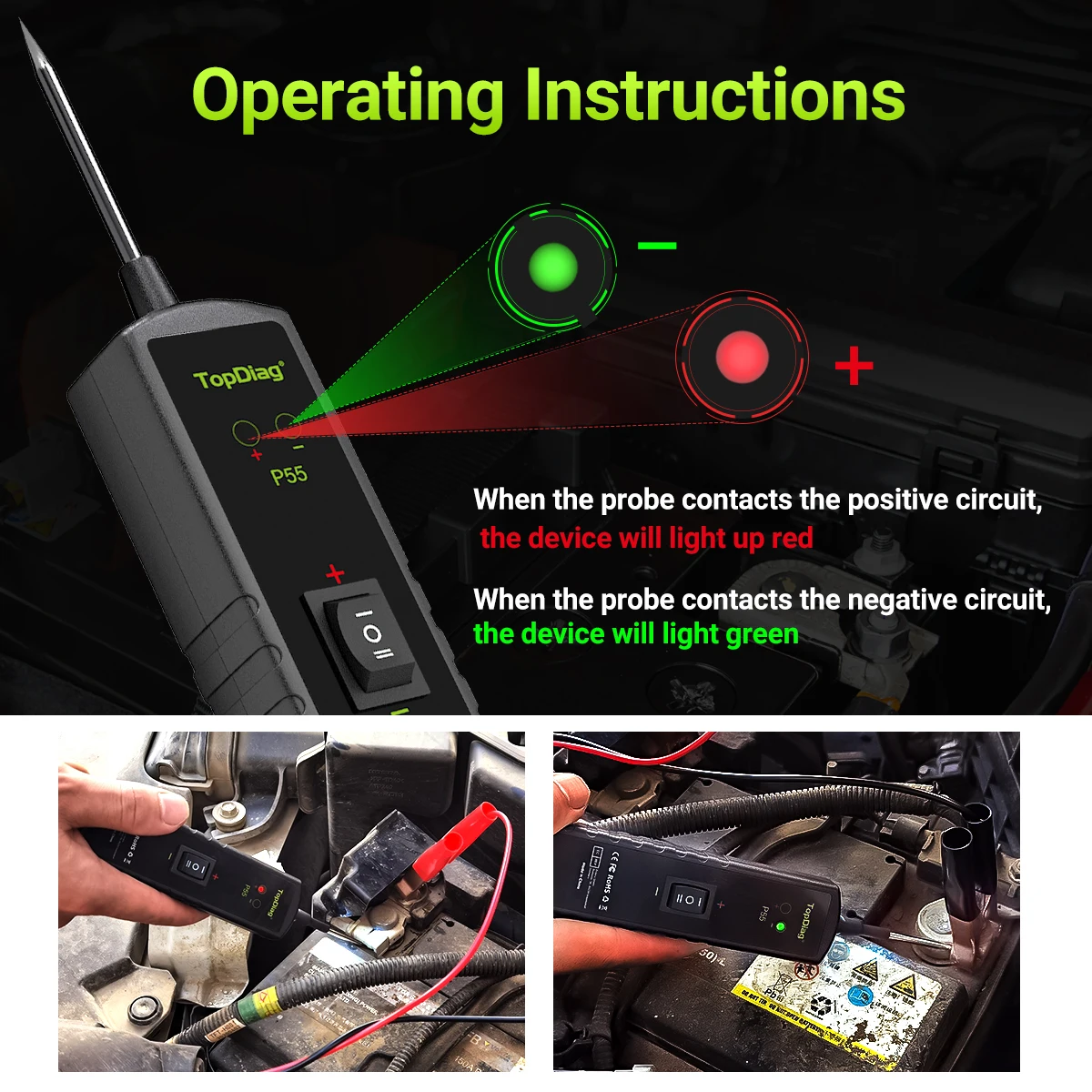

Positive and negative pole detection
Supply voltage DC: 12-24V
Operating current: 80mA
Activation current: 0-8A
Operating temperature: 0~60C
Operating temperature: 0~60C
Storage temperature: -40~70°C
Product packaging

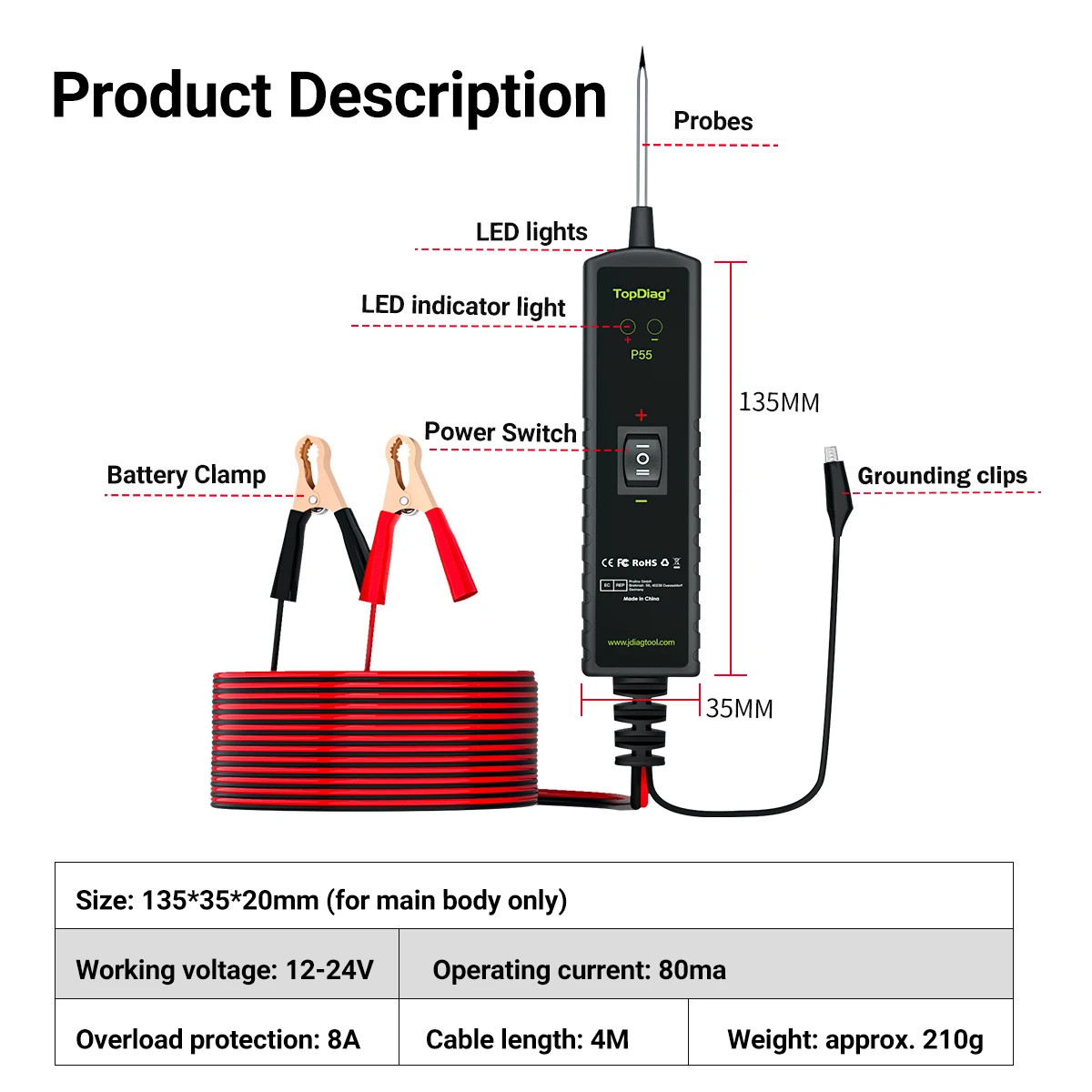

Specification
item | value |
Type | Circuit Tester |
Voltage | 12V/24V |
Applicable Models | universal |
Combination | Component activation, Continuity testing, Ground detectionTracing and locating short circuit, Positive and negative pole detection |
Place of Origin | China |
Guangdong | |
Brand Name | TopDiag |
Model Number | P55 |
Warranty | 12Months |
Product Name | Electrical system circuit tester |
Model Name | P55 |
Brand | TopDiag/JDiag |
Warranty | 12month |
Function 1 | Component activation |
Function 2 | Continuity testing |
Function3 | Ground detectionTracing and locating short circuits |
Function4 | Positive and negative pole detection |
One year warranty
JDiag Technology promises to provide warranty service for 1 yearfrom the date of original purchase, if this product is purchased froman official channel, which must meet the following conditions:
1) The warranty are limited to repairing or replacing new equipment,without additional cost, but need to mention for regular salesinvoices or copies of invoices.
2) The warranty does not cover the unauthorized disassembly of thisproduct due to flooding, lightning strikes, or outside repair shops notauthorized by the company ,The personnel have repaired it andconsidered damage caused by improper use.
3) JDiag Technology is not responsible for any damages caused byuse, misuse or installation and testing. Some countries limitations onthe duration of implied warranties are not allowed, so the abovelimitations may not apply to you.
4) All information in this manual is based on the latest and effectiveinformation at the time of publication, and there is no guarantee of itsaccuracy or completeness, JDiag Technology reserves the right tomake changes at any time without notice.
Service Process
If you have any questions in the process of using this product, pleasecontact your local authorized dealer directly, or visit our officialwebsite for consultation.
1) The warranty are limited to repairing or replacing new equipment,without additional cost, but need to mention for regular salesinvoices or copies of invoices.
2) The warranty does not cover the unauthorized disassembly of thisproduct due to flooding, lightning strikes, or outside repair shops notauthorized by the company ,The personnel have repaired it andconsidered damage caused by improper use.
3) JDiag Technology is not responsible for any damages caused byuse, misuse or installation and testing. Some countries limitations onthe duration of implied warranties are not allowed, so the abovelimitations may not apply to you.
4) All information in this manual is based on the latest and effectiveinformation at the time of publication, and there is no guarantee of itsaccuracy or completeness, JDiag Technology reserves the right tomake changes at any time without notice.
Service Process
If you have any questions in the process of using this product, pleasecontact your local authorized dealer directly, or visit our officialwebsite for consultation.
