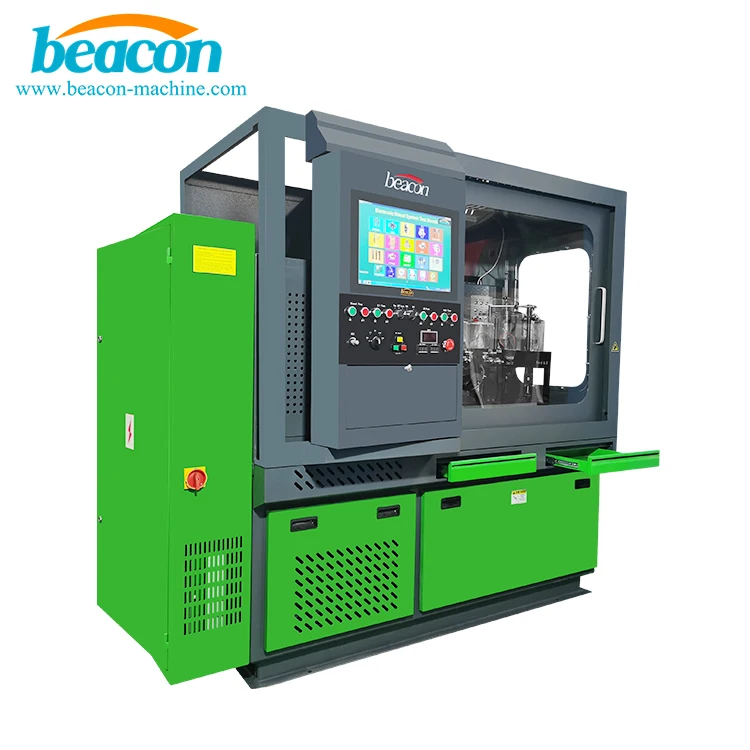

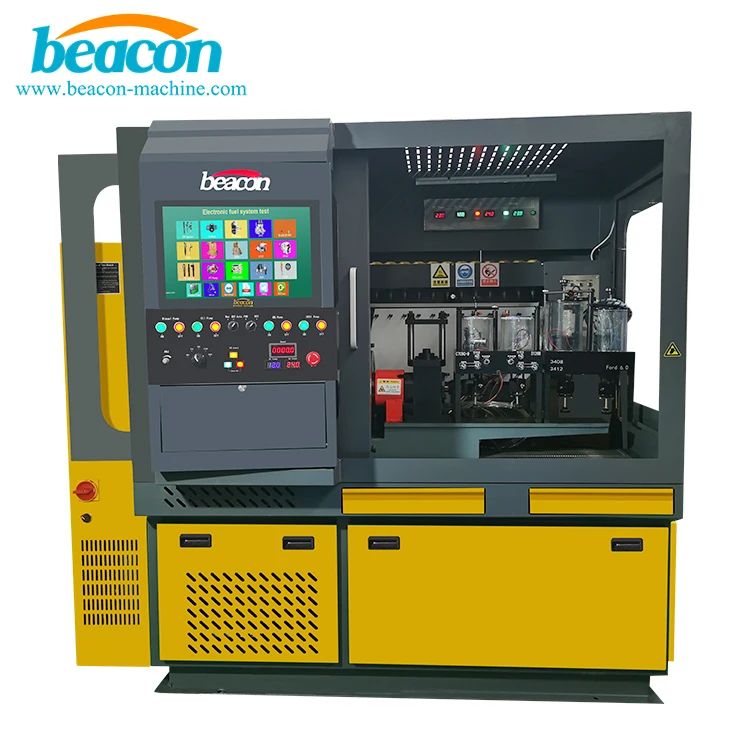

Новый насос для дизельного топлива Common rail CR918S CR919, испытательный стенд высокого давления (1600323537929)

Share on:

Price in USD:Details


Product Overview


Product Description

Injector coding BIP test equipment CR919 common rail EUI EUP HEUI injector pump test bench


1. Industrial computer Windows operating system
2. With database, can can search, store, modify test data and generate new data.
3. Automatic measurement and generate QR code
4. Closed-loop control, which can automatically adjust the control rail pressure, the rail pressure is stable, and the fluctuation value is ±1 Mpa.
5. Display rail working pressure is 200Mpa, maximum pressure is 250Mpa
6. Common rail injection quantity, injection time, number of injections can be freely changed
7. With ultra high pressure protection, the rail pressure is more than 250 Mpa will automatic shutdown
8. Oil temperature automatic control ± 40℃
9. With glass protective door, safe operation and easy observation
10. Can detect HEUI engine oil circuit
11. Oil temperature control using compressor refrigeration (optional)
12. Support Internet connection for remote upgrade
13. With injector response time detection (optional)

Main Function:
1.Integrated automatic operation, including test bench speed,rail pressure,flow measurement,temperature control, etc.measurement report analysis, one-button operation.
2.Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, heavy oil and other manufacturers solenoid valve or piezoelectric crystal injector and high pressure common rail pump.
3.Can test Bosch, Cummins and other EUP/EUI oil pumps.
4.Can test HEUI medium pressure common rail injector.
5.Can test HEUI medium pressure common rail pump(optional).
6.Can test double solenoid valve nozzle injector(optional).
7.Can test Cat 320D high-pressure pump(optional).
8.Automatic generation of Q code
9.Can test injector response time.

The test report can be print out:

Main parameter:

Output power:
11kw/15kw/18.5kw/22kw (according to customer needs)
Host center height:
Wheel oil pump:
Oil supply pressure:
Fuel tank capacity:
Oil tank capacity:
High pressure oil supply:
Oil supply:
Hotbed control:
40 °C ± 2 °C
Oil hotbed:
40 °C ± 2 ° C
Drive voltage:
Drive current:
Input voltage:
220v-380v (according to customer needs)

With double oil fuel tank:

Windows computer control,new common rail test system:

Best new common rail test system:

With Injector QR coding,for BOSCH DENSO DELPHI SIEMENS:


Full set EUI EUP tester+ CAMBOX+ adaptor for electronic unit injector EUI EUP injector test

With CAT Actuating pump and CAT 320D pump test ,check the flange(adaptor as below):



Packing & Delivery

Our customer

Company information

JINAN BEACON MACHINE CO.,LTD is a leading manufacturer in China specialized in researching and developing diesel injection pump test bench and turbocharger balancing machine .

Our products are exported to more than 100 countries .Due to our excellent quality, competitive price and professional technical support, our products are the common choice of many overseas buyers.

Our main product include:
common rail injector/pump test bench ,
common rail injector/pump tester (CRDI),
diesel injection pump test bench EUI/EUP tester cam box ,
Denso ECD-V3 ,V4, V5 pump tester ,
PT Cummings pump and injector tester ,
common rail tools
High quality spare parts: Injector/valve/nozzle/head rotor/plunger....

Welcome to visit our factory and cooperate in the future.
