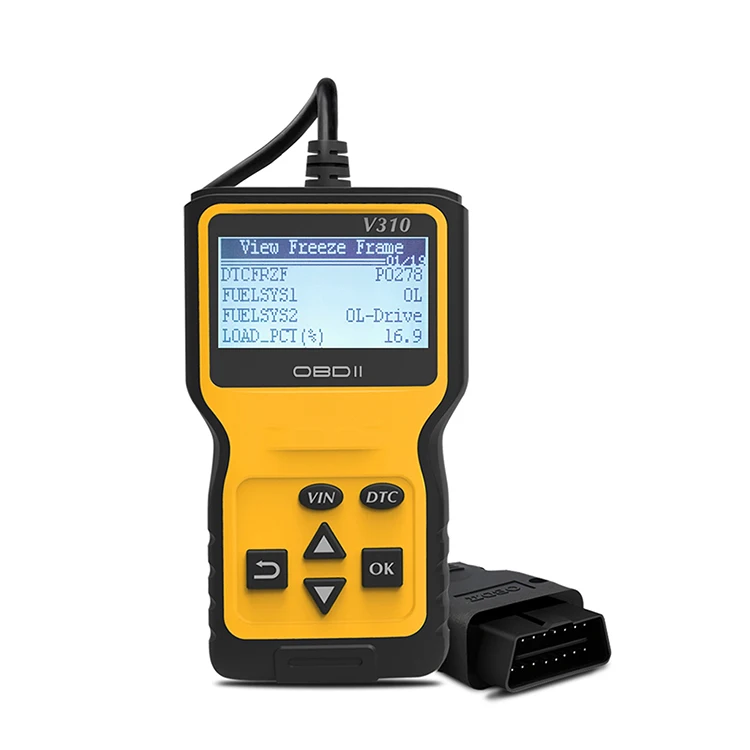

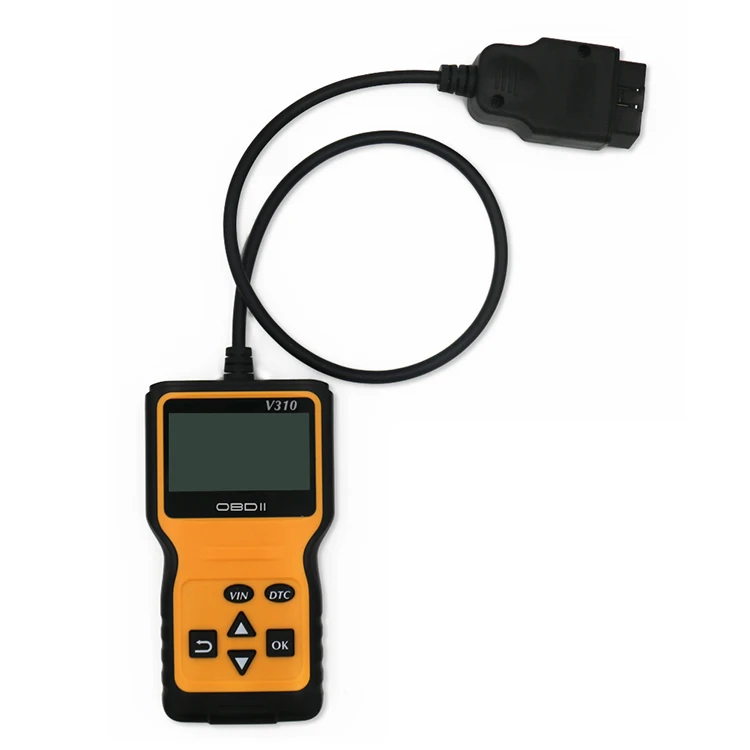

High Quality Code Reader Reader & Cleaner Car Diagnostic Tool VC310 V310 OBD2 Scanner
- Category: Diagnostic Tools >>>
- Supplier: Shenzhen Tompzon Electronics Co. Ltd.
Share on (62386296645):
Product Overview
Description
Product Description
High Quality Code Reader Reader & Cleaner Car Diagnostic Tool VC310 V310 OBD2 Scanner
The VC310 OBDII/EOBD Code Reader is specially designed to work with all OBD II compliant vehicles, including those equipped with
the next-generation protocol-Control Area Network (CAN). It is required by EPA that All 1996 and newer vehicles (cars and light
trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles.
the next-generation protocol-Control Area Network (CAN). It is required by EPA that All 1996 and newer vehicles (cars and light
trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles.
A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II
compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most
vehicles. If the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations
mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission
Control Information Label must state that the vehicle is OBD II compliant.
compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most
vehicles. If the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations
mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission
Control Information Label must state that the vehicle is OBD II compliant.
The program lets you perform the following operations:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code
definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...
definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others...
Multi-Protocol Support:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
V310 Features:
1. Easy to handle it, no need to install software.
2. Plug-and-play interface and highly reliable
3. Large LCD screen easy to read
4. No batteries,supply power through detachable OBDII cable
5. Small size and conveniently fits in your palm
Display:
1. Module size: 71.80(W) × 52.60 (H) × 6.00(T)
Mm
2. Display view area: 60.78(W) × 32.94(H) mm
3. LCD type: FSTN / semi-transparent reflective
4. Driver chip: ST7565 or C compatible IC
5. Backlight drive type: power / white.
1. Easy to handle it, no need to install software.
2. Plug-and-play interface and highly reliable
3. Large LCD screen easy to read
4. No batteries,supply power through detachable OBDII cable
5. Small size and conveniently fits in your palm
Display:
1. Module size: 71.80(W) × 52.60 (H) × 6.00(T)
Mm
2. Display view area: 60.78(W) × 32.94(H) mm
3. LCD type: FSTN / semi-transparent reflective
4. Driver chip: ST7565 or C compatible IC
5. Backlight drive type: power / white.
