SC 5003M 5GR (Wi Fi6) 5G Portable WIFI Router
- Category: >>>
- Supplier: SunComm Technology Co. Ltd.
Share on (10000018473248):
Product Overview
Description

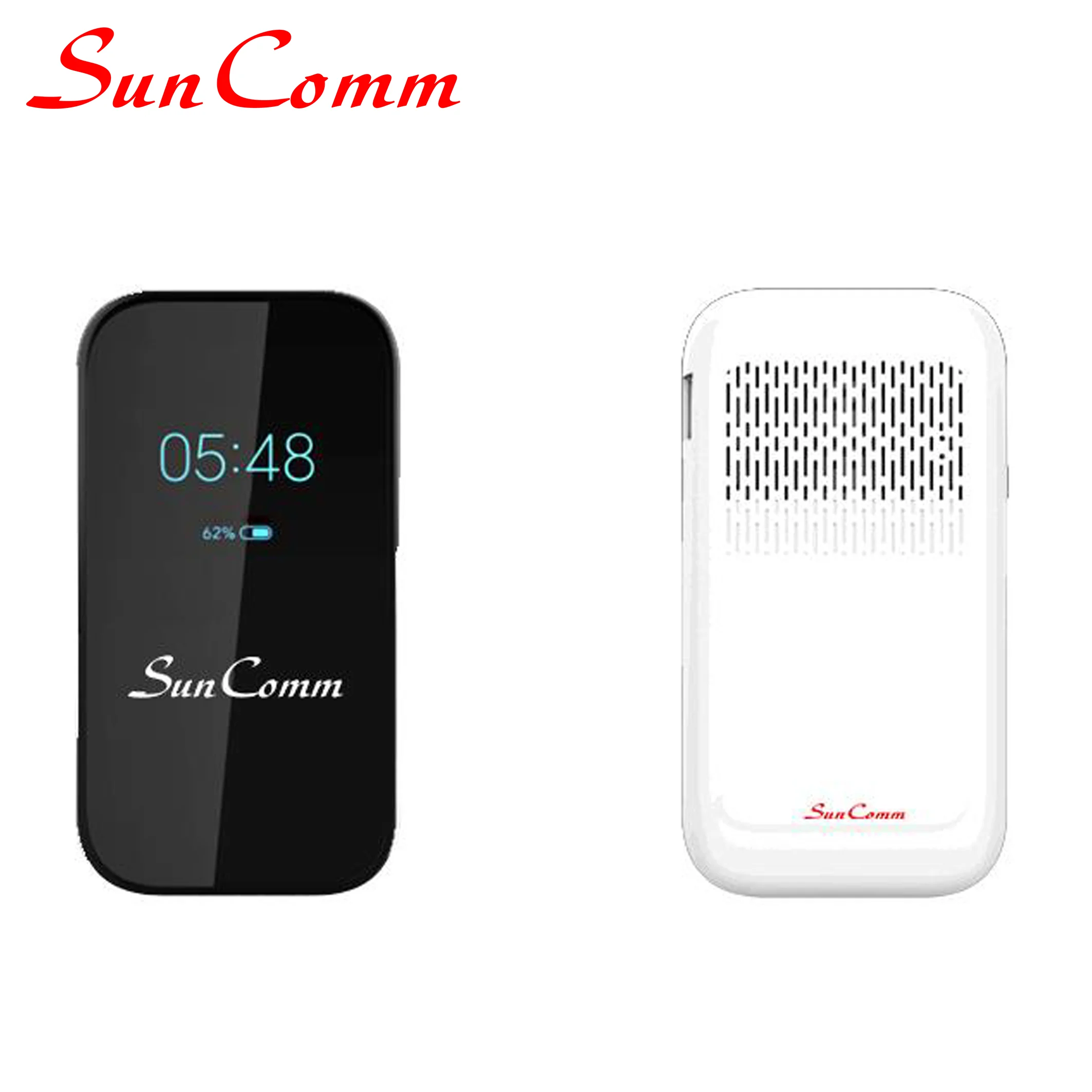

SC-5003M-5GR (Wi-Fi6) 5G Portable MIFI Router
Product Description
SC-5003M-5GR Portable MIFI router is a wireless communication product developed based on 3G/4G LTE/5G network requirements. Supports 3G/4G LTE/5G global frequency bands. Supports 3G/4G LTE/5G internet high speed access.
Support 5G NSA. Up to 3.4Gbps (DL)/600Mbps (UL) of NSA mode. 5G SA maximum 2.4Gbps (DL)/1Gbps (UL) access bandwidth service. Support for 802.11AX WIFI 6E, 2.4GHz/5GHz/6GHz function. And provide users with WIFI 6E, AX3600 large bandwidth hotspot sharing. Meet the access and sharing of more than 64 users' WIFI hotspots. Meet the needs of families, tourism, enterprises and chain stores to provide 4G/5G high-speed Internet access services.
Product features:
Ø Wireless Mobile Broadband 3G/4G LTE/ 5G Connection. Supports 3G/4G/5G global frequency bands.
Ø Compliant with IEEE 802.11a/b/g/n/ac/ax,AX3600,2*2 MIMO WIFI 6E, support 2.4 GHz/5 GHz/6GHz .
Ø System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
Ø Supports Multiple VPN tunnels for data encryption.
Ø Optional support for LCD or LED status indication.
Ø Power supply. DC 5V/2.5A
Ø ABS plastic material shell. Novel and fashionable appearance
Cellular feature | |
3G/4G/5G data connectivity | It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. |
3G/4G/5G Frequency bands | • Version E 5G NR: 5G NSA:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n48/n77/n78/n79 5G SA:n1/n3/n5/n7/n8/n20/n26/n28/n38/n40/n41/n48/n77/n78/n79 LTE FDD:B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32 LTE-TDD:B38/B39/B40/B41/B42/B43/B46*/B48 WCDMA: B1/B5/B8 • Version A 5G NR: 5G NSA:n2/n5/n7/n12/n14/n25/n26/n30/n38/n41/n48/n66/n71/n77/n78/n79 5G SA:n2/n5/n7/n12/n13/n14/n25/n26/n29/n30/n38/n41/n48/n66/n71/n77/n78/n79 LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 LTE-TDD:B38/B41/B42/B43/B46*/B48 WCDMA: B1/B2/B4/B5 Remarks. More frequency bands or requirements please contact with us. |
3G/4G/5G Data rates | 5G NSA. Max 3.4Gbps (DL)/600Mbps (UL) 5G SA. Max 2.4Gbps (DL)/1Gbps (UL) LTE. Max 1.6Gbps (DL)/200Mbps (UL) HSPA+. Max 42Mbps (DL)/ 5.76Mbps (UL) WCDMA Max 384Kbps (DL)/384Kbps (UL) |
3G/4G/5G Transmitting Power | Class 3 (24dBm+1/-3dB) for WCDMA bands. Class 3 (23dBm±2dB) for LTE-FDD bands. Class 3 (23dBm±2dB) for LTE-TDD bands. Class 3 (23dBm±2dB) for 5G NR bands. Class 2 (26dBm±2dB) for LTE B38/B40/B41/B42 bands. Class 2 (26dBm±2dB) for 5G NR n41/n77/n78/n79 bands. | |
Antennas | 4 X 4G/5G internal antenna, 4 X 4 MIMO, with 50 Ω impedance. | |
SIM card feature | ||
SIM card | Supports 1 X SIM slots, 1.8V / 3V. Or 1 X eSIM card. ( Optional ) | |
Hard ware feature | ||
CPU | Qualcomm SDX62, ARM Cortex - A7,1.8GHz | |
MEMORY | NAND FLASH 4Gb, LPDDR4X 4Gb | |
Hardware interface | 1*USB3.1 port | |
Watchdog | Built-in watchdog feature. | |
Key button | Power key, Reset | |
LED status indicator | Power, 5G, WIFI | |
Power Supply
| Power supply input. DC 5V/2.5A | |
Peak current | Max current. 2.5A @5V | |
Working current | Max 450 mA, 5.4W @5 V | |
Power Consumption | Idle. 170mA, 0.85W @5 V Data link. Max 750 mA, 3.75W @5 V Peak. Max 1.5A, 7.5W @5V | |
Temperature | Operating Temperature 0 ºC ~+50ºC, Storage Temperature -10~+55ºC | |
Environment humidity | 5%~95%, no condensation. | |
Ingress Protection | IP30 | |
Housing | ABS plastic material, white or gray shell. | |
Dimensions | 140mm*70mm * 20mm | |
Installations | Desktop placement | |
Weight | 280g | |
