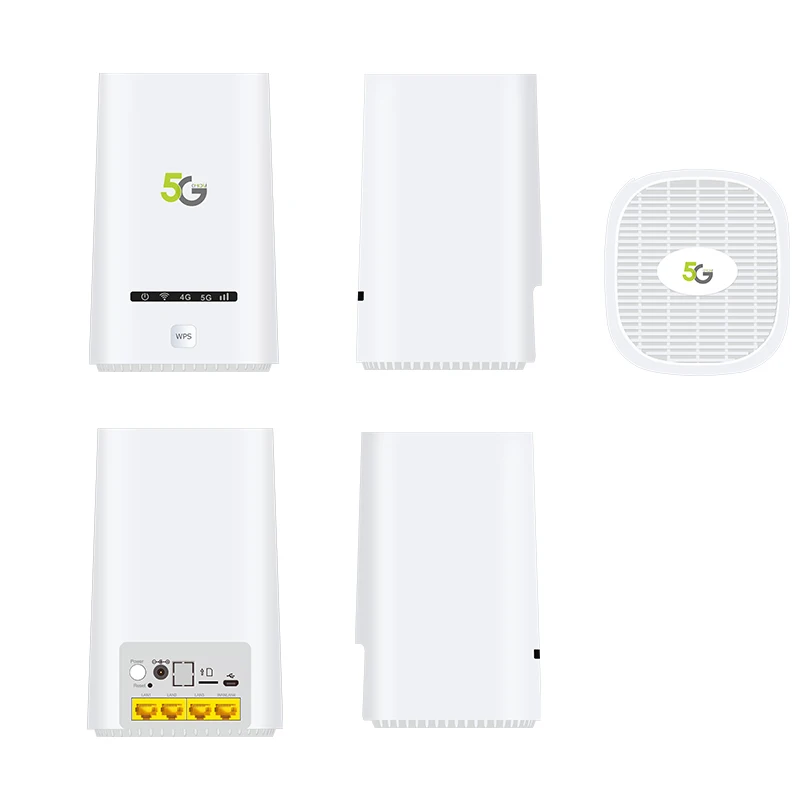

Выгодный 5G терминал 5G комнатный беспроводной маршрутизатор CPE 2,45 Гбит/с Поддержка 5G NR/FDD/TDD гигабитный RJ45 порты WAN/LAN 64 устройства
- Category: Routers >>>
- Supplier: Shenzhen Huiyibang Technology Co. Ltd.
Share on (1600699472304):
Product Overview
Description
Product Description
Cost-Effective 5G Terminal 5G Indoor CPE Wireless Router 2.45Gbps Support 5G NR/FDD/TDD Gigabit RJ45 WAN/LAN Ports 64+ Devices.
Frequency band: 5G NR (3GPP Release 15)/TDD-LTE/FDD-LTE;
Network port: 4 * Gigabit RJ45 LAN Ports 10/100/1000 auto sensing;
Antenna: 6 Built in 5G/LTE antenna, 2 Built in Wi Fi antenna (2.4G+5G);
VPN: PPTP/L2TP/SSL VPN/GRE/IP SEC, IPv6/IPv4 dual stack;
Working mode: NAT/Bridge/Router mode;
Size: 115mm * 117mm * 185mm;
Weight:<500g
Platform: UNISOC IVY510+Realtek 8198D.
5G NR: N1/N3/N8/N28/N41/N77/N78/N79
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28B.
4G TDD: B34/B38/B39/B40/B41
5G NR: 1.25Gbps (UL), 2.45 Gbps(DL)
TDD/FDD LTE: Category 12 with 450Mbps( DL)
TDD/FDD LTE: Category 13 with 150Mbps( UL)
Network port: 4 * Gigabit RJ45 LAN Ports 10/100/1000 auto sensing;
Antenna: 6 Built in 5G/LTE antenna, 2 Built in Wi Fi antenna (2.4G+5G);
VPN: PPTP/L2TP/SSL VPN/GRE/IP SEC, IPv6/IPv4 dual stack;
Working mode: NAT/Bridge/Router mode;
Size: 115mm * 117mm * 185mm;
Weight:<500g
Platform: UNISOC IVY510+Realtek 8198D.
5G NR: N1/N3/N8/N28/N41/N77/N78/N79
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28B.
4G TDD: B34/B38/B39/B40/B41
5G NR: 1.25Gbps (UL), 2.45 Gbps(DL)
TDD/FDD LTE: Category 12 with 450Mbps( DL)
TDD/FDD LTE: Category 13 with 150Mbps( UL)
This 5G Indoor Router works in the countries of Southeast Asia and Middle East !!!. Please make sure your country has 5G signal before order.
Chipset | 5G/LTE: UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz |
Wi-Fi: MT7621A | |
RF standard | 5G NR (3GPP Release 15)，FDD-LTE |
Memory | 5G Module: Nand flash 2Gbits + RAM 4Gbits LPDDR4x |
Router: ROM 128Mbits + RAM 1Gbits | |
Indictors | 1. Power 2. Wi-Fi Switch Status 3. 4G Internet 4. 5G Internet 5. Signal Bar Indicator |
Buttons | 1. Power ON/OFF Button 2. WPS Button 3. Reset Key |
Interfaces | 1. GE LAN Port * 4 2. SIM Slot * 1 (3FF) 3. DC Socket 4. TYPE_C USB3.1 for Manufacture |
LAN/WAN | GE Port * 4, (Currently DHCP/STATIC mode). |
Power Supply | AC100V~240V,50Hz~60Hz DC 12V DC±10% 2A |
Power Consumption | < 24W |
Dimensions | 117mm*117mm*180mm |
Weight | 580g |
Support Bands | 5G NR: N1/N3/N8/N28/N41/N77/N78/N79 |
4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28B. 4G TDD: B34/B38/B39/B40/B41 | |
MIMO | LTE: DL 2x2 MIMO B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/B41 NR: DL 4x4 MIMO N1/41/77/78/79 DL 2x2 MIMO N20/28 UL 2x2 MIMO N41/77/78/79 |
5G/4G TX/RX | 2T4R/1T2R/1T4R |
Output Power@25℃ | 5G: n41/77/78/79 : Power Class 2 n1/20/28 : Power Class 3 LTE: Power Class 3, Power Class 2(only B41) WCDMA: Power Class 3 |
5G/4G Antenna | 4 Built-in 5G antennas 2 Built-in 4G antennas |
5G/4G Antenna Gain | 2 +/-2dBi |
Language | English |
Simple Chinese, | |
Could be customized | |
Https/Http | Both |
Network Status | Signal strength |
Network type(5G/4G..) | |
SIM card status | |
Wi-Fi Status | |
LAN Status | |
System Status | Mobile parameters, APN/DHCP/Wi-Fi information,, Version/Device information |
Internet Settings | Network mode setup, Data switch, |
APN Setup | APN name, PDP(IPV4/IPV6/IPV4V6), |
SIM Card | PIN Management |
DHCP Setup | Enable/disable DHCP server Configure DHCP IP Pool Configure DHCP Lease Time |
Static Route | Route Setup on WAN/LAN interface |
DDNS | Support |
Software Update | WebUI update TR069 update |
TR069 | HTTP/HTTPS Supports upload / download the ACS specified file Support download CPE configuration file Support configure & queries parameters Support remote upgrade Support cycle monitor |
Company Introduction
Shenzhen Huiyibang Technology Co.,Ltd is a reliable and professional supplier in Consumer Electronics industry such as 5G CPE, 4G CPE, Wireless Router, USB Wifi, Modem.
Almost 300 people in the factory responsible for different work included with materials, welding, assemble, testing, quality check, sample check, package to assure no mistake in every step for clients’ order, our company also have special logistics channels for sending goods on time.
In the meantime our company provides OEM/ODM service, with well-equipped testing facilities and strong technical force, all our products have passed CE, FCC, ROHS authentications as well as independent certification of Alibaba and third party organization.
Above products has been dispatching to most countries of the world for more than 10 years, which are widely recognized and trusted by our clients. While appreciating the recognition, it inspires us to develop better and higher quality products to meet the growing diversified needs of our clients.
Almost 300 people in the factory responsible for different work included with materials, welding, assemble, testing, quality check, sample check, package to assure no mistake in every step for clients’ order, our company also have special logistics channels for sending goods on time.
In the meantime our company provides OEM/ODM service, with well-equipped testing facilities and strong technical force, all our products have passed CE, FCC, ROHS authentications as well as independent certification of Alibaba and third party organization.
Above products has been dispatching to most countries of the world for more than 10 years, which are widely recognized and trusted by our clients. While appreciating the recognition, it inspires us to develop better and higher quality products to meet the growing diversified needs of our clients.
Shipping Methods
Why Choose Us
One Year Warranty | Low defective rate, reliable quality, refund once defectives are received. |
Verified Supplier | Certified by Alibaba and independent third party organizations |
Trade Assurance | No need to worry about problems in the trading process |
Factory Price | Better products in more competitive price |
Low MOQ | Meet the needs of customers for small orders |
Rich Styles | Thousands of different styles of smart watches for your choices |
Spot Supply | Most products are in stock for shipping on time |
Productive power | Always Ready to accept large quantity orders at any time |
FAQ
Q1: What products do you mainly sell?
A1: 5G CPE, 4G CPE, Wireless Router, USB Wifi, Modem.
Q2: Can I get some samples for testing before mass orders placed?
A2: Yes, of course, samples for all products are so welcomed.
Q3: What kinds of payment terms are available?
A3: T/T bank transfer, Western Union, PayPal, Trade Assurance, etc. For large order, 30% deposit advance and the rest before shipping are OK. we can discuss the details when order according to different conditions and period.
Q4: How long the goods will be shipping after payment received?
A4: Most of models are in stock ready for selling, shipping time will be 1-2 days only, if order quantity is large please let us know the details to get you a approximate date.
Q5: What we should do if defective products are among the order?
A5: Our company offers 1 year warranty of all products, please send them back if that happened, defective products will be fixed or replaced. 4G 5G Router Modem are Mature technology products, it can be used normally as long as we set it correctly.
A1: 5G CPE, 4G CPE, Wireless Router, USB Wifi, Modem.
Q2: Can I get some samples for testing before mass orders placed?
A2: Yes, of course, samples for all products are so welcomed.
Q3: What kinds of payment terms are available?
A3: T/T bank transfer, Western Union, PayPal, Trade Assurance, etc. For large order, 30% deposit advance and the rest before shipping are OK. we can discuss the details when order according to different conditions and period.
Q4: How long the goods will be shipping after payment received?
A4: Most of models are in stock ready for selling, shipping time will be 1-2 days only, if order quantity is large please let us know the details to get you a approximate date.
Q5: What we should do if defective products are among the order?
A5: Our company offers 1 year warranty of all products, please send them back if that happened, defective products will be fixed or replaced. 4G 5G Router Modem are Mature technology products, it can be used normally as long as we set it correctly.
Q6: How do I know if the 3G 4G 5G products can be used in my country?
A6: Now there are more than 30 countries in the world with 5G signals, please make sure your country has 5G before purchase a 5G router modem. or please ask our customer service to find out if it can be working in your country.
Q7: Do you accept Customized Router Order?
A7: Yes, company logo on the products cases are acceptable, we can also accept Frequency band customization for our products.
Q8: The model I want to order is not existing in your store, can i order or can you find it for me?
A8: Yes. There are many different router models in the market, some of them are not uploaded in our store, but our company has them and can produce for your need, please tell me the brand name and model name we'll get them ready after confirmed.
