Router SC 5003EU 5G 5G indoor
- Category: >>>
- Supplier: SunComm Technology Co. Ltd.
Share on (10000018603870):
Product Overview
Description

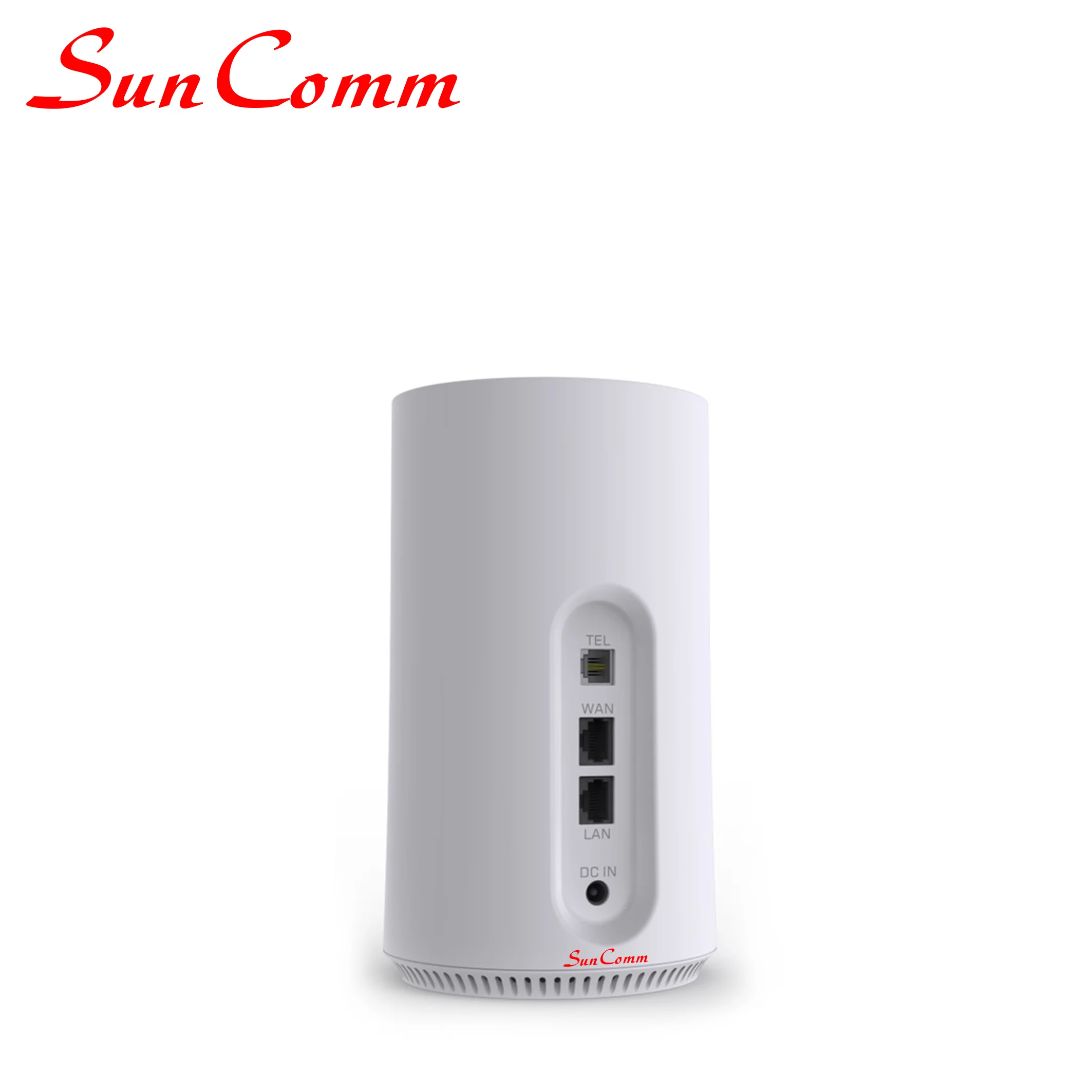

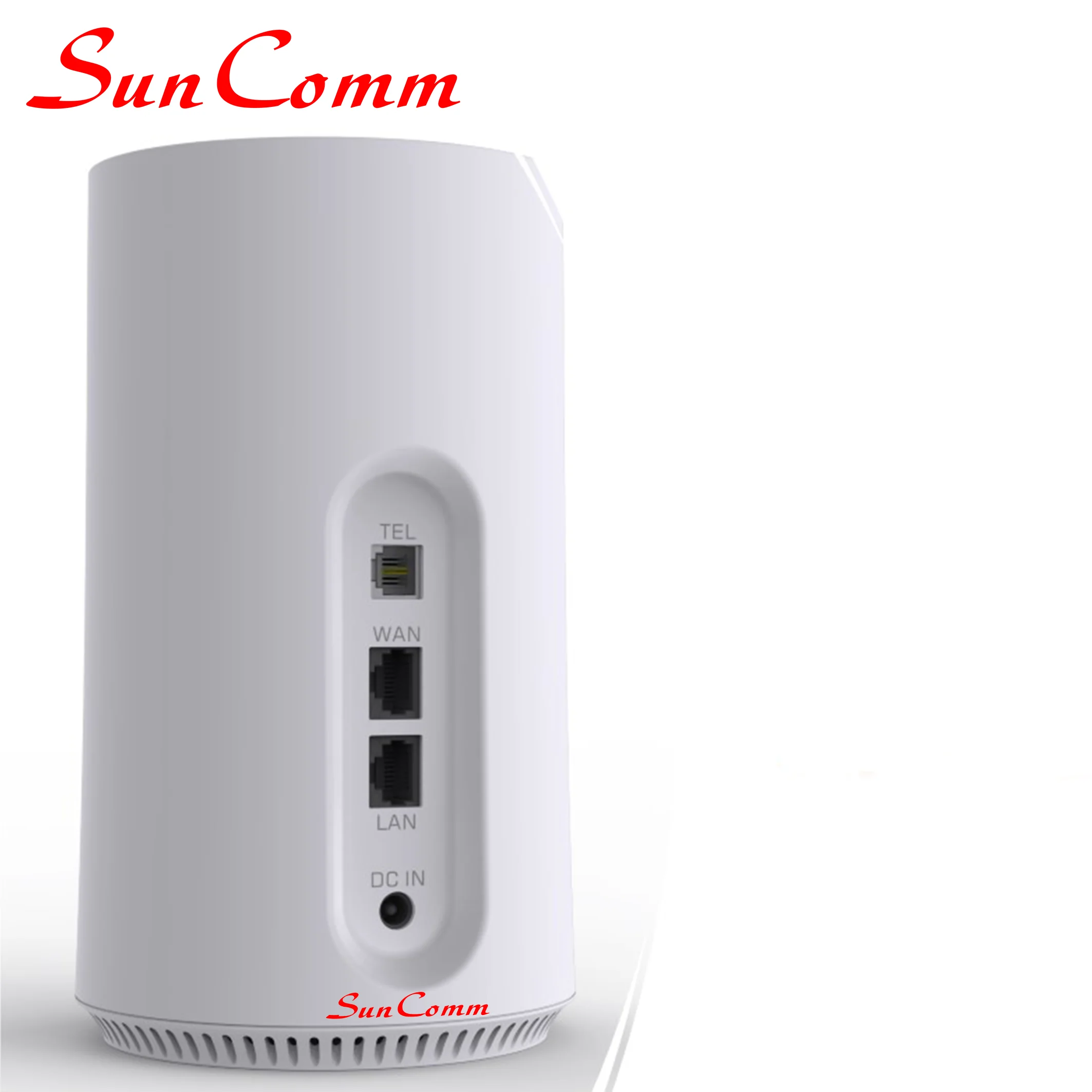

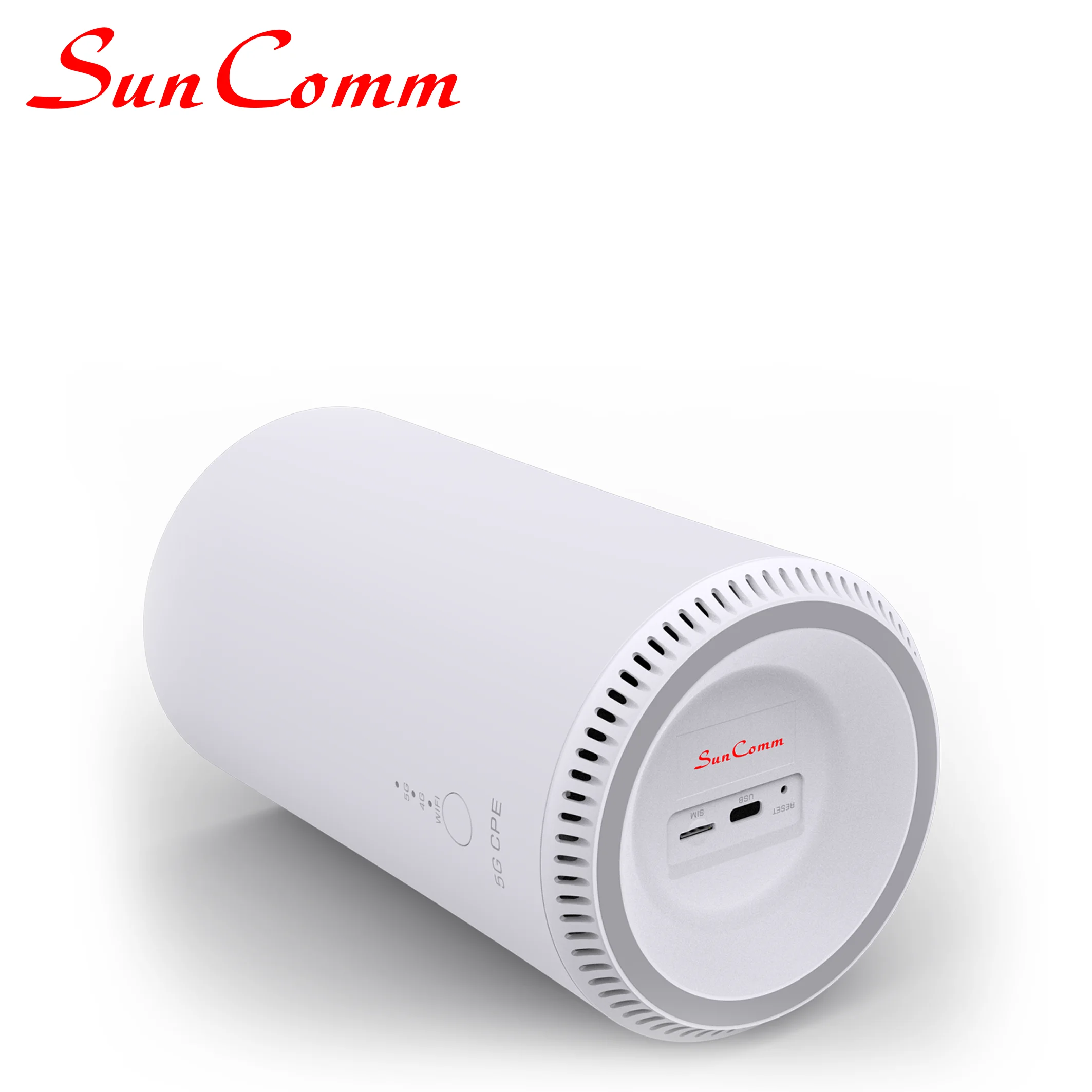

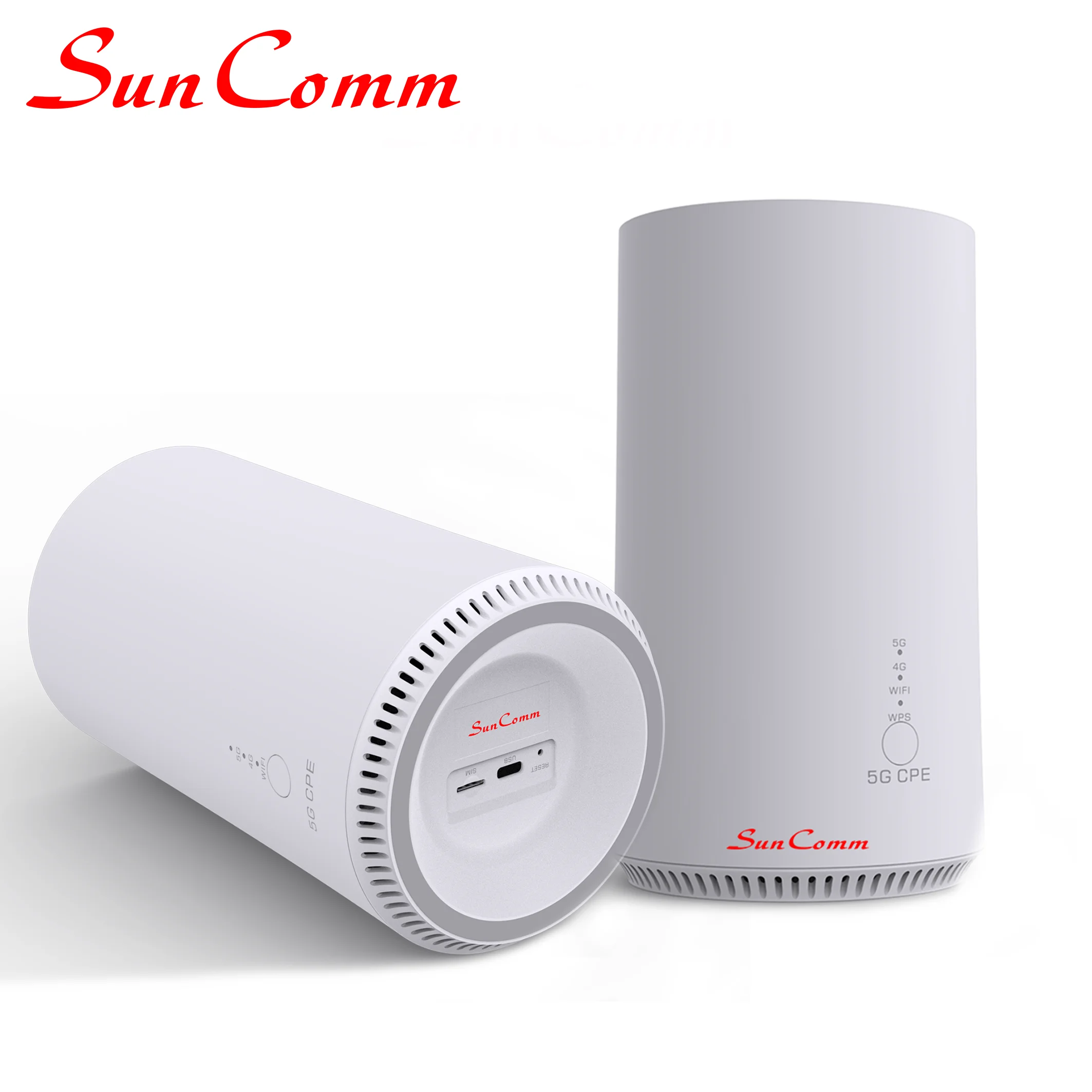

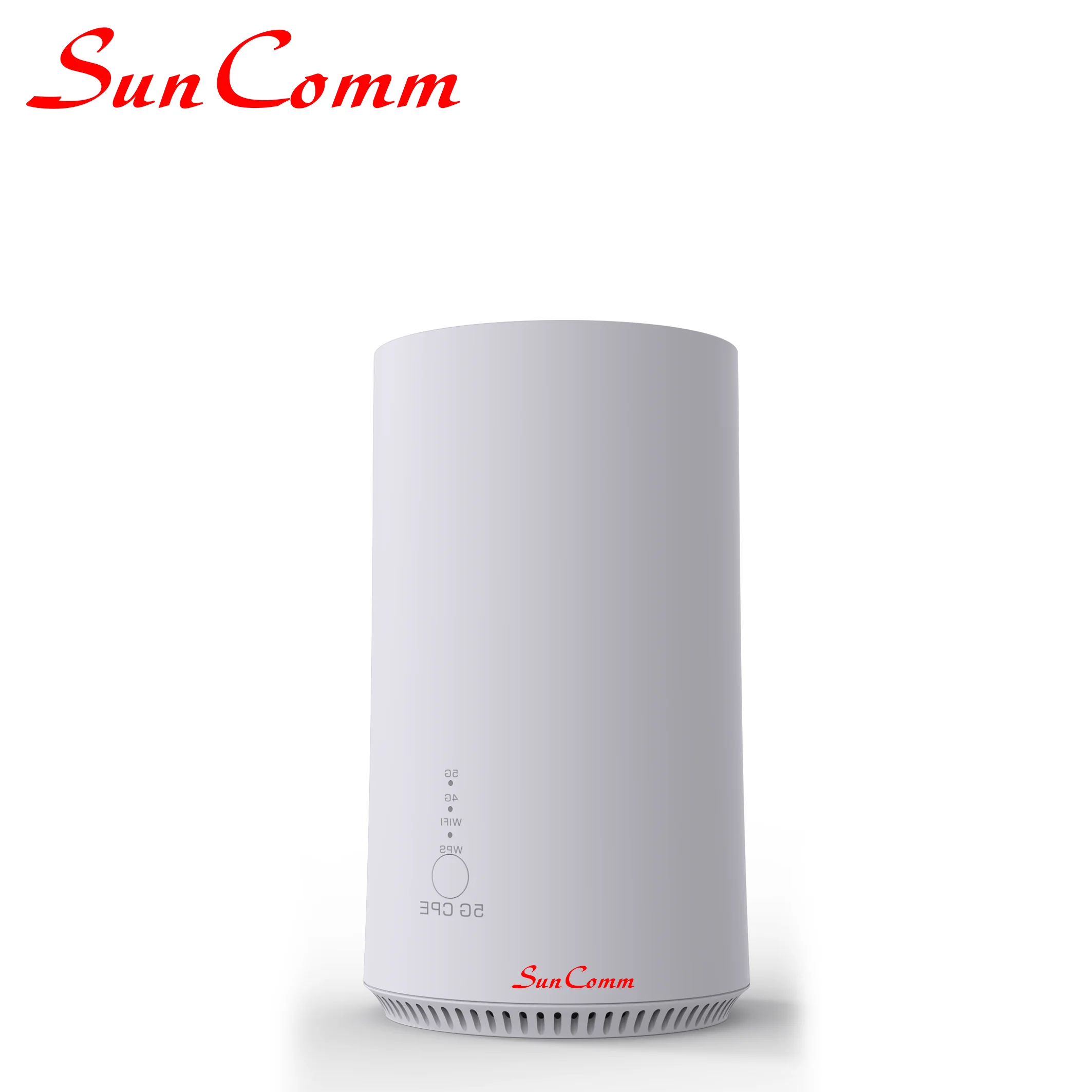

Router SC-5003EU-5G 5G indoor
Product Description
Product features:Ø Wireless MobileBroadband 3G/4G LTE/ 5G Connection. Supports 3G/4G/5G globalfrequency bands. Ø Compliant with IEEE 802.11a/b/g/n/ac/ax, AX3000, 2*2 MIMO WIFI 6E, support tri-band2.4 GHz/5 GHz/6GHz. Ø System crashes and automatically recovers. The systemautomatically maintains the data link and is permanently online. Ø Supports MultipleVPN tunnels for data encryption. Ø Power supply.DC 12V/1.5A Ø Industrial designfor harsh environment. Ø ABS plasticmaterial shell. Novel and fashionable appearance Easy to use and easy maintenanceØ User friendlyweb interface for user interaction. Ø Supports CentralManagement Platform. Ø Supports localweb UI and remote FOTA update firmware. Operating systemØ Built-in OpenWRT 19.07 operating system.
| ||||||||
3G/4G/5G Transmitting Power | Class 3 (24dBm+1/-3dB) for WCDMA bands. Class 3 (23dBm±2dB) for LTE-FDD bands. Class 3 (23dBm±2dB) for LTE-TDD bands. Class 3 (23dBm±2dB) for 5G NR bands. Class 2 (26dBm±2dB) for LTE B38/B40/B41/B42 bands. Class 2 (26dBm±2dB) for 5G NR n41/n77/n78/n79 bands. |
Antennas | 4 X 4G/5G internal antenna, 4 X 4 MIMO, with 50 Ω impedance. |
SIM card feature | |
SIM card | Supports 1 X SIM slots, 1.8V / 3V. Or 1 X eSIM card. (Optional) |
Hardware feature | |
CPU | Qualcomm SDX62, ARM Cortex - A7,1.8GHz |
MEMORY | NAND FLASH 4Gb, LPDDR4X 4Gb |
Hardware interface | 2 X LAN gigabit Ethernet ports. 1 X USB3.1 port,1 X RJ11 VOLTE (Optional) |
Watchdog | Built-in watchdog feature. |
Key button | Reset, WPS |
Protection level | Ethernet port, Contact electric shock, +/-4KV, air discharge: +/-8KV. |
LED status indicator | Power, 5G, WIFI |
Power Supply | Power supply input. DC 12V/1.5A |
Peak current | Max current. 2.5A @12V |
Working current | Max 450 mA, 5.4W @12 V |
Power Consumption | Idle. 120mA, 1.44W @12 V Data link. Max 450 mA, 5.4W @12 V Peak. Max 710mA, 8.52W @12V |
Temperature | Operating Temperature 0 ºC ~+50ºC, Storage Temperature -10~+55ºC |
Environment humidity | 5%~95%, no condensation. |
Ingress Protection | IP30 |
Housing | ABS plastic material, white shell. |
Dimensions | 110mm x 112mm x 195mm |
Installations | Desktop placement |
Weight | 370g |
Our Factory
Certifications
We also have CE Certifications for SC-368W, SC-9039-3G, SC-396-GP3G/ SC-393-GP3G, SC-9068-GH3G, SCG-31/SCG-31P, SCG-4Qe/ SCG-8Qe, SC-9029-RA,SC-9079-3G, SC-9010-GP/GP2, SC-9029-RA -RoHS certificate ,Reach
Packaging & Shipping
Welcome to Visit Us!
About SunComm
Based on the professional team members involving in computer & communication since 2001, SunComm supplies Corded and Cordless phones; Consumer, Communication & Wireless Networking devices, including but not limited to WIFI ATA WITH GSM/4G SIM CARD; 4G/3G/GSM VoIP Terminal, 4G/3G/GSM Gateway, Fixed Wireless Terminal (FWT/FCT), Fixed Wireless Phone (FWP/FCP), 4G/3G WCDMA Wireless Phone, Cellular/Telular Phone, 4G LTE Outdoor Indoor CPE, WIFI IP Phone, Wifi ATA, Wifi AP Router etc. More than 15 years’ experience in OEM/ ODM manufacturing, Marketing & exporting, which ensure SunComm can always follow closely the latest technology and match market requirement. Our markets include the USA, Latin American, Europe, South East Asia & Middle East Asia, Africa etc. SunComm believes that cooperation and creation are the only way toward the win-win success with customers. Most products have been registered in target markets by SunComm or customers locally. |
