3 Layer Galvanized Corregated Waved Steel Wholesale Ibr Metal Iron Roof Tiles Roofing Sheets Forming Making Machines
- Category: >>>
- Supplier: Zhengzhou Linran Equipment Co. Ltd.
Share on (10000019242280):
Product Overview
Description
Products Description
3 Layer Galvanized Corregated Waved Steel Wholesale Ibr Metal Iron Roof Tiles Roofing Sheets Forming Making Machines

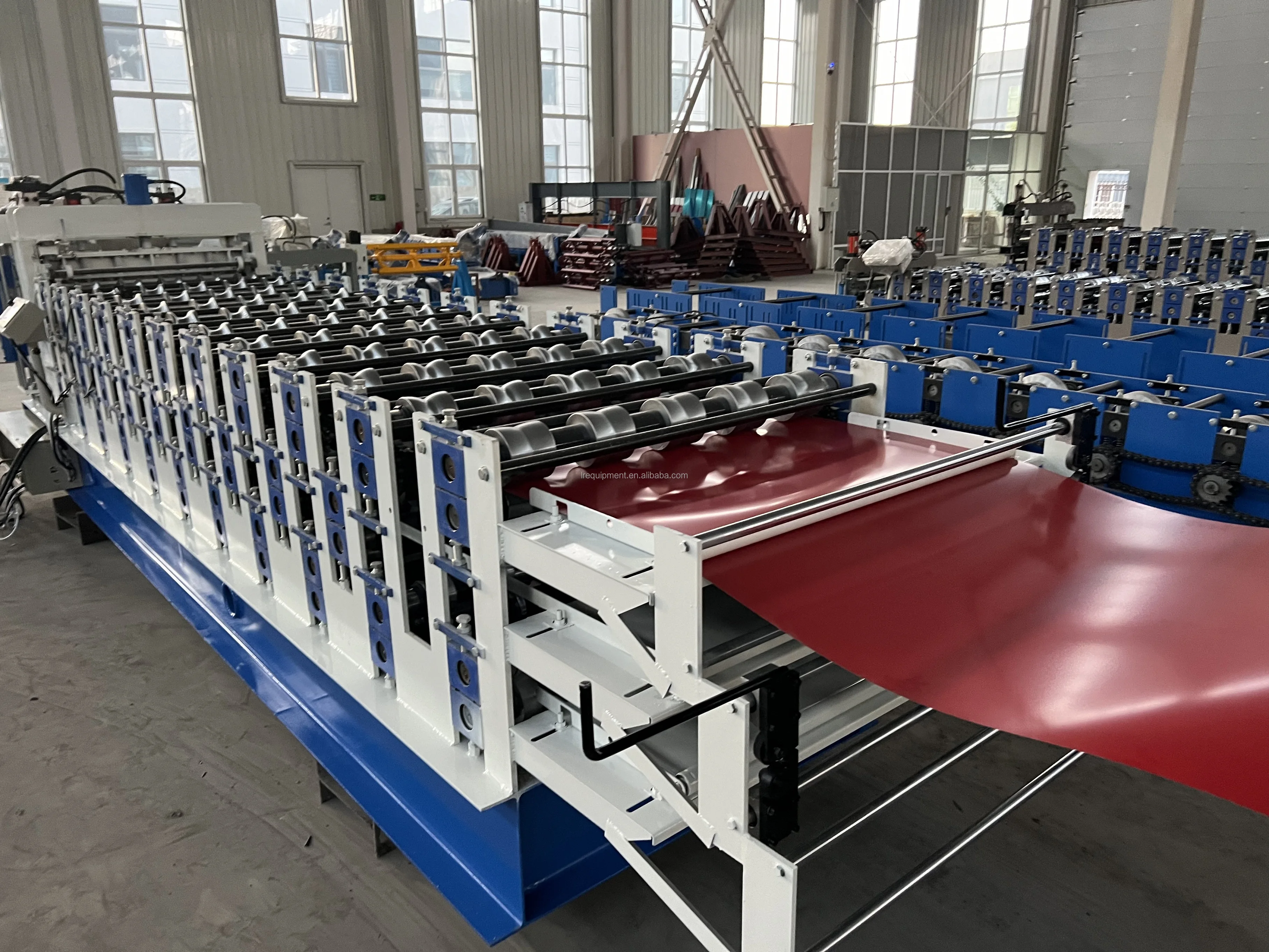

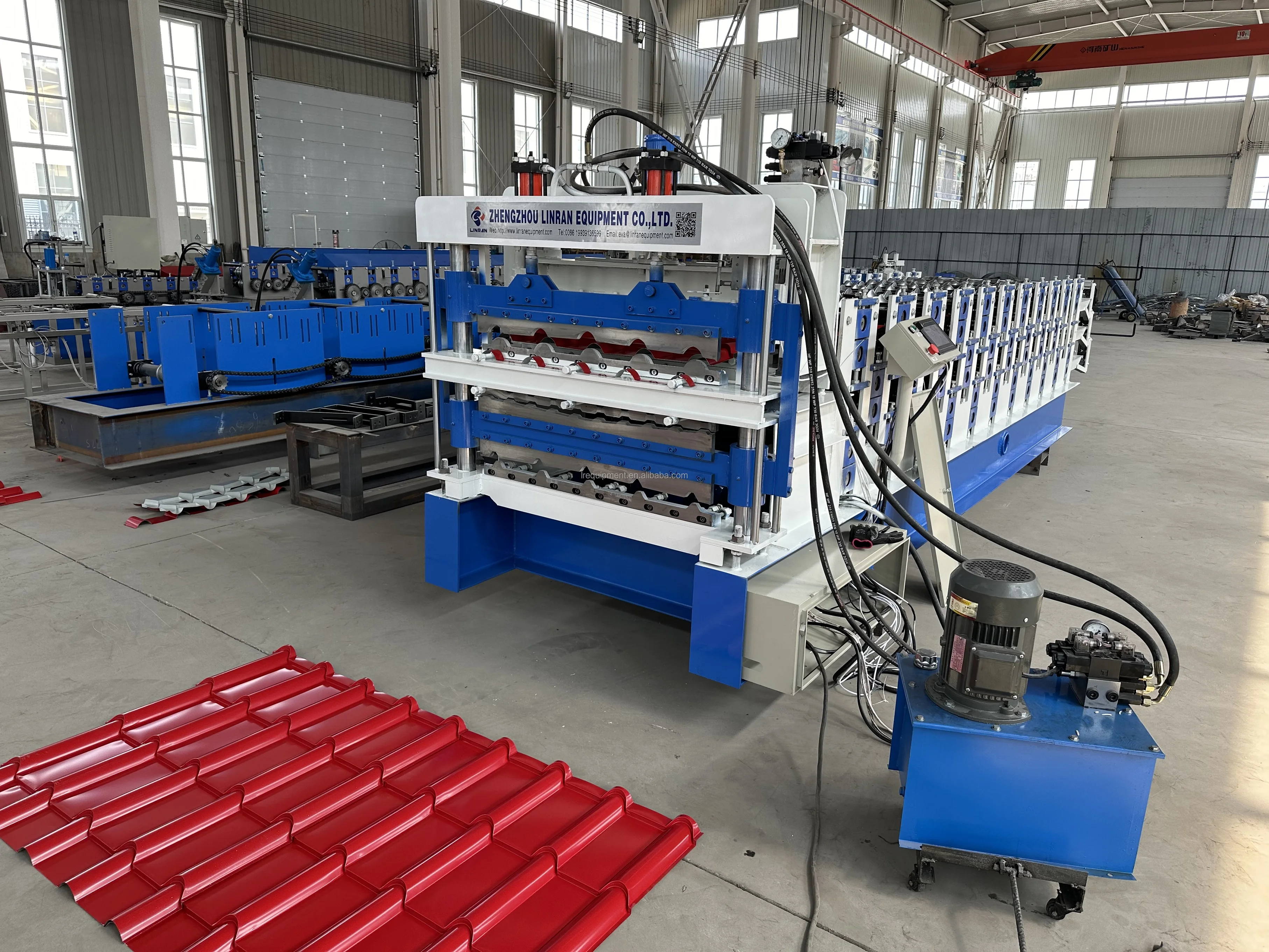

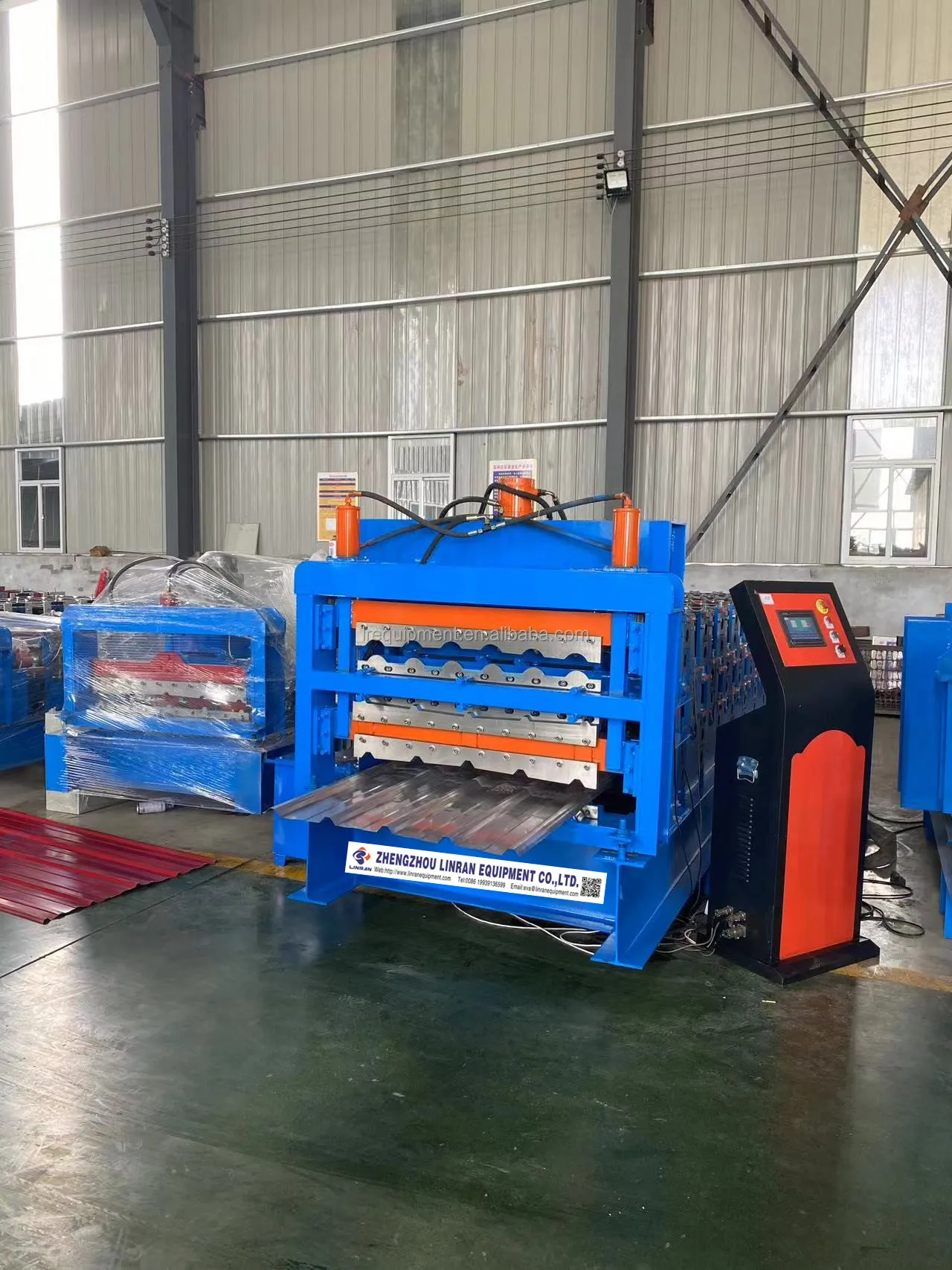

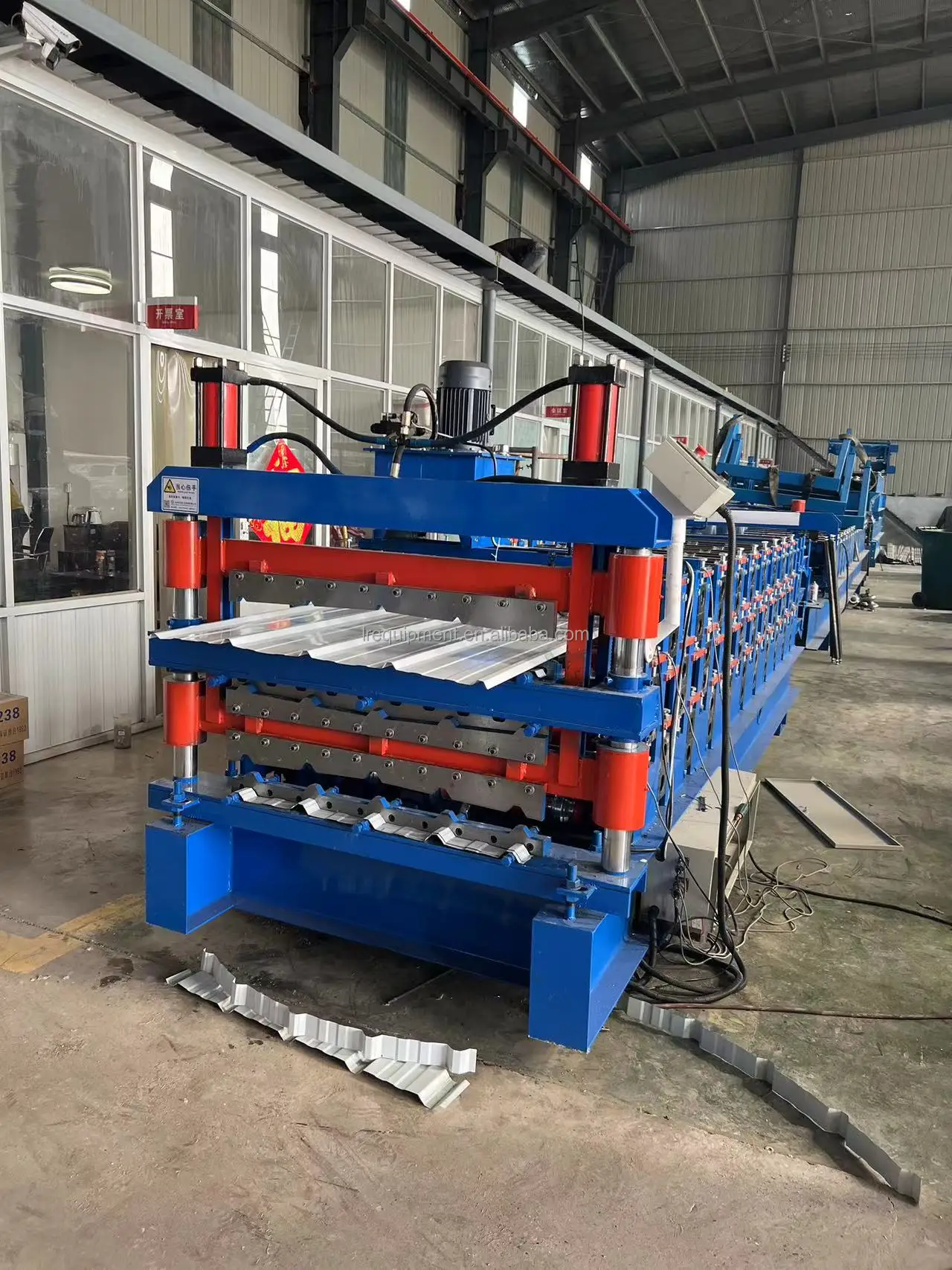

IBR Sheets And Corrugated Waved Tile Making Double Three layers roll forming machine is used to make glazed roof tile which is really beautiful material,it is much better than other ordinary metal tiles in building villas and attractions. but it is slower than other tile making machines,usually produce as a speed of 20m/min.
Product Paramenters
1 | Machine name | Roofing Tile Making Roll Forming Machine | Dimension | 4500*1100*1200mm |
2 | Weight | 4.5T | Total power | 11kw |
3 | Material | PPGL,PPGIGI,GL | Forming speed | 0-20m/min |
4 | Material thickness | 0.3-0.8mm | Tolerance | ±1mm |
5 | Middle plate | 12/14/16mm | Frame | 300/350H |
6 | Shaft | 50/60/70mm | Roller | 45#/bearing steel |
7 | Rows | 11-18 | Cutter | CR12 MOV |
8 | Size | customized | Usage | Roof/Wall |
9 | Pump | normal/water cool | Cutting way | Stop/Non-stop |
Configuration
1)manual
2)electric
3)hydraulic

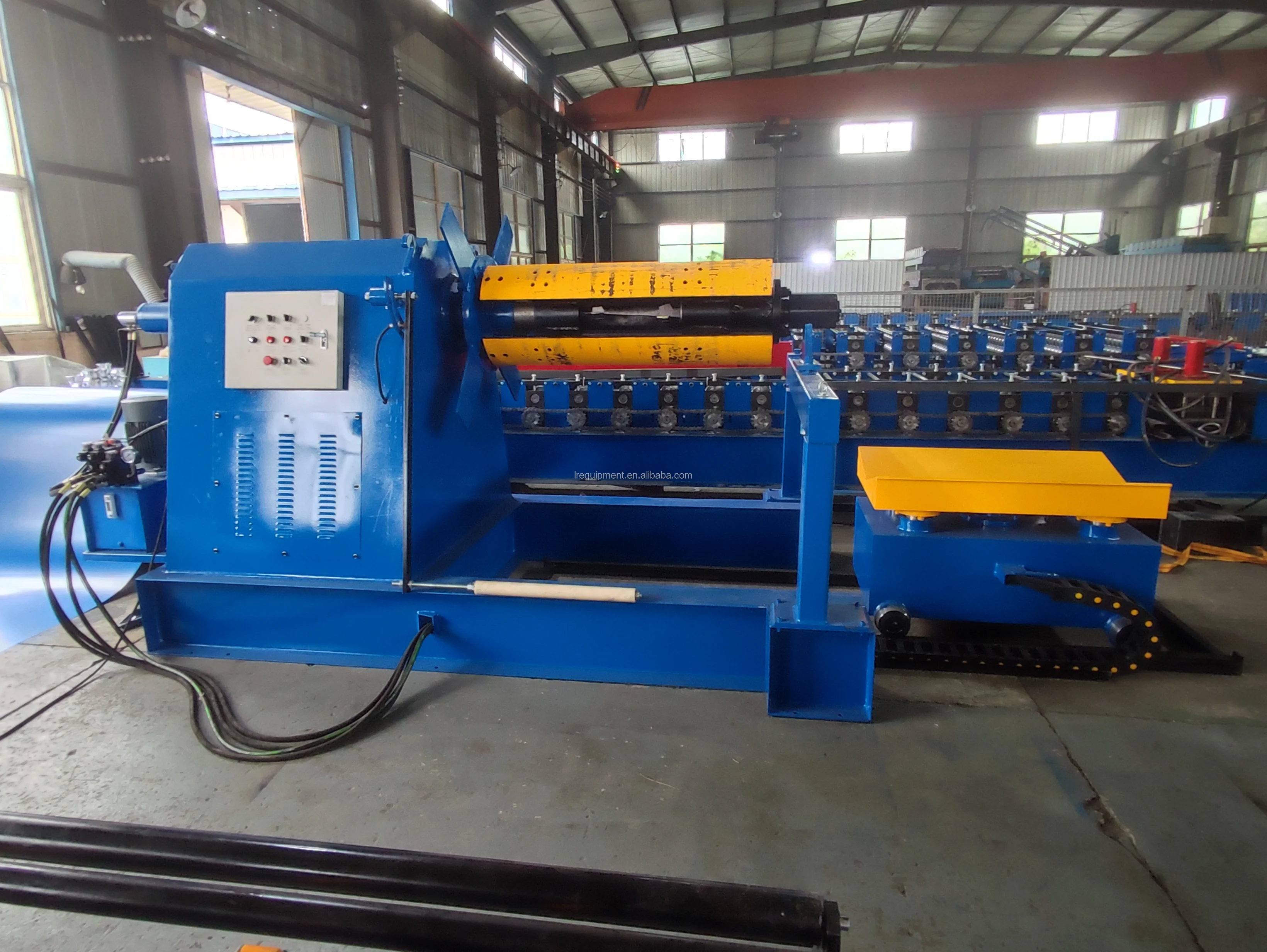

1. Loading Capacity: 5T
2. Coil Width: Max. 800mm
3. Coil Inner Diameter: 450-550mm
4. Structure: Welded by The Steel Plates and Profiled Bar.
5. Size: ~1800×1600×1500mm(L×W×H)
2. Coil Width: Max. 800mm
3. Coil Inner Diameter: 450-550mm
4. Structure: Welded by The Steel Plates and Profiled Bar.
5. Size: ~1800×1600×1500mm(L×W×H)

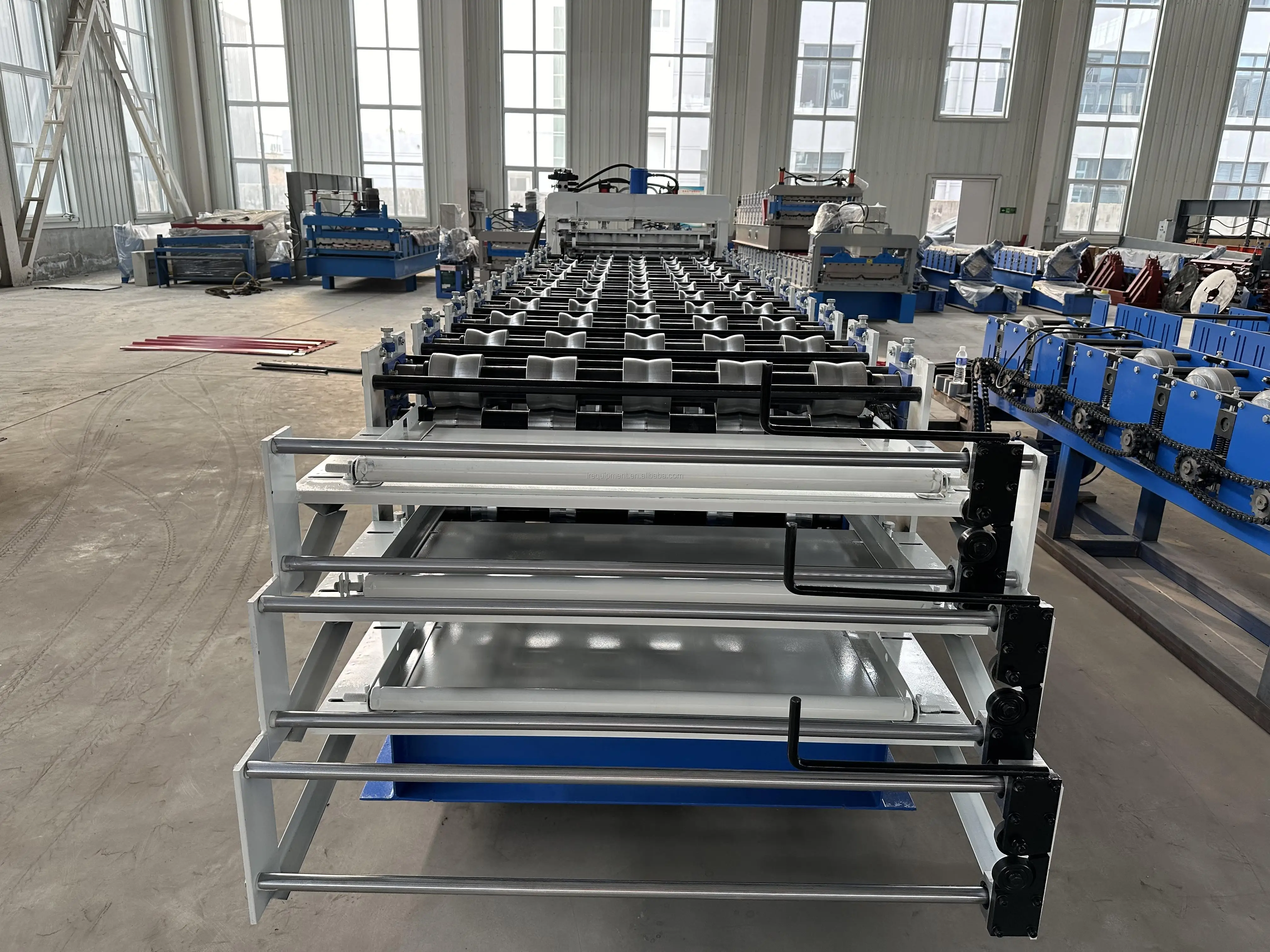

With 4 adjust wheels feeding platform
Feeding Type:Adjustable
Feeding Width Range: 170-550mm
Adjustable Center of The Forming Rollers and of Sufficient Length to Prevent Laternal Movement of The Strip on its Entry to
Leveling Device. And The Material of Rollers Could Stop Scratching The Zinc of The Steel
Feeding Width Range: 170-550mm
Adjustable Center of The Forming Rollers and of Sufficient Length to Prevent Laternal Movement of The Strip on its Entry to
Leveling Device. And The Material of Rollers Could Stop Scratching The Zinc of The Steel

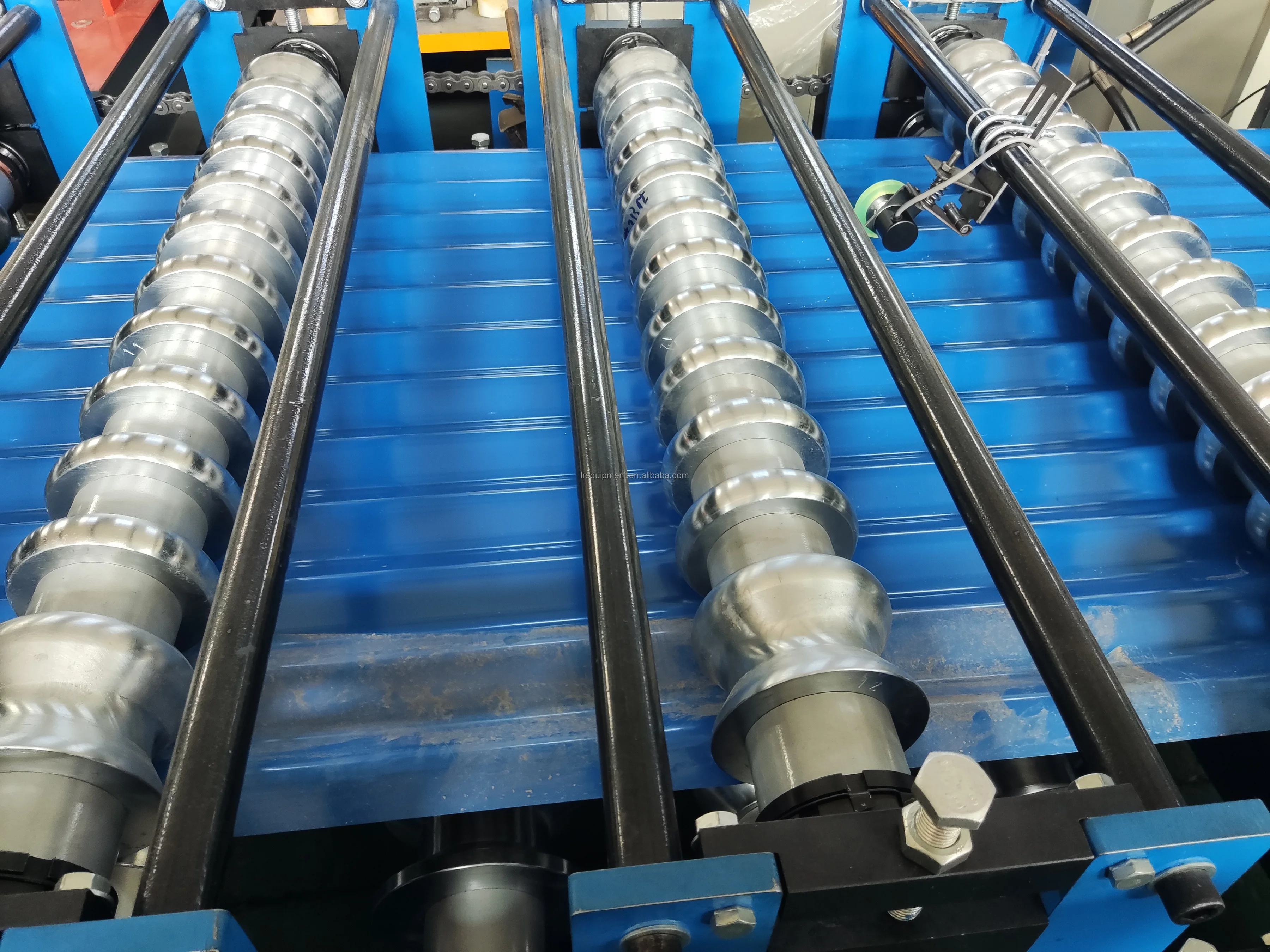

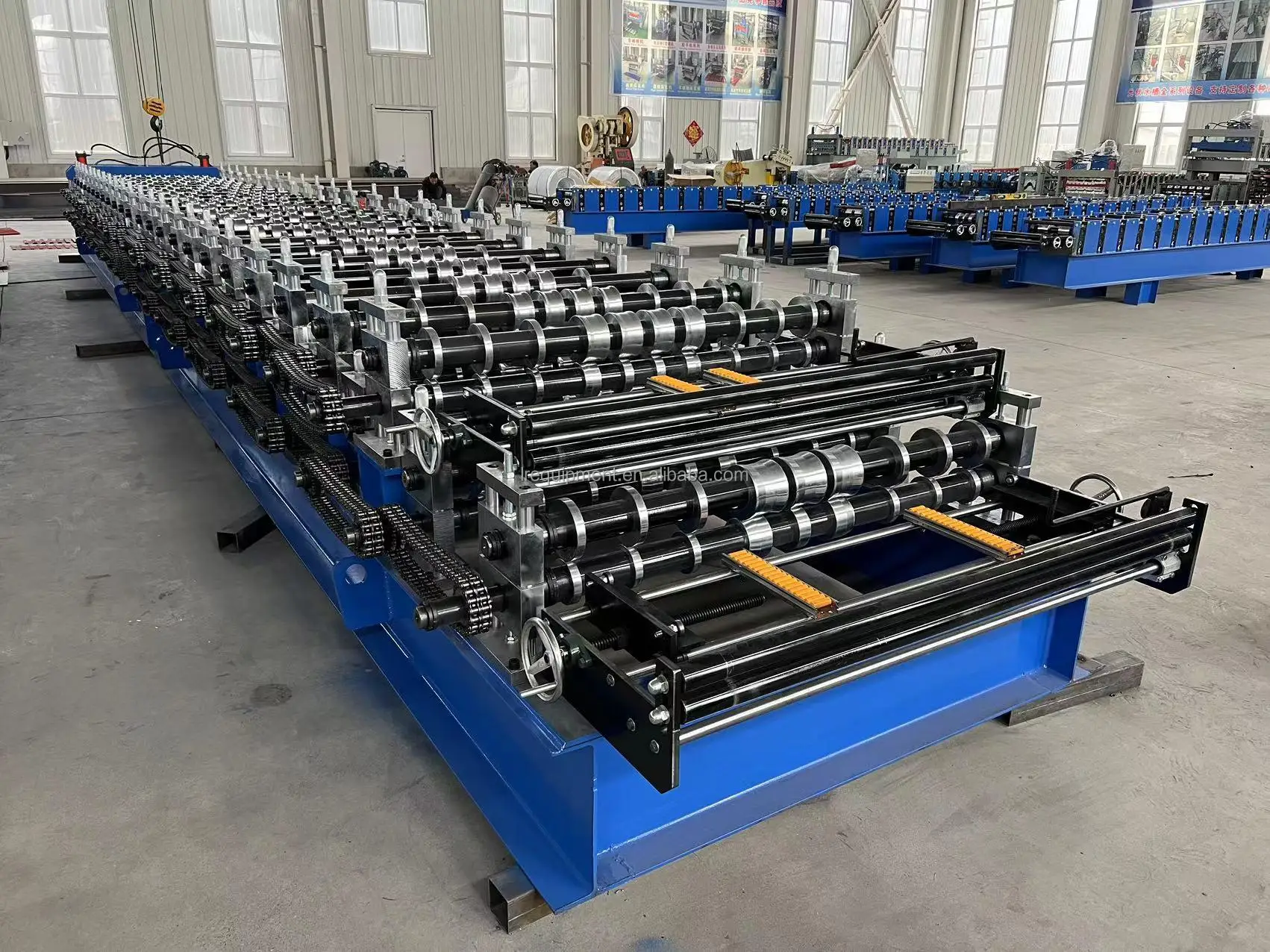

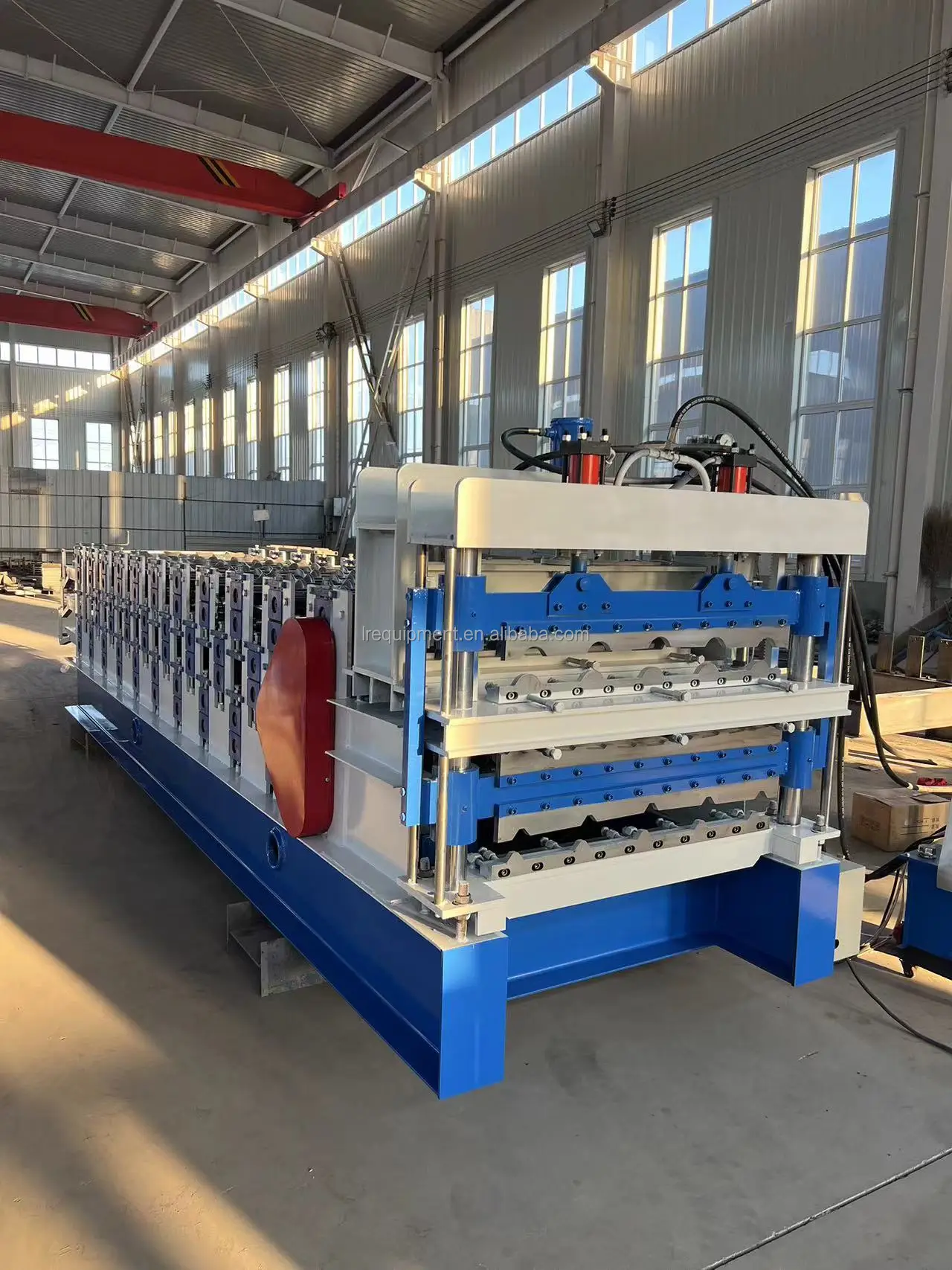

Main roll forming part
1. Machine frame:350mm H beam structure , 300H supporter
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain
2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.
3. Roller Material:Main rollers:GCr15
Supporting side rollers:Cr12 Roller
4. Shafts Material:Motor drive shaft: 40Cr steel
Other roll shaft: 45# steel
6. Forming speed: 0-30 m/min
7. Transmission way: By chain
50mm solid
made of 45 # steel with lathing,plating,quenching process, make the shaft strong and durable

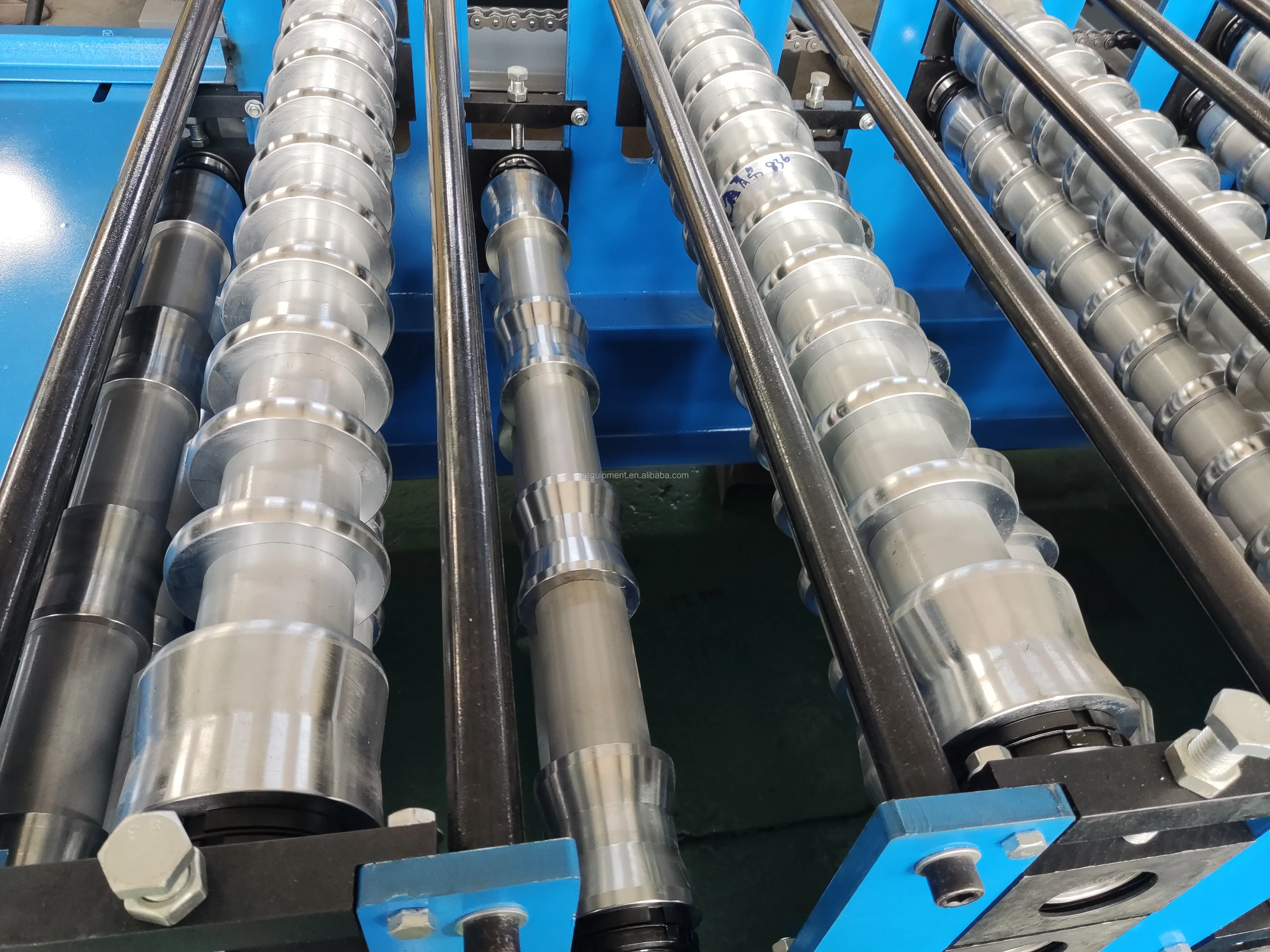

Bearing steel roller suitable for 0.2-1.5 mm thickness galvanized sheet - aluminum - copper
Hard chrome plated surface
Hard chrome plated surface
Chain transmission
1/1.2/1.5/2 -inch sprocket chain hanging design is more beautiful, the shaft tension is more uniform
1/1.2/1.5/2 -inch sprocket chain hanging design is more beautiful, the shaft tension is more uniform

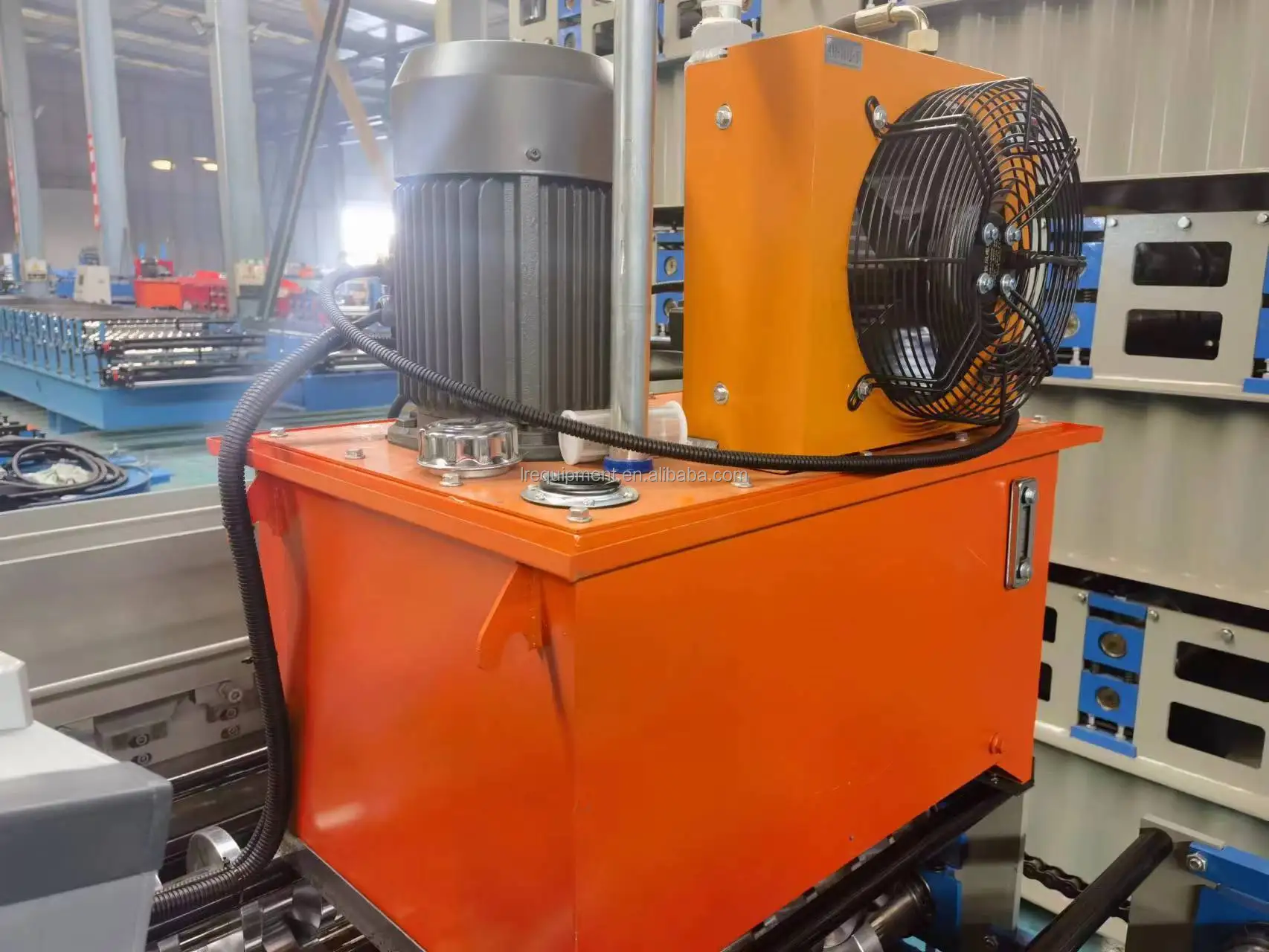

4/5/5/7/5 kW air-cooled hydraulic pump station
Hydraulic station pressure in 10-12mpa plus 45 hydraulic oil
Advantages: can be 24 hours uninterrupted work will not produce hydraulic pump station overheating phenomenon
Hydraulic station pressure in 10-12mpa plus 45 hydraulic oil
Advantages: can be 24 hours uninterrupted work will not produce hydraulic pump station overheating phenomenon

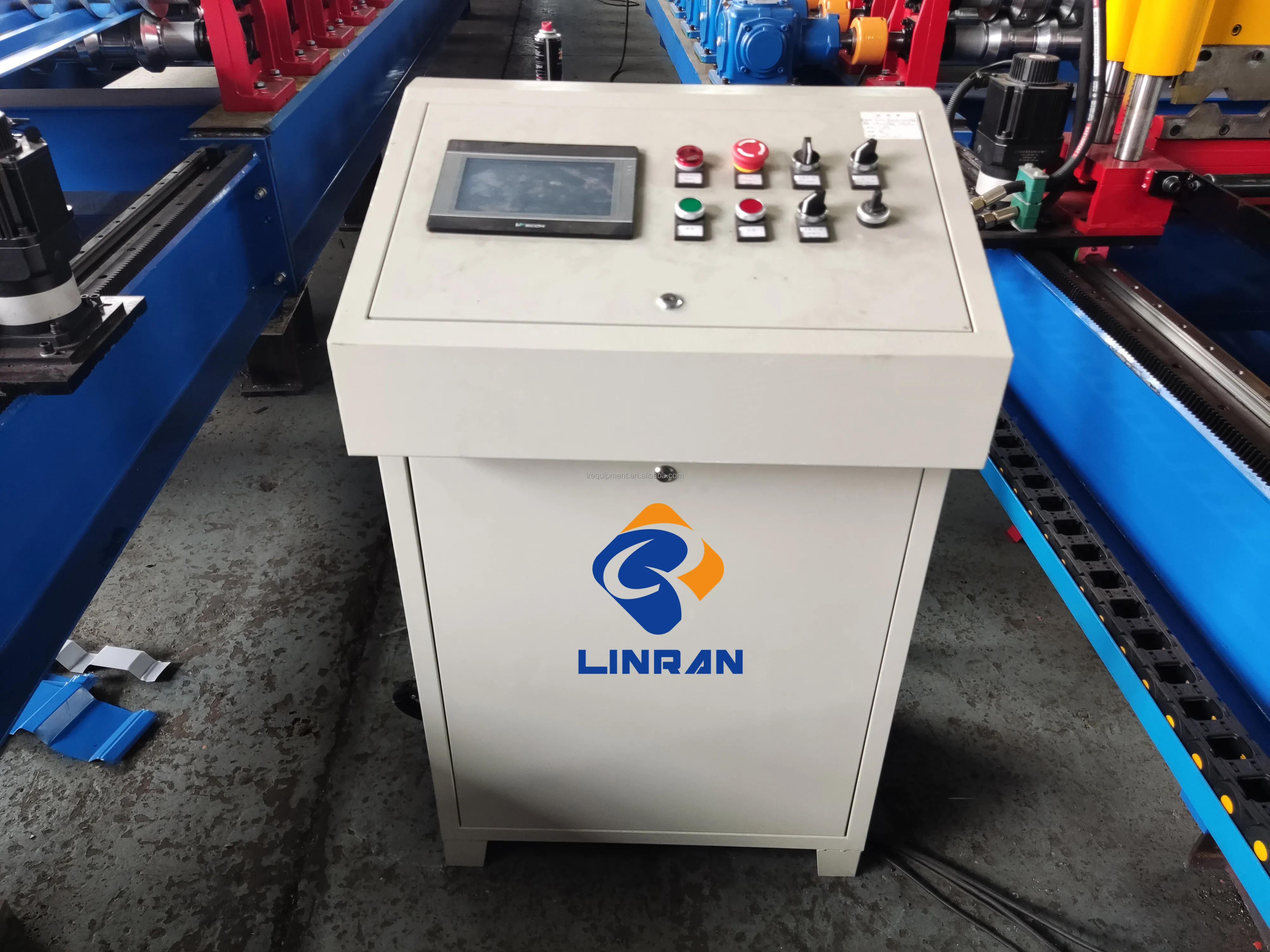

Control panel
machine interface, to achieve the interaction between people and PLC.
The operator automatically runs (programmable control) through the program set and monitors the control process to realize the operator, control the production line and modify the control parameters, and can real-time monitor the equipment running state, running parameters and faults, instructions, etc.
Length: customized as per profile
Power:3KW

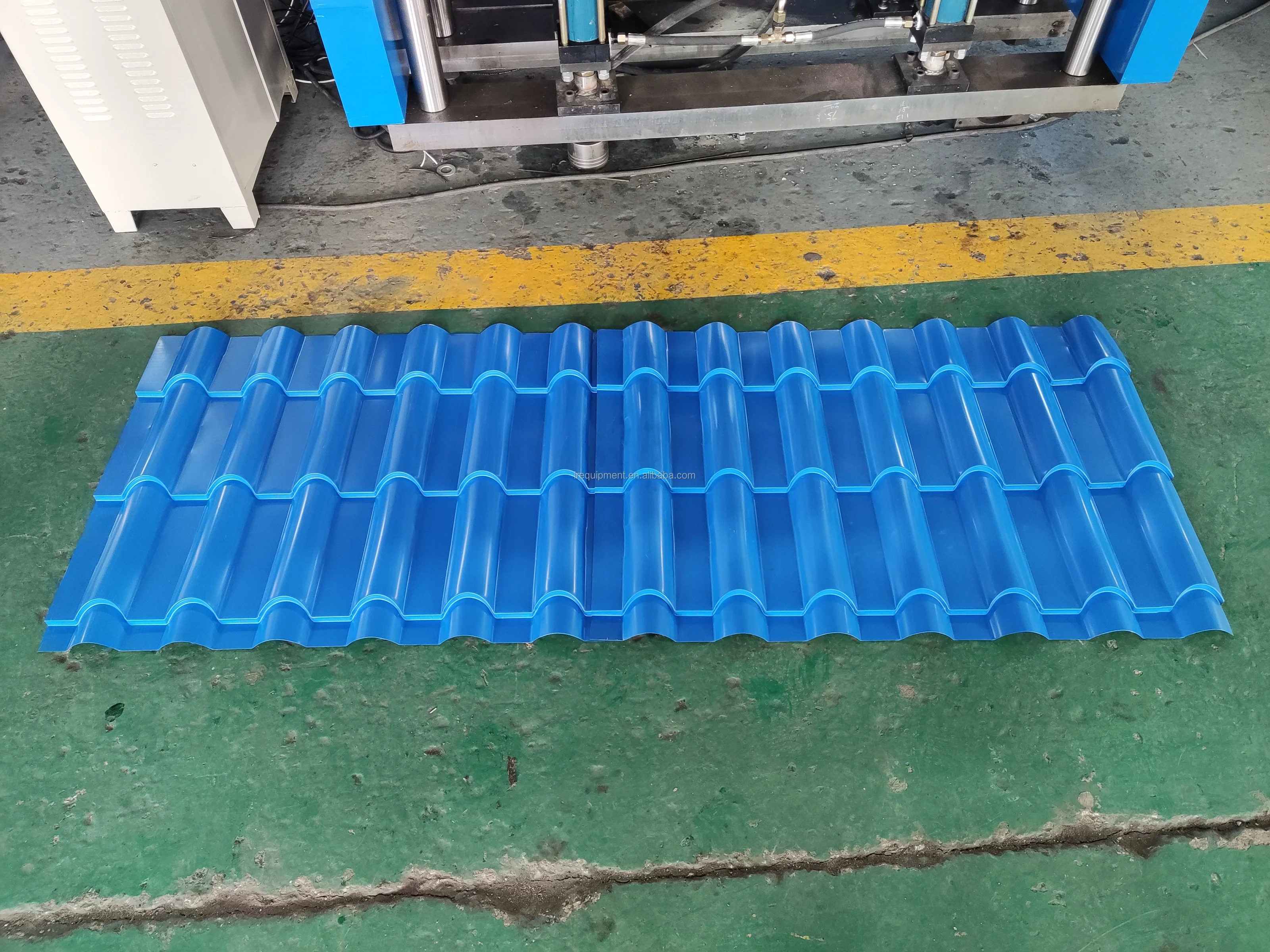

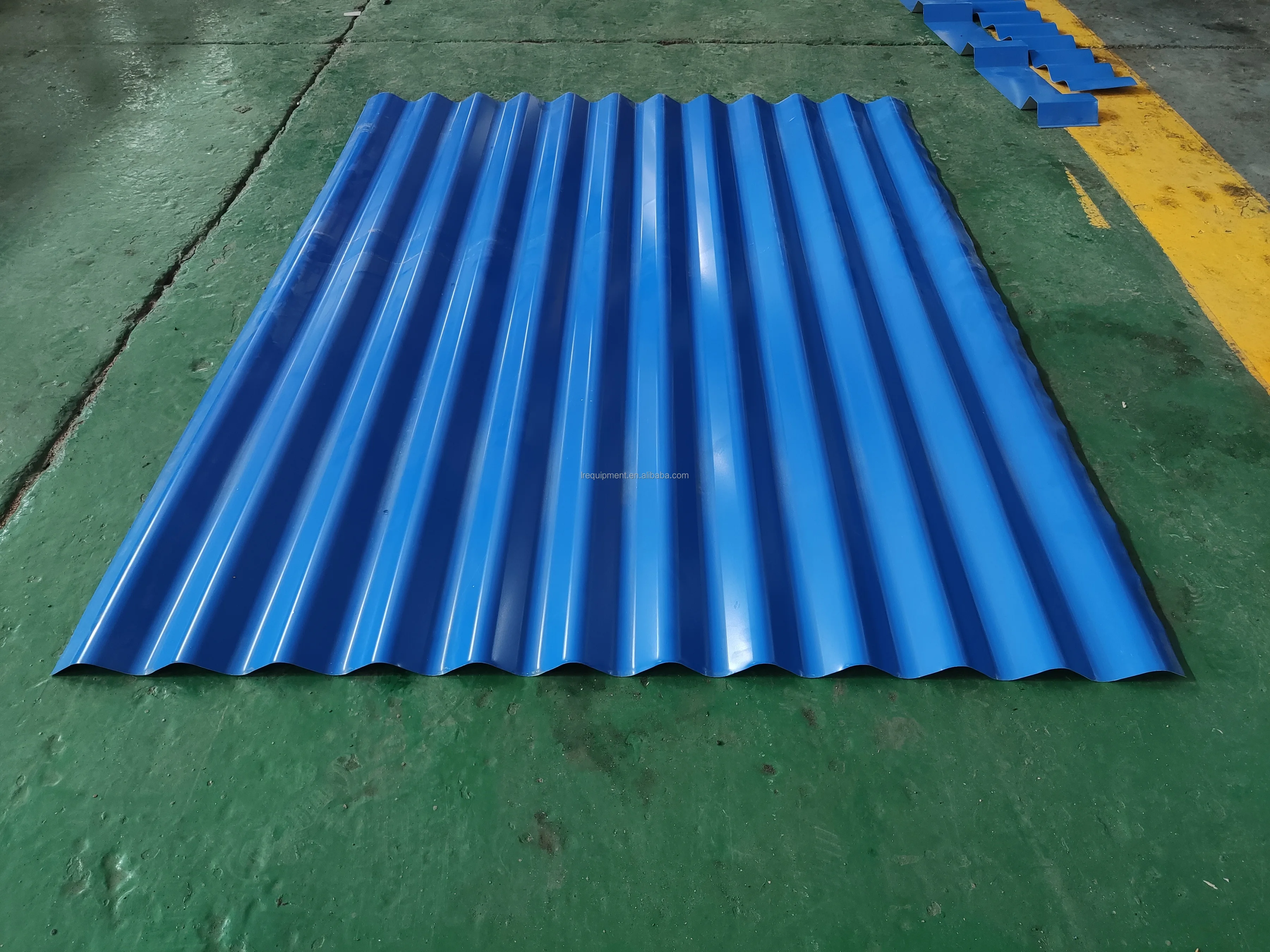

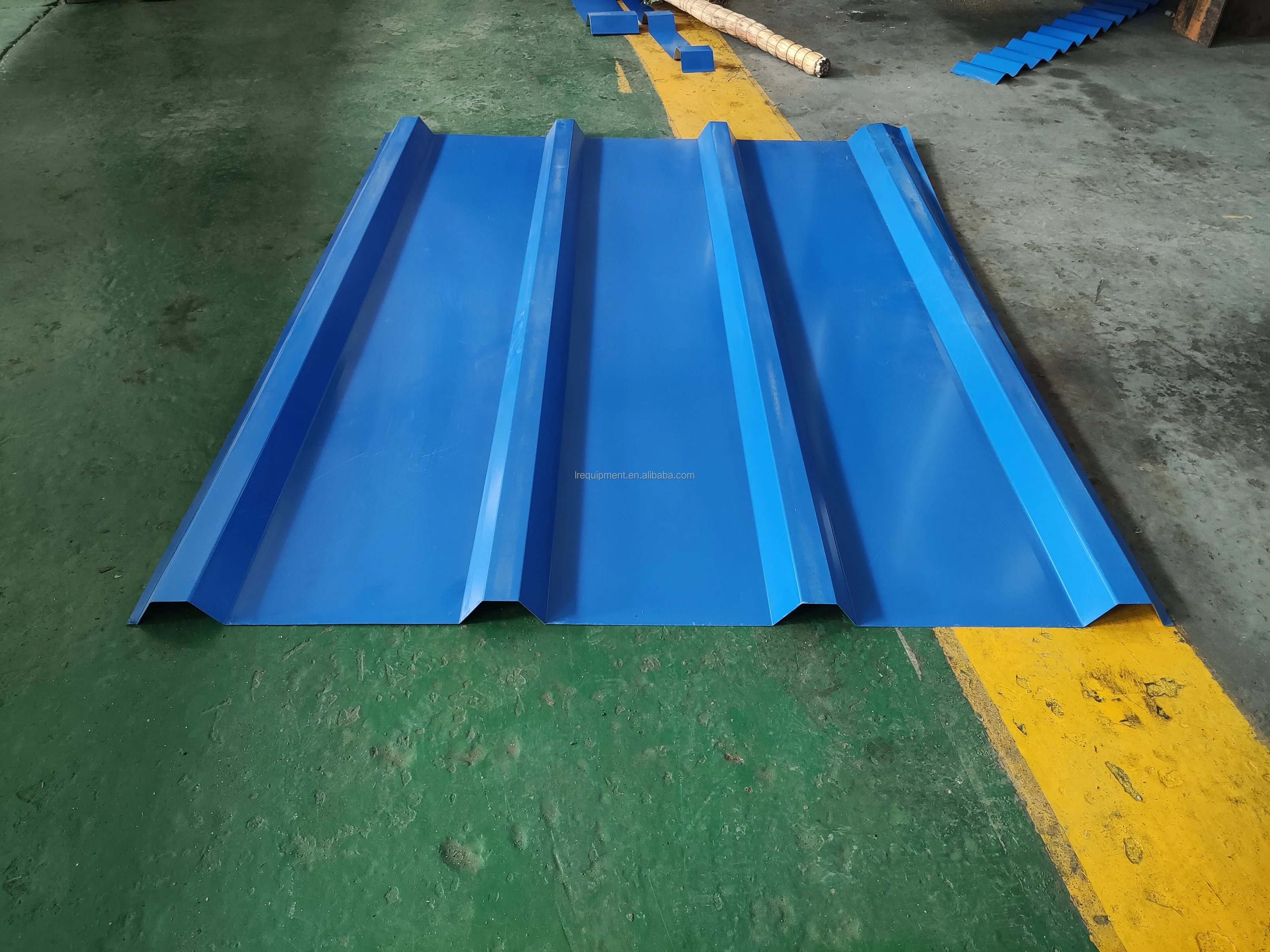

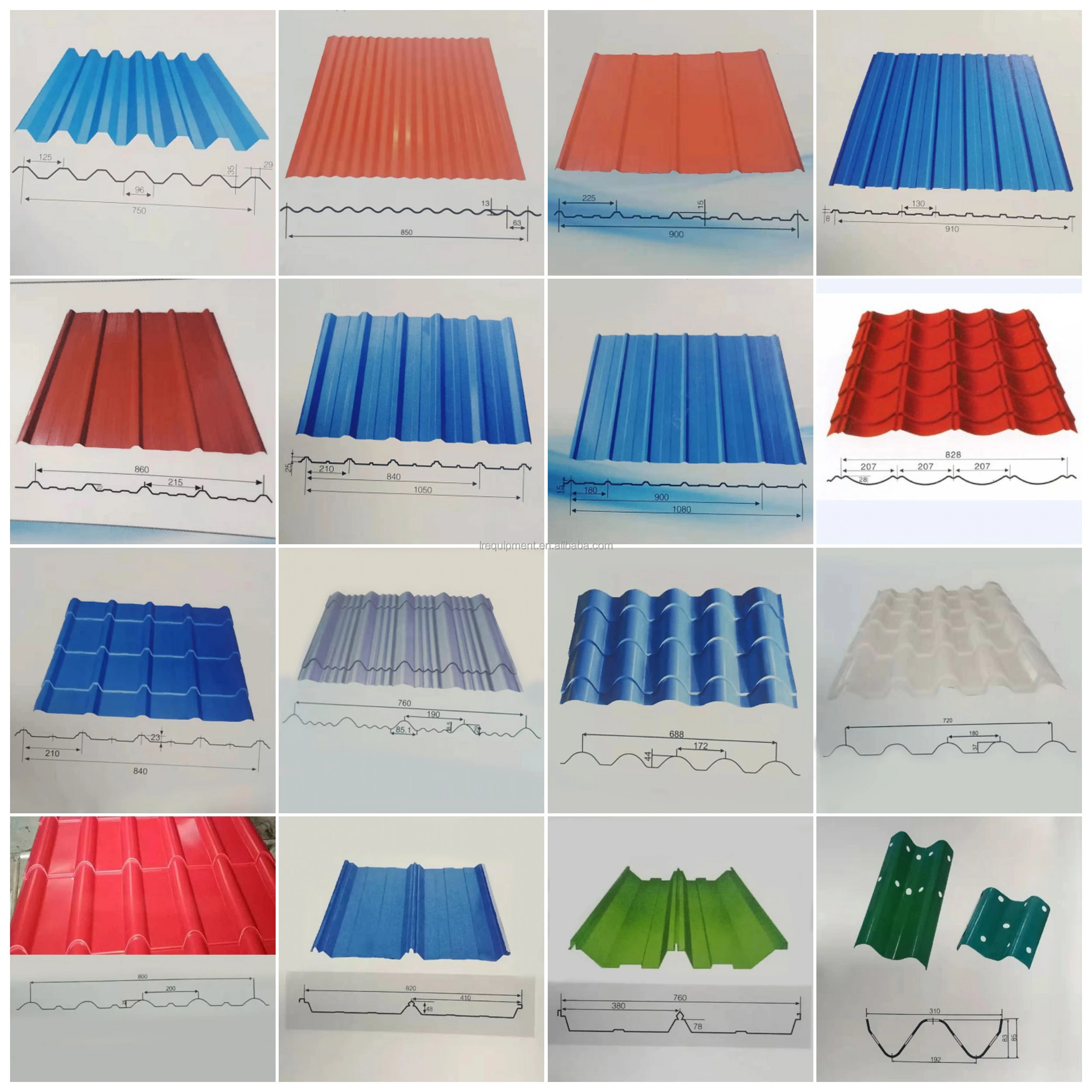

Forming profile show
Product packaging

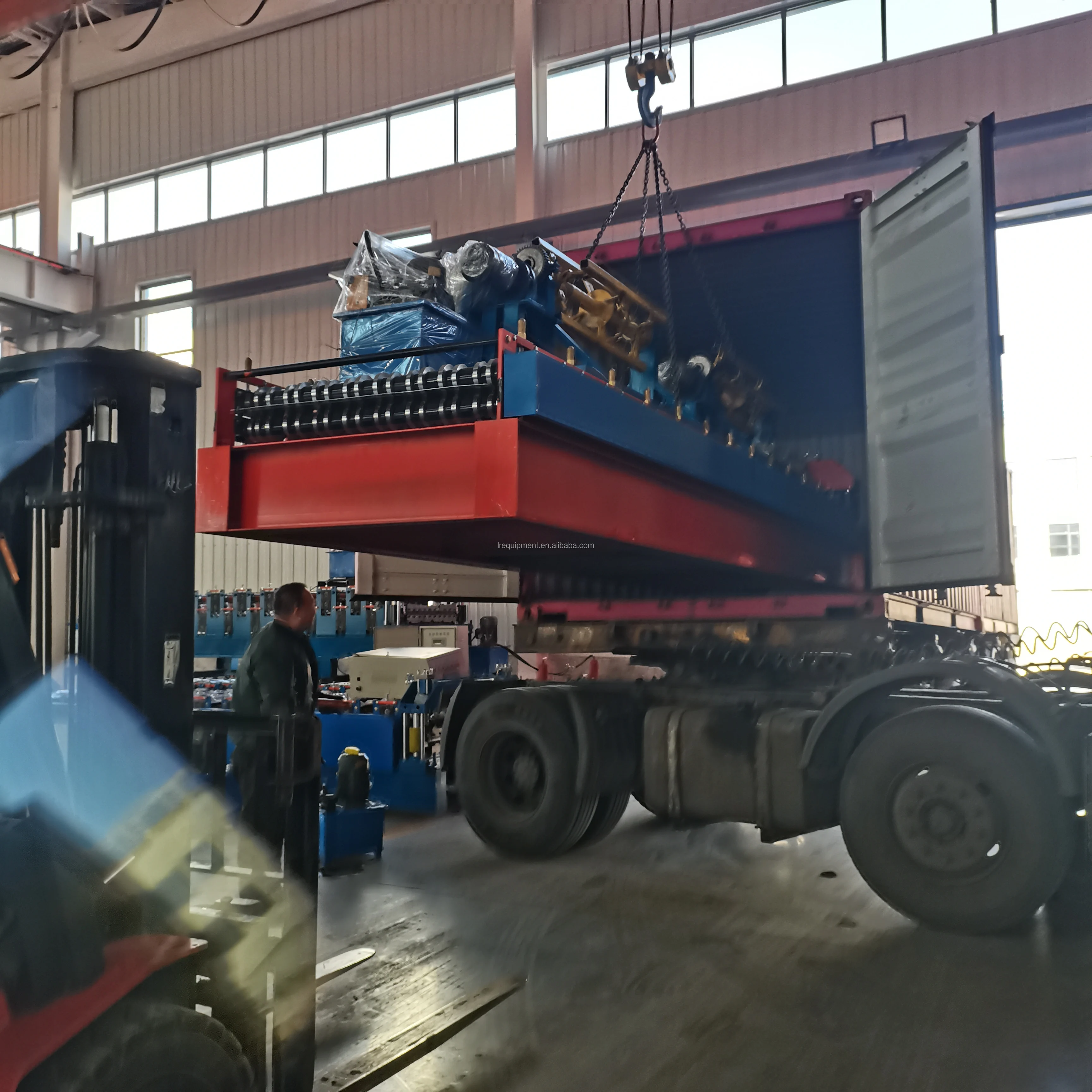

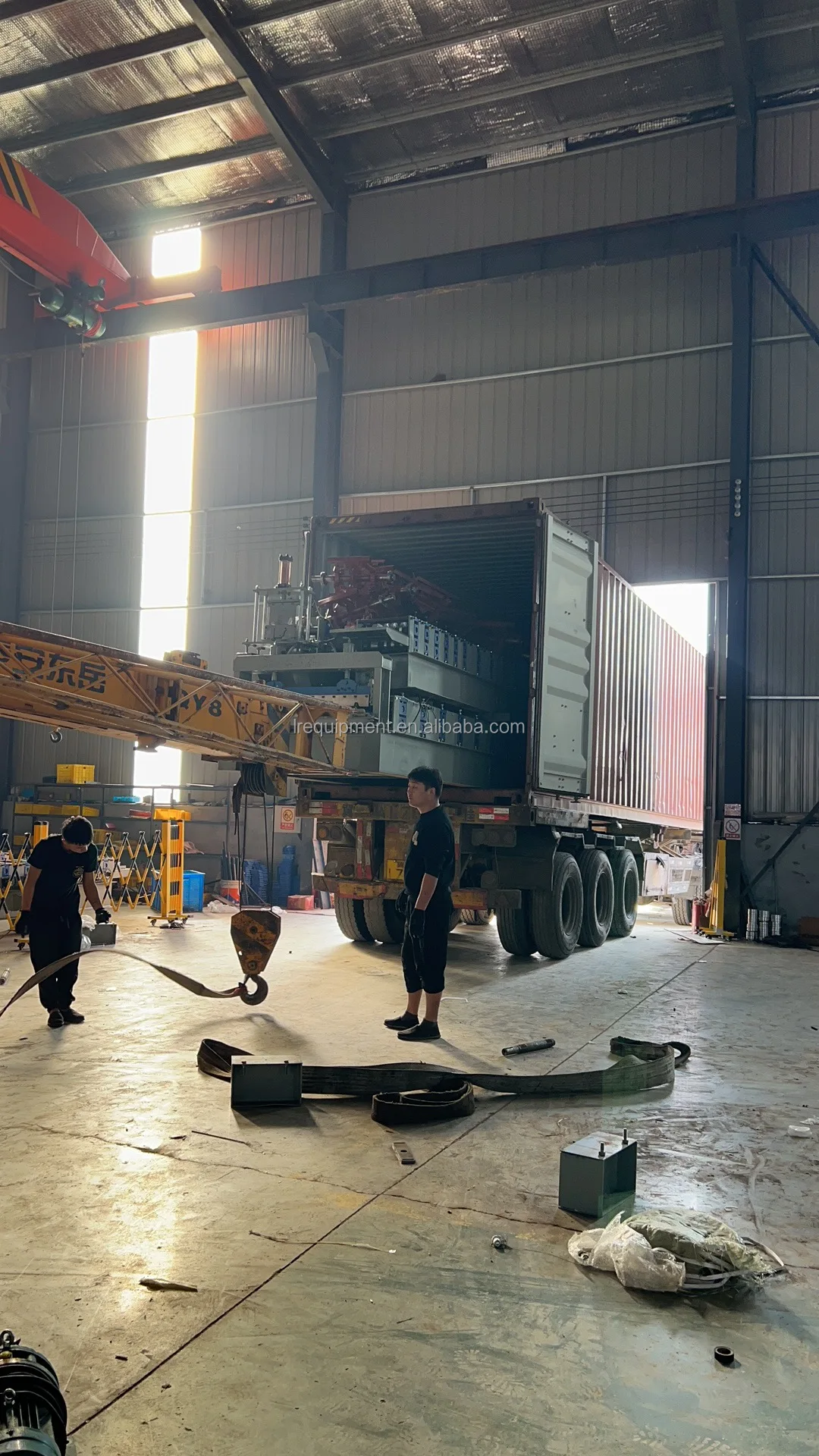

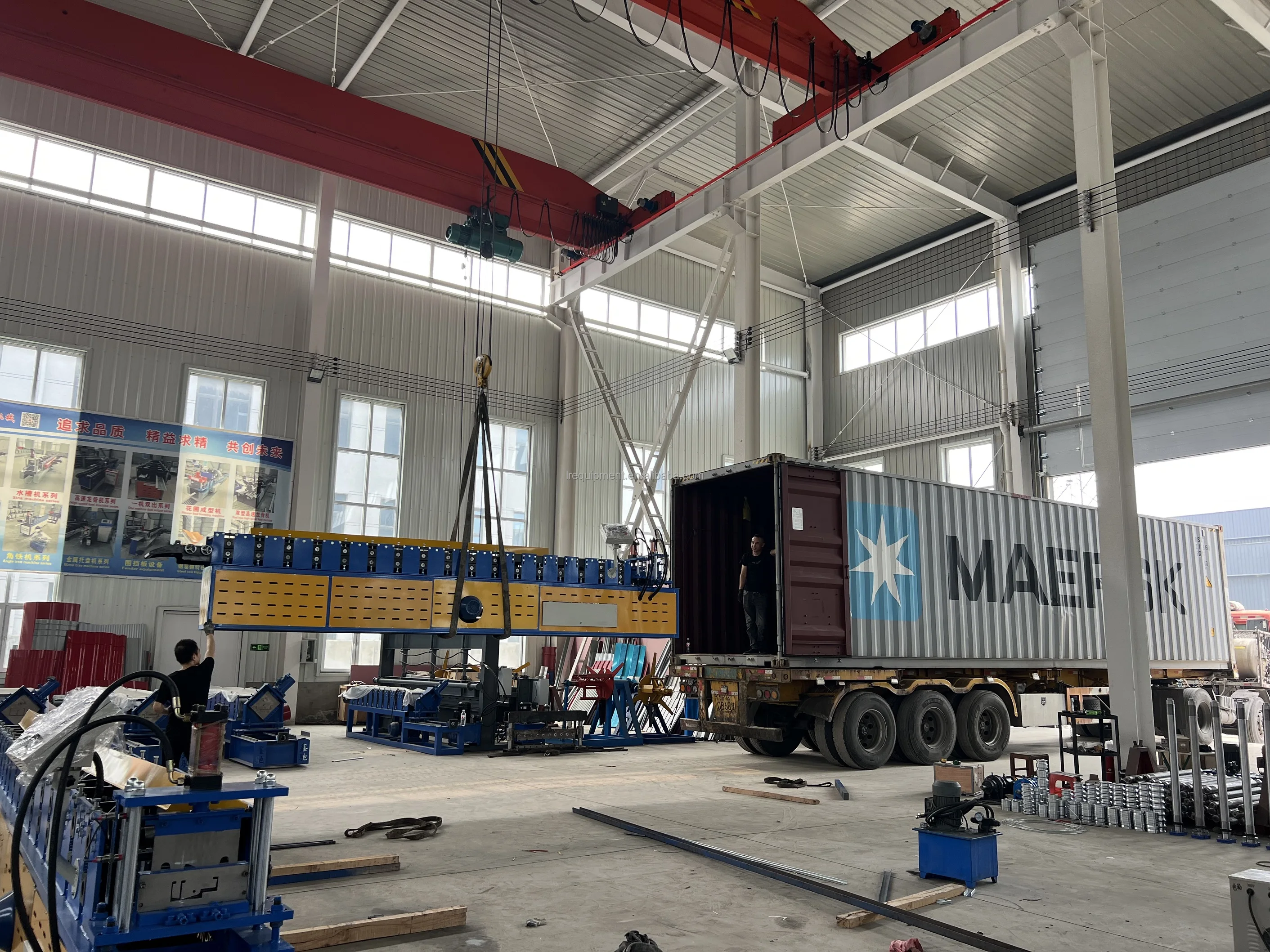

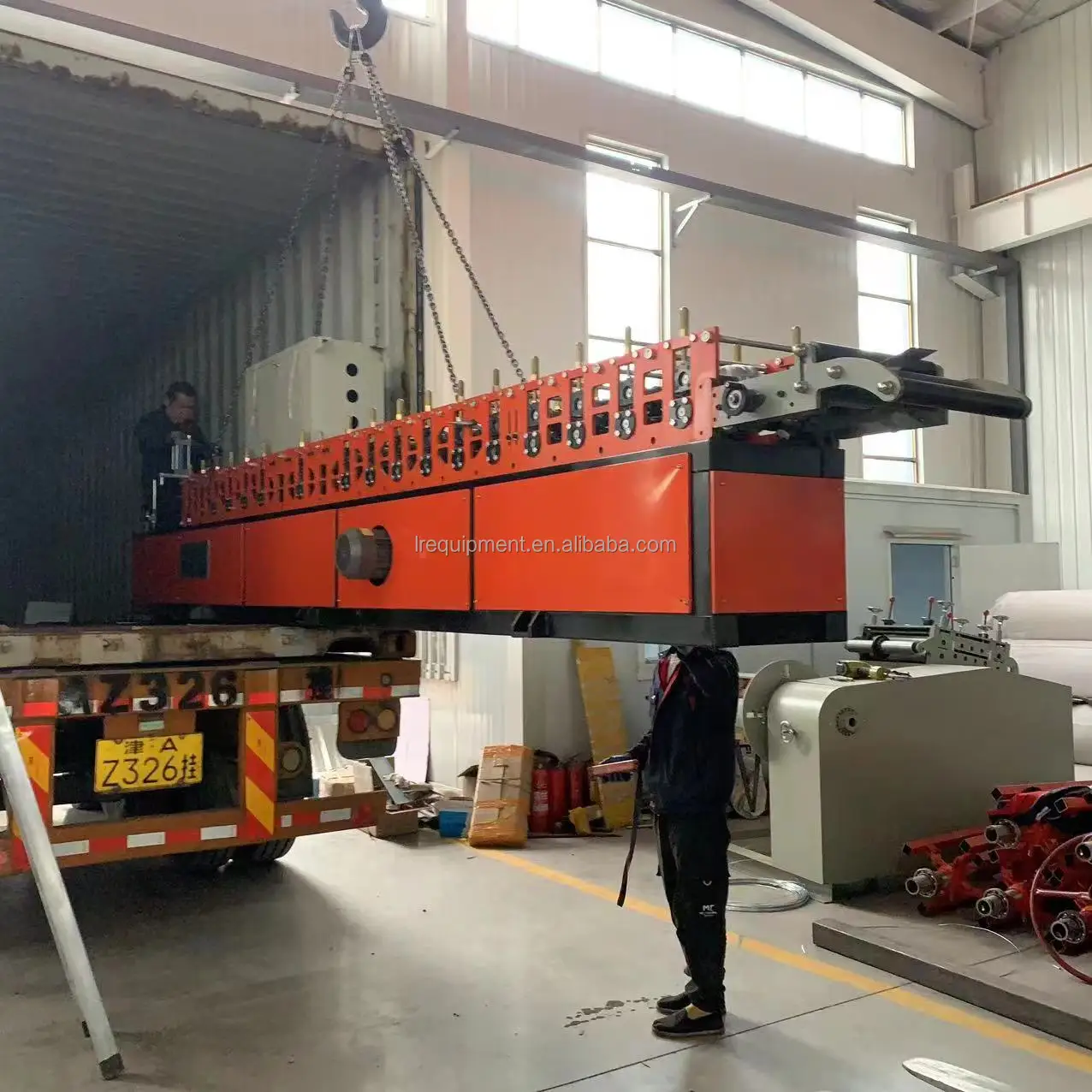

Packing & Delivery

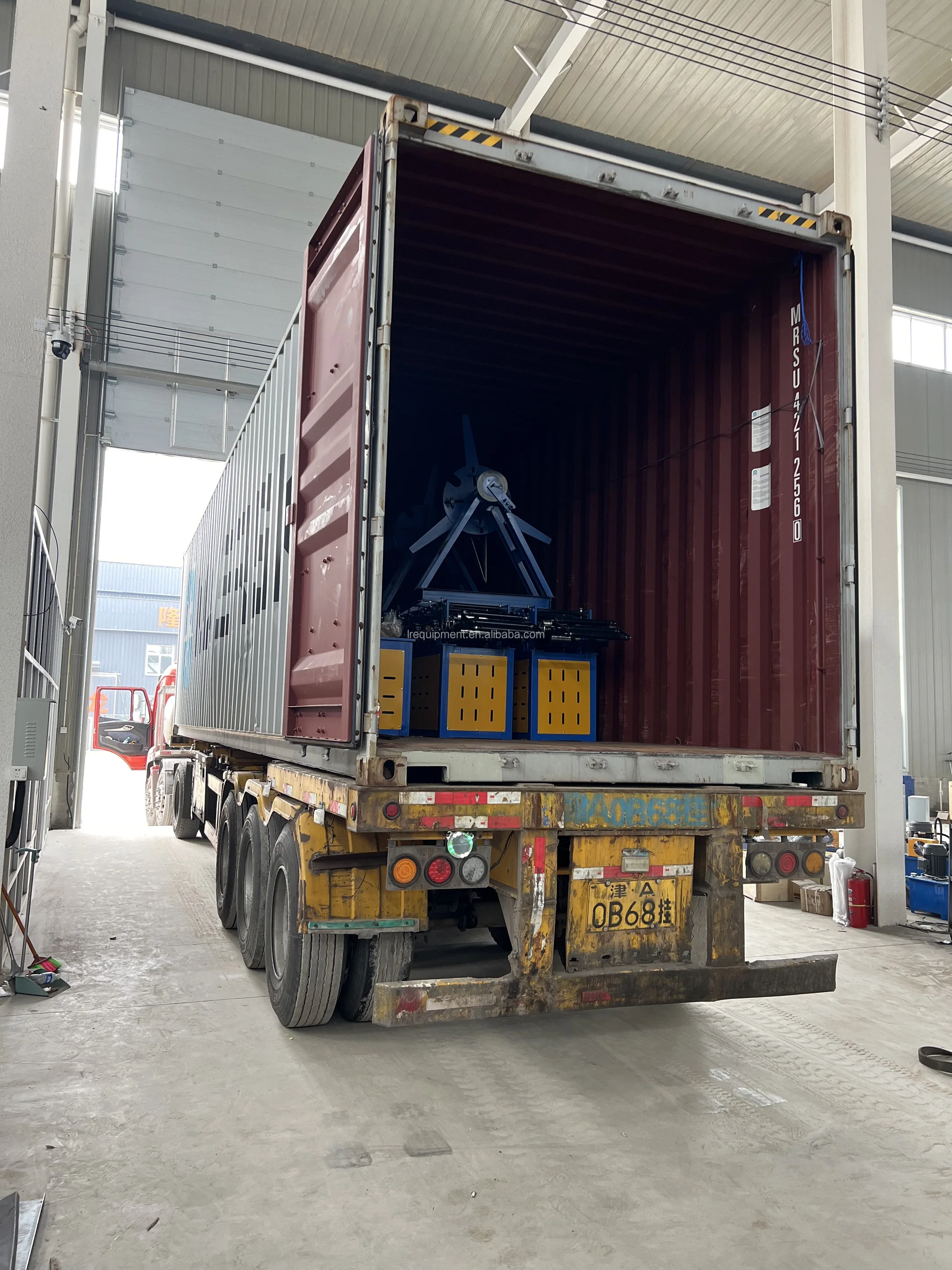

1.Packing:

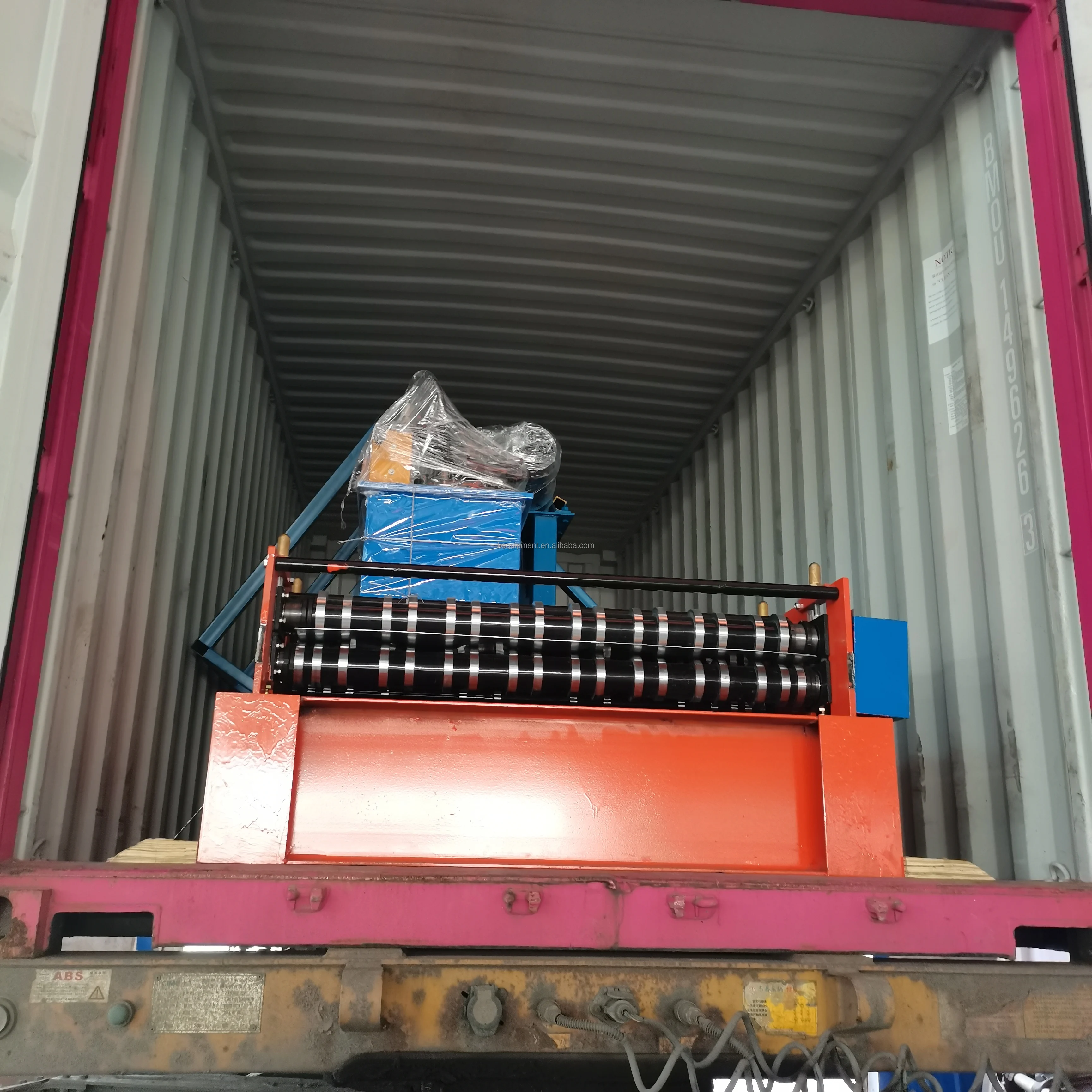

1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
1)Machine is nude loaded in the container
2)The electric controlling box is packed by protect film
3)All the spare parts are put in the wooden box
2.Delivery:
1)Sea shipping
2)Air shipping for sampling
3)Train shipping for landlocked countries serviced by CRExpress Europeblock train
Warranty
Warranty: 2 years warranty from date of shipment
Guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period
Why Choose Us
Why choose LINRAN?
1. Unique coil processing solutions for metalworking?
ZHENGZHOU LINRAN EQUIPMENT is aimed at providing our customers with the best quality metal rolling automation solutions and after-sales service.
2. Equipment research and developing.
Our company commits to providing customized coil processing solutions according to each customer's specific metalworking process. With an experienced technical team and continuous research investment, we are capable to offer coil handling solutions that meet higher international standards.

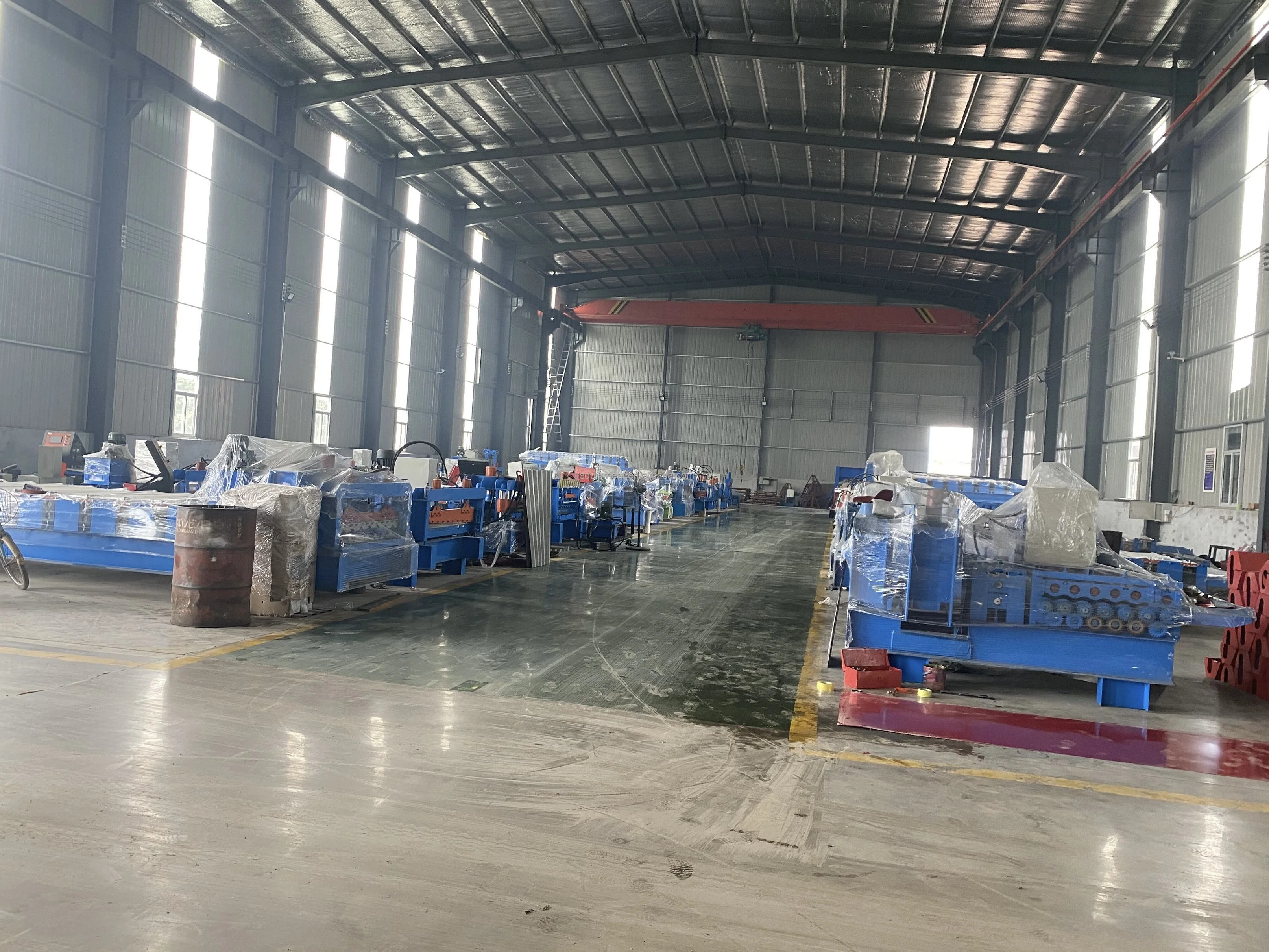

3. Manufacturing quality control.
With precision machine tools and skilled workers, from spare parts preparation to equipment assembly, our machine can offer real-time manufacturing updates for our valued customers.
From raw material control, spare parts inspection, and machine assembly, our factory implements a strict quality control process. We commit to offering coil performance. Our work is just for making sure all the products of machines are qualified.
ZHENGZHOU LINRAN EQUIPMENT is aimed at providing our customers with the best quality metal rolling automation solutions and after-sales service.
2. Equipment research and developing.
Our company commits to providing customized coil processing solutions according to each customer's specific metalworking process. With an experienced technical team and continuous research investment, we are capable to offer coil handling solutions that meet higher international standards.
3. Manufacturing quality control.
With precision machine tools and skilled workers, from spare parts preparation to equipment assembly, our machine can offer real-time manufacturing updates for our valued customers.
From raw material control, spare parts inspection, and machine assembly, our factory implements a strict quality control process. We commit to offering coil performance. Our work is just for making sure all the products of machines are qualified.
FAQ
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% deposit by T/T, 70% balance by T/T before shipment. Of course, L/C at sight is acceptable. The delivery time is about30-45days after receipt of the deposit or L/C.
Q2. Can you provide some spare parts?
A2: Yes,the quick-wear parts will send you together with the machine.
Q3. Do you sell only standard machines?
A3: No, most of our machines were produced according to customers' specifications, we accept OEM.
Q4. What will you do if the machine is broken?
A4: Within the warranty(12 months),if the broken parts can't be repaired well, we can send you the new ones freely,but you should pay the express cost. If it is beyond the warranty period, we can discuss how to solve the
problem perfectly, anyhow we offer the technical support for the whole life of the machine.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or your address. we have rich experience in transportation.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, by high speed train From Beijing Nan to Cangzhou Xi railway station(1 hour);
2)or Fly to Shanghai Airport, by high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
...we would meet you at Cangzhou Xi railway station.
A1: 30% deposit by T/T, 70% balance by T/T before shipment. Of course, L/C at sight is acceptable. The delivery time is about30-45days after receipt of the deposit or L/C.
Q2. Can you provide some spare parts?
A2: Yes,the quick-wear parts will send you together with the machine.
Q3. Do you sell only standard machines?
A3: No, most of our machines were produced according to customers' specifications, we accept OEM.
Q4. What will you do if the machine is broken?
A4: Within the warranty(12 months),if the broken parts can't be repaired well, we can send you the new ones freely,but you should pay the express cost. If it is beyond the warranty period, we can discuss how to solve the
problem perfectly, anyhow we offer the technical support for the whole life of the machine.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or your address. we have rich experience in transportation.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, by high speed train From Beijing Nan to Cangzhou Xi railway station(1 hour);
2)or Fly to Shanghai Airport, by high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
...we would meet you at Cangzhou Xi railway station.
