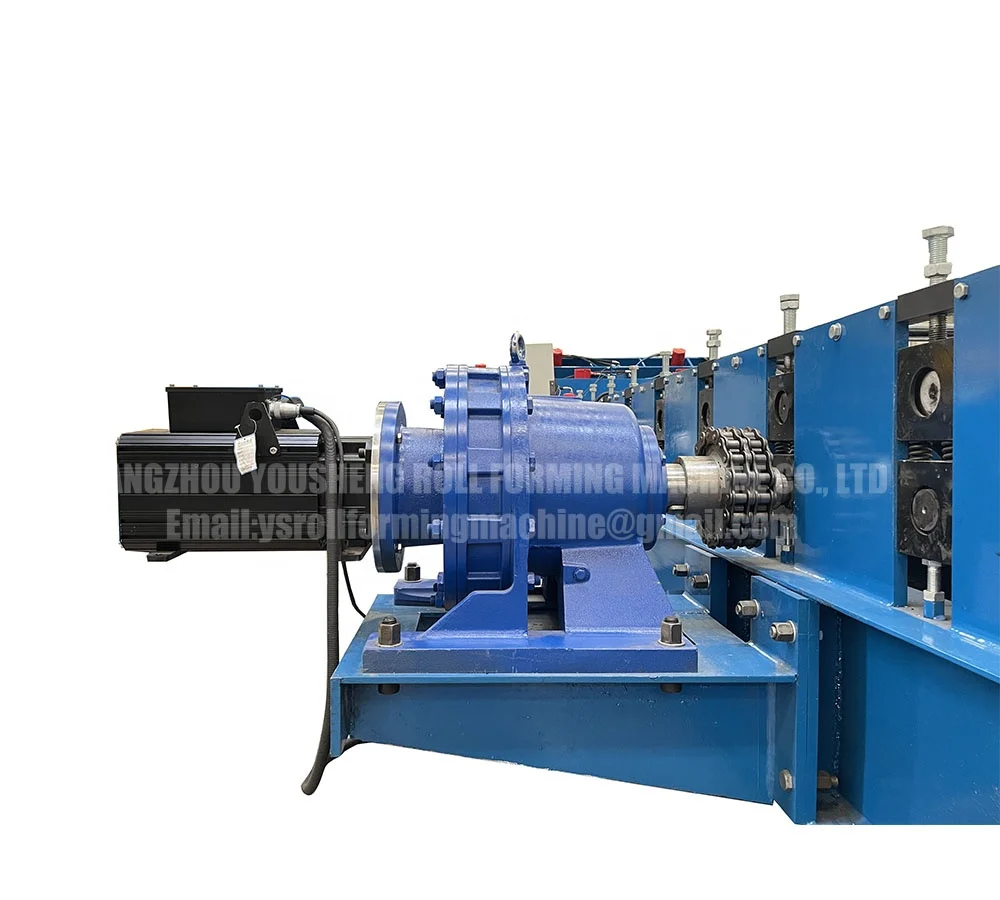

Automatic Silo Forming Grain Silo Making Machine Cistern surround panels Barrel bin making machine (1600859691217)

Share on:


Price:$28,000.00 - $34,000.00
Price in USD:Details

Quantity:


Product Overview

Description





Direct Sales Automatic Silo Forming Grain Silo Making Machine
Silo Forming Grain Machine is for producing silo wall panels which is corrugated and curved.
A steel silo is a structure for mass storage materials. Steel Silos are used in agriculture to store grain or fermented feed known as silage.

This machine includes punching, we are equipped with a separate punching device, and a PLC operation box is installed in the punching device, this PLC operation box is specially used to operate the hole position and size.

Our Company have a whole range of roll forming machines for Steel Silo. Such as Grain Steel Silo Corrugated Wall Panel Roll Forming Machine, Steel Silo Post Roll Forming Machine.




PRODUCT SPECIFICATIONS


No
Specification:
1
Suitable material
Material
Galvanized sheet
2
Output Width:
1220-1450mm
3
Thickness:
1.0-3.0mm
4
Yield strength:
Q235
2
Power
Main power:
18.5kw
3
Hydraulic power:
7.5 kw
3
Forming Speed:
8-12 meters/min
4
Punching:
1. one set of side hole punching device;
2. one set of middle hole punching device;
5
Curving Part:
Curving speed:
2m/min
Curving Diameter:
4-12m
Curving rollers:
5 stations
6
Hydraulic decoiler
Loading:
10 tons
Inner diameter:
508mm
Type:
Hydraulic
7
Machine specification
Roll stations:
18-24 roll stations
Splint thickness:
25mm
Diameter of shaft:
110 mm(solid)
Sizes of chain:
1.2 inch double chain
Type of cutting:
Hydraulic cutting
Material of cutter:
CR12
Material of rollers:
Carbon steel with heat-treatment,
with hard chrome coating after
precision lathe
Sizes of machine:
7500*1700*1200mm


Version Size
The following drawings can be used as a reference




Molding Process
Uncoiling- Feeding and Guiding- Roll Forming-Pre-cutting-Punching Holes- Curving- Cutting-Receiving




Product Display









Production line composition


Hydraulic uncoiler
Feeding platform
Forming part


Whole Range Of Roll Forming Machines For Steel Silo




Company photo










Product loading




We use 10mm oil wire rope to reinforce the machine to ensure the stability of the machine during transportation.




FAQ


Q: What's your payment term?
-30% by TT for the advance payment at order
-70% will be paid after inspection in China before shipment.
Q: How to repair the machine during the warranty period?
- During the warranty period of the machine, we will buy and send you free accessories for non-artificially damaged parts.
Q: What kind of after-sales service do you provide?
- 24 months from the date of loading by the seller, during the warranty period, we provide lifetime free technical support and repair consultation.
Q: How can you quickly solve your after-sales problems?
- You need to contact your salesman, and the salesman will give feedback to the technical department in time to solve your problem quickly.
