Product Overview

Description

Waterproofing Polyurethane Resin Injection Pump, pugrout machine



Product Description

  1. Item: IE-03
  2. Weighing 9 KGS, portable, easy to carry & maintain, maximum output pressure up to 70MPa.
  3. Injection pressure:0-70Mpa(8000-10000Lb)
  4.  one ways of material feed-in: pour
  5. The Drill is Matabo or Ruth. The power consumption:560W/220V or 110V

Material of application

WPU and OPU foam stop leakage agent, Epoxy resin.

Application Field

Subway Station, Tunnel, Culvert, Foundation Improvement, Soil Settlement, Reservoir, Port Project, Top Slab, Crack, Construction Join, Shrinkage Crack, Basement hairline crack etc. water stop projects.

Specification



No.ItemStandard
1AppearanceAluminum structure, modular design
2Volume 450mm length * 500mm height * 230mm width
3Drive toolMetabo B561 electrical drill
4Drive power220V/110V,50HZ,26A,560W
5Maximum pressure 70Mpa / 10000psi / 680bar
6Working pressure20-40MPa / 2800-5600psi / 195-390bar
7Injection performanceeasy to inject, can use at low temperatures; single component grouting, simple construction, easy to clean up
8Application rangesubways, tunnels, reservoirs, underground structures, hair-like cracks, construction joints, expansion joints, cracks,site improvements, harbor construction, floor and other upgrading works.
9sealing agent applied water base polyurethane, oil base polyurethane, epoxy resin
10 Net Weight 7KG
11 Gross Weight 9KG
12Packagecarton







Weight

9 kg

Maximum output pressure

70MPa

Pressure of restarting

less than 20 MPa

Safe range of high-pressure hose

less than 70 MPa

Safe range of switch valve

less than 50 MPa





Full set of machine include:

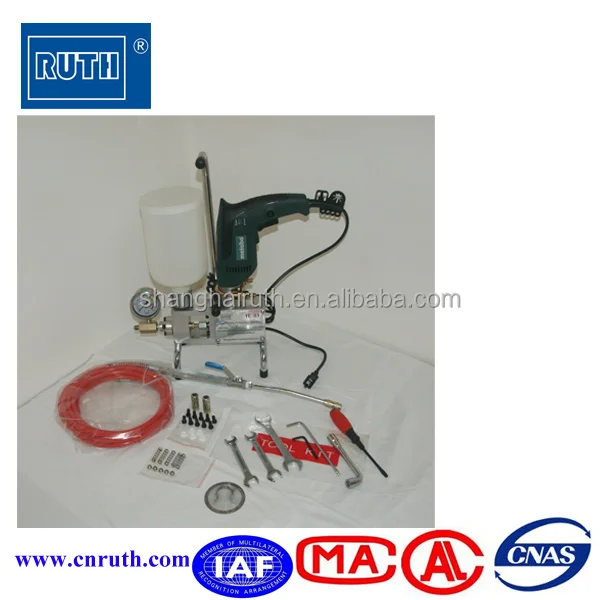

  1. The machine
  2. Accessories, including high pressure hose (4.5m), on &off valve, grease head.
  3. Standby tools

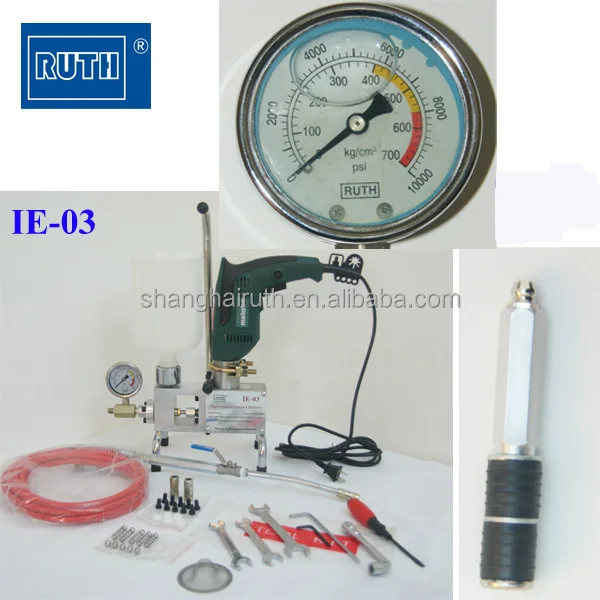

Ruth Injection machine.JPG
