2 pole 2838 inrunner brushless rc 380 motor brushless motors for rc boats,ships,yatcht and speed boat

Product Overview

Description

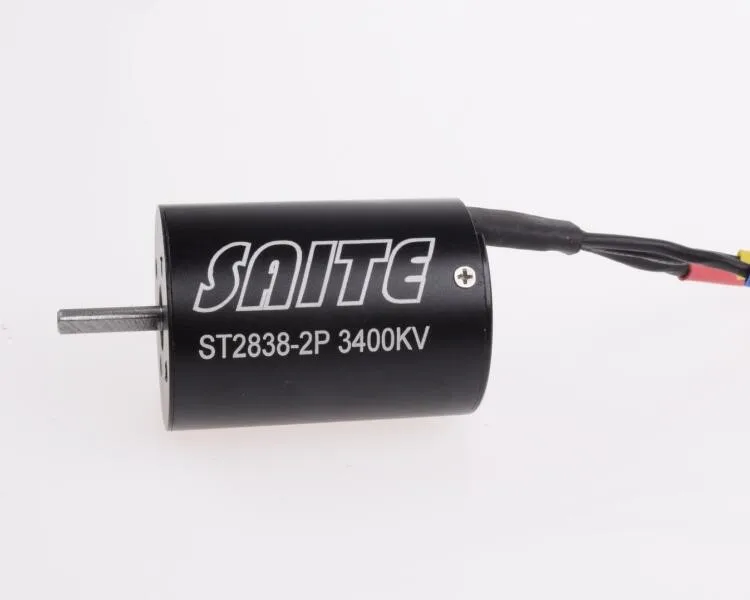

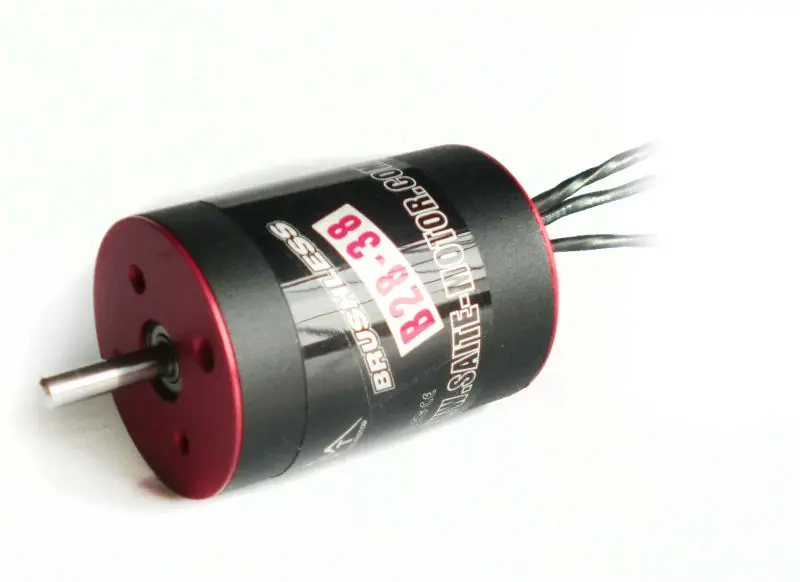

2-pole ST2838 inrunner brushless rc 380 motor brushless motors for rc boats,ships,yatcht and speed boat



Introduction:
   Shenzhen Saite Motor Co.,Ltd. is a professional RC motor manufacturer. With abundant production line of Inrunner & Outrunner brushless motors. Which can be apply to RC cars, boats, airplanes and helicopters. All our products are select the Japanese NMB pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced.
   We can customize our motors according to your own specifications and requirements, such as the color, appearance, as well as the KV rating and structure design, and laser engraved logos are available.



Features:

1.Manual Winding;   Ensure the wire aesthetics and tidy.

2.Imported bearing;  Reduce the resistence and smooth when operation.

3.Imported stator core;  Ensure perfect power and reduce the current.

4.High temperature copper wire;  Ensure high efficiency even in high temperature.



Motor Technical Parameter:

Model	Turns	KV	Shaft  (mm)	Size(mm)	Weight (g)	Max Amps	Resistance	I0(A)	Max        Power  (W)	Battery (Li-Po)	ESC
ST2838B	12	5500	3.17	28*38	98	40	0.017	3.1	300W	2S	60A
ST2838B	13	5200	3.17	28*38	98	37	0.019	2.6	300W	2S	60A
ST2838B	14	4850	3.17	28*38	98	34	0.023	2.3	300W	2-3S	40A
ST2838B	15	4550	3.17	28*38	98	31	0.027	2.1	300W	2-3S	40A
ST2838B	16	4330	3.17	28*38	98	29	0.03	1.8	300W	2-3S	40A
ST2838B	17	4050	3.17	28*38	98	25	0.034	1.4	300W	2-3S	35A
ST2838B	18	3700	3.17	28*38	98	24	0.038	1.3	300W	2-3S	35A
ST2838B	19	3400	3.17	28*38	98	23	0.045	1.2	300W	2-4S	25A
ST2838B	20	3100	3.17	28*38	98	22	0.05	1.1	300W	2-4S	25A

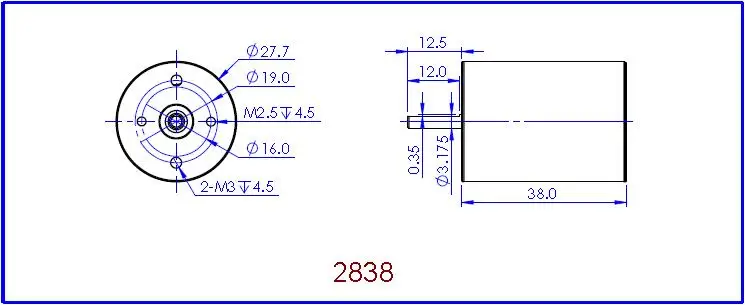

Drawing:

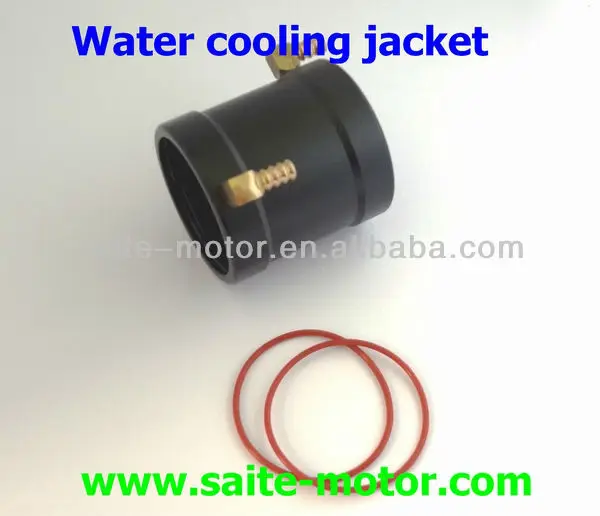

Accessory for RC Boat use:



Picture:





Packaging:
