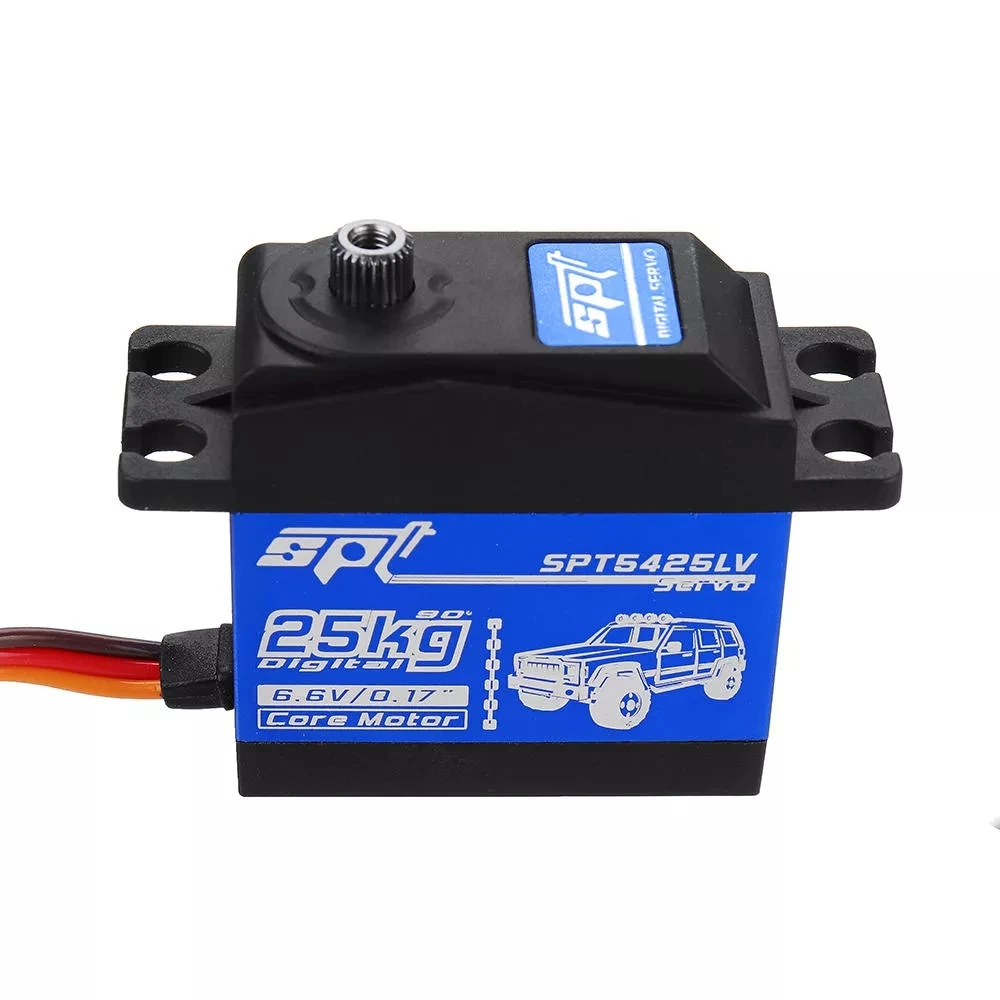

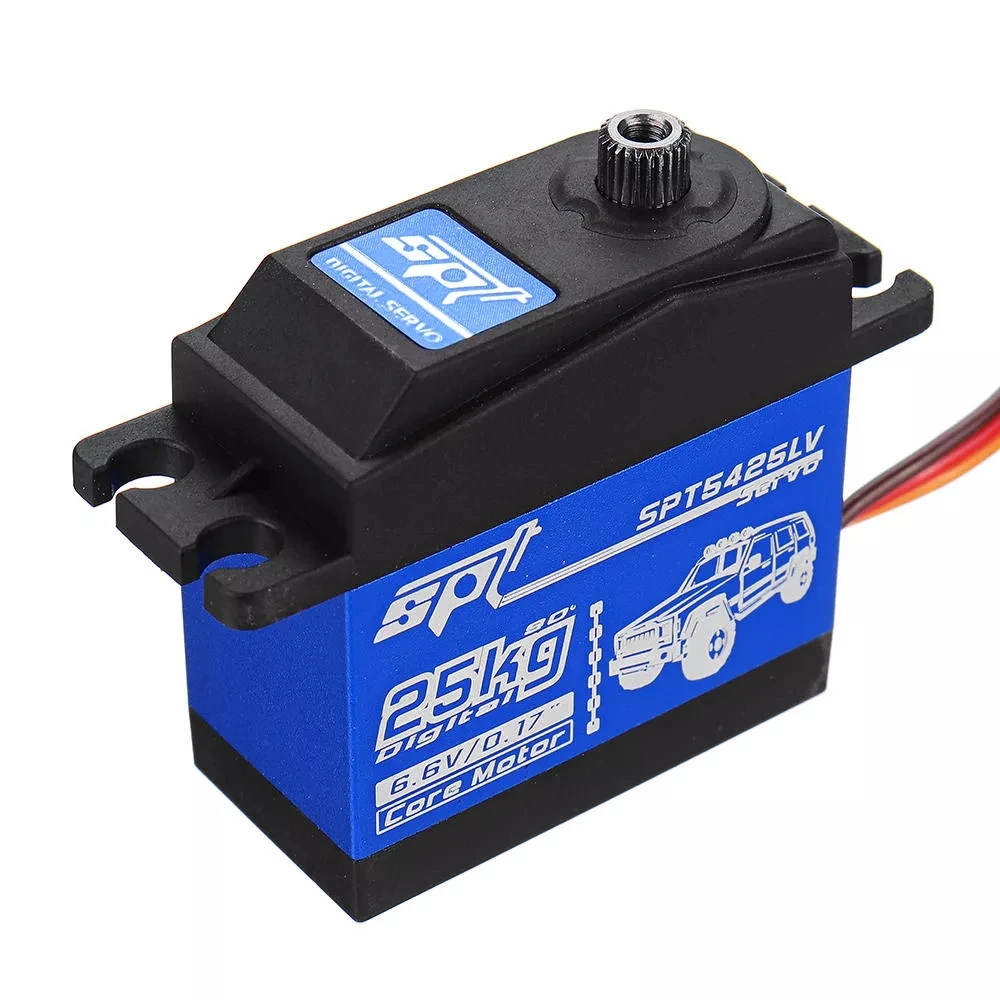

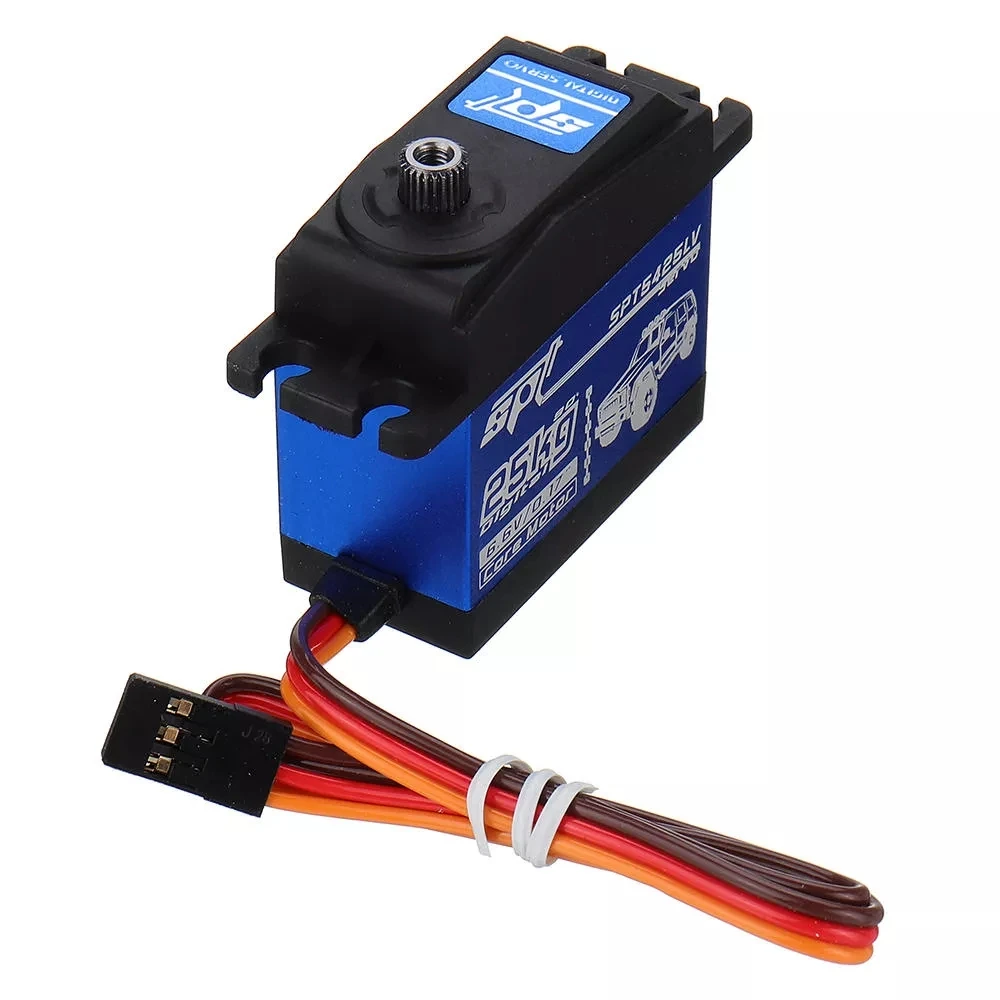

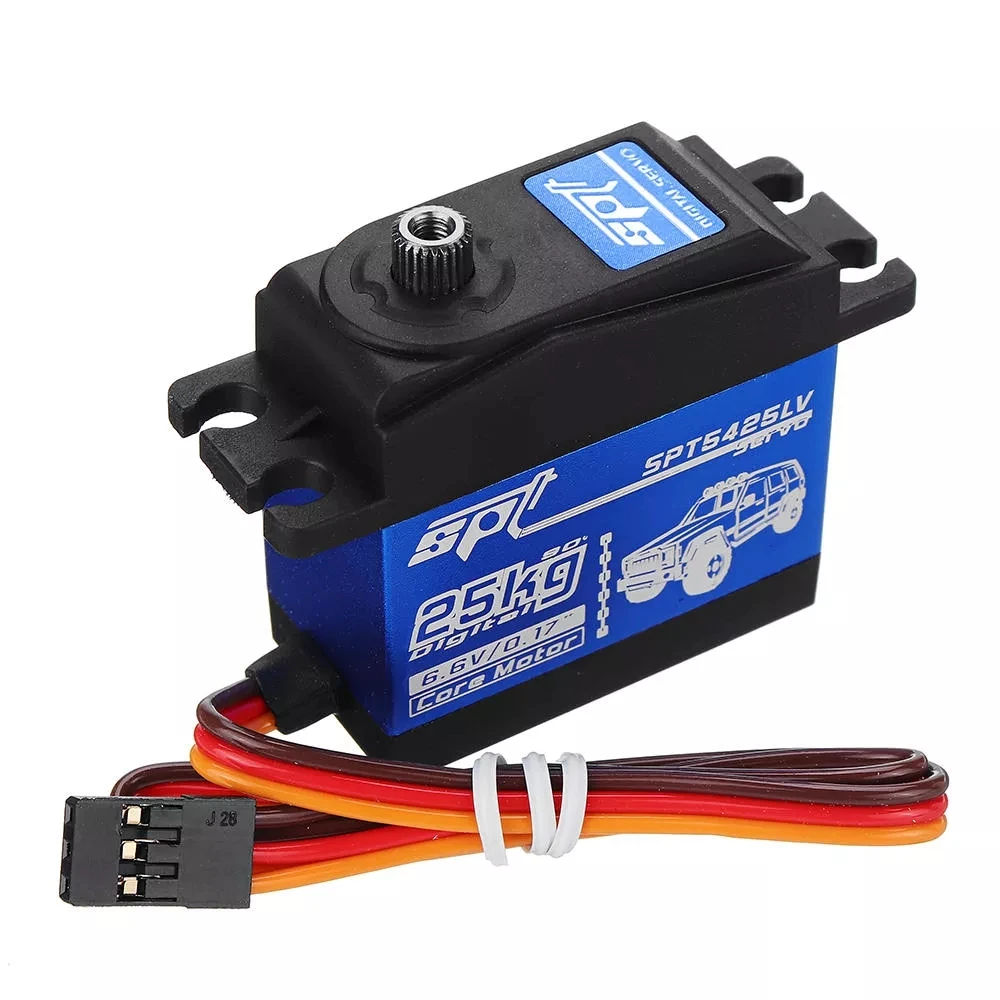

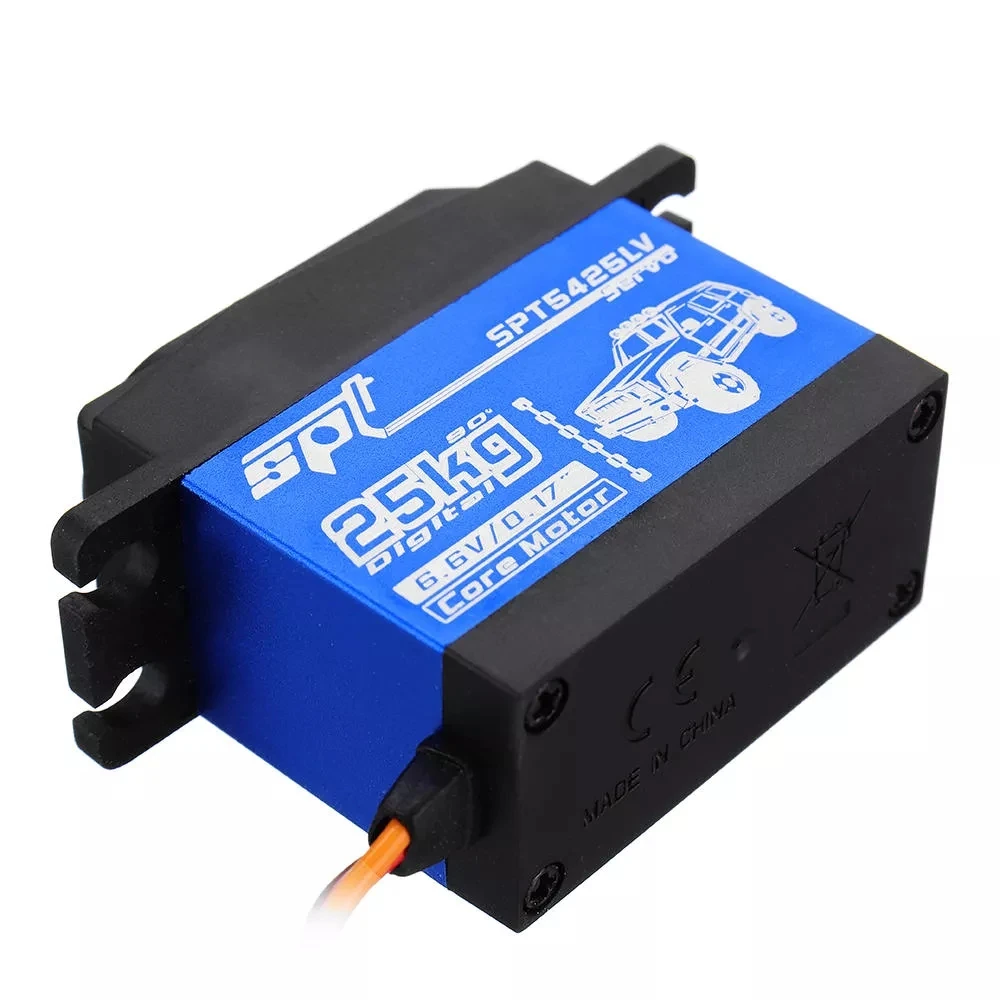

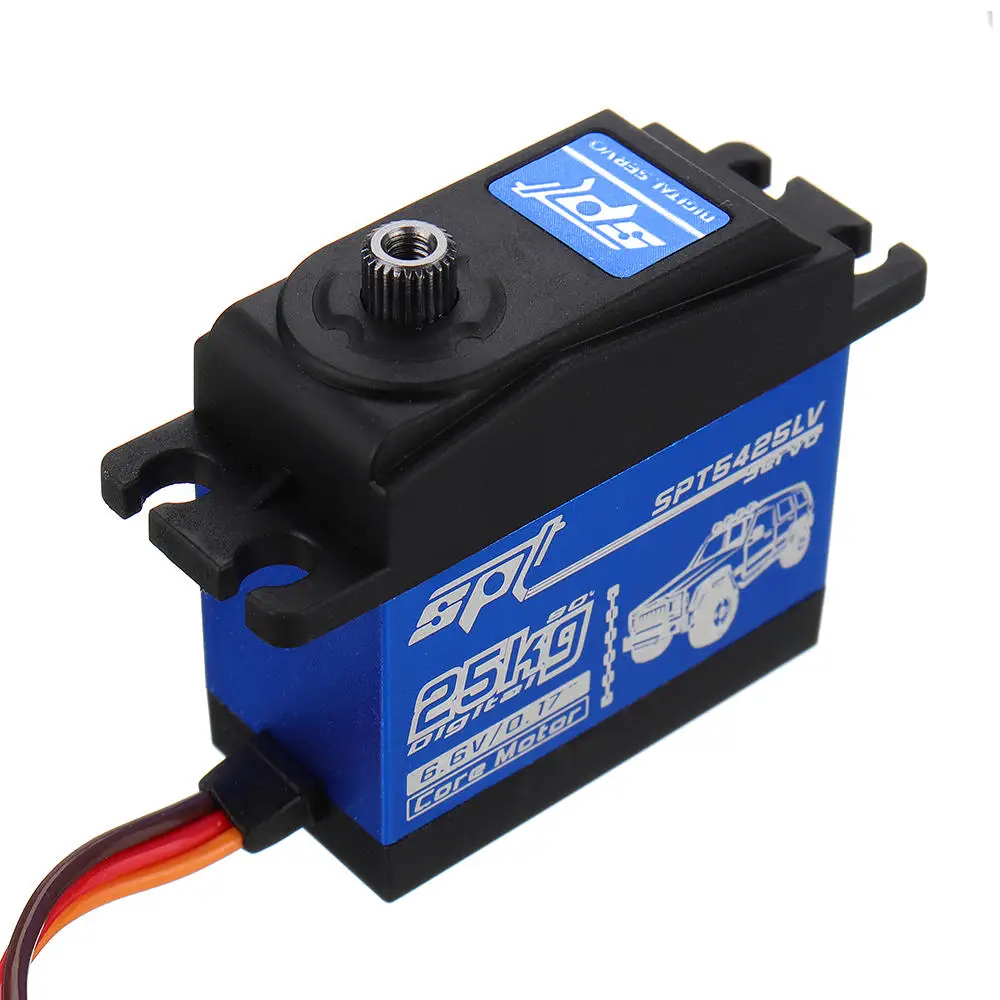

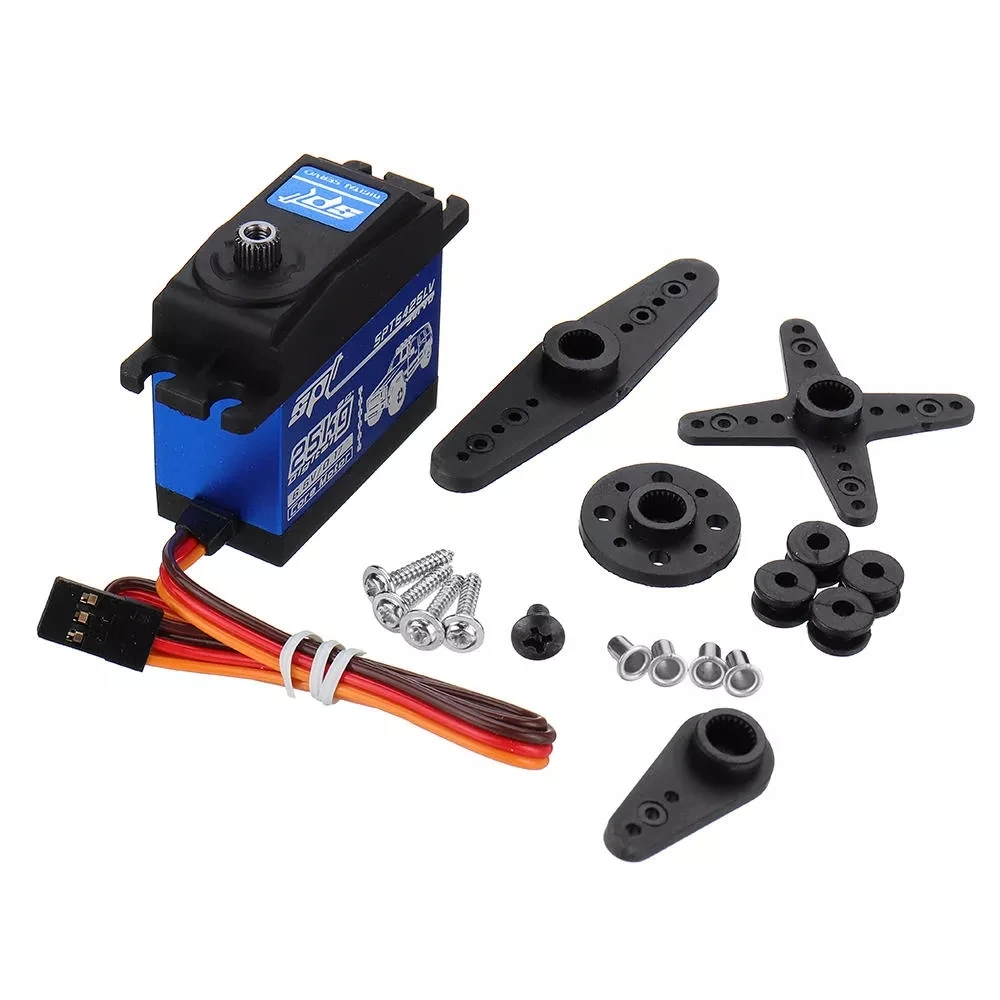

SPT5425LV 25KG High Torque Digital Metal Gear Dc 1 10 rc car steering Servo Motor

Product Overview

Description

SPT5425LV 25KG High Torque Digital Metal Gear Dc 1 10 rc car steering Servo Motor





Brand:	SPT Servo	Potentiometer:	Mechanics
Motor:	Core	Voltage Range:	4.8V/6.0V
Neutral Point:	1500μs	Signal Frequency:	330Hz
PWM Voltage:	3.3V-5.0V	PWM Voltage:	3.3V-5.0V
Feedback Angle:	No	Operating Temperature:	-10℃-50℃
Cycle:	20ms	Dead band:	4μs
Default Direction:	CCW	Yes / no Lock:	Lock
Remote control Angle:	90°	500-2500μs Angle:	/° / PWM
Quiescent Current:	50mAh	Rated Current:	1.2A
Blocking Current:	2.5A	Weight / Dimensions:	57g / 40.5*20*40.5mm

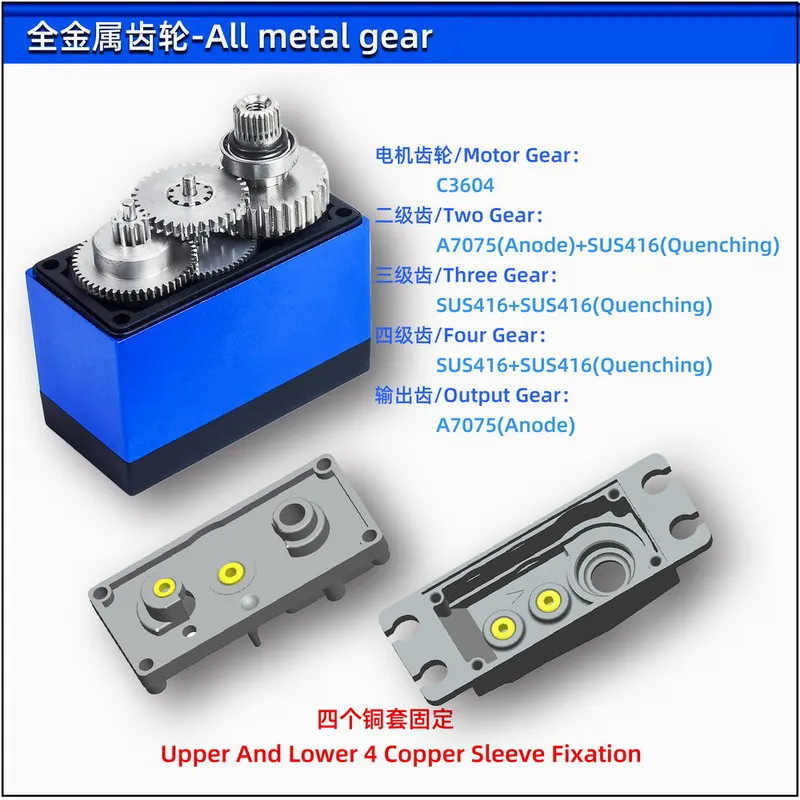

Output Gear:	Futaba 25T	Gear Material:	All Metal Gear
Shell Material:	Half Aluminum Shell	Bearing:	2BB
Connector Wire Length:	260MM	line Definition:	Brown-/Red+/Orange s
Operating Speed:	4.8V/0.22''/60°	6.0V/0.18''/60°	/
Stall Torque:	4.8V/24kg.cm	6.0V/26kg.cm	/













Dead band:4μs
Neutral Position:1500μs/330hz
Motor: Core motor
Remote control Angle:90-120°±2°
Voltage range:4.8V-6.0V
Operating Speed(4.8V):0.22''/60°
Operating Speed(6.0V):0.18''/60°
Stall Torque(4.8V):24 kg.cm
Stall Torque(6.0V):26 kg.cm
Dimensions:40.5X20X40.5mm
Weight: 57g
Connector Wire Length: JR 260 mm
Bearing: 2BB



OEM/ODM Order question





* For the SERVOS please let us know your requirements:                                              1. Which Area you used for? RC Servo or Industry Servo?   2. What's your expected torque?   3. What's your expected speed?   4. Do you have serice life requirement?   5. Your working voltage please.   6. Do you have location dimension limited? If so, please let us know the maximum size.   7. Do you need it waterproof?   8. How many qtys you need?   9. Other requirements if you need, for example, wire length, connector types and so on. * For the MOTORS please let us know your requirements:   1. Please choose inrunner motor or outrunner motor you need.   2. Do you have motor diameter and length limited?   3. What working voltage you will use for this motor?   4. What's your expected rated power?   5. What's your expected RPM?   6. You battery pack can bear how high peak current?   7. You estimated yearly sales qty?   8. Do you need the speed controller as well or if you have yours,let us know the spec.   9. Other requirements if you need, for example, wire length, connector types etc. Contact us directly via Trade Manager or send us email, we will reply ASAP in 24 hours. Below our custom made motors for other clients for your information.
