Puntales Telescopicos Acrow

Product Overview

Description

Adjustable scaffolding prop,construction prop



A) Height: 0.5m-0.8m, 0.6m-1.0m, 0.7m-1.2m, 1m-1.8m, 1.6m-2.5m, 1.6m-2.9m, 1.6m-3.0m, 1.7m- 3.1m, 1.8m-3.2m, 2.0m-3.5m, 2.0m-3.6m, 2.2m-4.0m, 3.2m-4.8m, 3.5m-5.0m, etc.



B).Diameter of tube: 60/48mm, 56/48mm, 48/40mm.



C) Thickness: From 1.5mm to 5.0mm



D) Surface treatment: Blue, orange, brown color; Hot DIP galvanizing, galvanization, zinc plating



E) Package: Pallet, Bundle, seaworthy wooden case, plastic bag or According to customers' needs



F) Steel Material: Q235



G)Surface treatment: dip painted, powder coated, electro galvanized, hot dip galvanized.



H)Package: 50/60pcs/bundle,  in bulk, putting in 20/40GP container.



Adjustable Jack Post

Type	Adjustable Height(M)	External tube    (mm)	Internal tube  (mm)
Spanish Prop	0.8-1.4	48×1.6×765	40×1.8×835
	1.6-3.0	48×1.6×1600	40×1.8×1600
	2.0-3.5	48×1.6×1716	40×1.8×2000
	2.2-4.0	48×1.6×2000	40×1.8×2200
Italian Prop	1.6-2.9	56×1.6×1524	48×1.8×1600
	1.8-3.1	56×1.6×1524	48×1.8×1800
	2.0-3.6	56×1.6×1750	48×1.8×2000
	2.2-4.0	56×1.6×2024	48×1.8×2200
German Prop	1.4-2.7	60×2.85×1396	48×3.2×1400
	1.6-2.7	60×2.7×1550	48×3.2×1600
	1.62-2.64	60×2×1396	48×3.2×1610
	2.0-4.5	60×2.85×1900	48×3.2×2000
	2.2-4.0	60×3×1900	48×3.5×2200
	3.0-5.5	60×3.2×2680	48×3.2×2900



Customized sizes are also available, pls inform the size and drawing.



Waiting for your kindly enquiry.

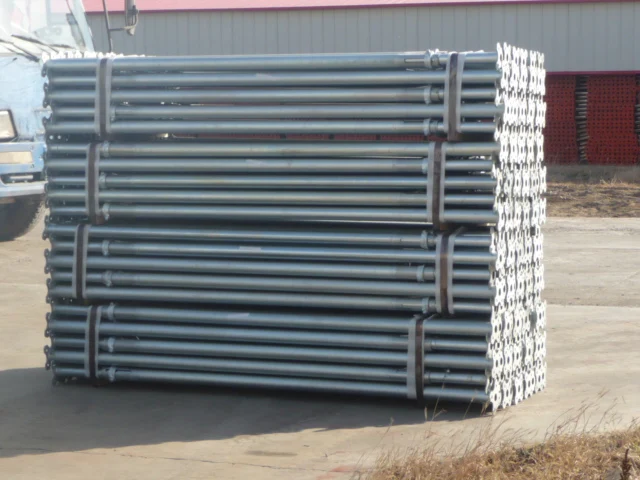

Electro galvanized  scaffolding

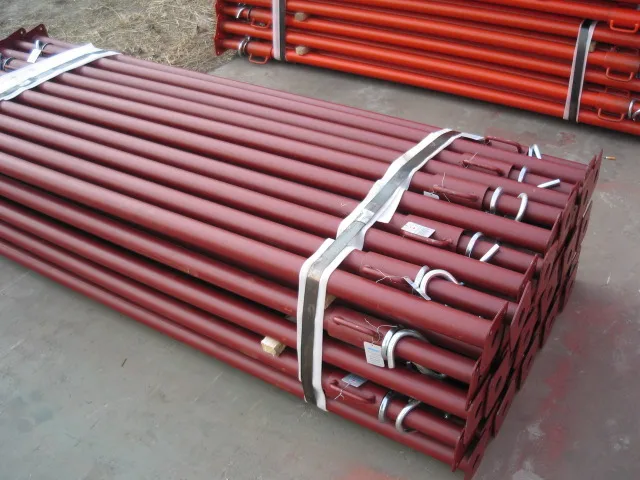

Painted  surface scaffolding
