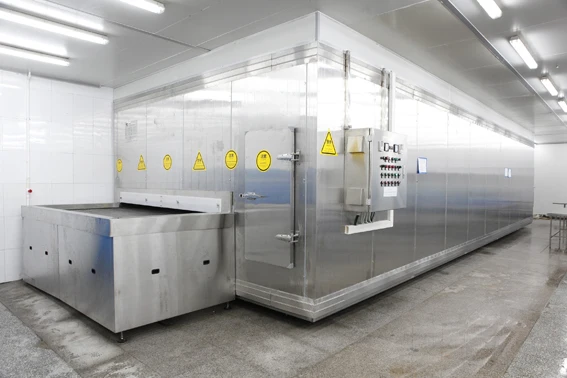

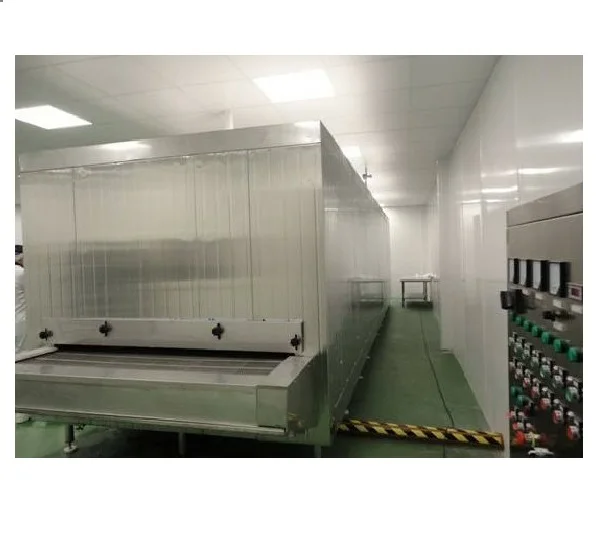

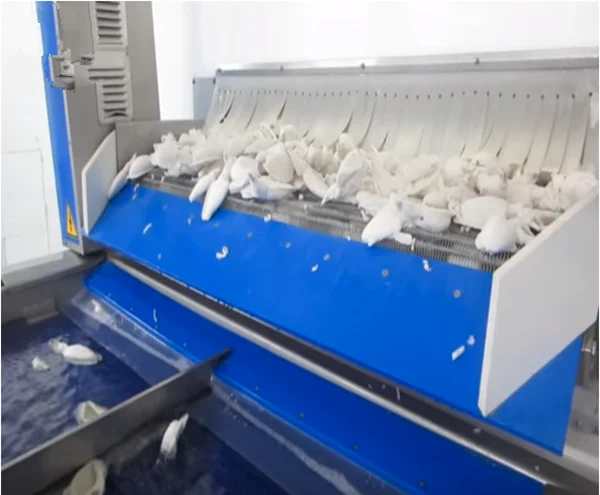

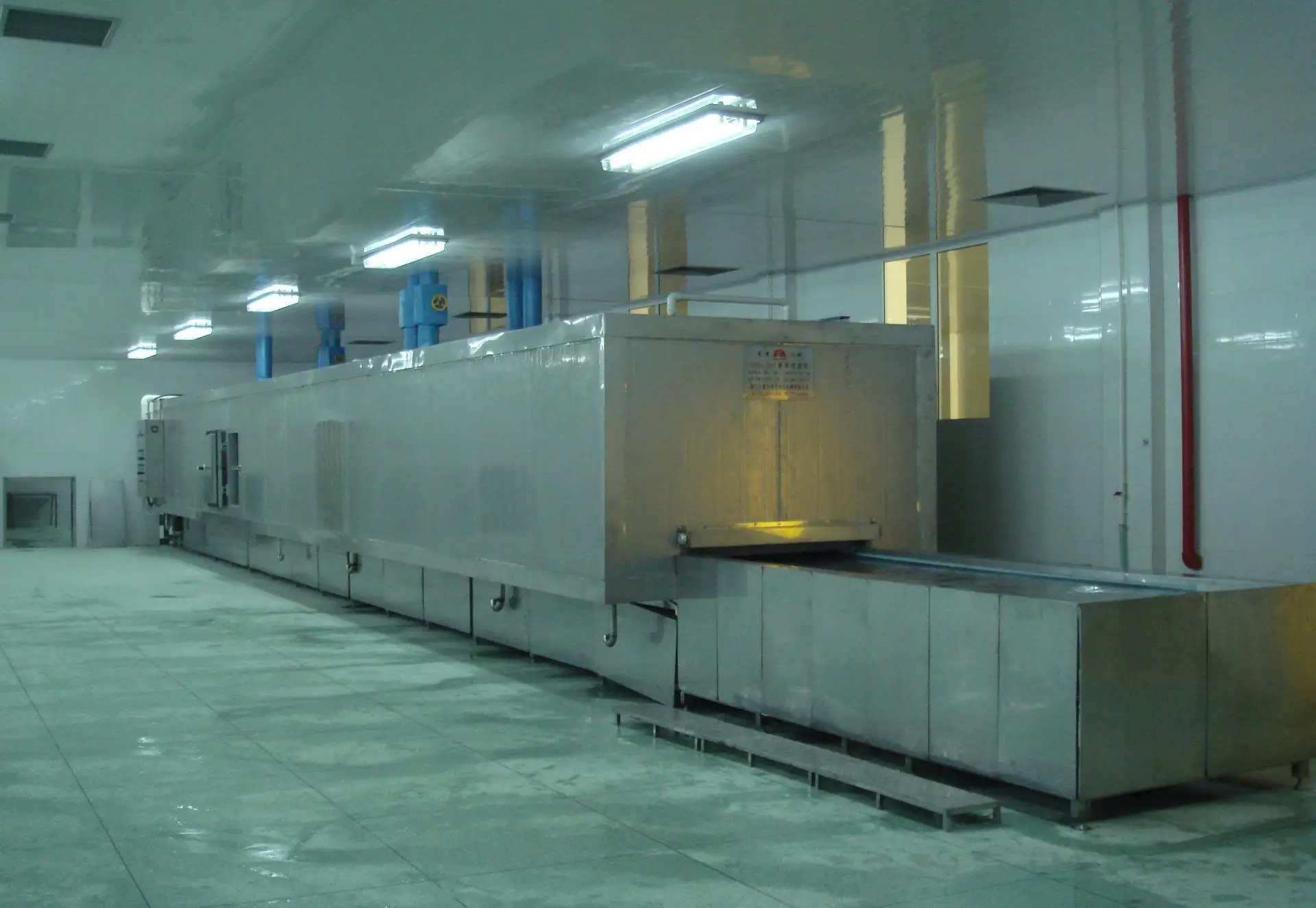

fish fast freezing machine/squid iqf quick blast freezer/tunnel freezer
- Category: Freezing Equipment >>>
- Supplier: Shandong Ecoice Refrigeration Co. Ltd.
Share on (1600356636360):
Product Overview
Description
Product Description
Specification
Tunnel quick freezers are mostly used for flour food freezing, fruits & vegetables freezing, meat
freezing, seafood freezing and prepared food freezing .in quick-freezing strip, cubic or grain food, such as shrimp meat, shrimp,sliced fish, meat dumpling, divided meat, pig tongue, chicken, asparagus and yam. It saves energy and is convenient in cleaning and maintenance.
freezing, seafood freezing and prepared food freezing .in quick-freezing strip, cubic or grain food, such as shrimp meat, shrimp,sliced fish, meat dumpling, divided meat, pig tongue, chicken, asparagus and yam. It saves energy and is convenient in cleaning and maintenance.
SSD Tunnel slab Band Quick Freezer | ||||||
Capacity(kg/h) | 300 | 500 | 750 | |||
Machine size(meter) | L18*W2.5*H1.6 | L24*W2.5*H1.6 | L28*W2.5*H1.6 | |||
In feed temperature(℃) | +10 | |||||
Out feed temperature(℃) | -18 | |||||
Inner circulation Tem(℃) | -36±2 | |||||
Frozen time(Min) | 5-60 | |||||
SSD Tunnel mesh belt Quick Freezer | ||||||||
Capacity(kg/h) | 500 | 750 | 1000 | 1500 | ||||
Machine size(M) | L10.3*W3.3*H2.2 | L12.3*W3.7*H2.2 | L15.3*W3.7*H2.2 | L18.3*W4.3*H2.2 | ||||
In feed Tem(℃) | +20 | |||||||
Out feed Tem(℃) | -18 | |||||||
Inner Circulation Temperation(℃) | -35±2 | |||||||
Frozen time(min) | 10-60 | |||||||
LLD Tunnel IQF Freezer | ||||||||
Capacity(kg/H) | 500 | 750 | 1000 | 1500 | ||||
Machine size(M) | L11.W3.3*H2.6 | L13.3*W3.7*H2.6 | L16.3*W3.7*H2.6 | L19.3*W4.3*H2.6 | ||||
In feed Tem(℃) | +15 | |||||||
Out feed Tem(℃) | -18 | |||||||
Inner circulation Temperature(℃) | -35±2 | |||||||
Frozen time(min) | 10-60 | |||||||
Tunnel freezer Feature:
1, IQF food is quality.Frozen food isn't bonded,conforming to export standards of food hygiene.
2, Short freezing time, adopted the good effect cross-ventilation, with the freozen time 3 to 60 mins.
3, Matched with double speed electric motor, widen the use bound as well as saving the energy.
4, Air blower is divided into cross blast from right and left,mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency.
5, The equipment is manufactured with the frequency conversion double level drivers system. Each of the driver system can work in gear when some malfunction with the other driver system or frequency conversion drivers system, the speed can be changed in certain range.
6. The air cooler complete manufactured with aluminum duct and aluminum sheath which improve the sanitation standard and the freezing efficiency.
7. The periphery body heat preservation system is manufactured with ployamine double-surface stainless steel. With the traits of good heat insulation, artistic but unaffected outline.
1, IQF food is quality.Frozen food isn't bonded,conforming to export standards of food hygiene.
2, Short freezing time, adopted the good effect cross-ventilation, with the freozen time 3 to 60 mins.
3, Matched with double speed electric motor, widen the use bound as well as saving the energy.
4, Air blower is divided into cross blast from right and left,mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency.
5, The equipment is manufactured with the frequency conversion double level drivers system. Each of the driver system can work in gear when some malfunction with the other driver system or frequency conversion drivers system, the speed can be changed in certain range.
6. The air cooler complete manufactured with aluminum duct and aluminum sheath which improve the sanitation standard and the freezing efficiency.
7. The periphery body heat preservation system is manufactured with ployamine double-surface stainless steel. With the traits of good heat insulation, artistic but unaffected outline.

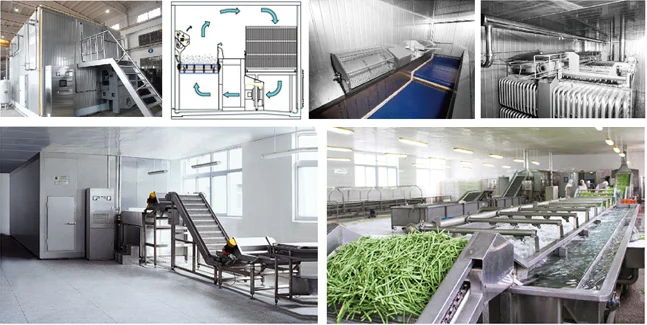

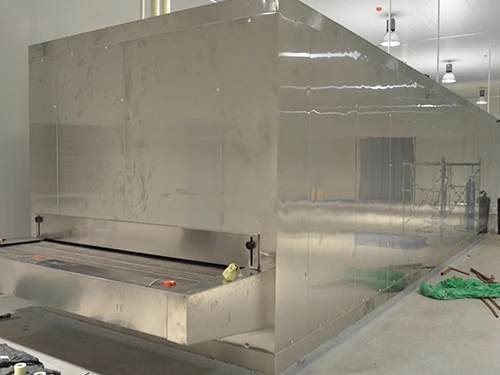

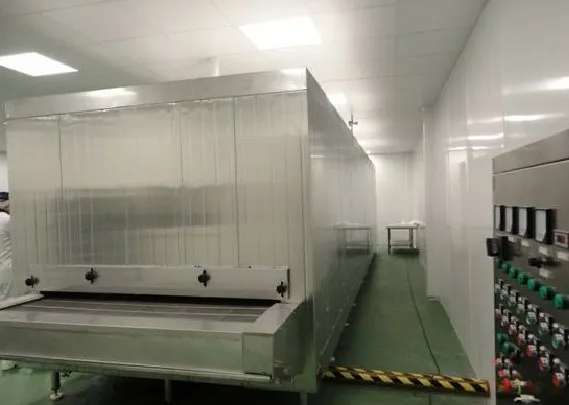

Details Images
Packing & Delivery
WOODEN CASES
